Home / Products / PELÉE DOWNLIGHT

PELÉE DOWNLIGHT

The inner conical circles of the Pelée downlighters define the design and contribute to a comfortable, non-glaring spread of light.

Comprising pendants, wall fittings, downlighters and surface-mounted fixtures, the Pelée family covers most indoor applications.

Specifications

Specifikationer

Please choose

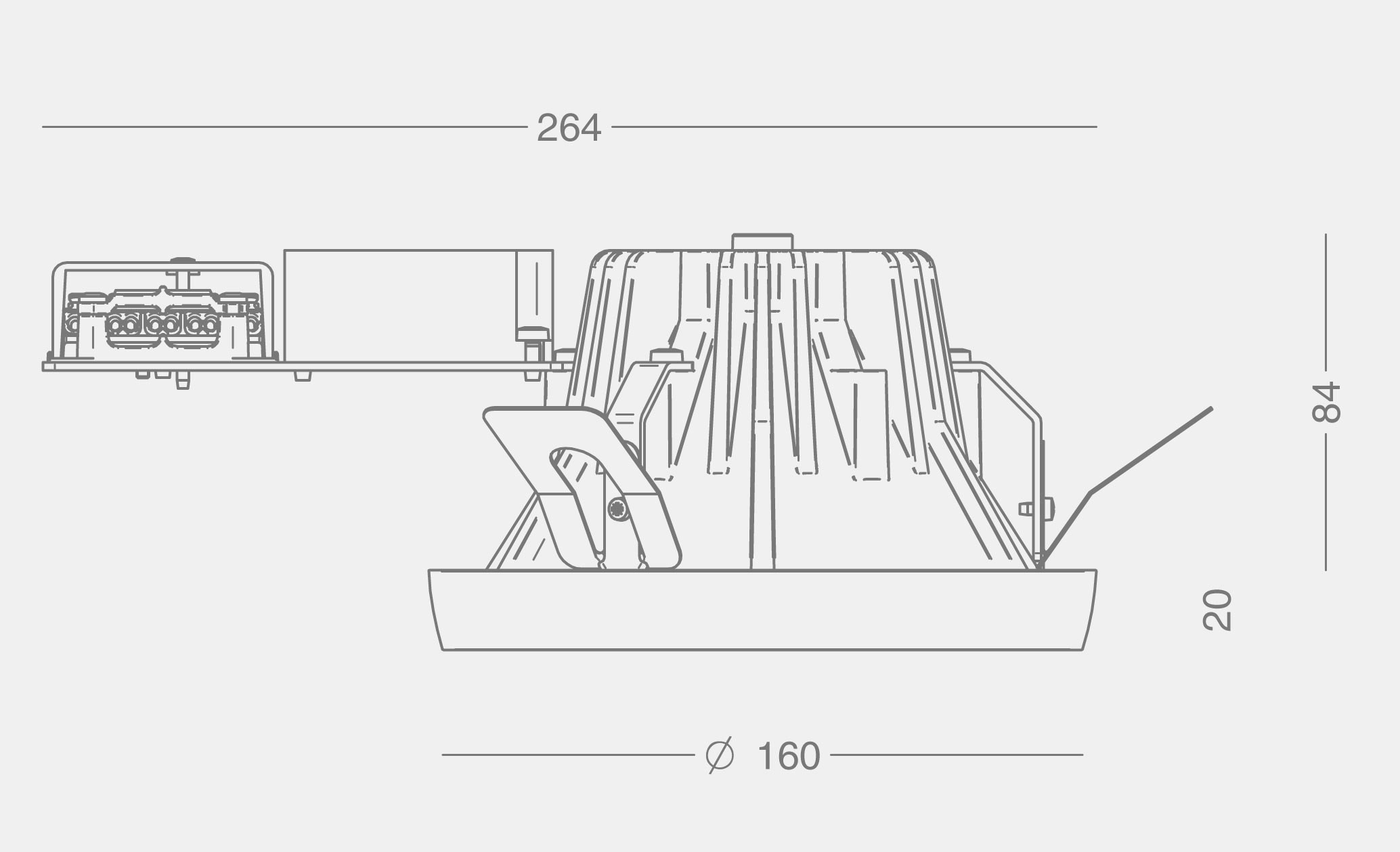

pelee160_downlight

Luminaire

PELÉE DOWNLIGHT
Material Cast aluminium
Powder coating White RAL 9010, alu-grey: RAL 9006 Textura, black Noir 900
Mounting To be recessed, option for reinforcement of ceiling
25 W variant not to be covered
Cut-out Ø149-154 mm in 6-15 mm plates
Ø155-158 mm in 15-35 mm plates
Clearances Horizontally: min 45 mm
Built-in height min 90 mm from lower ceiling edge
Connection Max two cables, 5 x 1.5 mm2, into 5-pole terminal block, 2 x 2.5 mm2
Classification IP20, class I
Weight 0.85 kg

LED and driver data

LED type Bridgelux V8
Energy consumption 8, 11 or 16 W
Operational life min 100,000 hours at ta max 25°C, L80B10
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 90 Ra
Colour accuracy 3 steps SDCM
Output ratio 82 per cent

Driver Helvar LED driver, 500-700 mA
Dimmable at extra cost
Operational life min 100,000 hours

Variants and options

Item No. Pelée Downlight
2830- 8 W, 500 mA, V8
2831- 11 W, 700 mA, V8
2829- 16 W, 500 mA, V8

Options
2830-016 Reinforcement of soft ceilings, Pelée 160

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
1 = white 927 = 2700 K, 90 Ra
9 = alu-grey 930 = 3000 K, 90 Ra
17 = corten brown 940 = 4000 K, 90 Ra
66 = noir 900

Dimming
empty = without dimming
V = 1-10 V
D = DALI

Example: 2830-9927V = Pelée Downlight, 12 W, alu-grey, 2700 K, dimmable 1-10 V

Media & downloads

Product information

Product data, Pelée DownlightPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D filer

Pelée Downlight 3D for RevitRFA Pelée Downlight, Revit objects descriptionTXT Pelée Downlight 3D for ArchicadGSM Pelée Downlight 3D for AutoCadDWG Pelée Downlight 2D for AutoCadDWG Pelée Downlight 3D Studio3DS Pelée Downlight 3DFBX Pelée Downlight 3DSTL Pelée Downlight 3DIFC Pelée Downlight 3D for SketchupSKP

Photos

Product image, Pelée downlightJPG

Photometric data

Pelée Downlight, 8 W, 2700 KLDT Pelée Downlight, 8 W, 2700 KPDF Pelée Downlight, 8 W, 3000 KLDT Pelée Downlight, 8 W, 3000 KPDF Pelée Downlight, 8 W, 4000 KLDT Pelée Downlight, 8 W, 4000 KPDF Pelée Downlight, 11 W, 2700 KLDT Pelée Downlight, 11 W, 2700 KPDF Pelée Downlight, 11 W, 3000 KLDT Pelée Downlight, 11 W, 3000 KPDF Pelée Downlight, 11 W, 4000 KLDT Pelée Downlight, 11 W, 4000 KPDF Pelée Downlight, 16 W, 2700 KLDT Pelée Downlight, 16 W, 2700 KPDF Pelée Downlight, 16 W, 3000 KLDT Pelée Downlight, 16 W, 3000 KPDF Pelée Downlight, 16 W, 4000 KLDT Pelée Downlight, 16 W, 4000 KPDF

All ldt files

LDT.zipZIP
downlight_1166

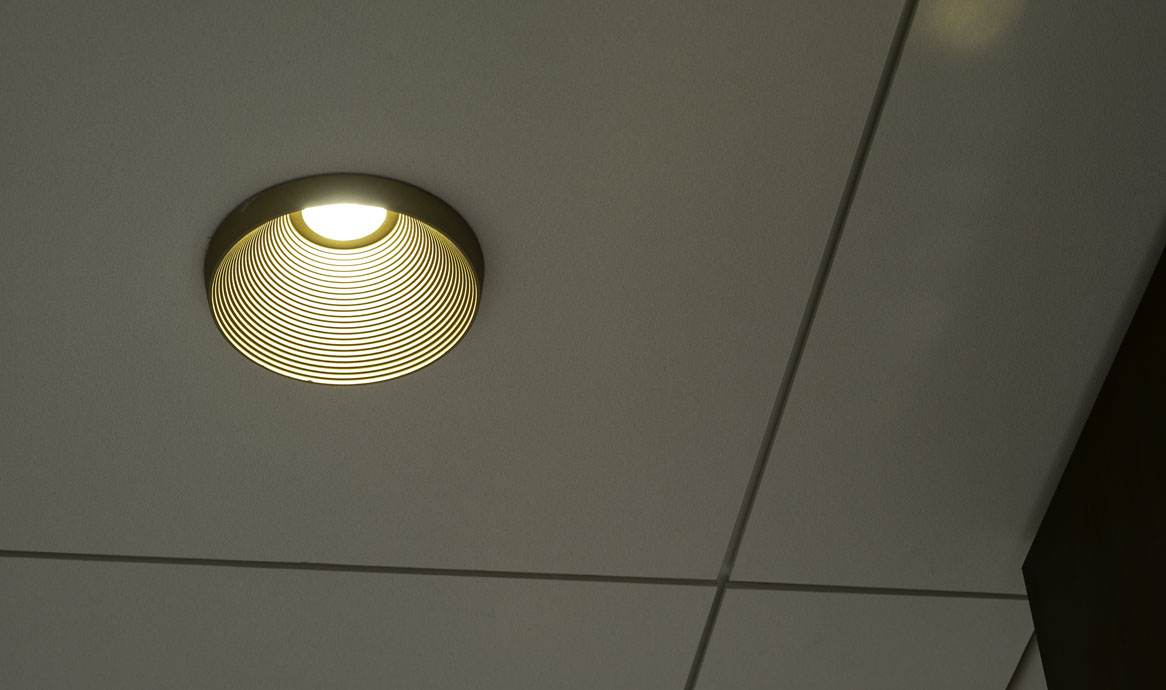

Pelée Downlight at Augustenborg Castle. All luminaires in brass coating to match other brass fittings.

DesignCubo Architects

The inspirationen to the Pelée luminaires was found at the island of Martinique where the Pelée volcano has formed uniform steps of ashes and lava.
