The Punkt Lamp is characterised by the protruding cylinder of mouth-blown glass, diffusing light in a pleasant way. The new LED version offers a uniform high-quality illumination of the room as well as excellent colour reproduction.
All Punkt Lamps are fully closed according to European standards for lighting equipment. They are approved for recession into various types of ceilings.

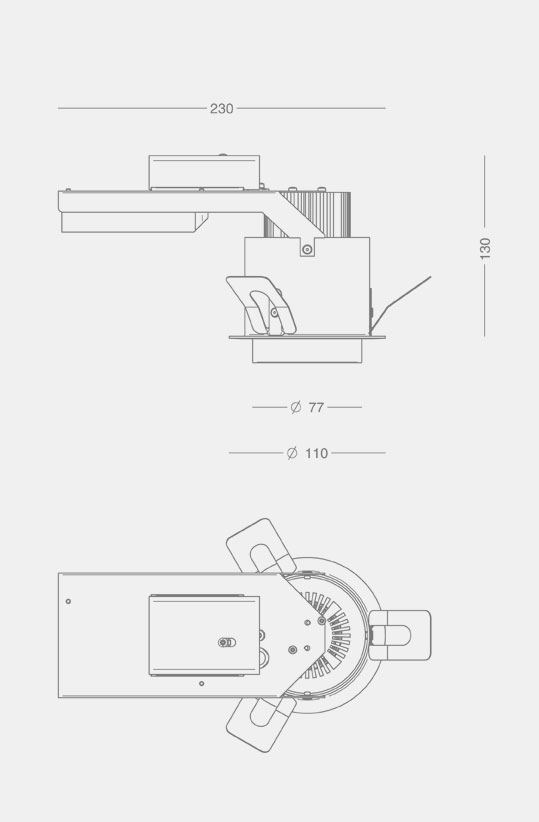

| PUNKT LAMP 110 | |
|---|---|
| Material | Aluminium |
| Shade | Mouth-blown, opal-white glass |
| Mounting | Recessed into ceiling |
| Cut-out | Ø96-98 mm in 6-15 mm plate |
| Ø102-104 mm in 15-35 mm plate | |
| Clearances | Horizontally: min 50 mm |
| Built-in height | min 130 mm from lower edge of ceiling |
| Connection | 230 V, 5-pole terminal block |
| Classification | IP20, class I |
| Weight | 0.8 kg |
| LED type | Bridgelux V8 |
|---|---|
| Total consumption | 6, 8, or 11 W |
| Operational life | min 100,000 hours at ta max 25°C, L80B10 |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Output ratio | 78 per cent |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
| Item No. | Punkt Lamp 110 |
|---|---|
| 2899- | 6 W, 250 mA |
| 2892- | 8 W, 350 mA |
| 2896- | 11 W, 500 mA |
| Options | |
|---|---|
| 2020-20 | Ring for soft ceilings |
Select colour, dimming, etc. in the table below.
| Colour | Colour temperature |
|---|---|
| 2 = white | 927 = 2700 K, 90 Ra |
| 9 = grey metallic | 930 = 3000 K, 90 Ra |
| 940 = 4000 K, 90 Ra |
| Dimming | |
|---|---|
| empty = no dimming | |
| V = 1-10 V | |
| D = Dali |
Example Item No.: 2892-9927V = Punkt Lamp 110, 9 W, grey metallic, 2700 K, 90 Ra, dimmable 1-10 V
The Punkt Lamp is designed in 1976 by the founder of Focus, Nils Kristiansen.
The simplicity in design and quality in material has made the Punkt Lamp the preferred downlighter among architects. The design is dominated by the inner shade in mouth-blown glass, spreading the light in a pleasant and beautiful way without glaring.
