SKY PARK

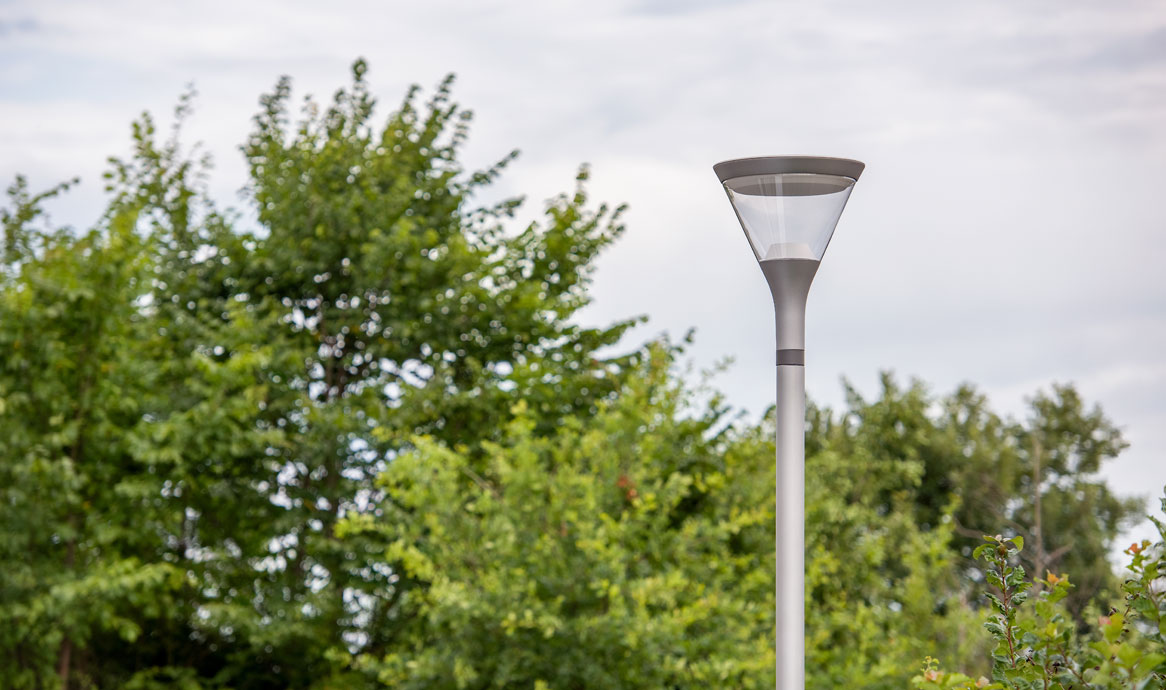

The main shape of Sky Park reflects the direction and natural distribution of light. Thus design and lighting support each other, making form and function interact.

Due to the elegant design and high-quality materials, Sky Park will fit into the surroundings and adapt to any environment - residential, street, urban etc.

Watch the video presenting Sky Park in Vedbæk.

Specifications

Specifikationer

Luminaire

SKY PARK
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen	Clear polycarbonate with UV-resistant acrylate on both sides
Mounting	Post top/pipe: Ø60 or Ø76 x H100 mm
	In case of 90 mm pole, the connection ring 8005- is required.
	4.5 m PKL-lead, 2x1.5 mm2, mounted in the luminaire
Connection	In the pole
Classification	IP66, class II; use code for class I
Impact resistance	IK10; with Zhaga socket IK09
Corrosion class	C4, C5 optional
Weight	8.4 kg
Wind-sweeping area	0.143 m2 (laterally)

LED Low lumen

LED type	Bridgelux V18
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead time for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 325-3950 lm
	3000K: 325-4025 lm
	4000K: 325-4050 lm
LED-lumen, 90 Ra	3000K: 275-3000 lm
Output ratio	68%
Luminous intensity class, 13201-2-2015	G*1
Glare index class	D6

LED High lumen

LED High lumen	Bridgelux V22
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000 or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead times for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 625-6800 lm
	3000K: 625-6950 lm
	4000K: 650-7025 lm
LED-lumen, 90 Ra	3000K: 525-5200 lm
Output ratio	68%
Luminous intensity class, 13201-2 2015	G*1
Glare index class	D6

Drivers

Driver, High lumen	Xitanium Full Xi FP 40 W 0,3-1,0 A, programmable
Inrush current	max 22 A (50% after 290 µs)

Driver, Low lumen	Xitanium Full Xi FP 22 W 0,2-0,7 A, programmable
Inrush current	max 15 A (50% after 295 µs)

Nominal voltage, AC	220-240 Vac
Operational input voltage, AC	80-264 Vac
Nominal voltage, DC	186-250 Vdc
Operational input voltage, DC	168-275 Vdc
Nominal frequency range	50-60 Hz
Operational frequency range	45-66 Hz
Max pre-protection	16 A
Surge protection	L/N-GND: 10 kV, (D4i driver: 8 kV)
	L-N: 6 kV
Operational life	min 100,000 hours
Dimming/control	5 steps dimming within the lumen intervals
Other control options	DALI-2, LineSwitch or
	via Zhaga book 18 socket, D4i

Variants and options

Item No.
8833-	V18, Low lumen, programmable, max 24 W
8930-	V22, High lumen, programmable, max 40 W

Options
8005-	Ring for Ø90 mm pole - combine with colour code
8006-	Powder-coated shade for asymmetrical light

Fuse box for 90 mm pole
6949	DI Euro Mini, max three 4x10 or two 4x16 mm2, class II
6949-J	DI Euro Mini, max two 5x10 mm2, class I
50279	Nipa HSW 1194, max two 5x6 mm2, class II, IP55

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
01 = raw anodized	827 = 2700 K, 80 Ra
4 = graphite grey	830 = 3000 K, 80 Ra
9 = silver grey	840 = 4000 K, 80 Ra
17 = corten brown	930 = 3000 K, 90 Ra
66 = noir 900

Mounting	Dimming
empty = Ø60 mm pole	empty = programmable
M76 = Ø76 mm pole	D = DALI-2 (4/5-conductor cable)
	F = LineSwitch
	R = Zhaga book 18 socket upwards
	RC = Zhaga book 18 socket, City Touch / Interact City

Protection class	Corrosion class
empty = class II	empty = C4
J = class I	C5 = C5 coating (add C5 after the colour code)

Example Item No.: 8833-9830J = Sky Park, Low lumen, programmable, silver grey, 3000 K, 80 Ra, for Ø60 mm pole, class I

Media & downloads

Product information

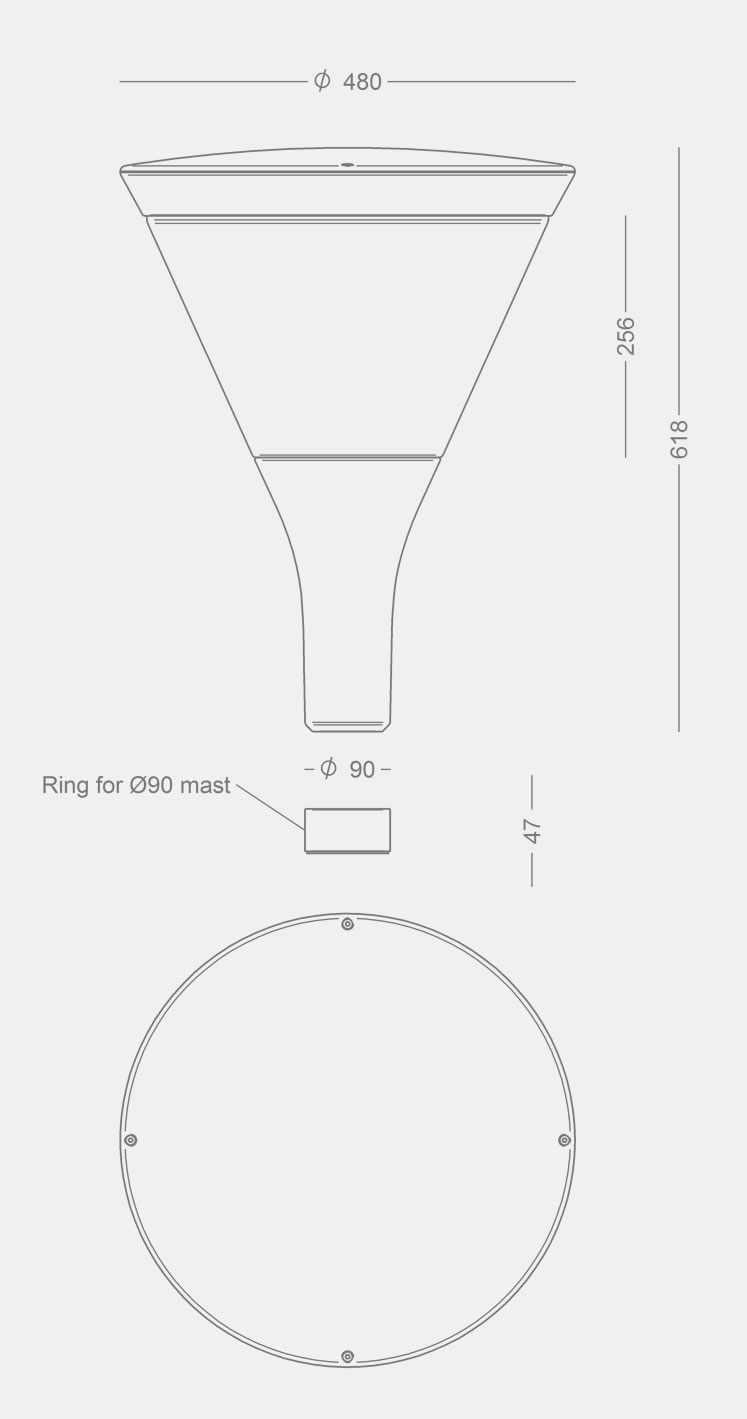

Product data, Sky ParkPDF Mounting options, Sky ParkPDF Dimensions, Sky with Zhaga socketPDF How many per fuse - recommendedPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D files

Sky Park, luminaireRFA Post 90 mm Ø for Sky ParkRFA Sky Park on postRFA Sky Park, luminaireLCF Post 90 mm Ø for Sky ParkLCF Sky Park on postLCF Sky Park, 3DDWG Sky Park, 2DDWG Sky Park3DS Sky ParkDXF Sky ParkIFC

Photos

Product image, Sky ParkJPG Product image, Sky Park corten brownJPG Sky Park - Residential areasPDF Sky Park w. sensor, Groningen, NetherlandsPDF Sky Park, SvendborgPDF Sky Park, AarhusPDF Sky Park, Aarhus WaterfrontPDF Sky Park, Aarhus Light RailPDF Sky Park, various locationsPDF

Photometric data

Low lumen, V18, 24 W

Information: Light centre heightPDF Sky Park, 24 W, 2700 KLDT Sky Park, 24 W, 2700 KPDF Sky Park, 24 W, 3000 KLDT Sky Park, 24 W, 3000 KPDF Sky Park, 24 W, 3000 K, 90 RaLDT Sky Park, 24 W, 3000 K, 90 RaPDF Sky Park, 24 W, 4000 KLDT Sky Park, 24 W, 4000 KPDF Sky Park, 24 W, 2700 K, shadedLDT Sky Park, 24 W, 2700 K, shadedPDF Sky Park, 24 W, 3000 K, shadedLDT Sky Park, 24 W, 3000 K, shadedPDF Sky Park, 24 W, 3000 K, 90 Ra, shadedLDT Sky Park, 24 W, 3000 K, 90 Ra, shadedPDF Sky Park, 24 W, 4000 K, shadedLDT Sky Park, 24 W, 4000 K, shadedPDF

High lumen, V22, 40 W

Information: Light centre heightPDF Sky Park, 40 W, 2700 KLDT Sky Park, 40 W, 2700 KPDF Sky Park, 40 W, 3000 KLDT Sky Park, 40 W, 3000 KPDF Sky Park, 40 W, 3000 K, 90 RaLDT Sky Park, 40 W, 3000 K, 90 RaPDF Sky Park, 40 W, 4000 KLDT Sky Park, 40 W, 4000 KPDF Sky Park, 40 W, 2700 K, shadedLDT Sky Park, 40 W, 2700 K, shadedPDF Sky Park, 40 W, 3000 K, shadedLDT Sky Park, 40 W, 3000 K, shadedPDF Sky Park, 40 W, 3000 K, 90 Ra, shadedLDT Sky Park, 40 W, 3000 K, 90 Ra, shadedPDF Sky Park, 40 W, 4000 K, shadedLDT Sky Park, 40 W, 4000 K, shadedPDF

All ldt files

LDT.zipZIP

Sky Park at Ø90 mm design pole - the connection ring can be used for branding, for instance with logo colour.

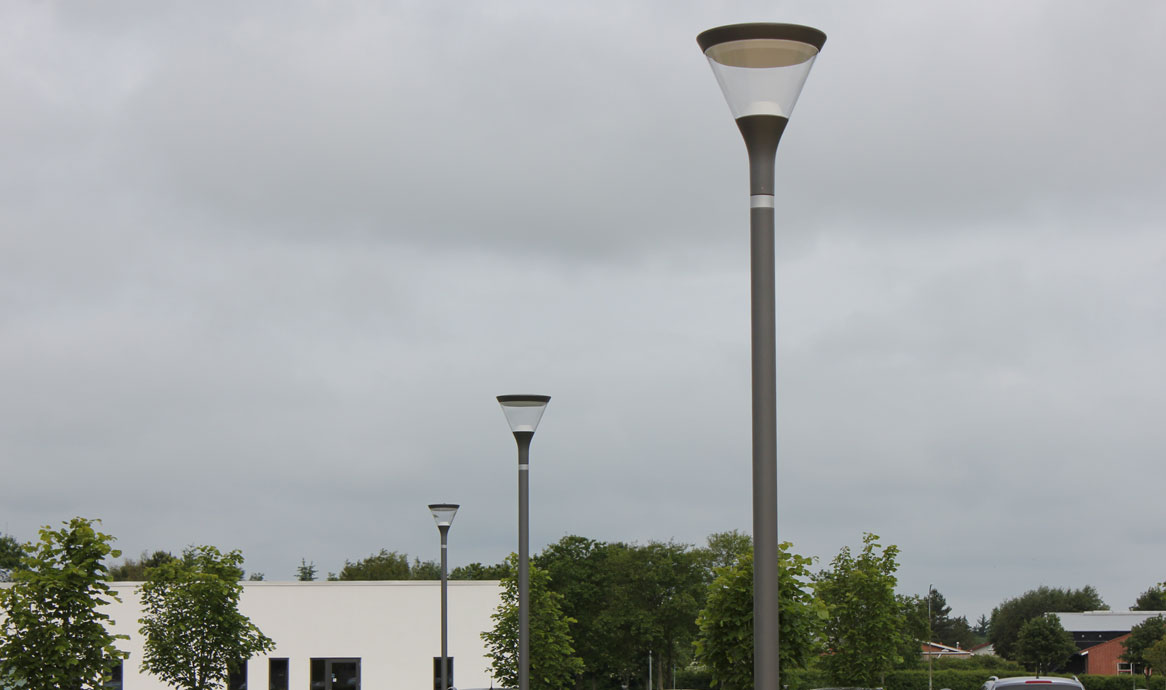

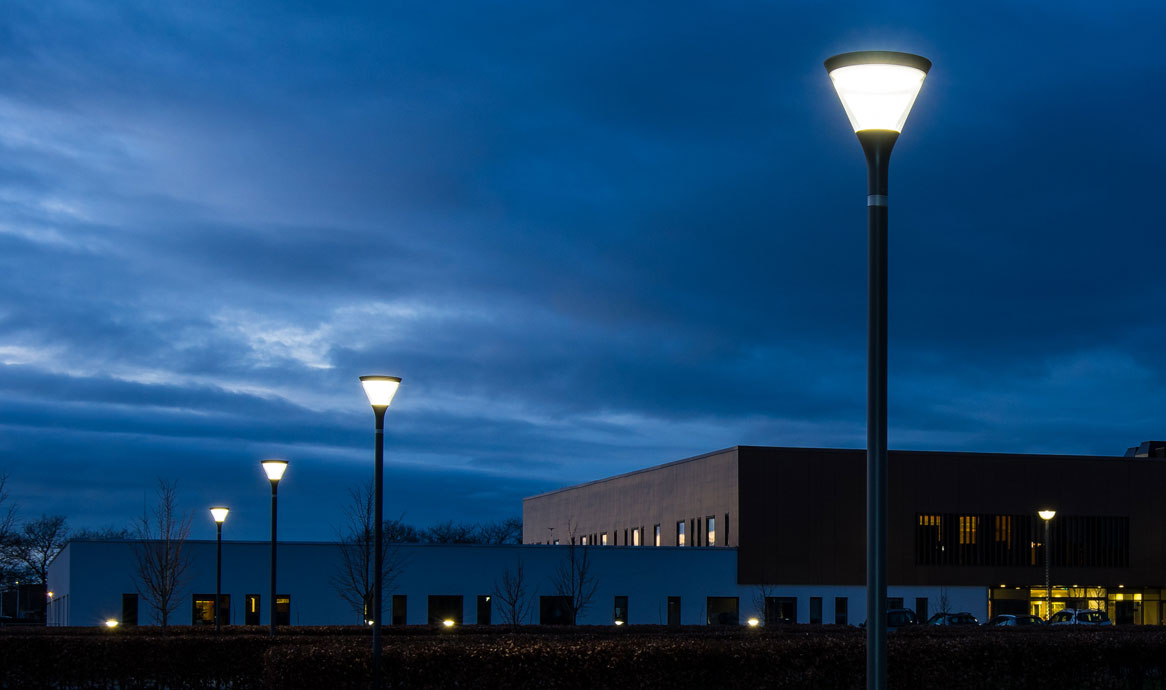

Sky Park, Ø90 mm pole, graphite grey with silver grey ring - Varde Town Hall.

Sky Park at Ø90 mm design post, silver grey with ring in graphite grey.

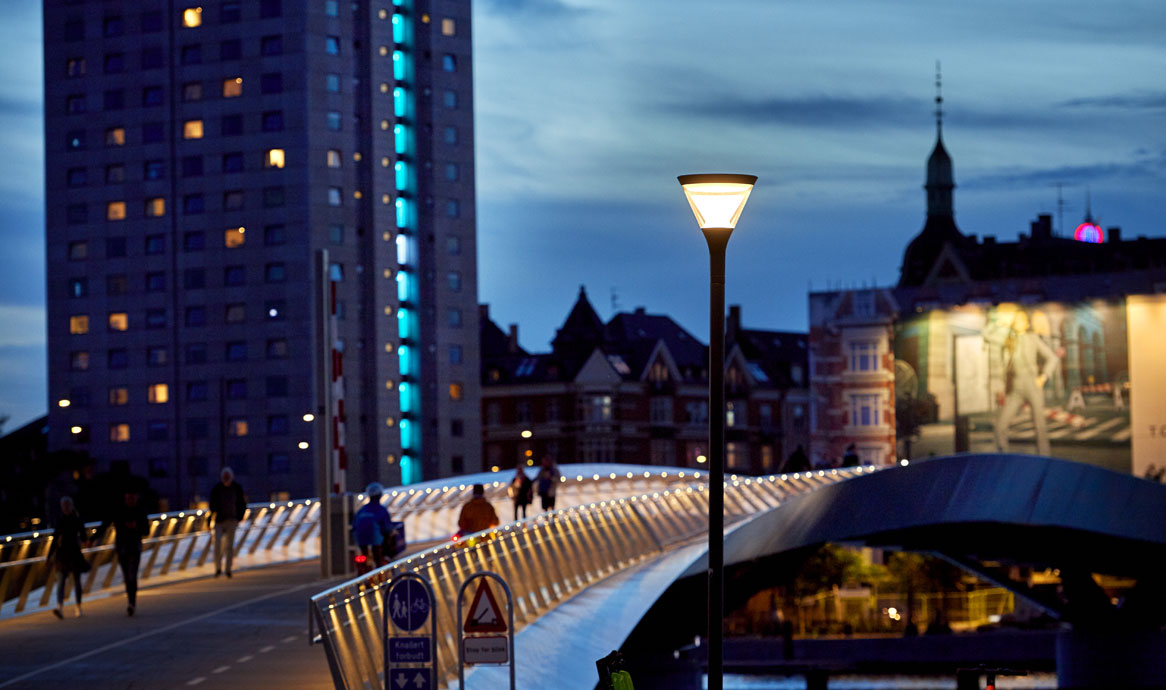

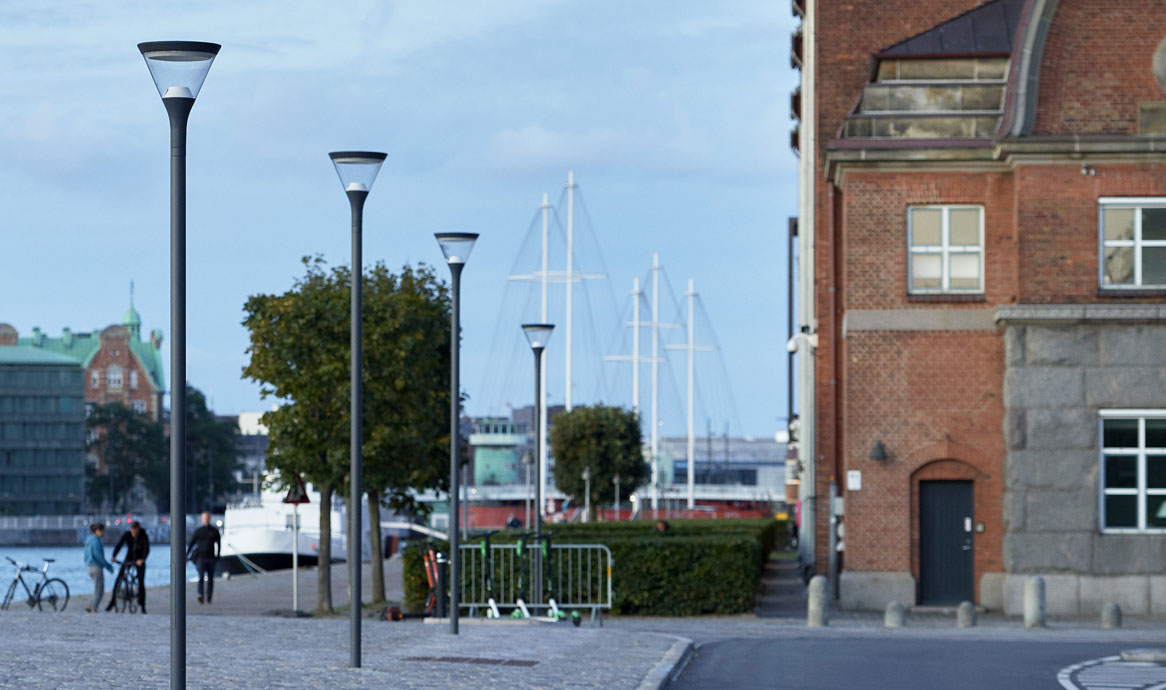

Sky Park at the new cycle bridge, Lille Langebro, Copenhagen

Umbraco.Cms.Core.Models.Link More Sky in Copenhagen

Sky Park at the new cycle bridge, Lille Langebro, Copenhagen

Umbraco.Cms.Core.Models.Link More Sky in Copenhagen

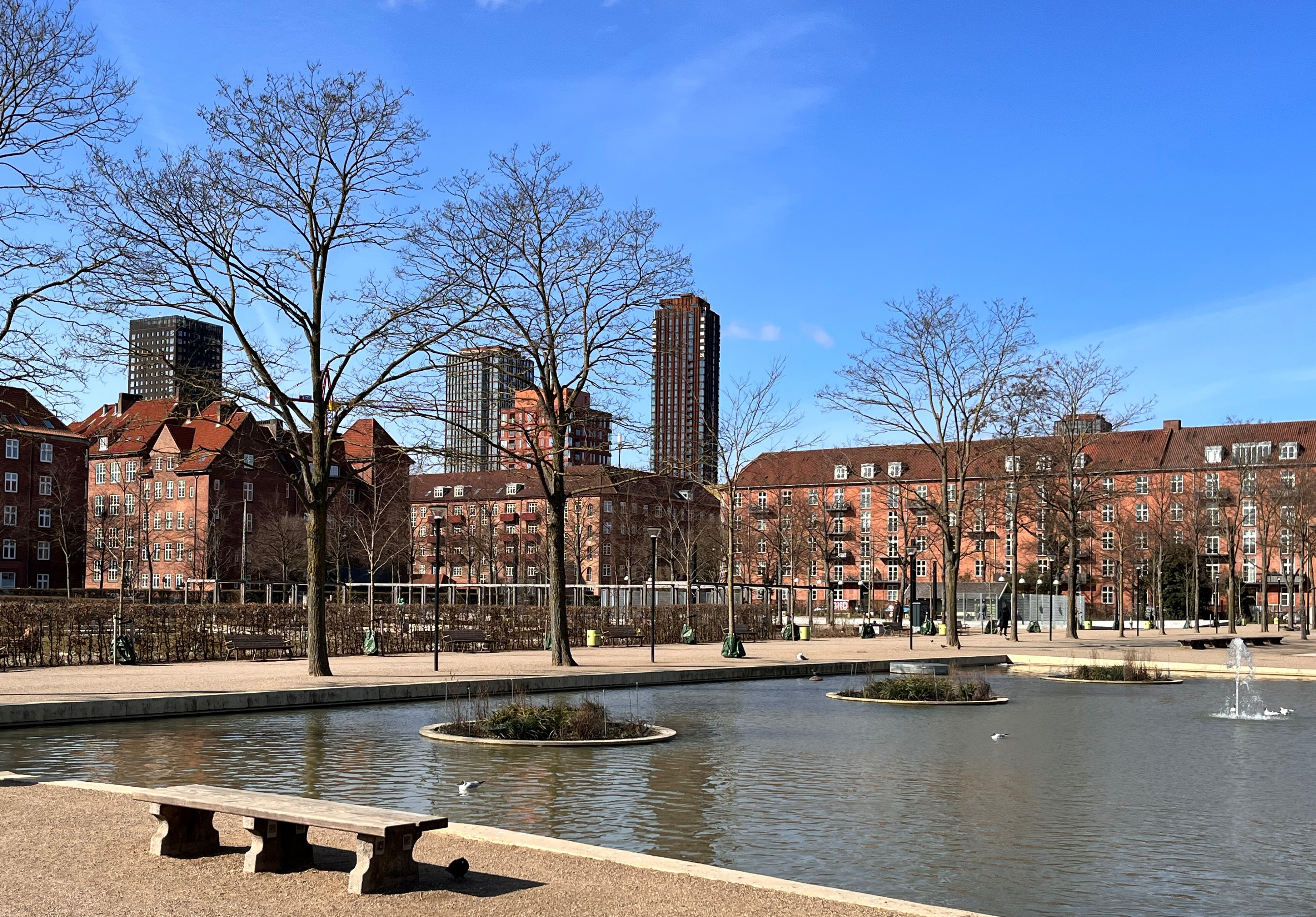

Sky Park, black RAL 9005, antisticker, antigraffiti, Enghaveparken, Copenhagen

Sky Park matches the old houses in central Svendborg. Here in graphite grey on Ø90 mm pole with connection ring in the same colour.

Umbraco.Cms.Core.Models.Link More photos here

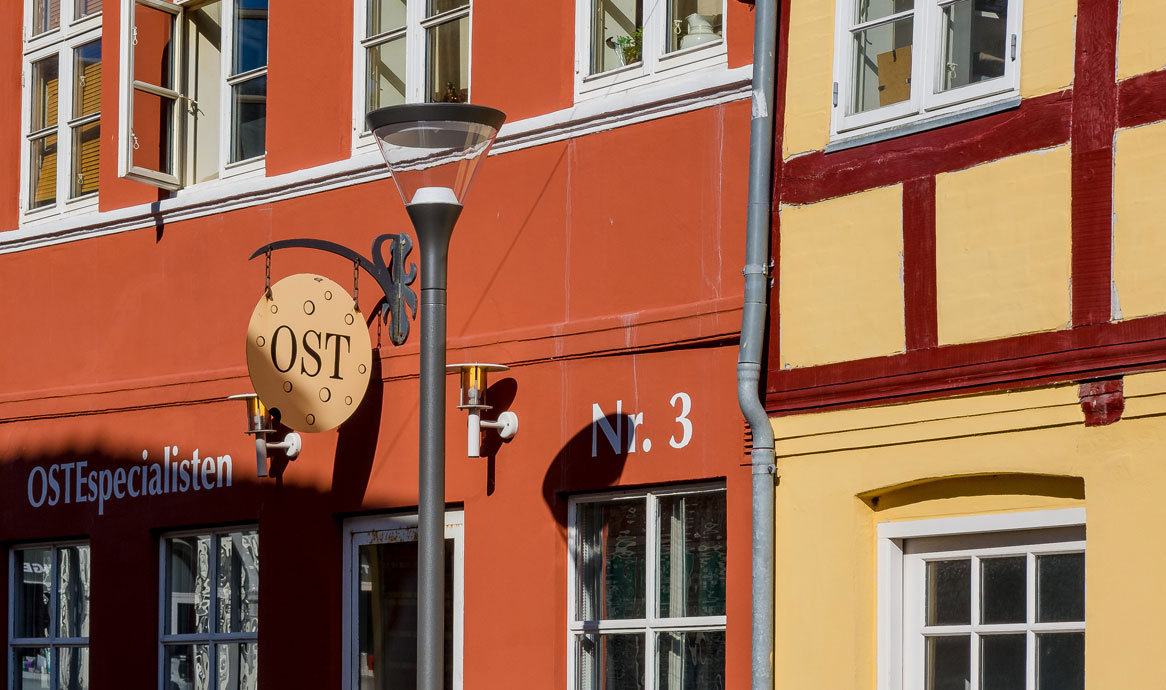

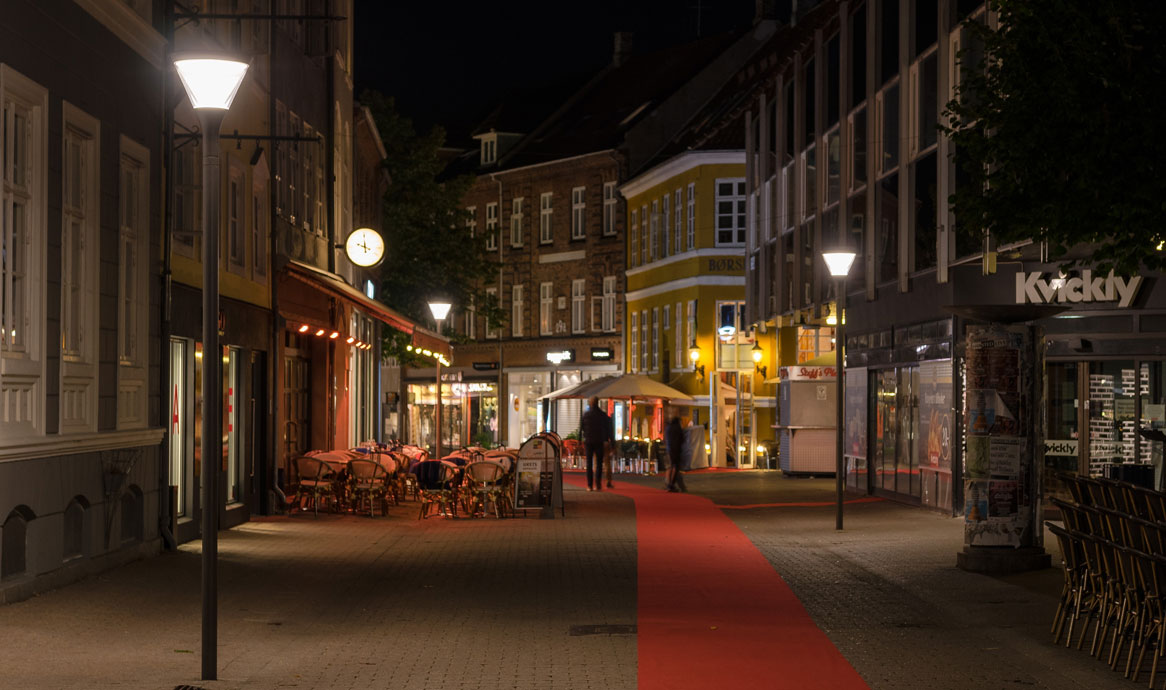

Sky Park at Ø90 mm pole, pedestrian street in central Svendborg.

Umbraco.Cms.Core.Models.Link More photos from Svendborg

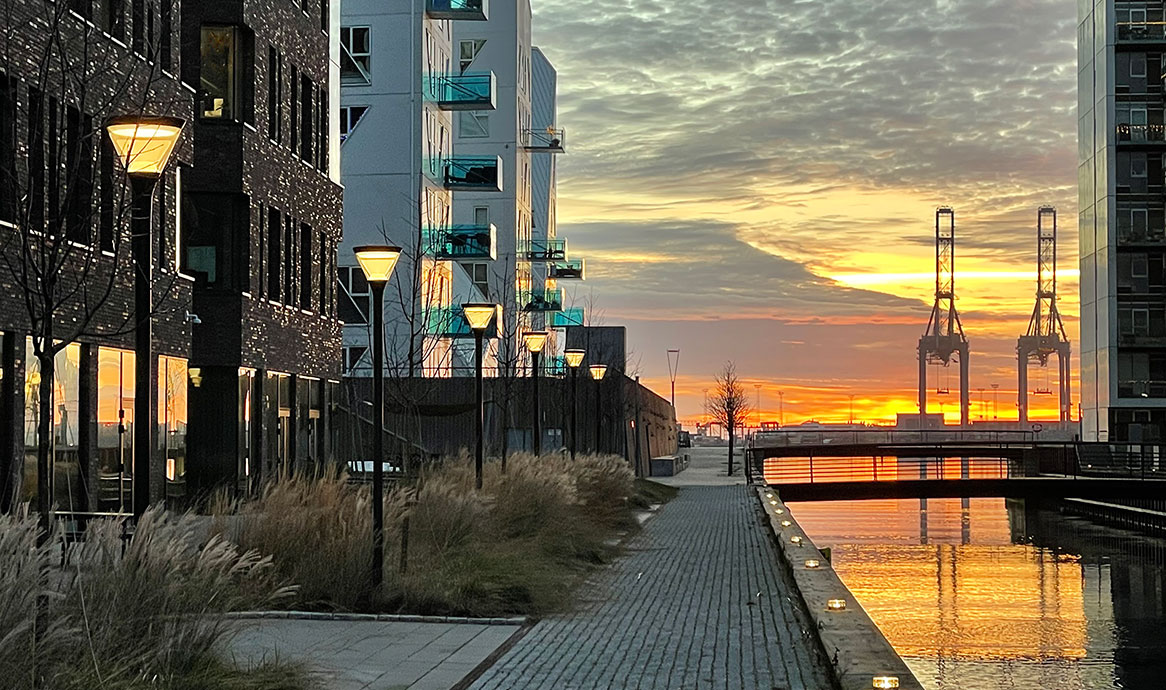

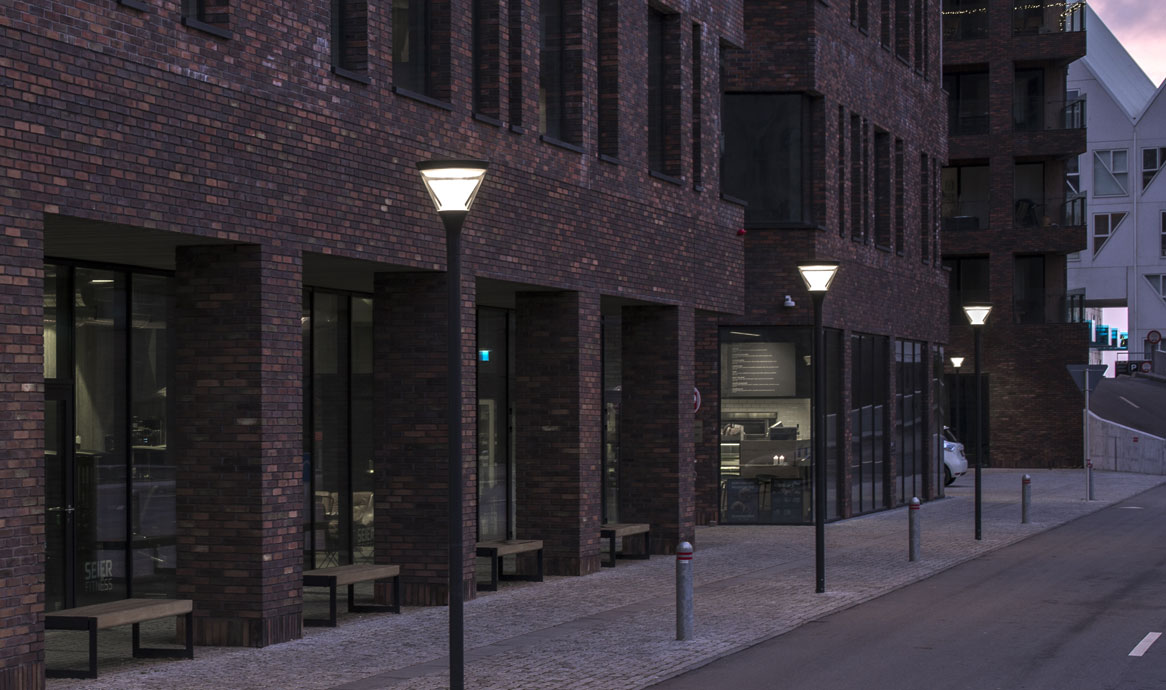

Sky Park along the Warehouses by AART architects. Design post, 90 mm Ø, with design ring, all coated black.

Umbraco.Cms.Core.Models.Link More photos from Aarhus Waterfront

Sky Park at black design post at the waterfront in Aarhus East.

Umbraco.Cms.Core.Models.Link More photos from Aarhus Waterfront

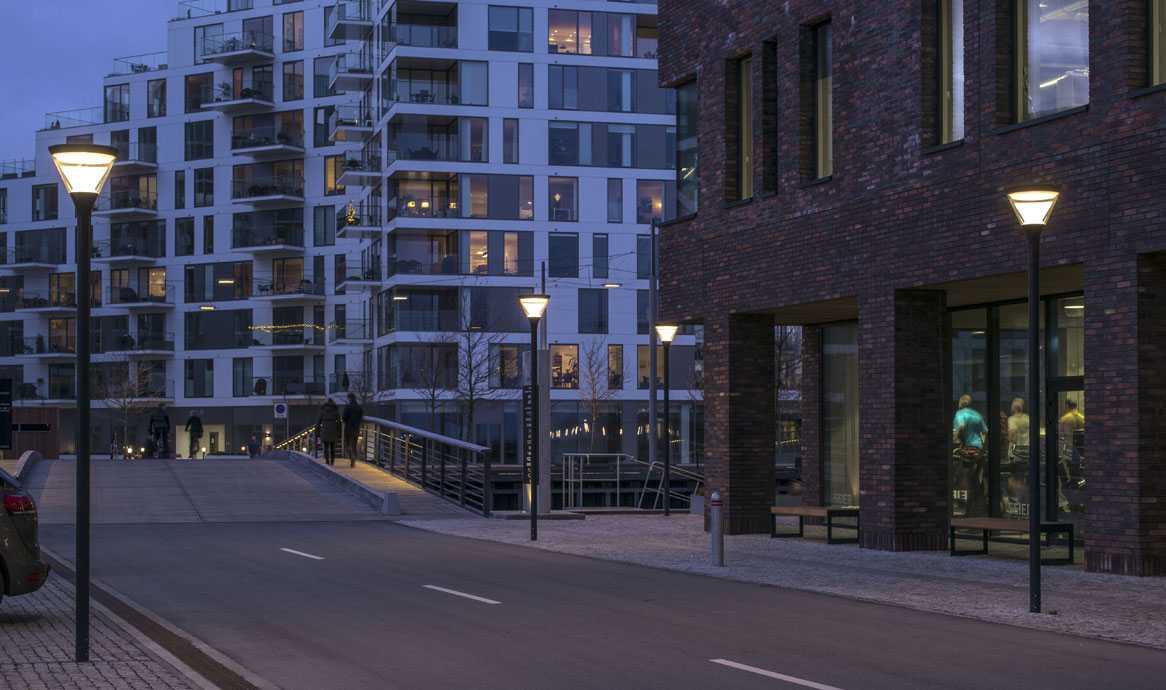

Sky Park in the harbour area Aarhus East. In the background: Lighthouse by 3xN.

Umbraco.Cms.Core.Models.Link More photos from Aarhus Waterfront

Sky Park - December sky at Waterfront East, Aarhus, photo: Morten Hove Lasthein

Umbraco.Cms.Core.Models.Link More photos from Aarhus

Sky Park - December sky at Waterfront East, Aarhus, photo: Morten Hove Lasthein

Umbraco.Cms.Core.Models.Link More photos from Aarhus

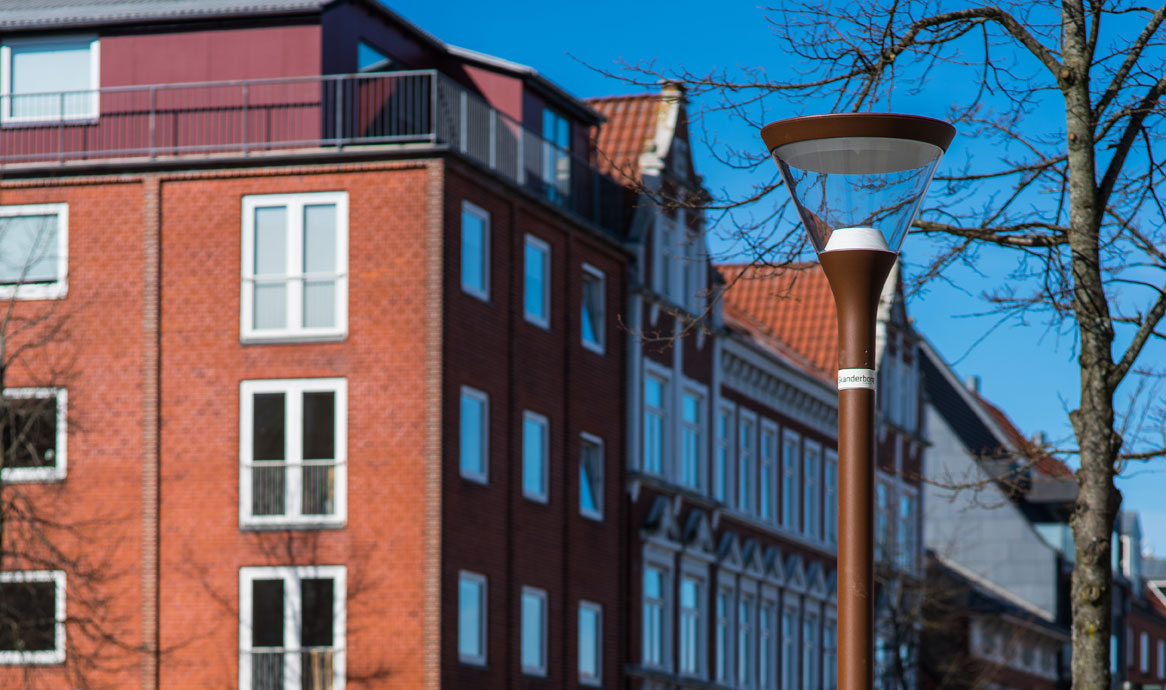

Sky Park, corten brown, white ring with Skanderborg town logo

Umbraco.Cms.Core.Models.Link More Sky Park in corten brown

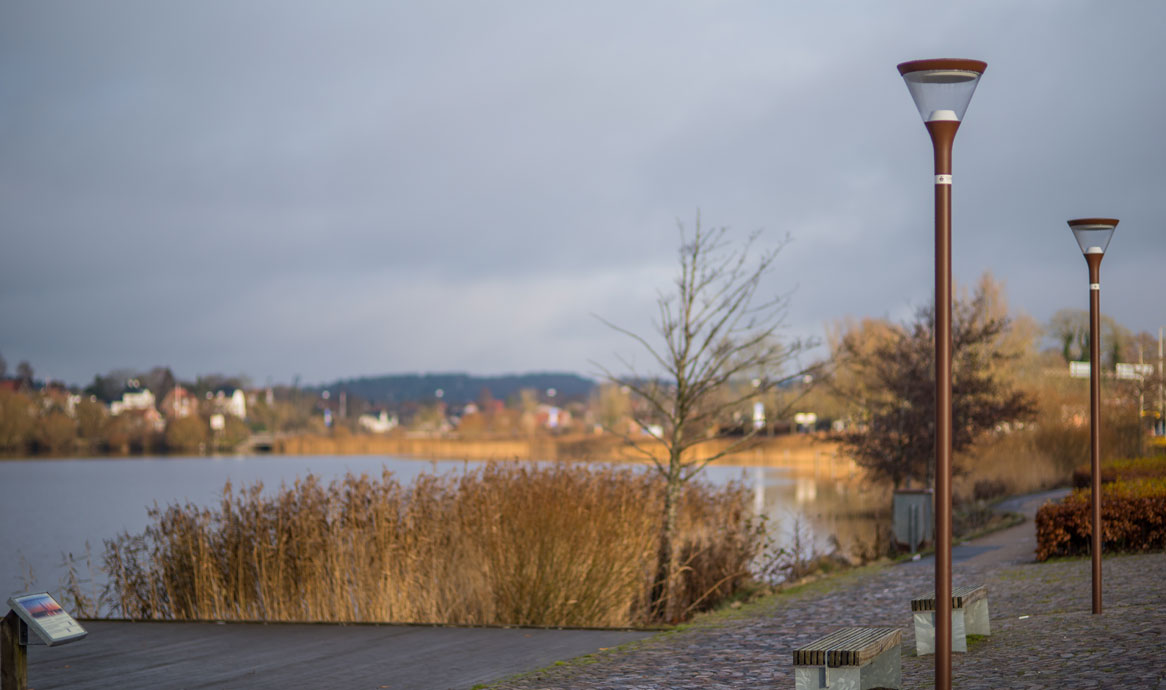

Sky Park, corten brown, white ring with Silkeborg logo.

Umbraco.Cms.Core.Models.Link More photos from Silkeborg

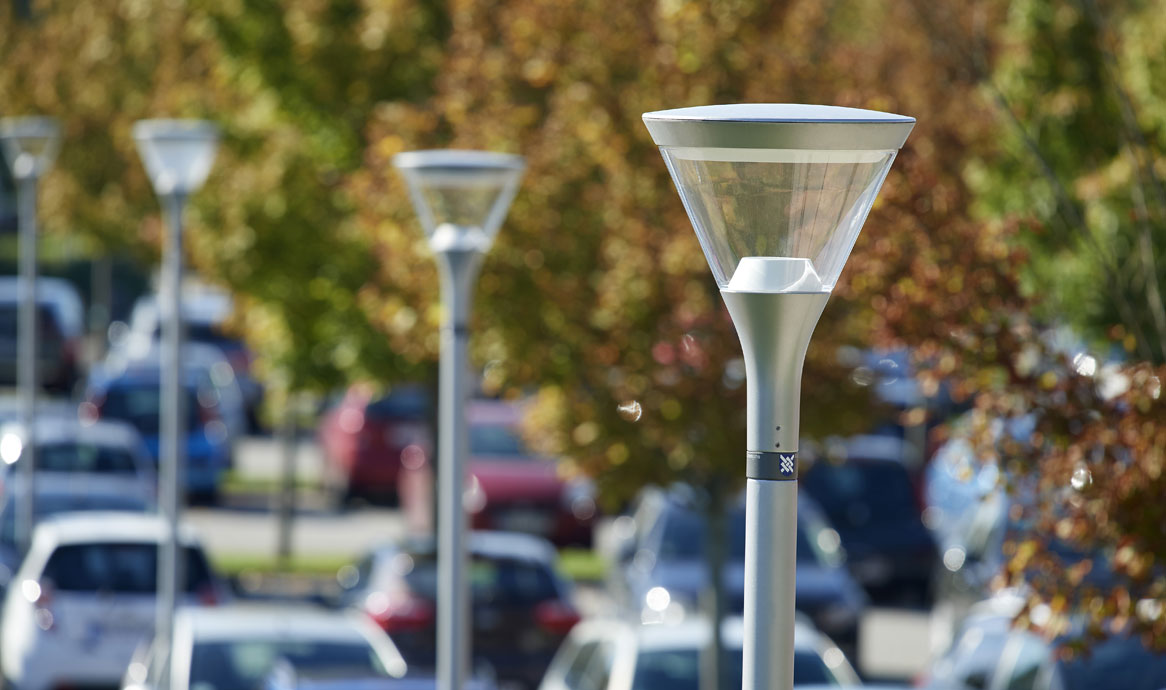

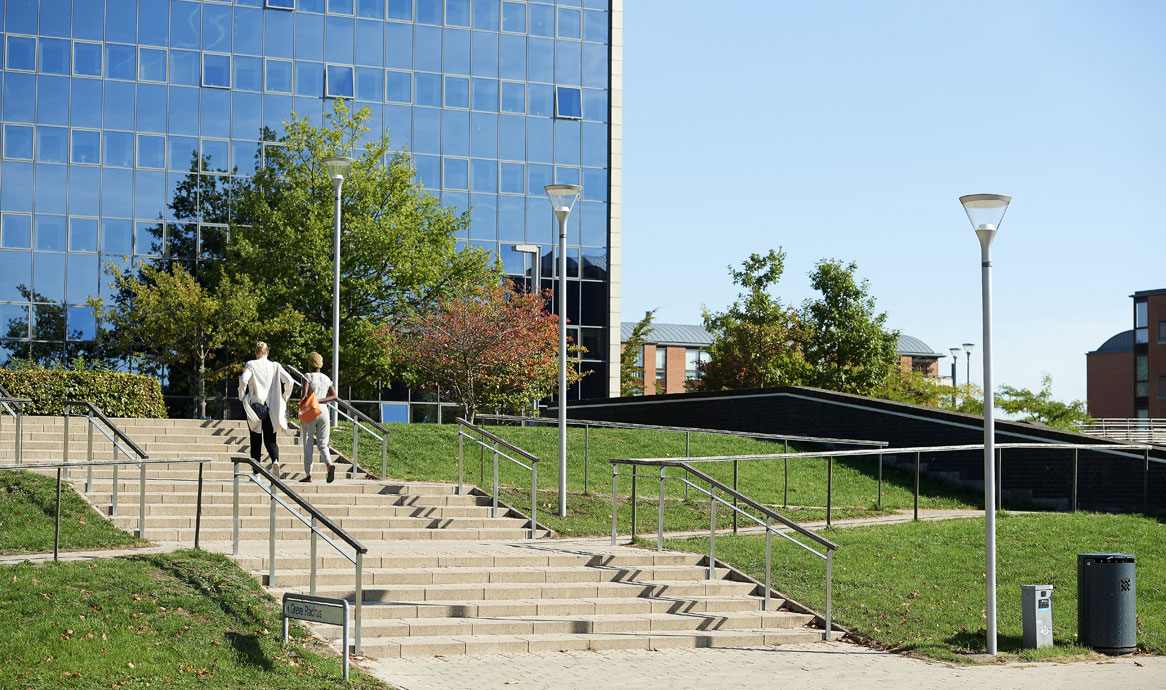

Sky Park with the town logo of Greve Kommune characterizes the area around the town hall.

Umbraco.Cms.Core.Models.Link More photos from Greve

Sky Park and post, silver grey, ring graphite grey, Greve Town Hall.

Umbraco.Cms.Core.Models.Link More photos from Greve

Sky Park at Ø90 pole, graphite grey, with distance ring in the same colour.

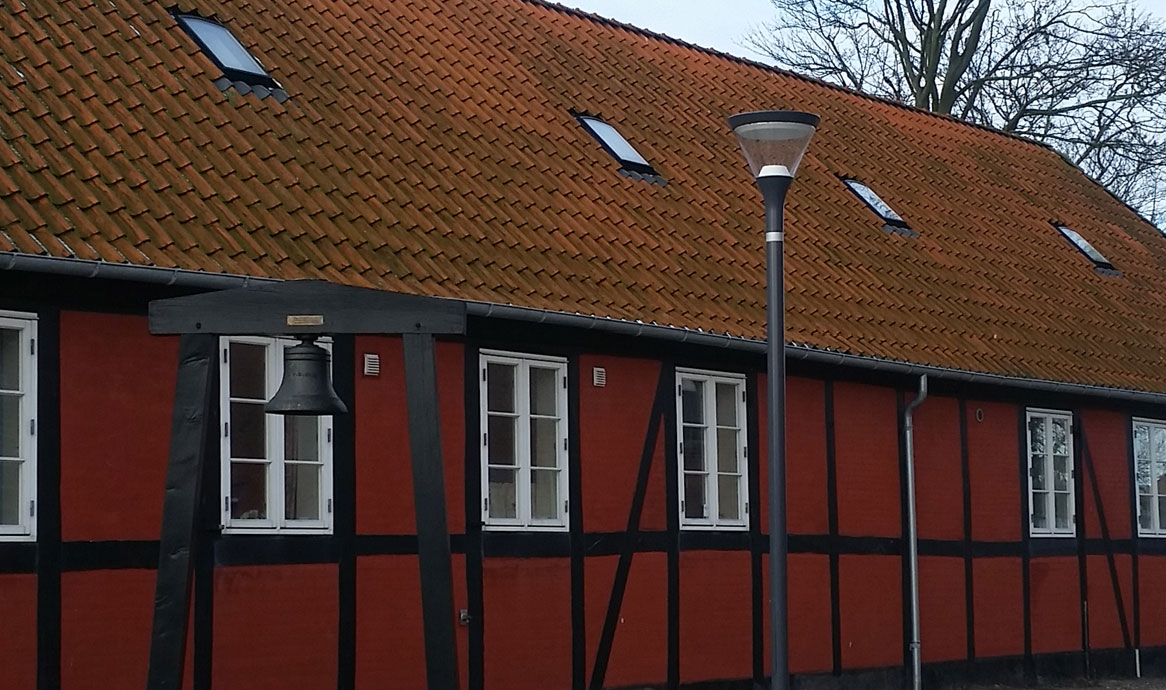

Sky Park at Ø90 mm design pole, graphite grey, with silver grey connection ring - Korsør Fæstning.

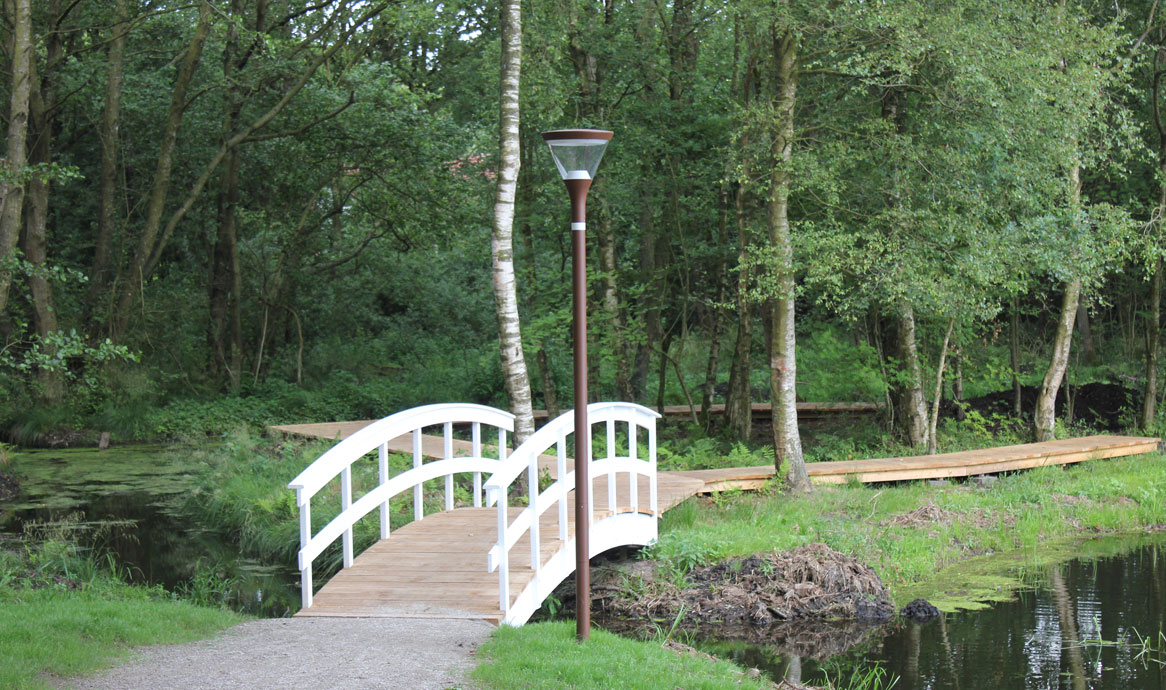

Sky Park in corten brown with white ring, Tistrup Bypark

Umbraco.Cms.Core.Models.Link More Sky in corten brown

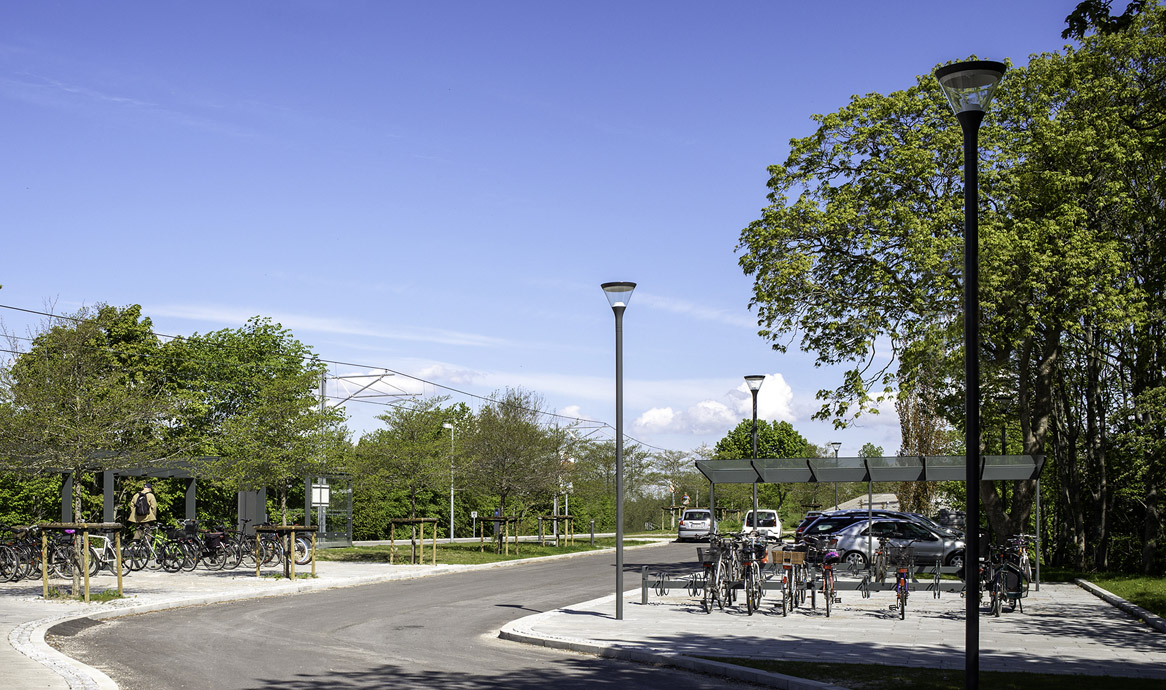

The Sky Park luminaires can be seen at many stations along the Aarhus Light Rail. Here in graphite grey, Beder Station, Aarhus South.

Umbraco.Cms.Core.Models.Link More images from Aarhus

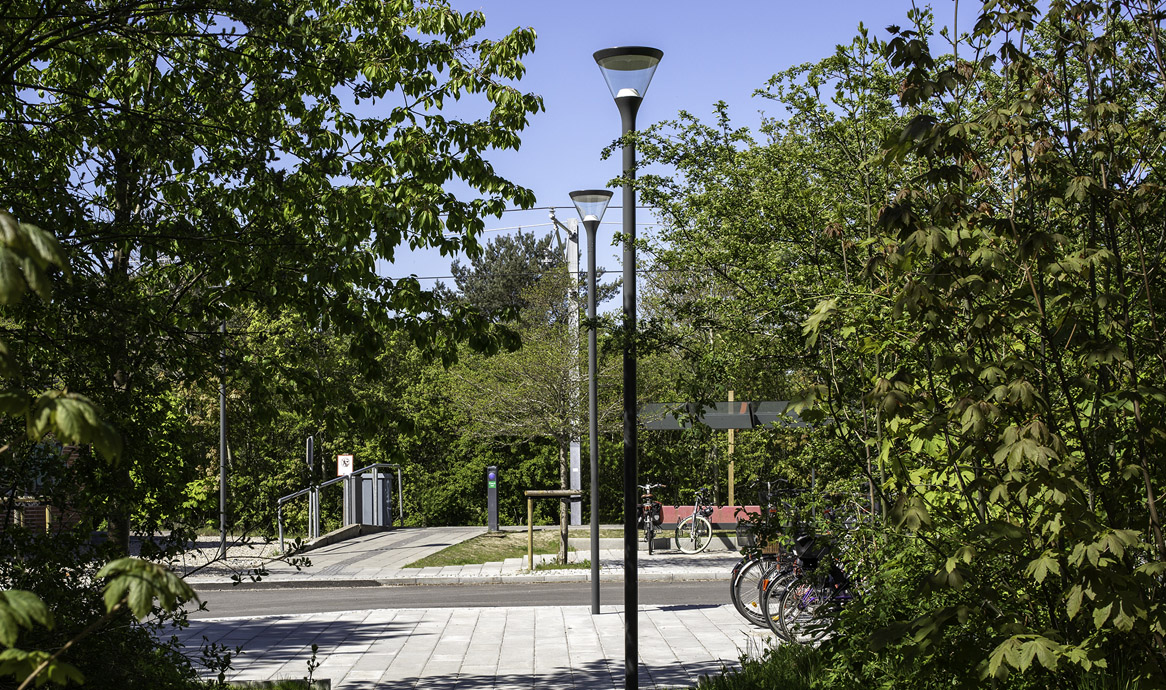

The Sky Park luminaires can be seen at many stations along the Aarhus Light Rail. Here in graphite grey, Beder Station, Aarhus South.

Umbraco.Cms.Core.Models.Link More images from Aarhus

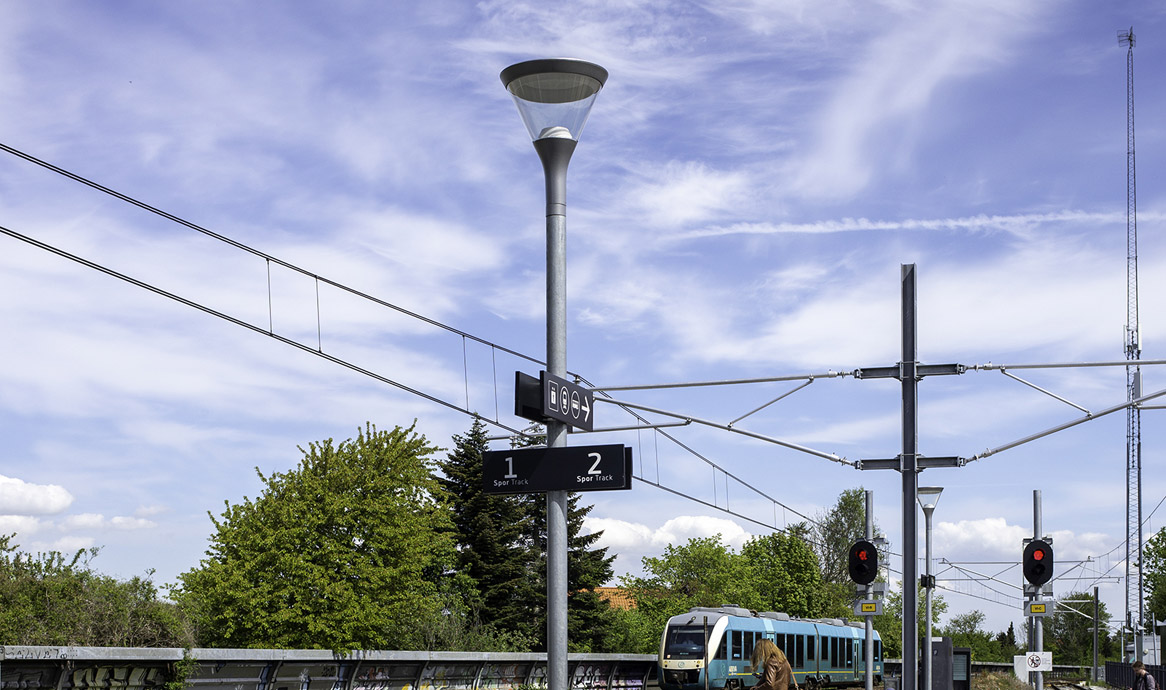

Sky Park in silver grey at galvanised Ø90 pole. Viby is one of the central stations in the City of Aarhus.

Umbraco.Cms.Core.Models.Link More images from Aarhus

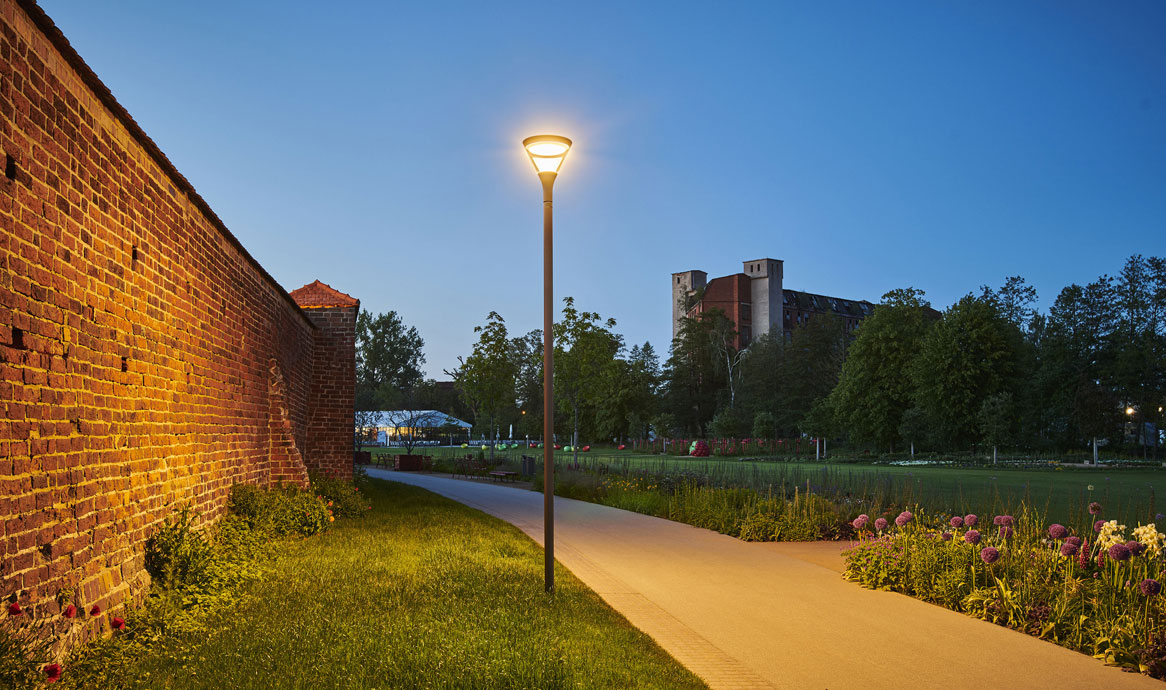

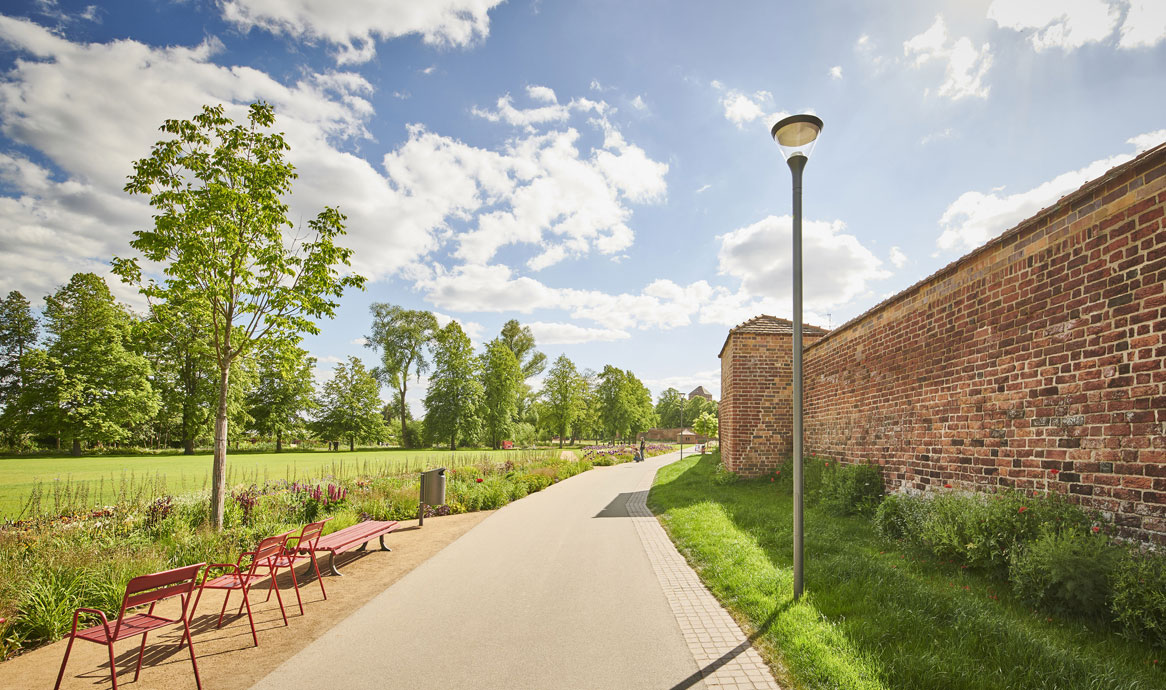

Sky Park, graphite grey, Landesgartenschau Wittstock, Berlin

Umbraco.Cms.Core.Models.Link More photos from Wittstock

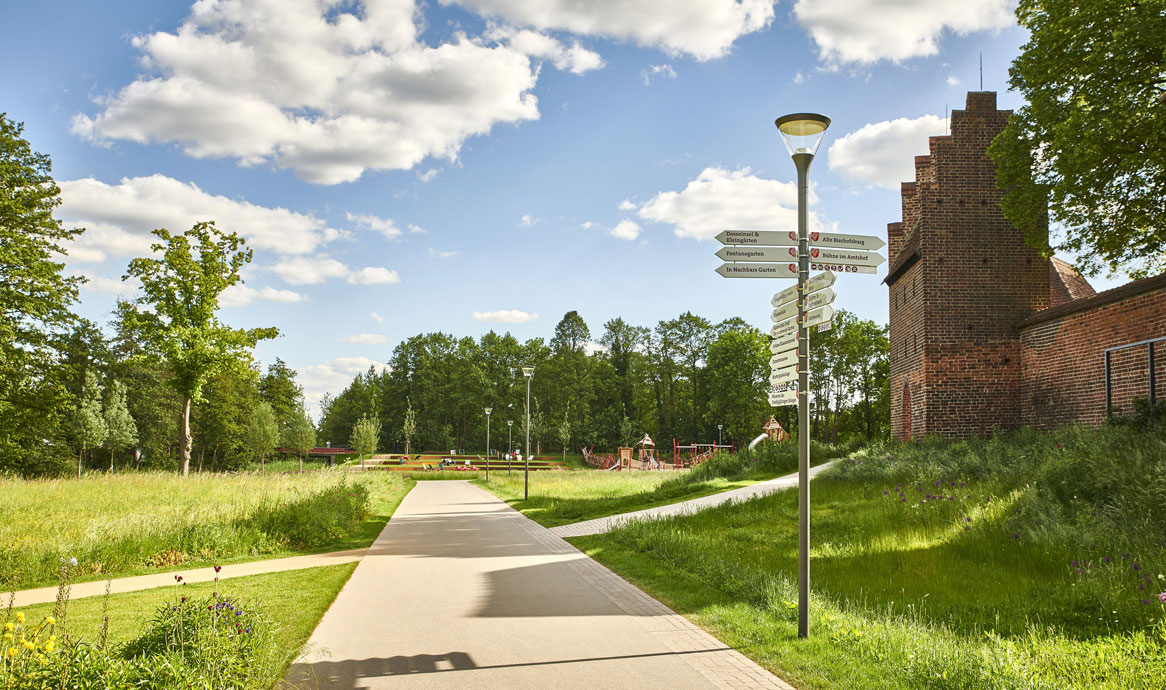

Sky Park, graphite grey, Landesgartenschau Wittstock, Berlin

Umbraco.Cms.Core.Models.Link More photos from Wittstock

Sky Park, graphite grey, Landesgartenschau Wittstock, Berlin

Umbraco.Cms.Core.Models.Link More photos from Wittstock

Sky Park, graphite grey, Landesgartenschau Wittstock, Berlin

Umbraco.Cms.Core.Models.Link More photos from Wittstock

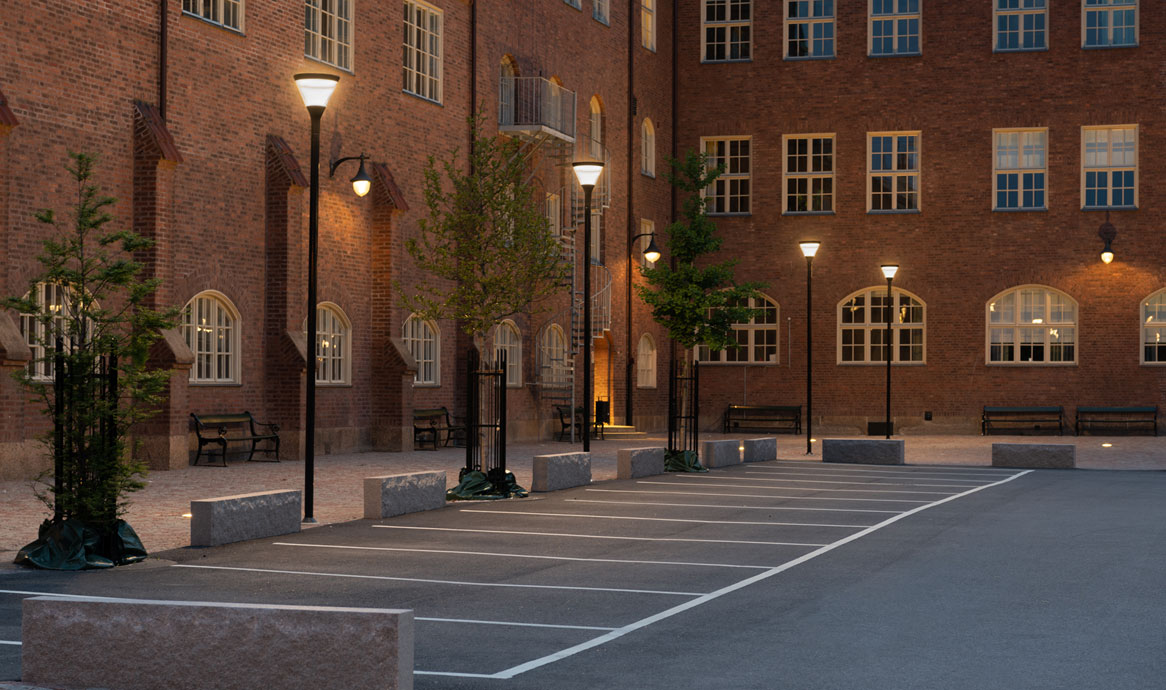

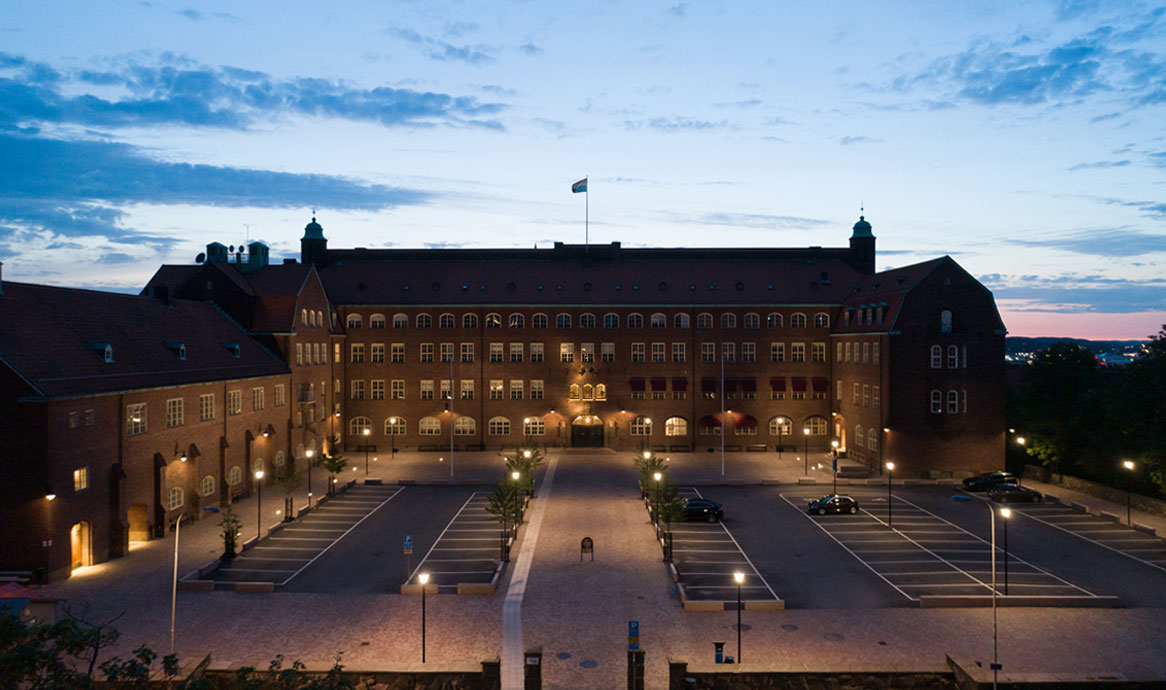

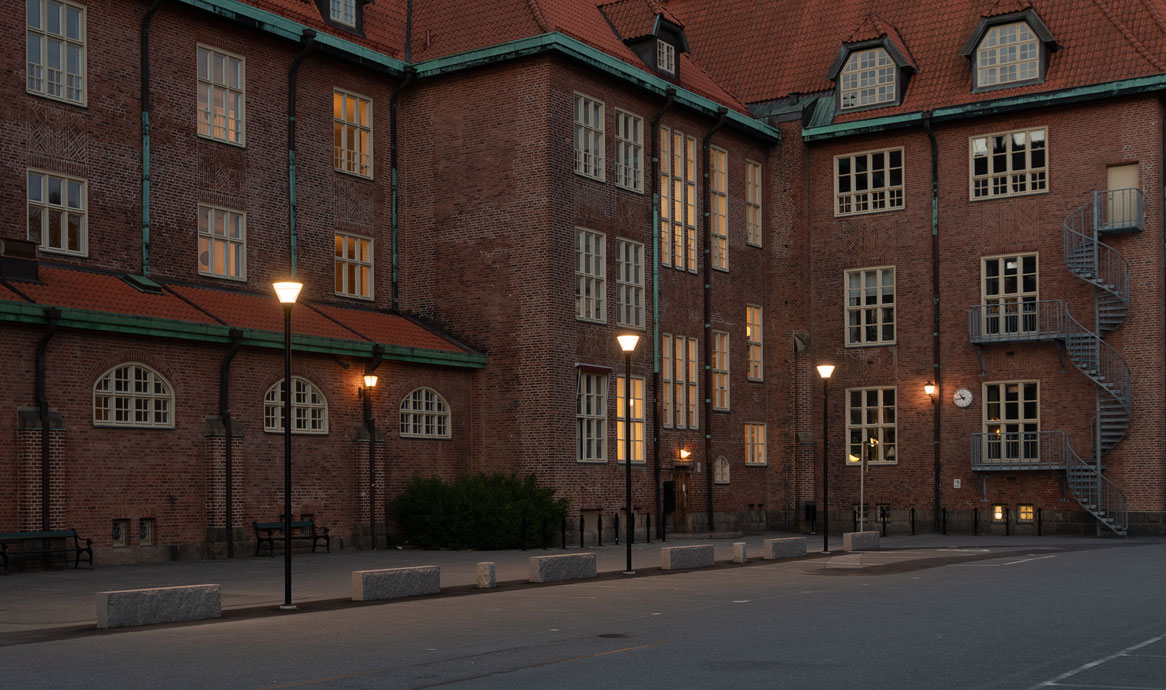

Sky Park at Hvitfeldtska Gymnasium, Gothenburg. Colour: black + black poles Ø90 mm. Photo: Lasse Olsson

Umbraco.Cms.Core.Models.Link Click for more images

Sky Park, Hvitfeldtska Gymnasium, Gothenburg - modern design meets tradition. Photo: Lasse Olsson

Umbraco.Cms.Core.Models.Link Click for more images

Sky Park, Hvitfeldtska Gymnasium, Gothenburg. Photo: Lasse Olsson

Umbraco.Cms.Core.Models.Link Click for more images

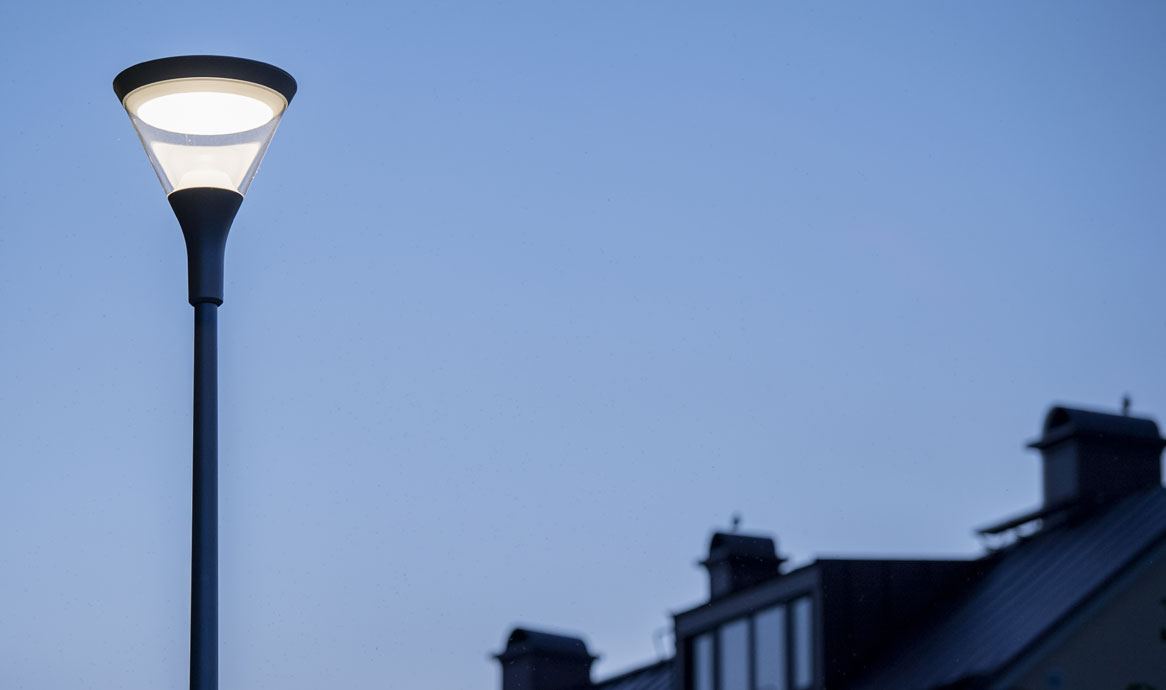

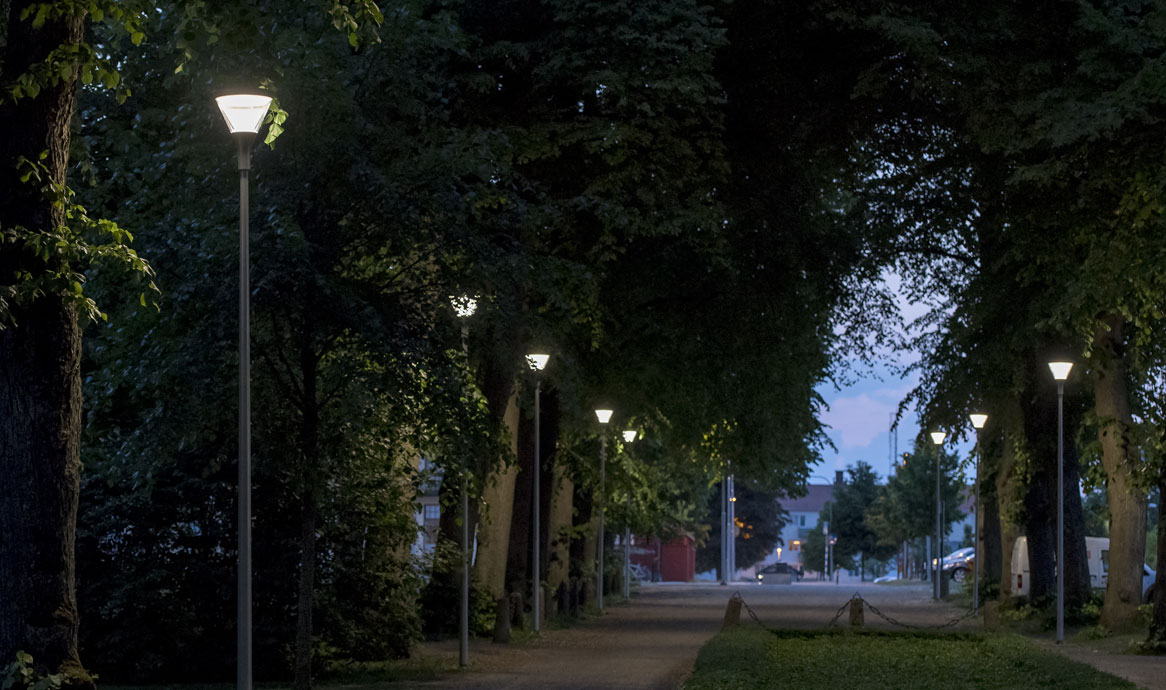

Sky Park on tall, 60 mm poles, Linneparken, Växjö, Sweden.

Umbraco.Cms.Core.Models.Link More photos

Sky Park on Ø60 pole, Linneparken, Växjö, Sweden.

Umbraco.Cms.Core.Models.Link More photos

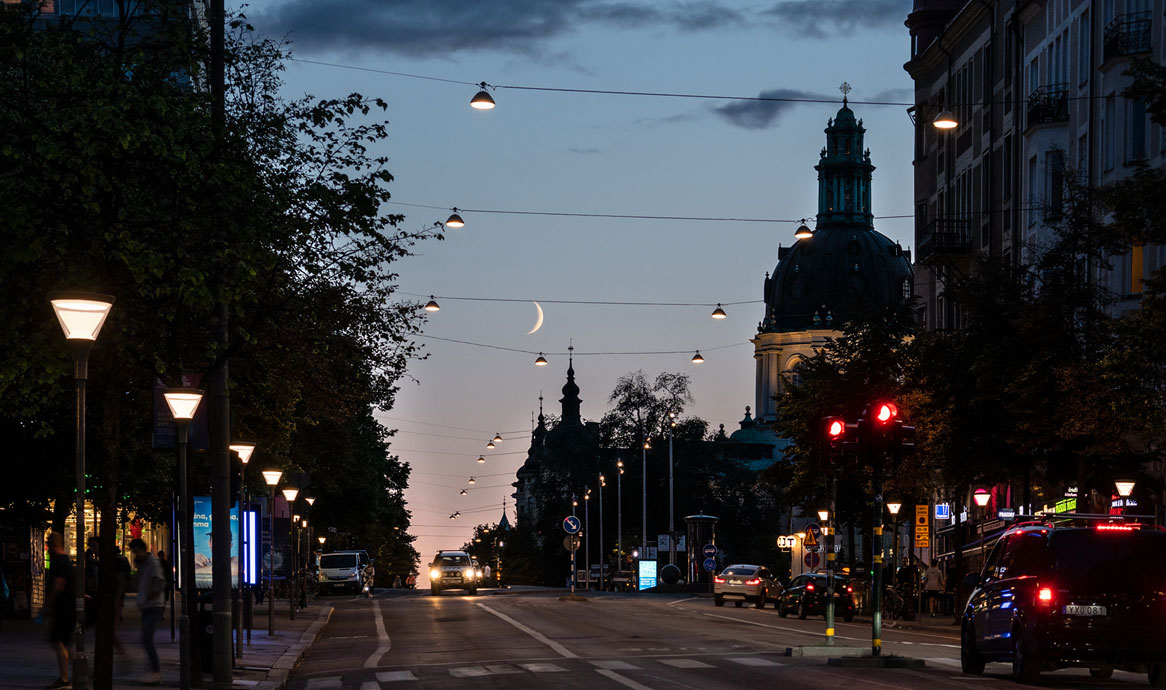

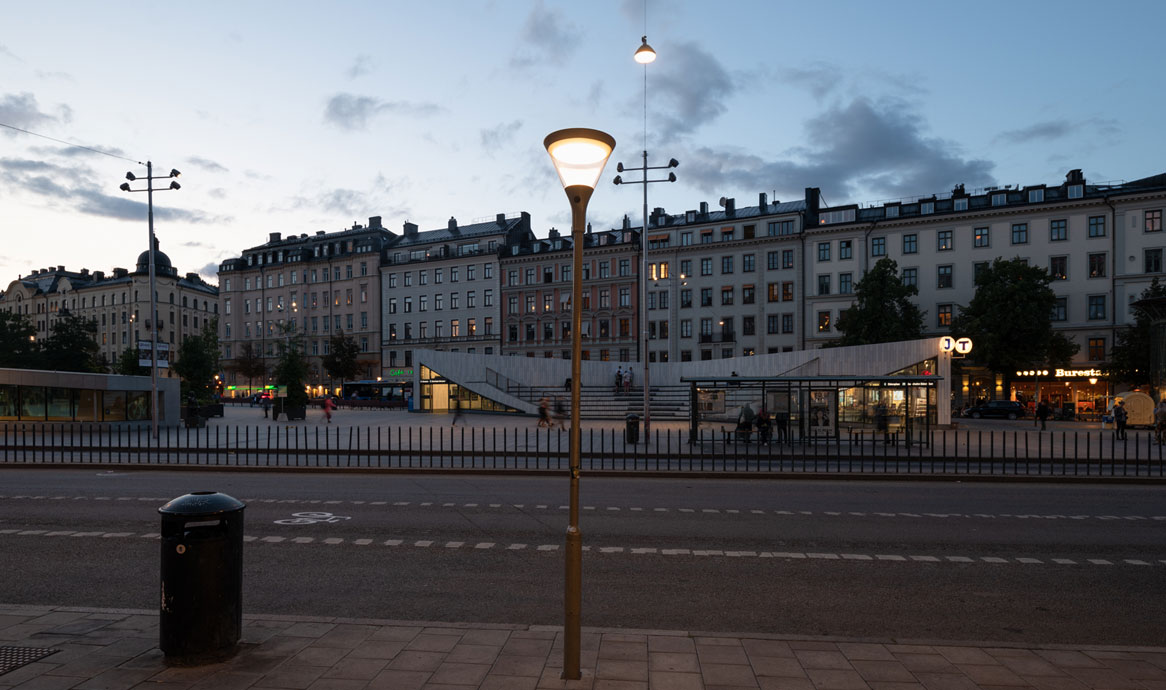

Sky Park and Way in Stockholm. The fixtures are equipped with sensor-ready sockets for smart city applications.

Umbraco.Cms.Core.Models.Link More images from Stockholm

Sky Park and Way in Stockholm. The fixtures are equipped with sensor-ready sockets for smart city applications.

Umbraco.Cms.Core.Models.Link More images from Stockholm

Sky Park and Way in Stockholm. The fixtures are equipped with sensor-ready sockets for smart city applications.

Umbraco.Cms.Core.Models.Link More images from Stockholm

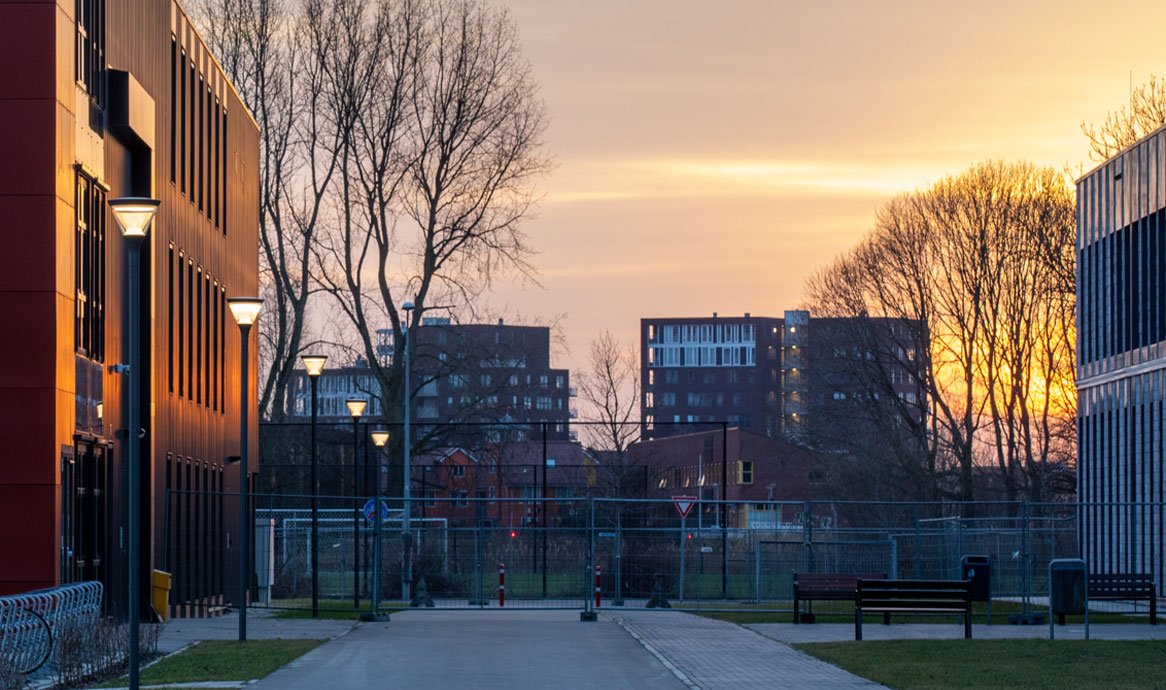

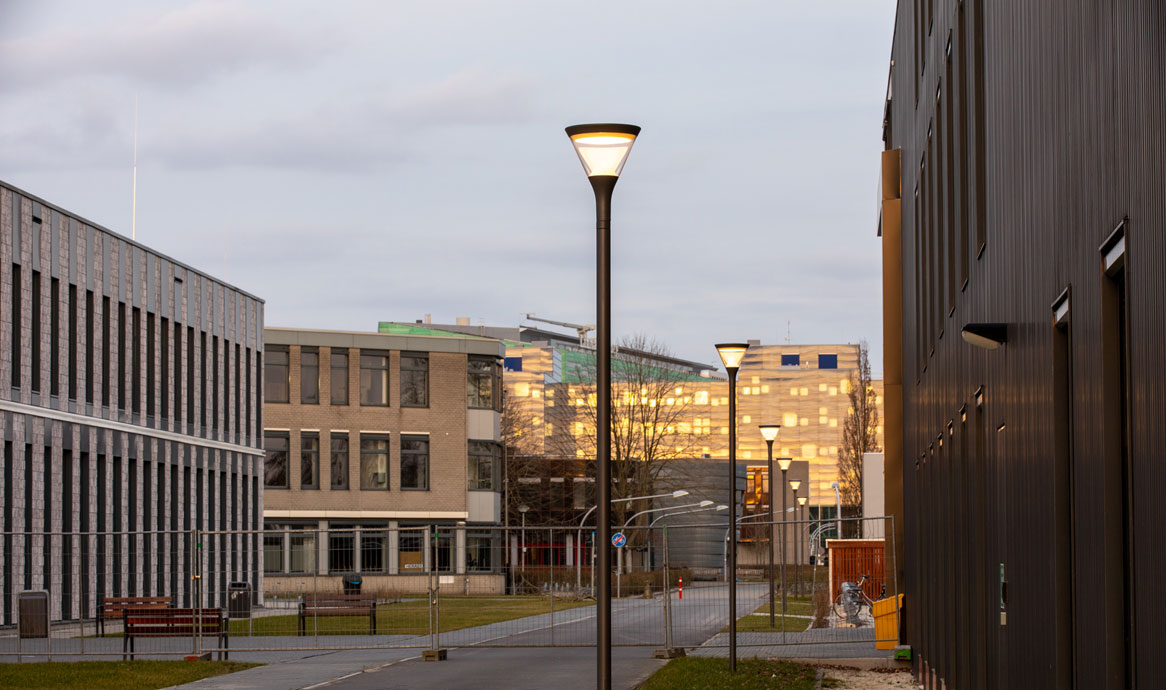

Sky Park at Campus Zernike, Groningen university, Netherlands

Umbraco.Cms.Core.Models.Link More photos from Groningen

Sky Park at Campus Zernike, Groningen university, Netherlands

Umbraco.Cms.Core.Models.Link More photos from Groningen

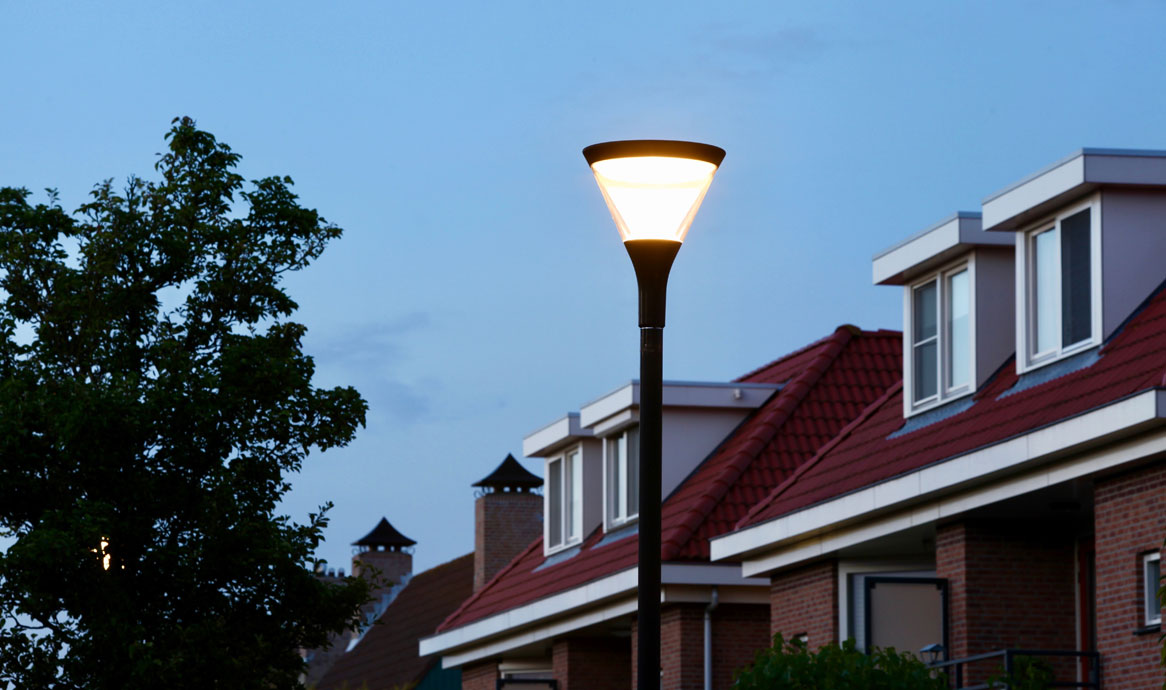

Sky Park with adapter for Ø76 mm pole, Holland

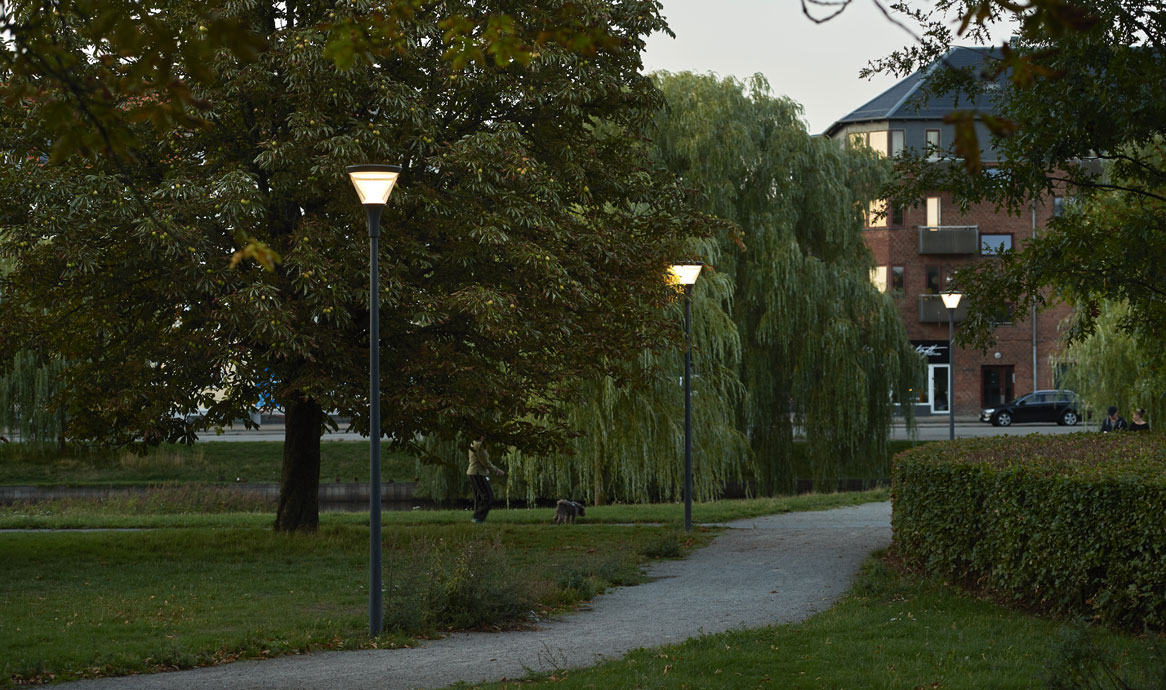

Sky Park, Utterslev Square, City of Copenhagen

Umbraco.Cms.Core.Models.Link More images from Copenhagen

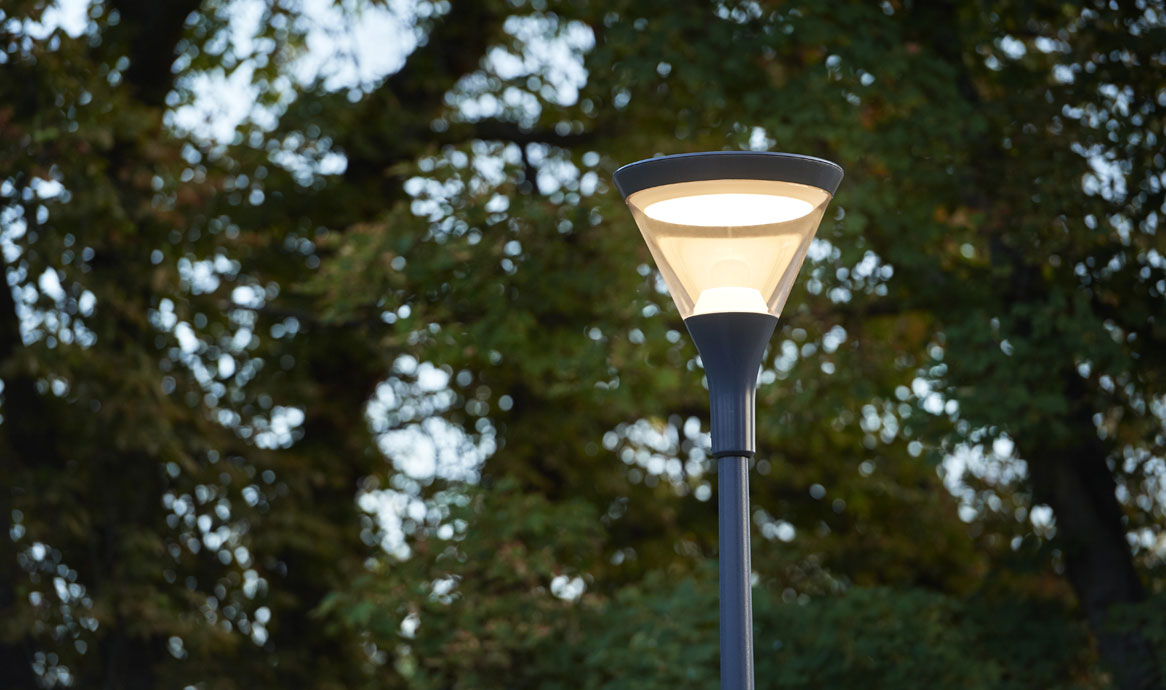

Sky Park in "Copenhagen grey" RAL 7024, Utterslev Square, City of Copenhagen

Umbraco.Cms.Core.Models.Link More images from Copenhagen

SKY in the Municipality of Silkeborg. Here the Sky Park luminaires are mounted on galvanised standard poles.

Umbraco.Cms.Core.Models.Link More photos from Silkeborg

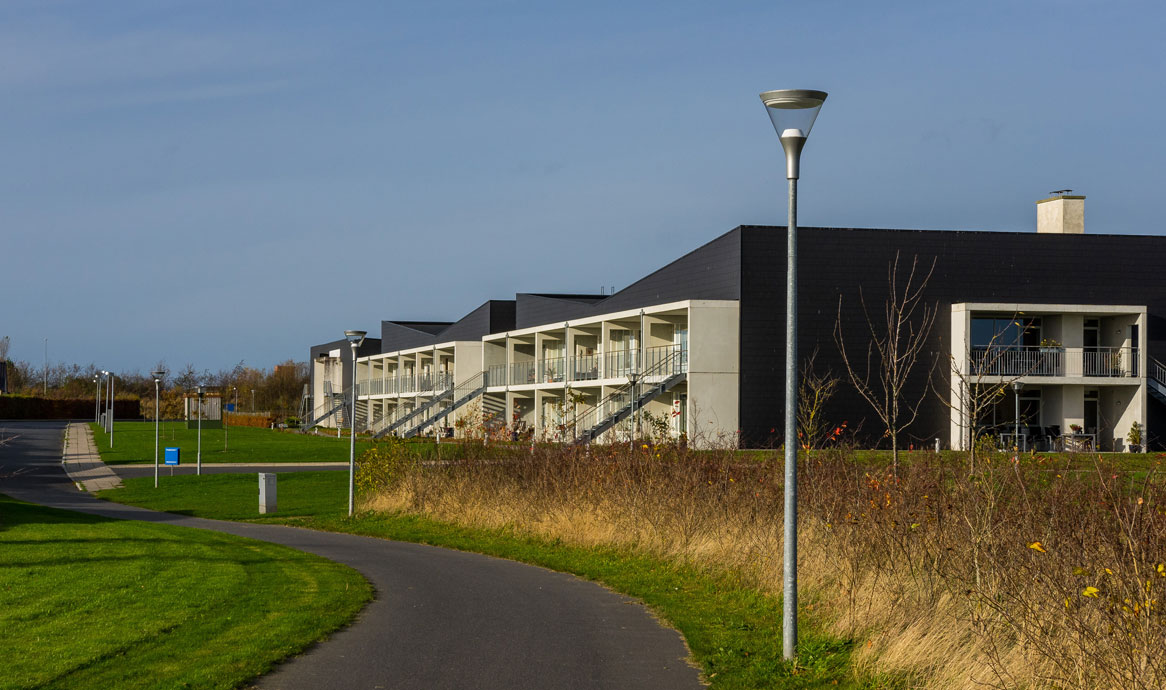

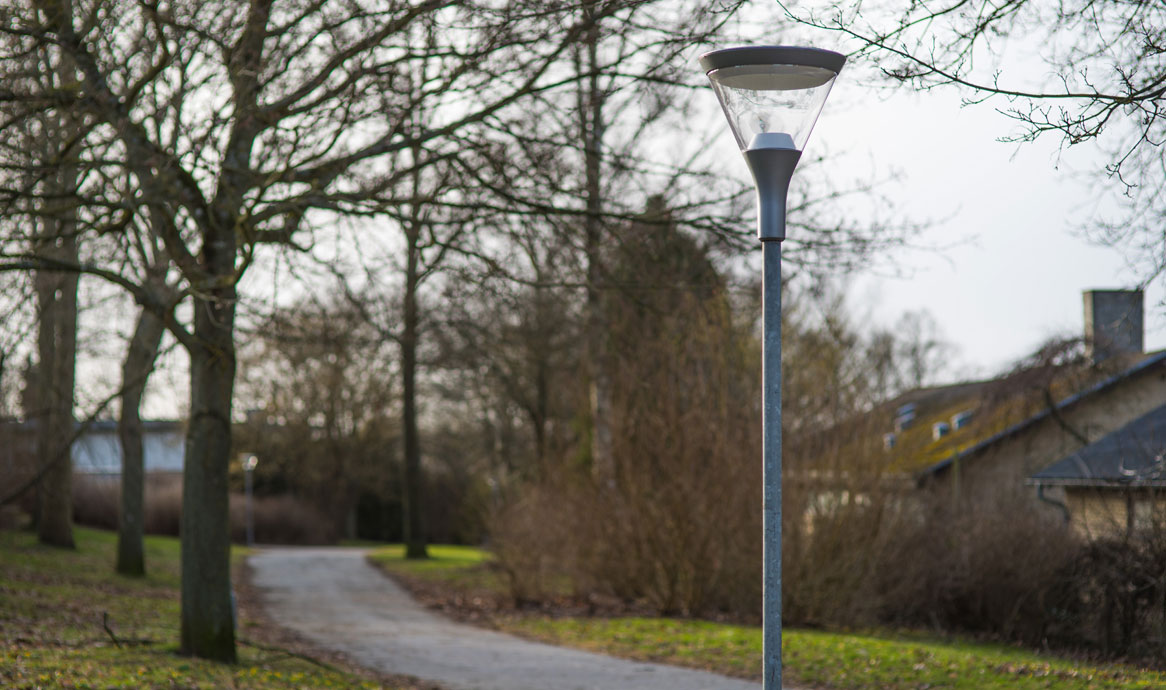

Sky is often used in residential areas - here in Silkeborg.

Umbraco.Cms.Core.Models.Link More photos residential areas

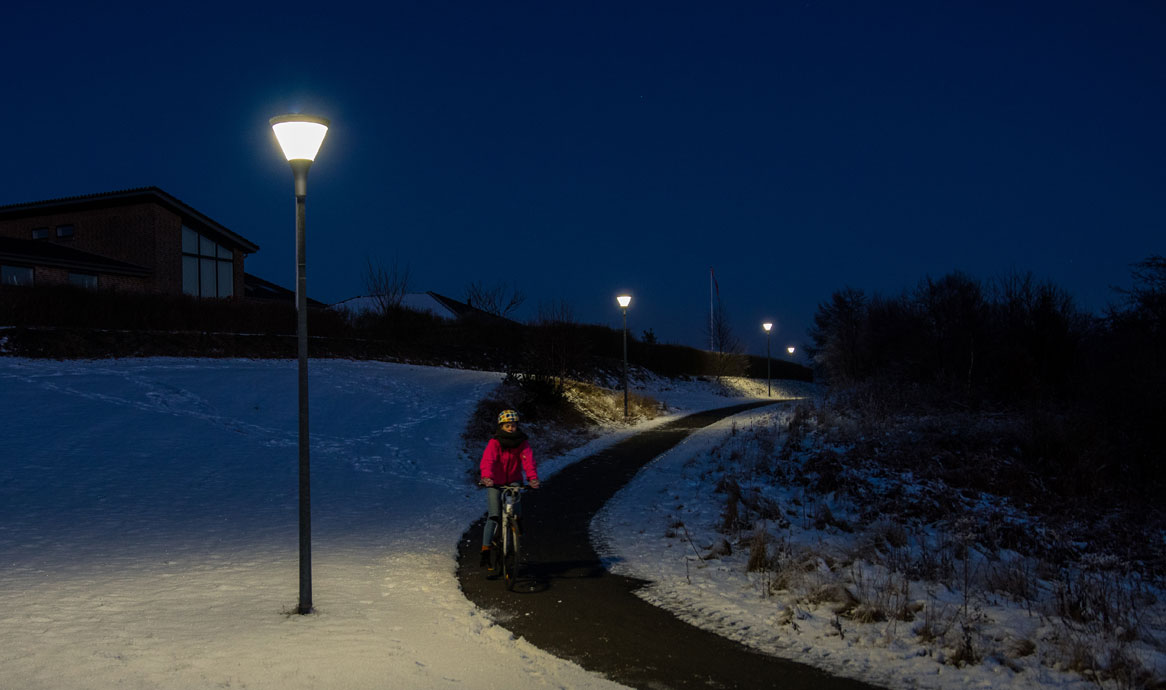

Cycling, Silkeborg

Umbraco.Cms.Core.Models.Link More photos residential areas

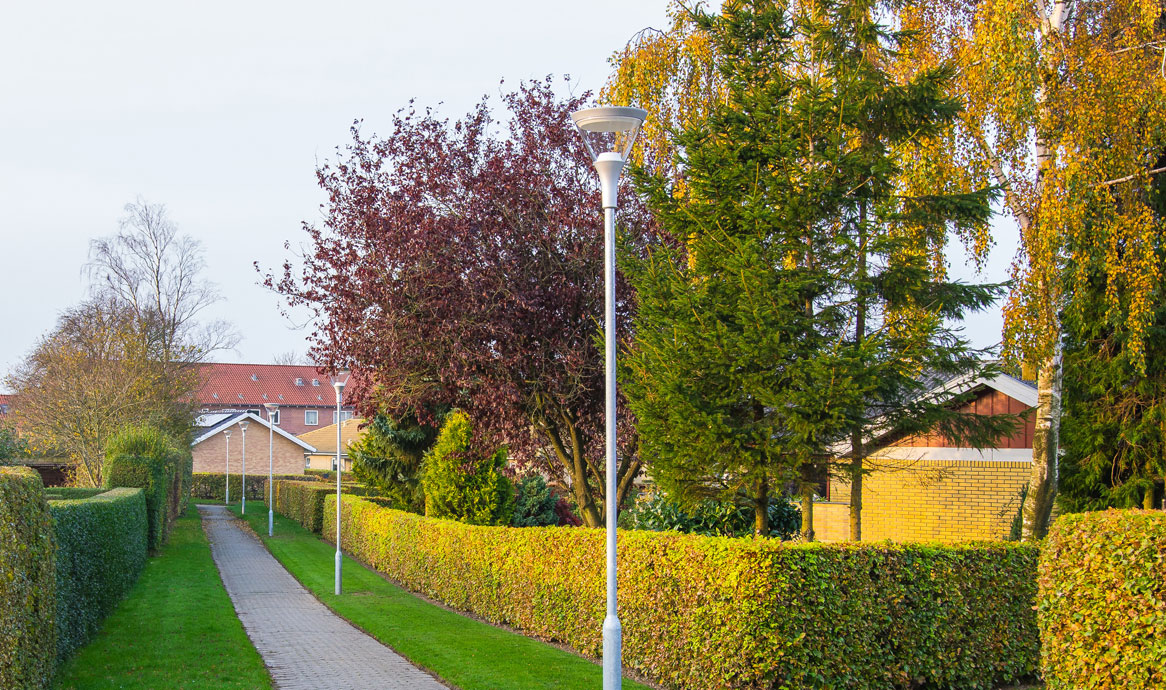

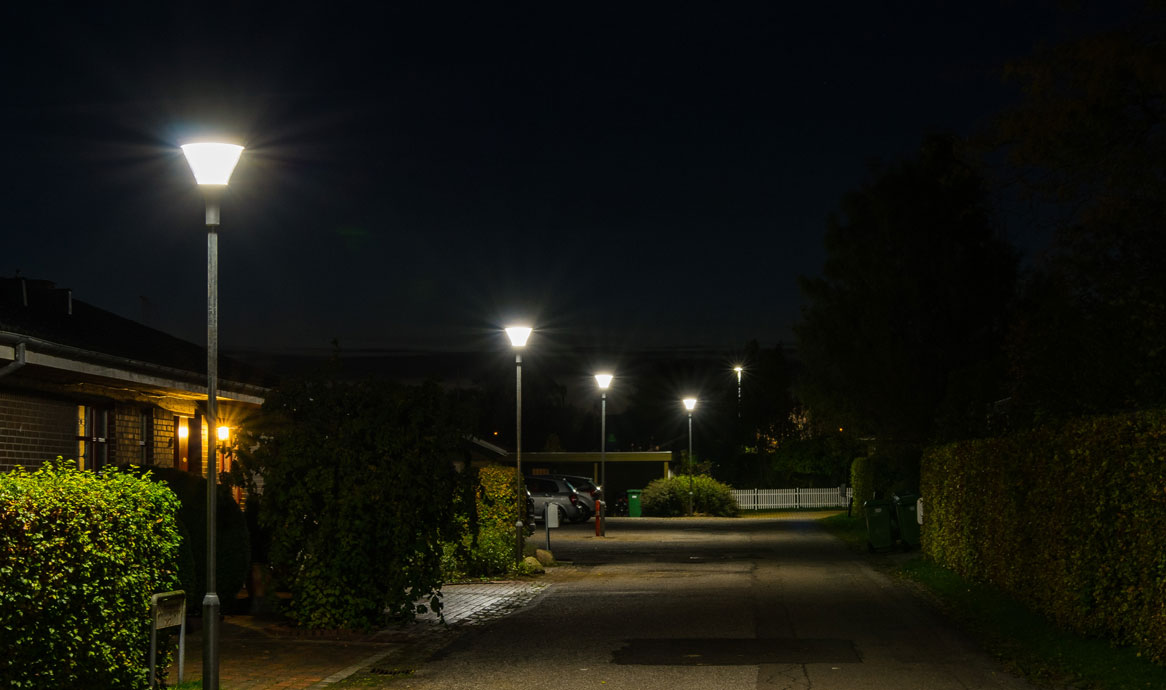

Mårslet at Aarhus, Sky Park on 60 mm standard pole.

Umbraco.Cms.Core.Models.Link More photos residential areas

Mårslet, Aarhus Kommune, Sky Park on galvanised 60 mm standard pole.

Umbraco.Cms.Core.Models.Link More photos residential areas

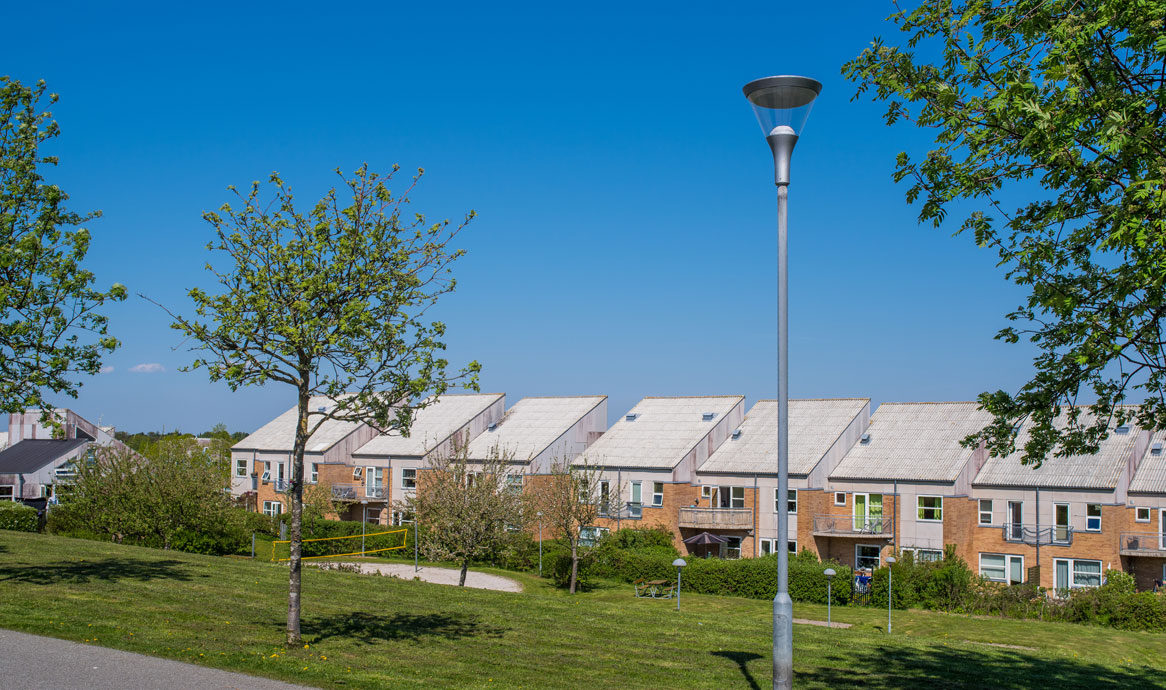

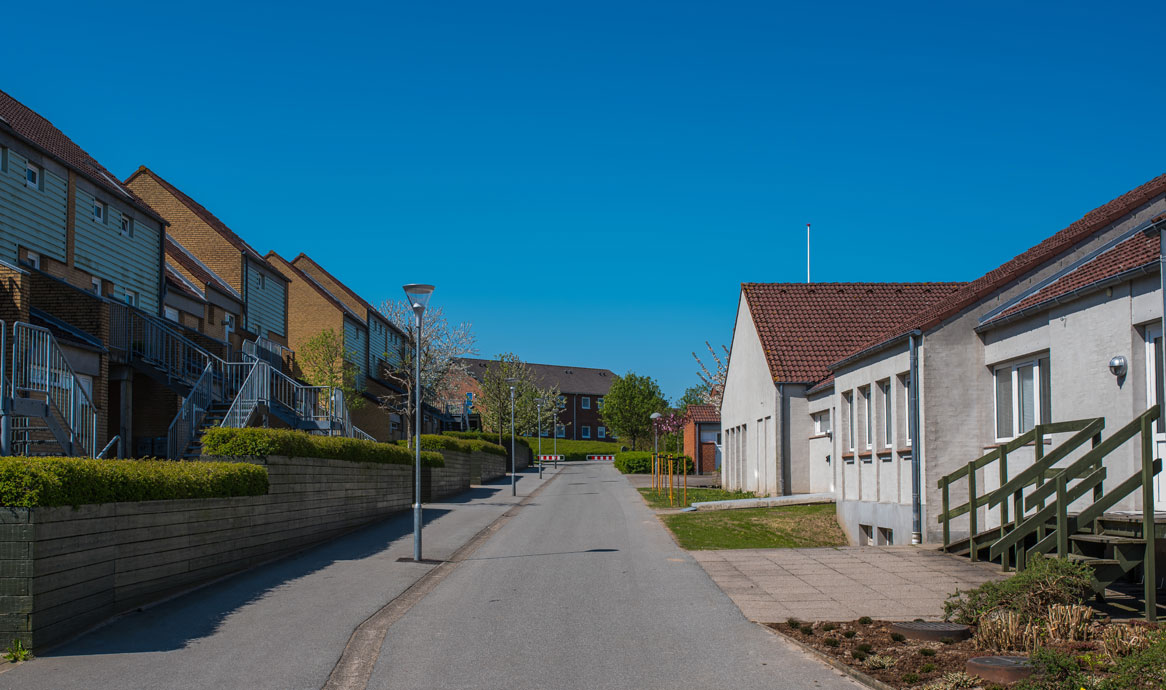

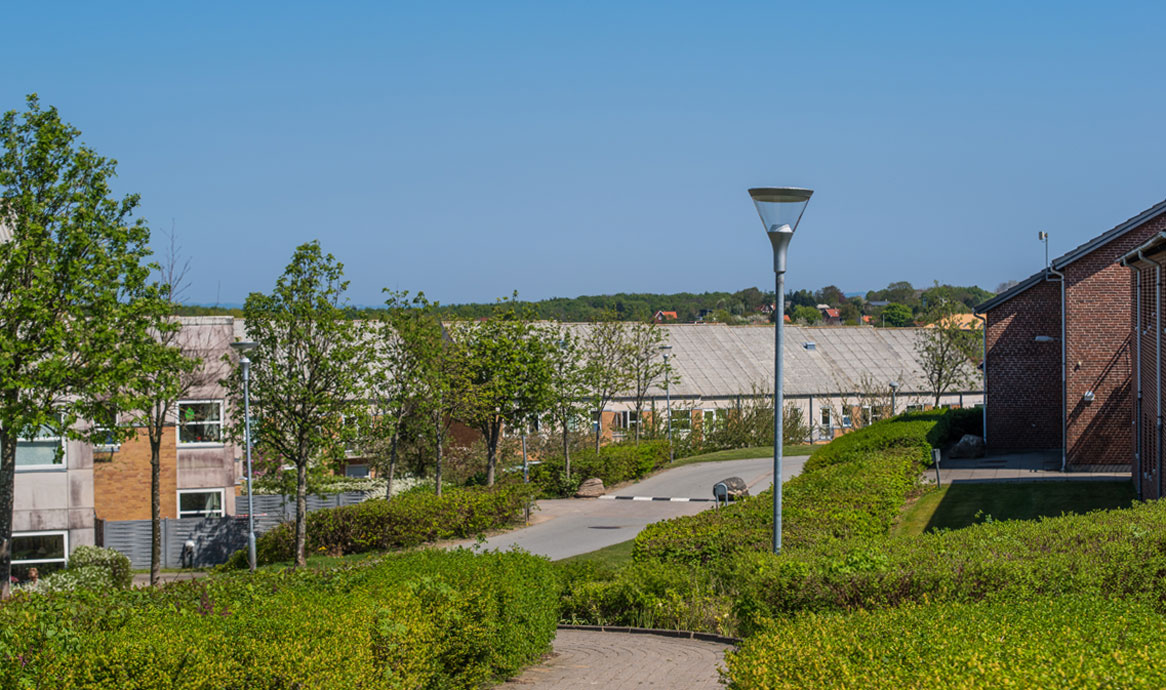

Sky Park at standard pole, Ø60, Højbjerg, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

Sky Park at standard pole, Ø60, Højbjerg, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

Sky Park at standard pole, Ø60, Højbjerg, Aarhus Kommune.

Umbraco.Cms.Core.Models.Link More photos from Aarhus

Sky Park at standard pole, Hasselager, Aarhus Kommune

Umbraco.Cms.Core.Models.Link More Sky images

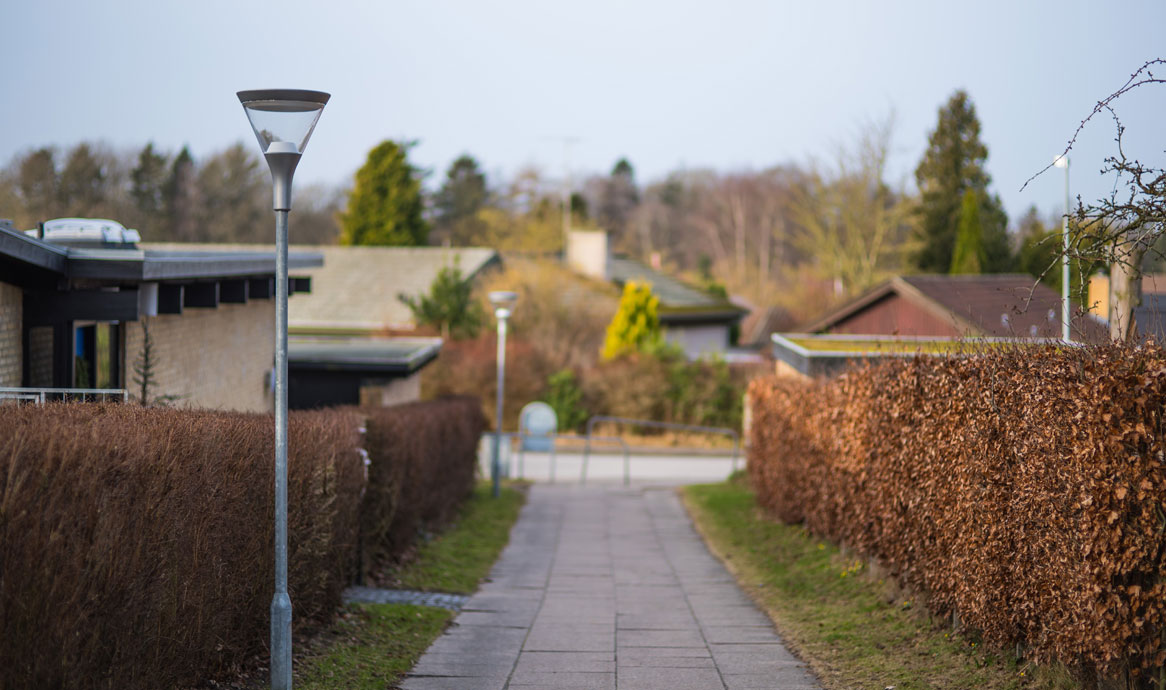

Sky Park, silver grey, pole galvanised, Randers Kommune

Sky Park in Randers Kommune

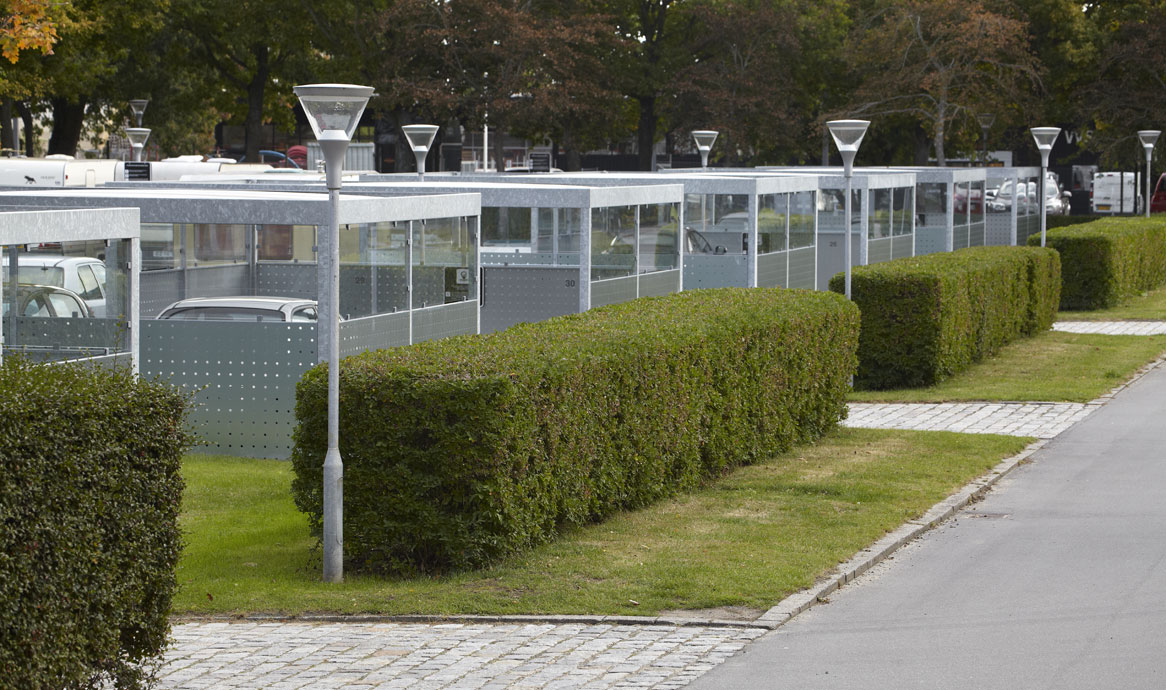

Sky Park in residential area Søndermarken, Fredericia.

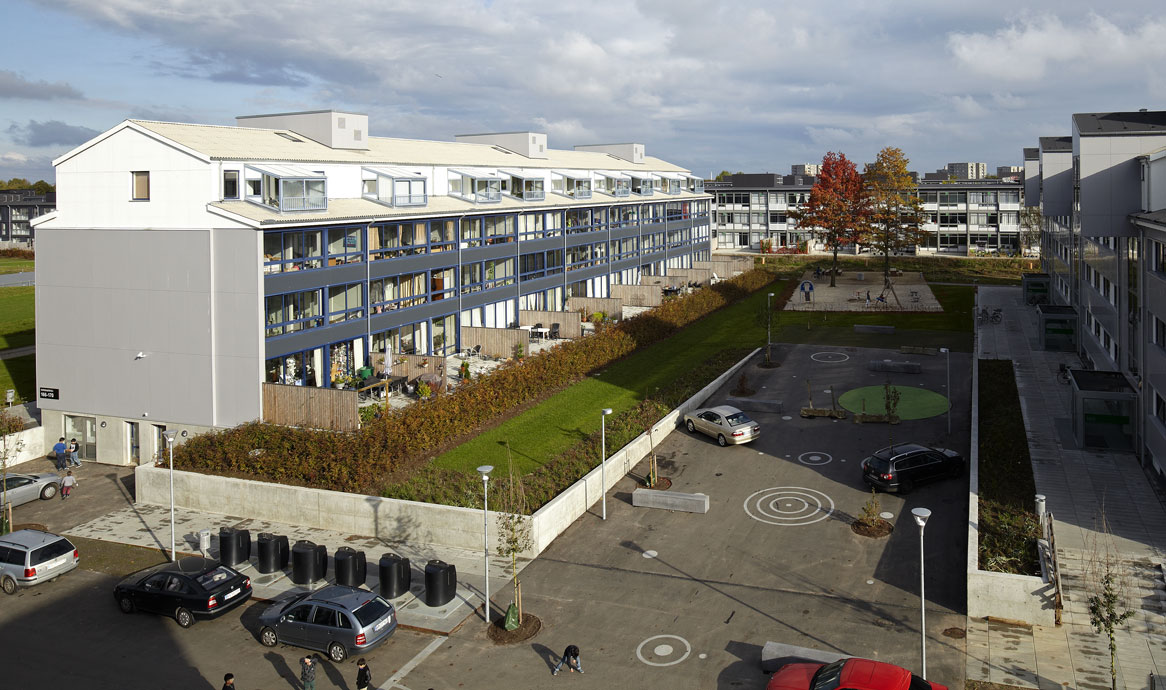

Sky Park and Nyx 330, Korskærparken, Fredericia.

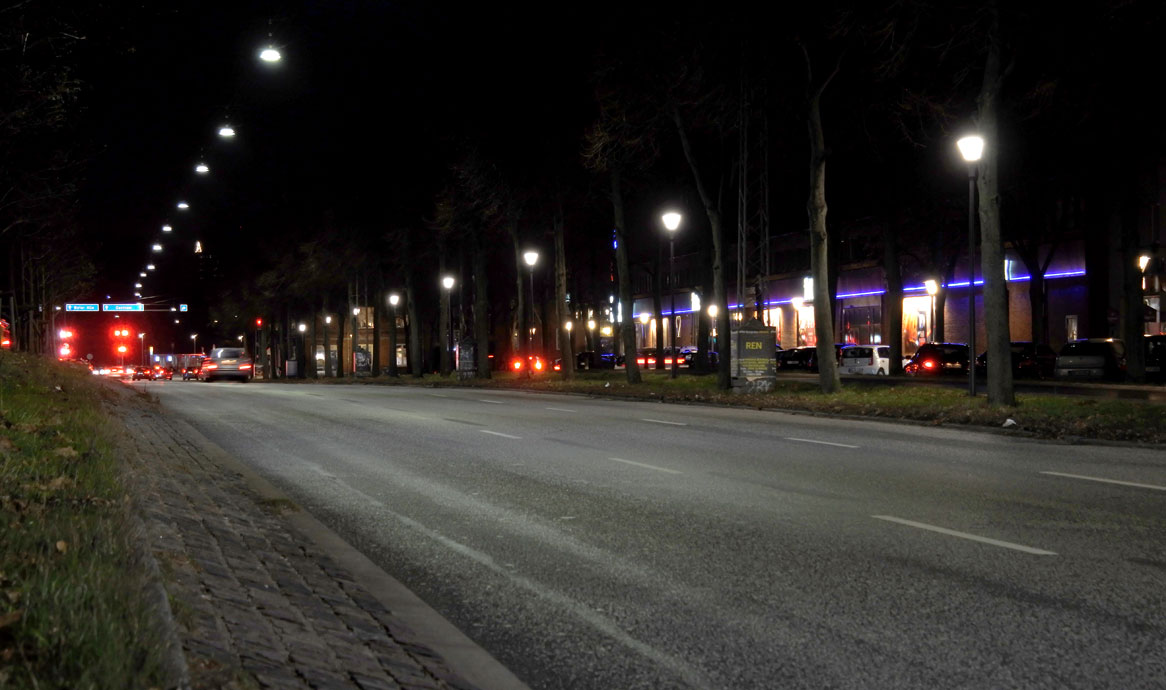

Sky Park on 4 meter pole, Lyngbyvej, Copenhagen.

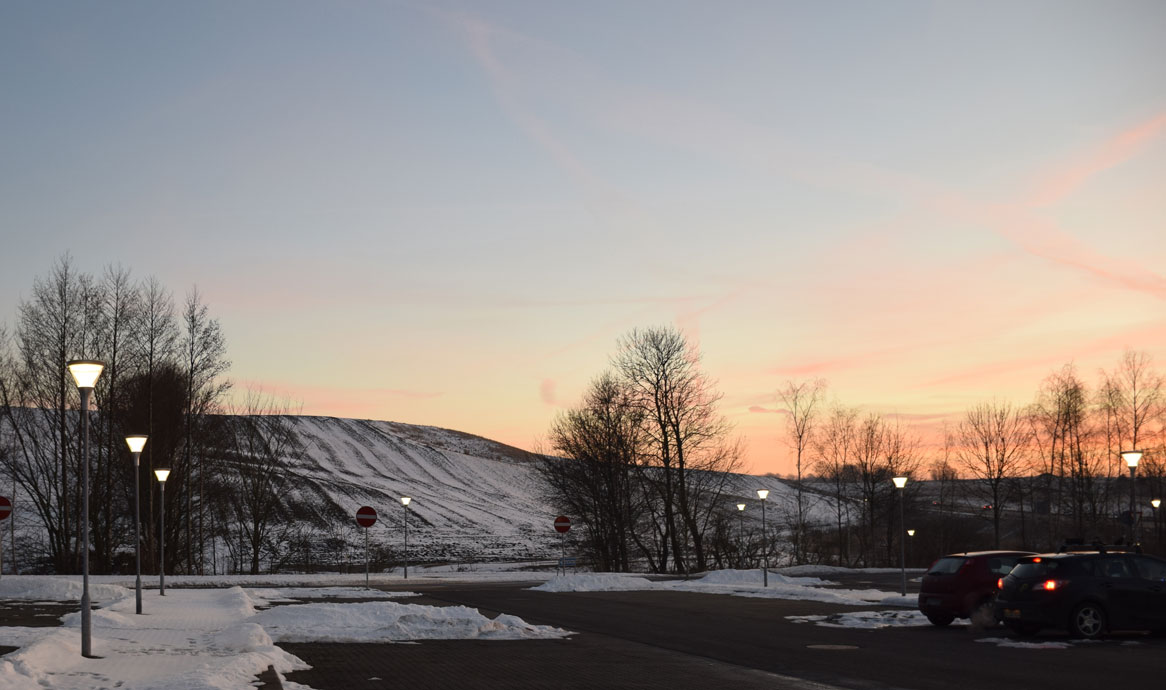

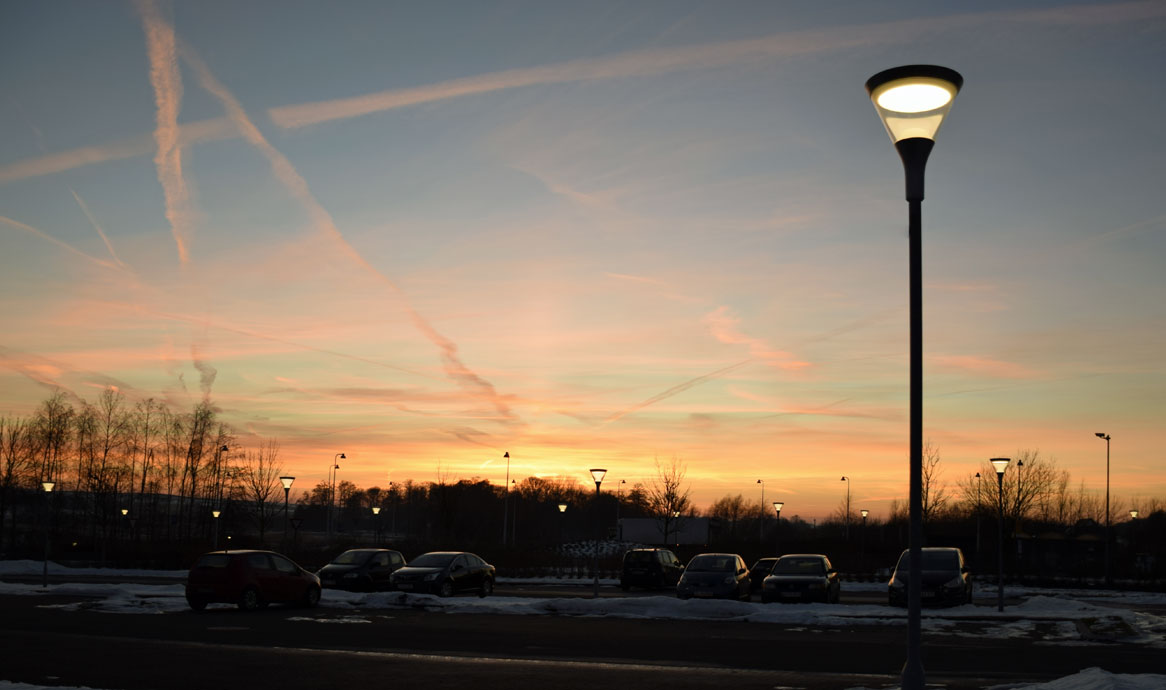

Sky Park, Kildedal Station, Ballerup Kommune
