SKY WALL

Sky Wall has the same dimensions and lighting technology as the Sky Park and is available in the same colours.

Specifications

Specifikationer

Luminaire

SKY WALL
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen	Clear polycarbonate with UV-resistant acrylate on both sides
Mounting	On wall
Connection	5 x 2.5 mm2 into terminal block
Classification	IP66, class II; use code for class I
Corrosion class	C4, C5 optional
Weight	8.4 kg
Wind-sweeping area	0.143 m2 (laterally)

LED Low Lumen

LED type	Bridgelux Vero 18
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead times for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 325-3950 lm
	3000K: 325-4025 lm
	4000K: 325-4050 lm
LED-lumen, 90 Ra	3000K: 275-3000 lm
Output ratio	74%

LED High Lumen

LED type	Bridgelux Vero 22
Operational life	min 100,000 hours at ta max 25° C, L100B10
	Constant lumen output
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 80, typically 85 Ra
	option for 90 Ra, 3000 K, with R9 = 72
	OBS: longer lead times for Ra 90
Colour accuracy	3 steps SDCM
Luminous flux	The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra	2700K: 625-6800 lm
	3000K: 625-6950 lm
	4000K: 650-7025 lm
LED-lumen, 90 Ra	3000K: 275-3000 lm
Output ratio	74%

Driver

Driver	Xitanium Full Xi FP 22 W 0.2-0.7 A, programmable
Inrush current	max 15 A (50% after 295 µs)
Nominal voltage, AC	220-240 Vac
Operational input voltage, AC	80-264 Vac
Nominal voltage, DC	186-250 Vdc
Operational input voltage, DC	168-275 Vdc
Nominal input frequency	50-60 Hz
Operational input frequency	45-66 Hz
Max preprotection	16 A
Surge protection	L/N-GND: 10 kV
	L-N: 6 kV
Service life	min 100,000 hours
Dimming	5 steps dimming within the lumen intervals
Other dimming	DALI-2, LineSwitch

Variants and options

Item No.	SKY WALL
6834-	V18, Low lumen, programmable, max 24 W

Option
8006-	Powder-coated shade for asymmetrical light

Combine with

Select colour, colour codes, and dimming in the table.

Colour	Colour temperature
01 = raw anodized	827 = 2700 K, 80 Ra
4 = graphite grey	830 = 3000 K, 80 Ra
9 = silver grey	840 = 4000 K, 80 Ra
17 = corten brown	930 = 3000 K, 90 Ra
66 = noir 900

Dimming	Protection class
empty = programmable	empty = class II
D = DALI-2 (4/5-conductor cable)	J = class I
F = LineSwitch

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example: 6834-9827J = Sky Wall, Low lumen, programmable, silver grey, 2700 K, 80 Ra, class I

Media & downloads

Product information

Product data, Sky WallPDF Mounting instructionsPDF MaintenancePDF RoHS DeclarationPDF

3D files

Sky WallRFA Sky WallGSM Sky WallLCF Sky Wall3DS

Photos

Product image, Sky WallJPG Product image, Sky Wall corten brownJPG

Photometric data

Sky Park, 24 W, 2700 KLDT Sky Park, 24 W, 2700 KPDF Sky Park, 24 W, 3000 KLDT Sky Park, 24 W, 3000 KPDF Sky Park, 24 W, 3000 K, 90 RaLDT Sky Park, 24 W, 3000 K, 90 RaPDF Sky Park, 24 W, 4000 KLDT Sky Park, 24 W, 4000 KPDF Sky Park, 24 W, 2700 K, shadedLDT Sky Park, 24 W, 2700 K, shadedPDF Sky Park, 24 W, 3000 K, shadedLDT Sky Park, 24 W, 3000 K, shadedPDF Sky Park, 24 W, 3000 K, 90 Ra, shadedLDT Sky Park, 24 W, 3000 K, 90 Ra, shadedPDF Sky Park, 24 W, 4000 K, shadedLDT Sky Park, 24 W, 4000 K, shadedPDF

All ldt files

LDT.zipZIP

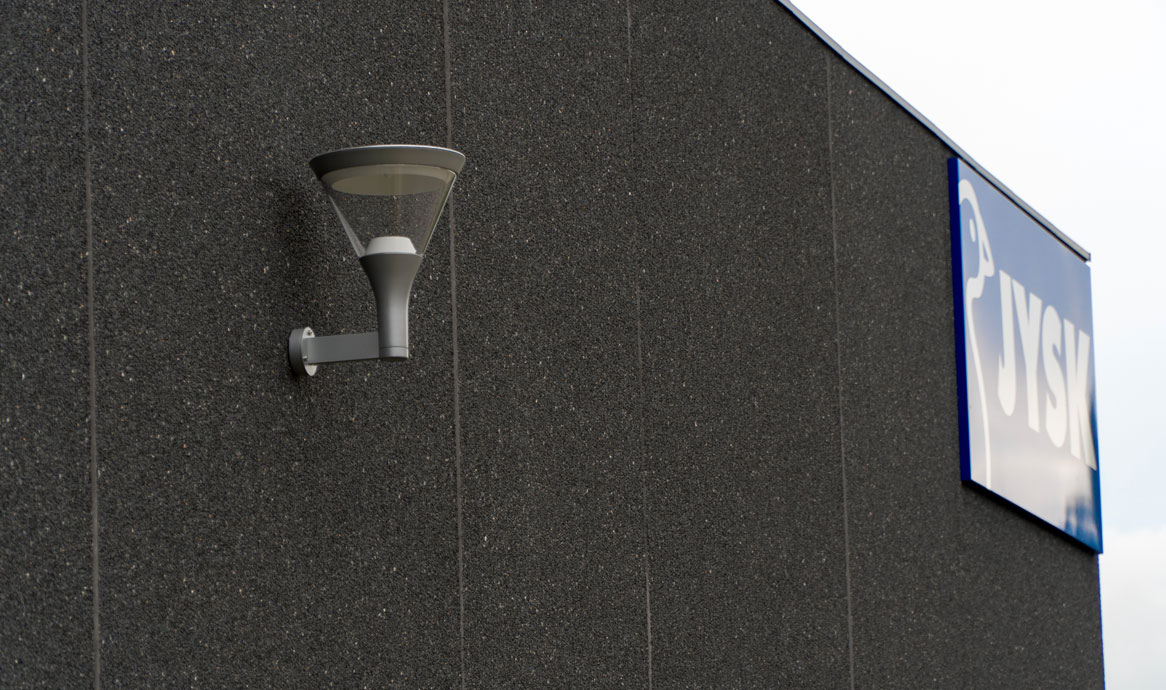

Sky Wall, silver grey, Jysk, Kokkedal Industripark.

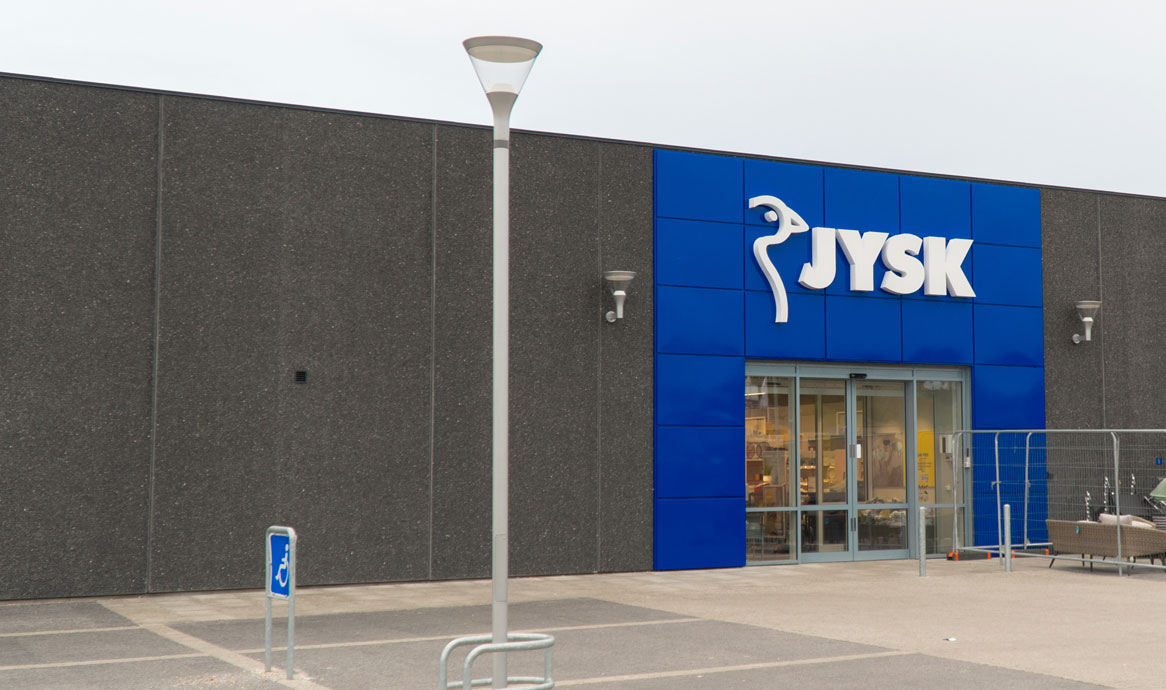

Sky Park and Sky Wall, silver grey, Jysk, Kokkedal Industripark.

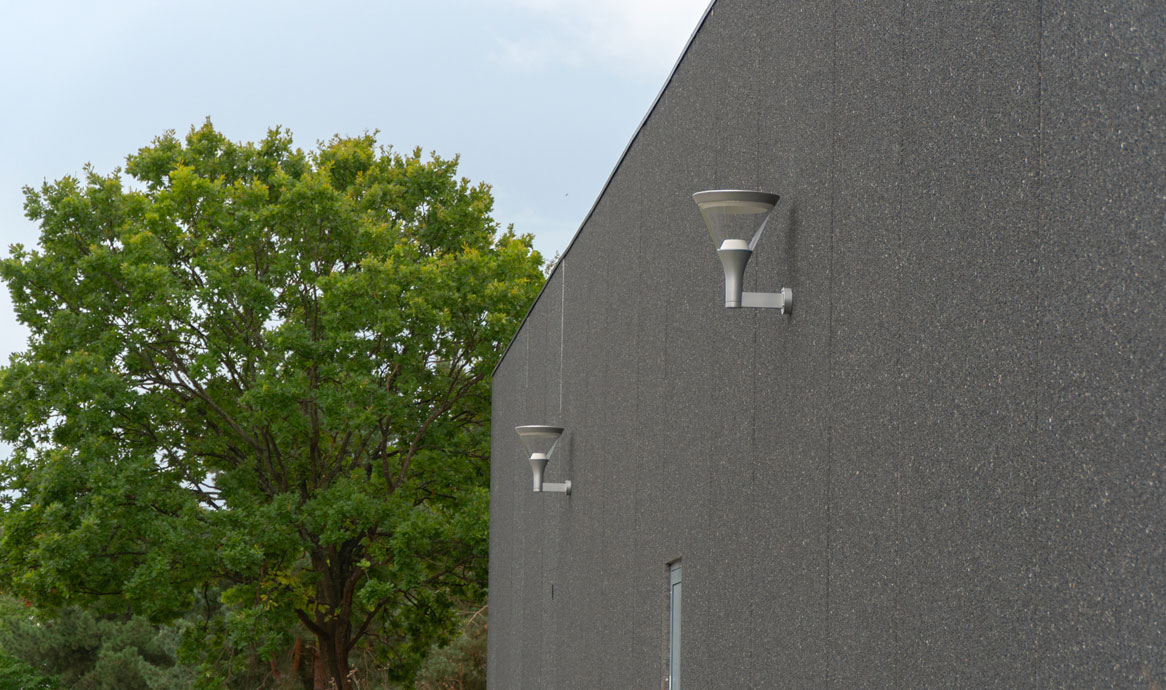

Sky Wall, silver grey, Jysk, Kokkedal Industripark.

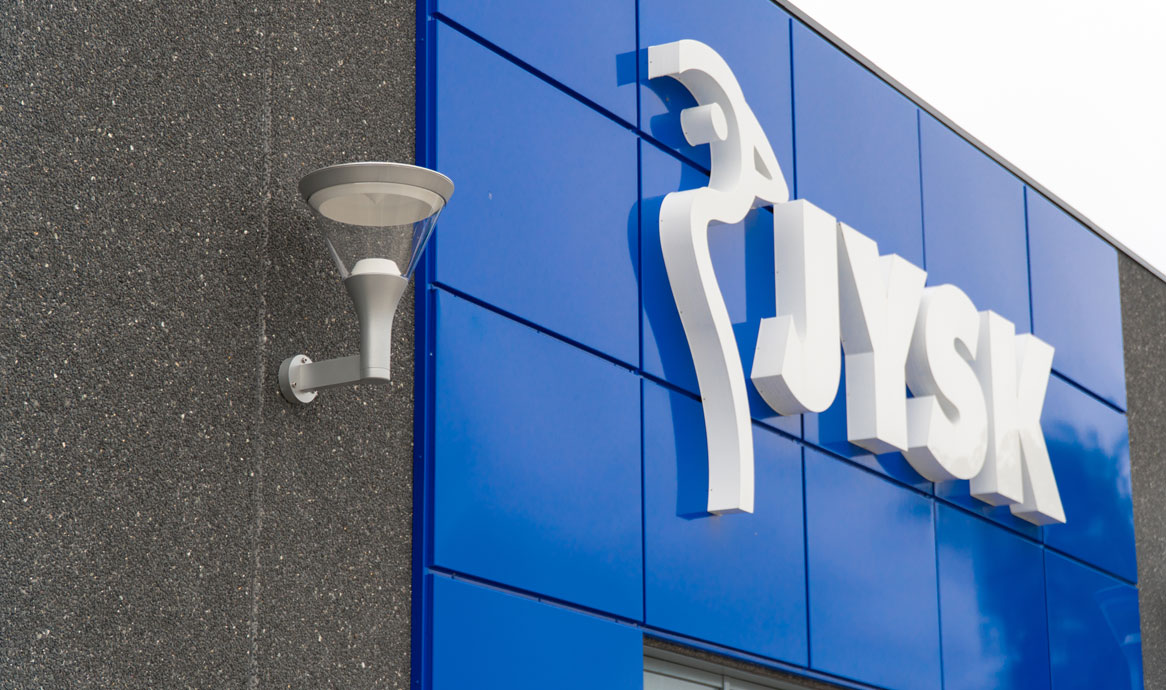

Sky Wall, silver grey, Jysk, Kokkedal Industripark.

Sky Wall, silver grey, Jysk, Kokkedal Industripark.

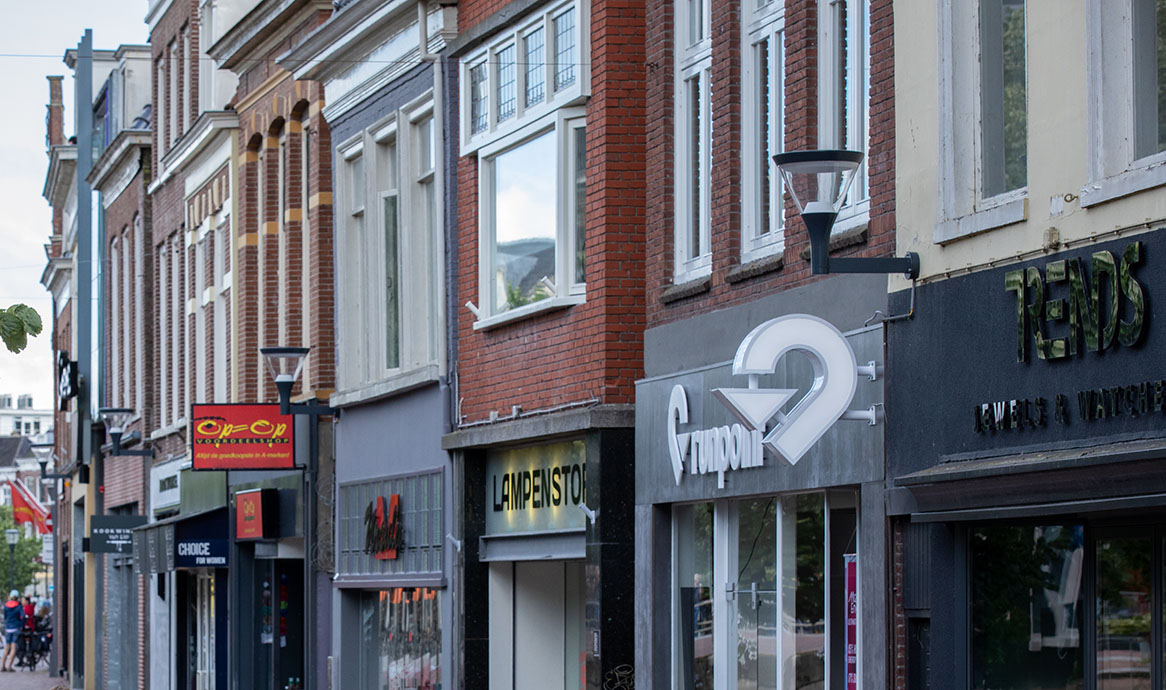

Sky Wall with ekstra arm length, grey antrazit RAL 7016, Leeuwarden, Holland

Umbraco.Cms.Core.Models.Link More Sky projects

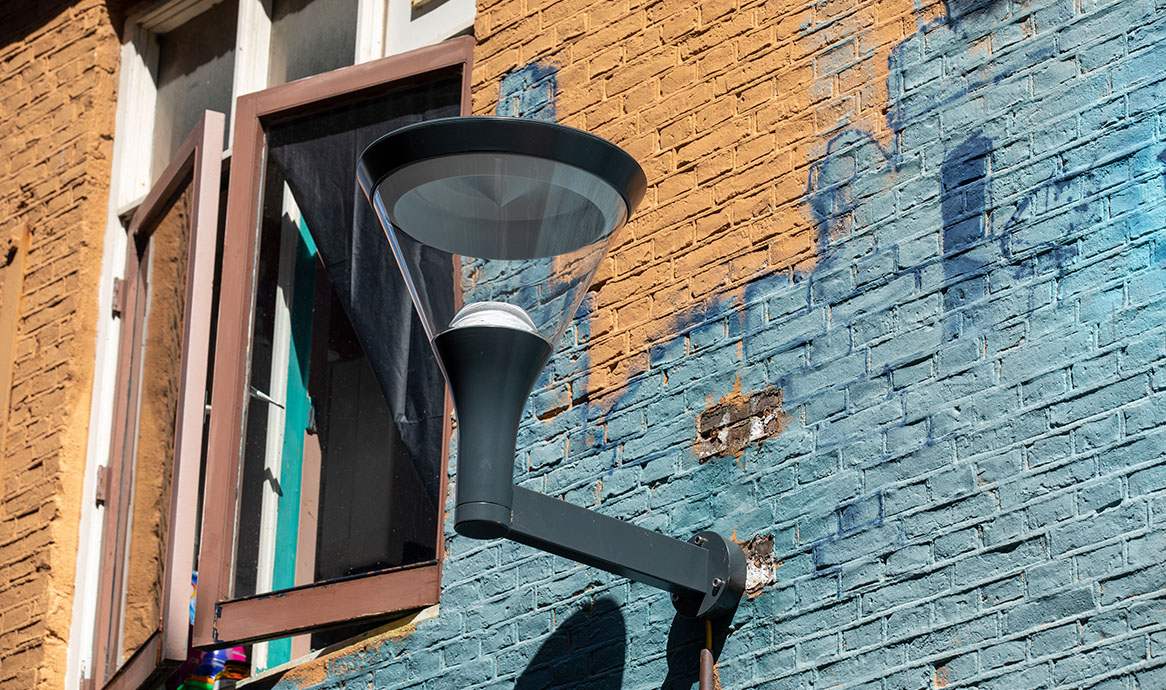

Double arm length compared with the standard (200/400 mm) for Sky Wall in the city of Leeuwarden, Holland

Umbraco.Cms.Core.Models.Link More Sky projects

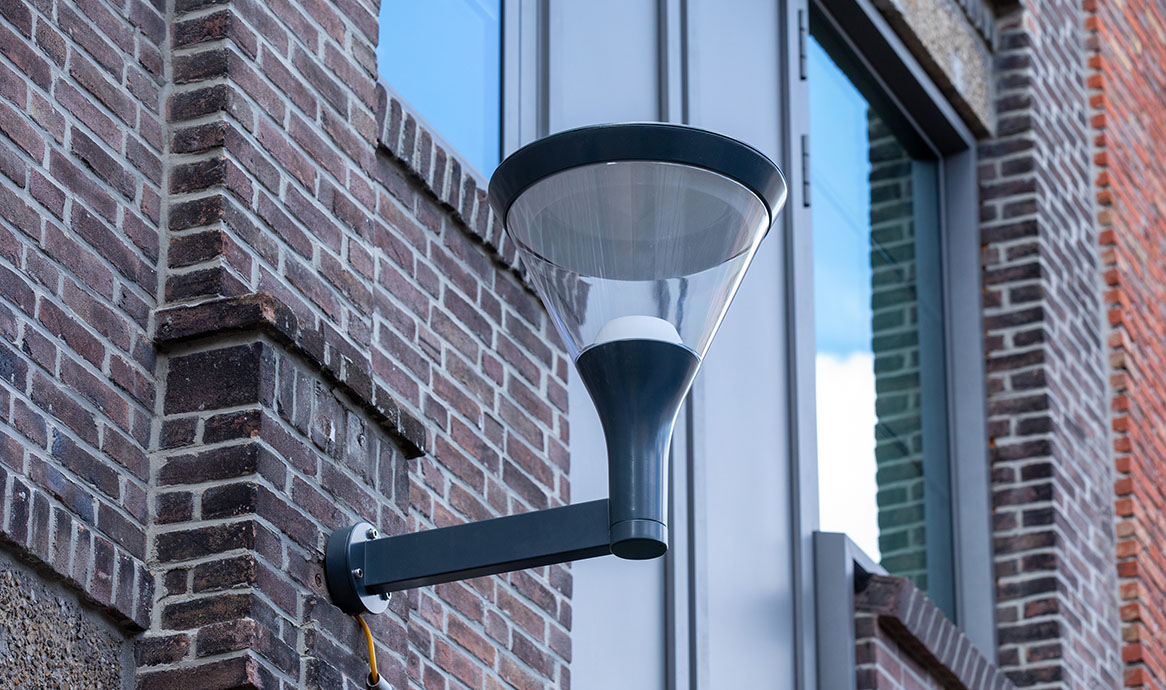

Sky Wall, grey antrazit RAL 7016, ekstra long arm, Leeuwarden, Holland

Umbraco.Cms.Core.Models.Link More Sky projects

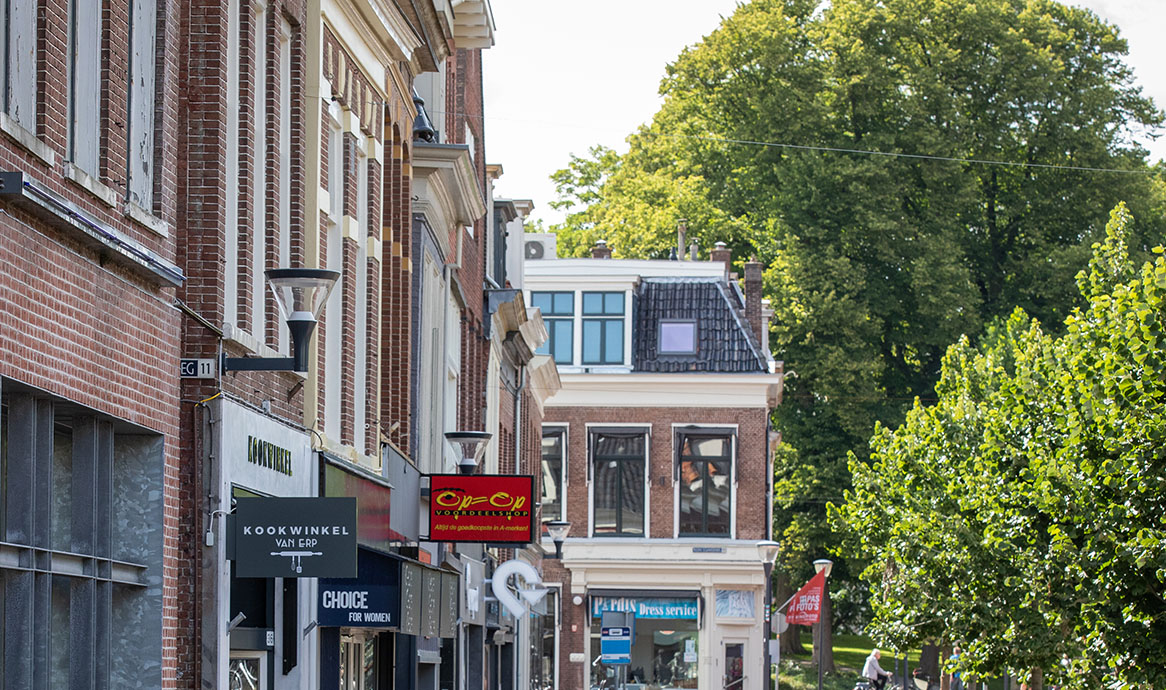

Sky Wall with ekstra long arm (400 mm), Leeuwarden, Holland

Umbraco.Cms.Core.Models.Link More Sky projects

DesignAART Designers

AART designers have created Sky as a minimalist luminaire blending discretely into its surroundings. However, on second glance, it stands out and presents its elegant proportions, deliberately contrasting materials, as well as beautifully and functionally integrated lighting technology – both with the light on and off.

The name Sky originates from the vision of creating an undisturbed, almost invisible light from above. From an endless, evenly luminous and non-glaring sky.
