SQUARE 190

The chaste design and simple materials are as inspirational inside as out. For halls and hallways. Alone or together, in rows or perfect squares.

Simplicity liberates imagination.

Specifications

Specifikationer

Luminaire

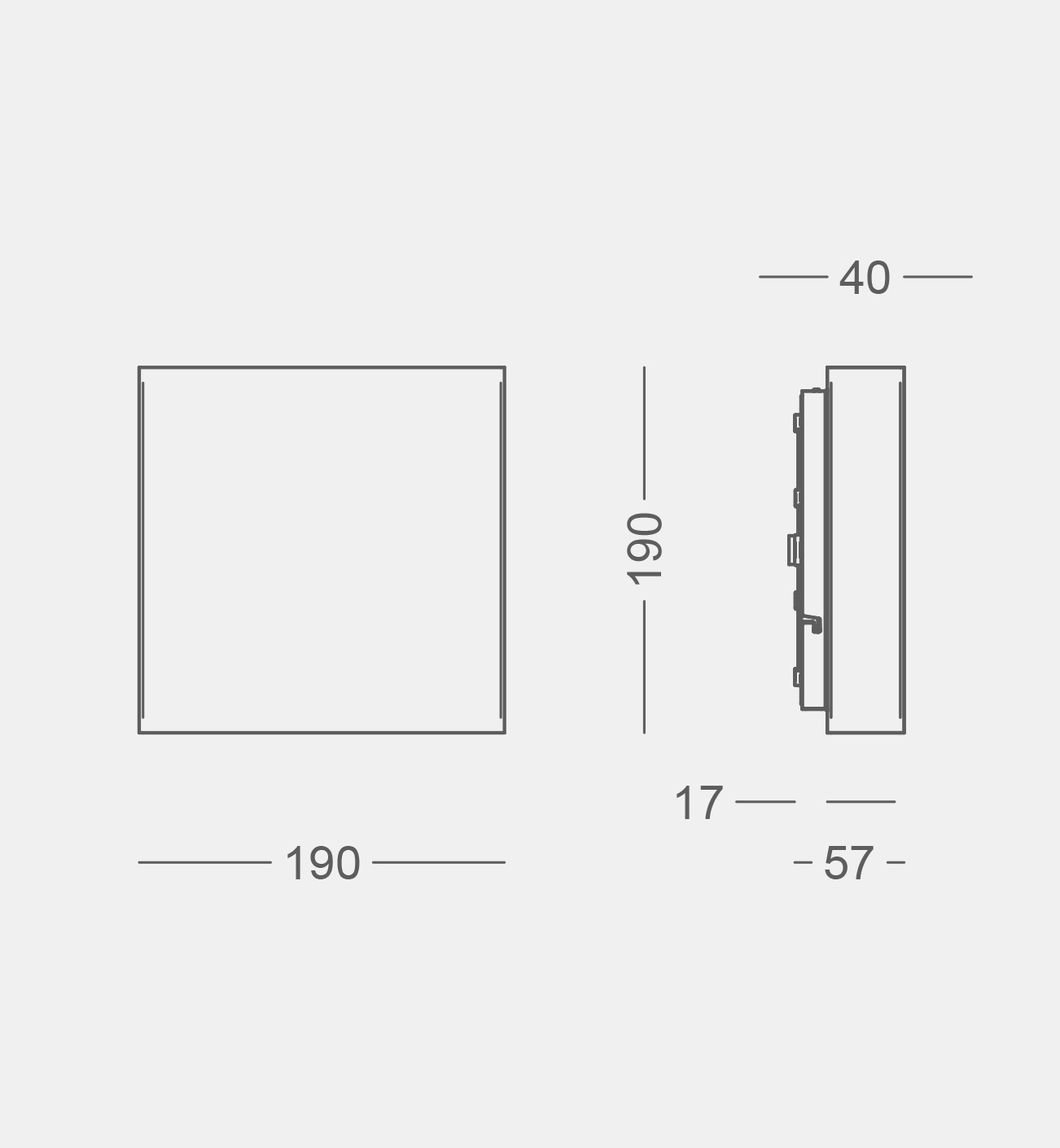

SQUARE 190
Material	Galvanised steel, coated stainless steel or copper.
Coating	White: RAL 9010
	Black: RAL 9005
	Black: Noir 900 Sablé, SN351F
	Graphite grey: YW355F
	Corten brown: YX355F
Shade	Opal-white polycarbonate
Cut-out	Digits can be cut in the front. See specification in the pdf with product data.
Mounting	On wall
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP45, class II
Impact resistance	IK09
Weight	1 kg

LED and driver data

LED type	Bridgelux V8 + V6
Operational life	min 100,000 hours at ta max 25° C, L90B10
Total consumption	8 or 11 W
Total consumption, downwards only	6 or 8 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	55%

Driver	LED driver, 20 W
	Dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 100,000 hours

Variants

Item No.	Square 190 exterior
6920-	8 W LED, 250 mA
6921-	11 W LED, 350 mA
6922-	6 W LED, 250 mA, downwards only
6923-	8 W LED, 350 mA, downwards only

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
1 = white	927 = 2700 K, 90 Ra
3 = black	930 = 3000 K, 90 Ra
4 = graphite grey	940 = 4000 K, 90 Ra
8 = brushed copper
17 = corten brown
66 = noir 900

Dimming	Classification
empty = no dimming	K = class II
V = 1-10 V
D = DALI

Laser cutting in front
C = Cutting of digits in front

Example Item No.: 6920-66927D = Square 190, 8 W LED, noir 900, 2700 K, 90 Ra, Dali, class I

Luminaire

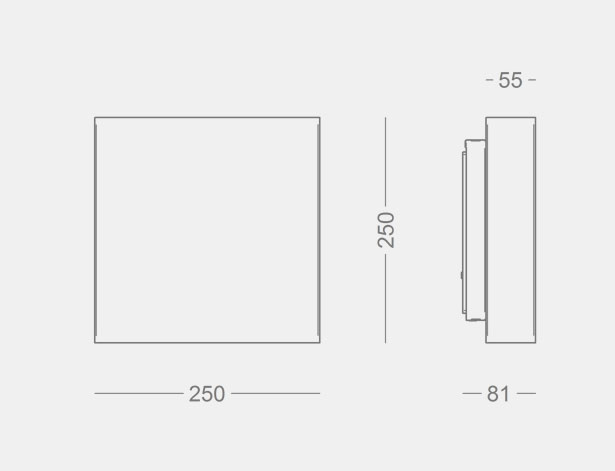

SQUARE 250
Material	Galvanised or coated steel, or copper
Coating	White: RAL 9010
	Black: RAL 9005
	Black: Noir 900 Sablé, SN351F
	Graphite grey: YW355F
	Corten brown: YX355F
Shade	Opal-white polycarbonate
Cut-out	Digits can be cut in the front. See specification in the pdf with product data.
Mounting	On wall or wall box
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP45, class I or II
Impact resistance	IK07
Weight	2 kg

Lamp type

E27	max 30 W
	Example: Deco Aurora LED dimmable, 7.5 W, 2700 K, 20,000 hours operation
Output ratio	20%

Variants and options

Item No.	Square 250 exterior
6002-	max 30 W, E27
6006-	max 30 W, E27, downwards only

Options
1100-6	E27 LED, Deco Aurora dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation

Combine with

Select colour in table below.

Colour	Protection class
1 = white	empty = class I
3 = black	K = class II
4 = graphite grey
8 = brushed copper
9 = galvanised
17 = corten brown
66 = noir 900

Laser cutting in front
C = Cutting of digits in front

Example Item No.: 6002-1 = Square 250, E27, white, class I

Media & downloads

Product information

Product data, Square 190PDF Mounting instructionsPDF Square laser cuttingsPDF MaintenancePDF RoHS DeclarationPDF

3D files

SquareGSM SquareLCF Square 250RFA Square 250DWG Square 2503DS

Photos

Square 190_CortenTIF Square 190_Noir900TIF Square 190 frontJPG Square 190 sideJPG Square 190 vs Square 270JPG

Photometric data

LED up and downwards

LED 8W, 2700 KLDT LED 8W, 2700 KPDF LED 8W, 3000 KLDT LED 8W, 3000 KPDF LED 8W, 4000 KLDT LED 8W, 4000 KPDF LED 11W, 2700 KLDT LED 11W, 2700 KPDF LED 11W, 3000 KLDT LED 11W, 3000 KPDF LED 11W, 4000 KLDT LED 11W, 4000 KPDF

LED downwards

LED 6W, 2700 K, downwards onlyLDT LED 6W, 2700 K, downwards onlyPDF LED 6W, 3000 K, downwards onlyLDT LED 6W, 3000 K, downwards onlyPDF LED 6W, 4000 K, downwards onlyLDT LED 6W, 4000 K, downwards onlyPDF LED 8W, 2700 K, downwards onlyLDT LED 8W, 2700 K, downwards onlyPDF LED 8W, 3000 K, downwards onlyLDT LED 8W, 3000 K, downwards onlyPDF LED 8W, 4000 K, downwards onlyLDT LED 8W, 4000 K, downwards onlyPDF

E27 variants

E27, 13 W LED, 2700 KLDT E27, 13 W LED, 2700 KPDF E27, 13 W LED, 3000 KLDT E27, 13 W LED, 3000 KPDF E27, 13 W LED, 4000 KLDT E27, 13 W LED, 4000 KPDF

All ldt files

LDT.zipZIP

Square 190

Square Bollard + Square 250 black, Odder

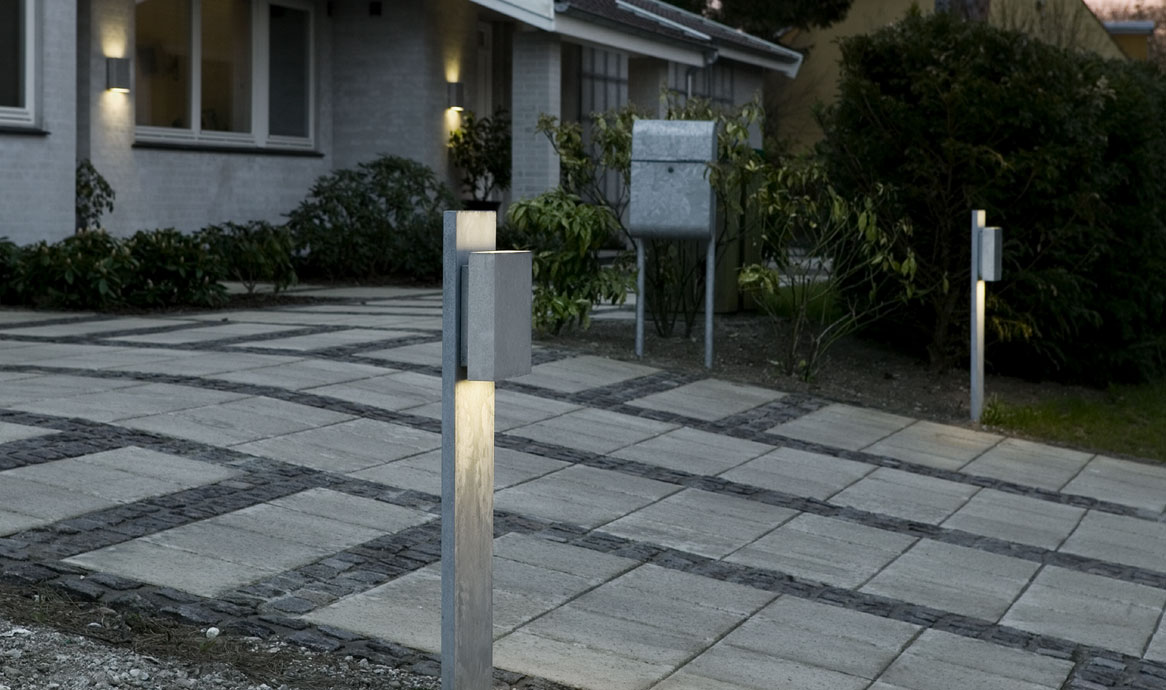

Square Bollard galvanised - private house at Vedbæk

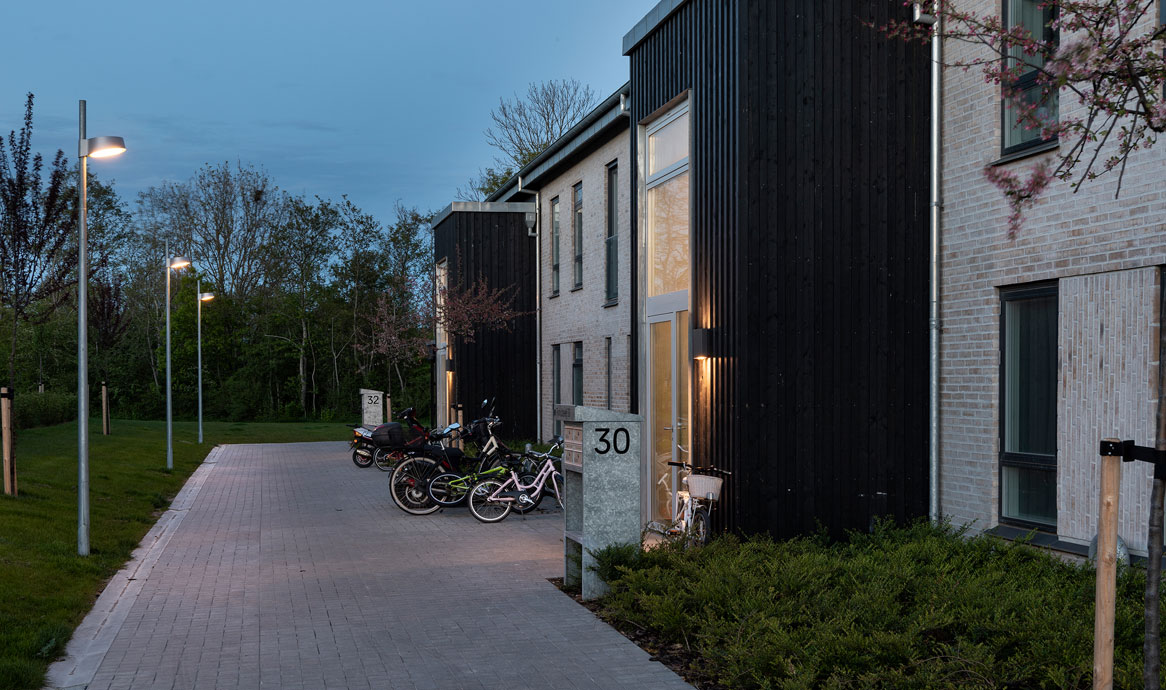

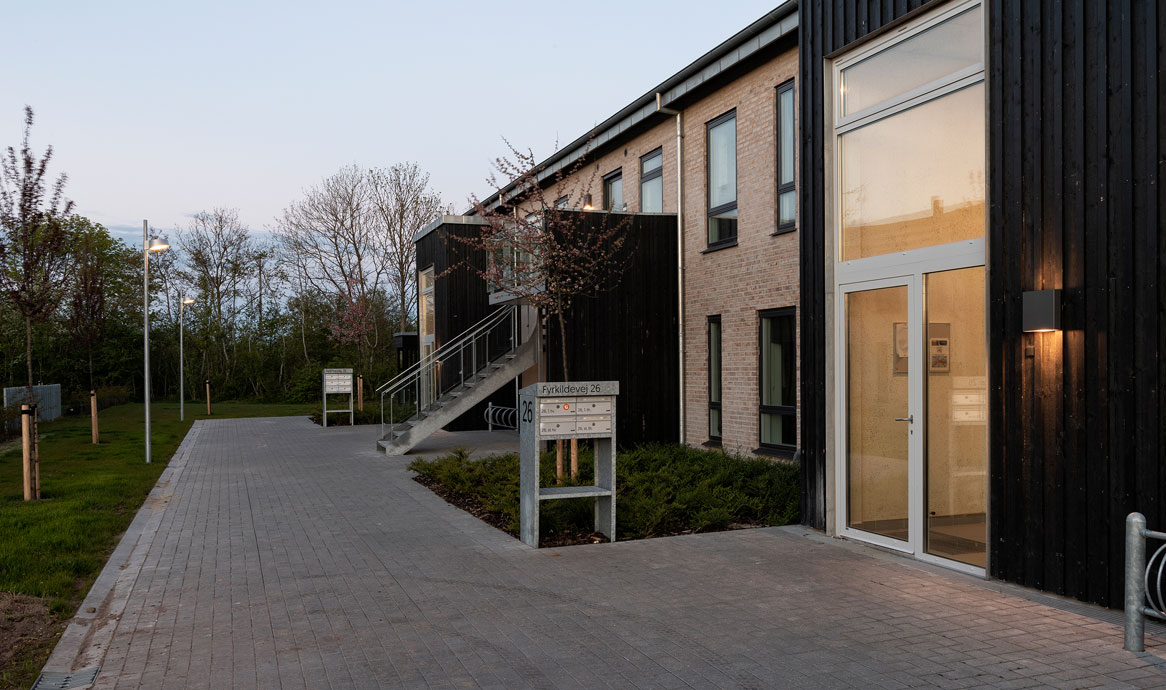

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

Square 250 graphite grey and Nyx 330 silver grey illuminate the newly renovated Aalborg East area.

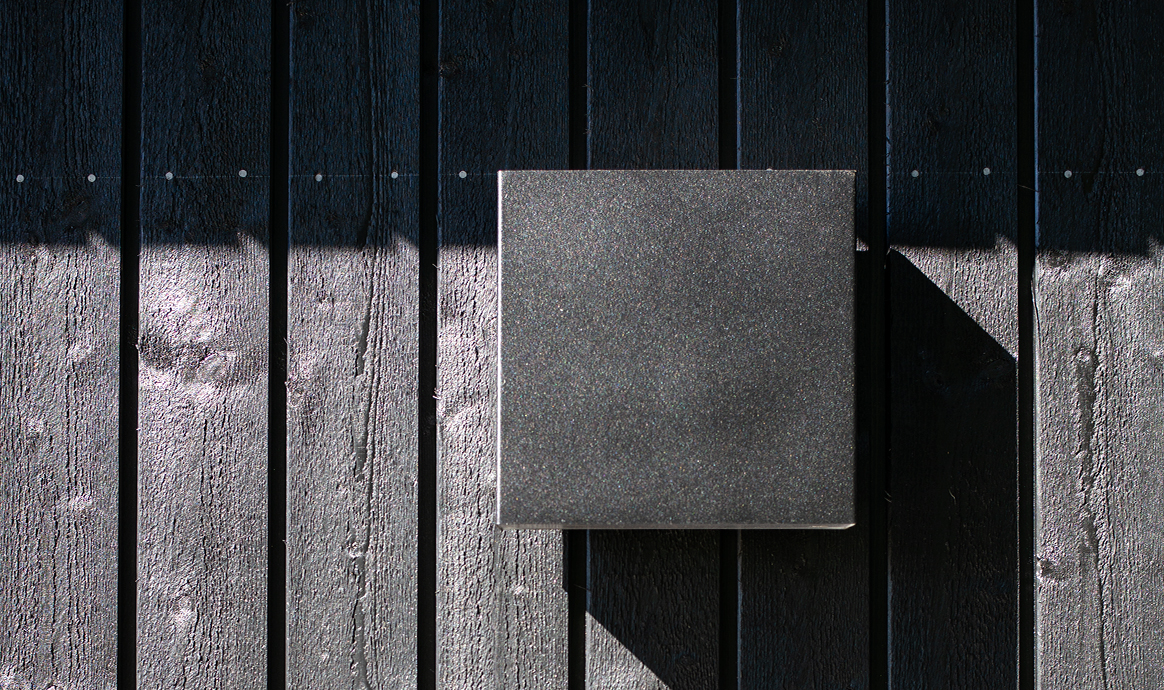

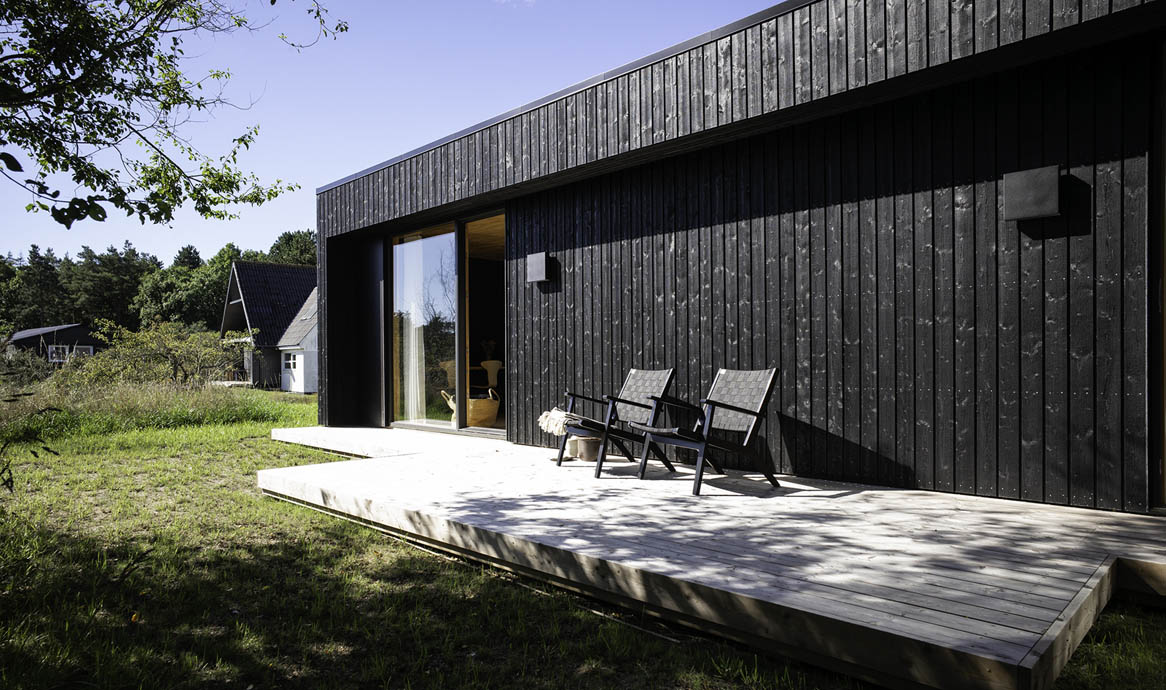

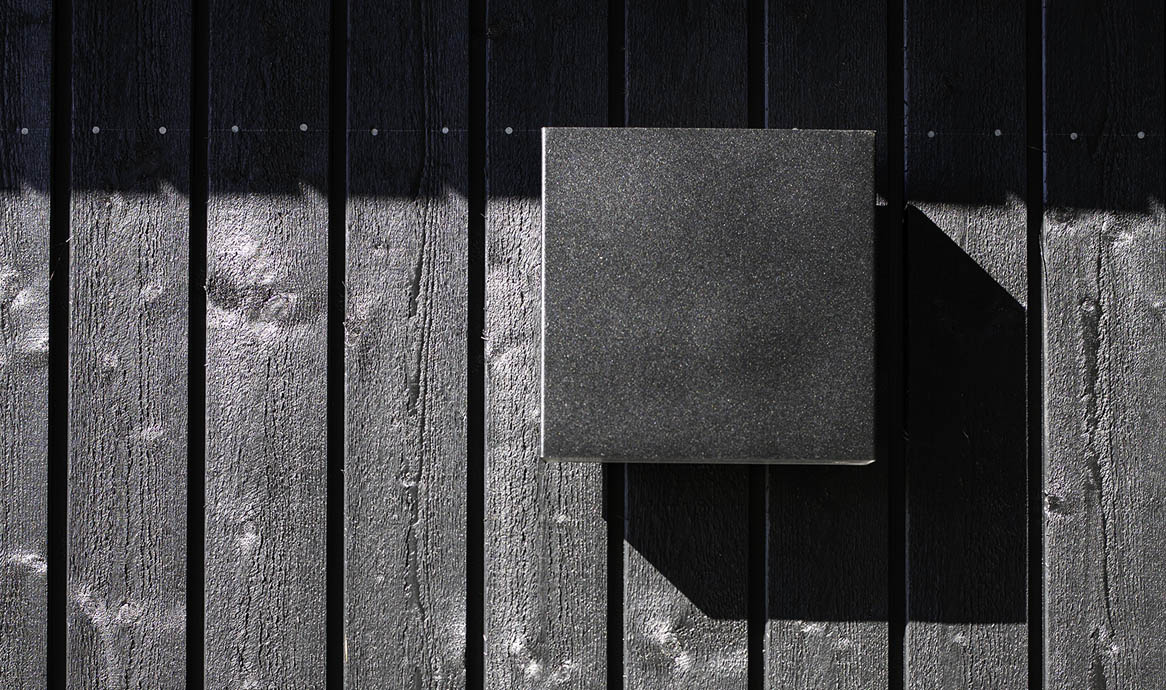

Square in black noir 900 at black wood. Cubo summer cottage near Aarhus.

Umbraco.Cms.Core.Models.Link More photos

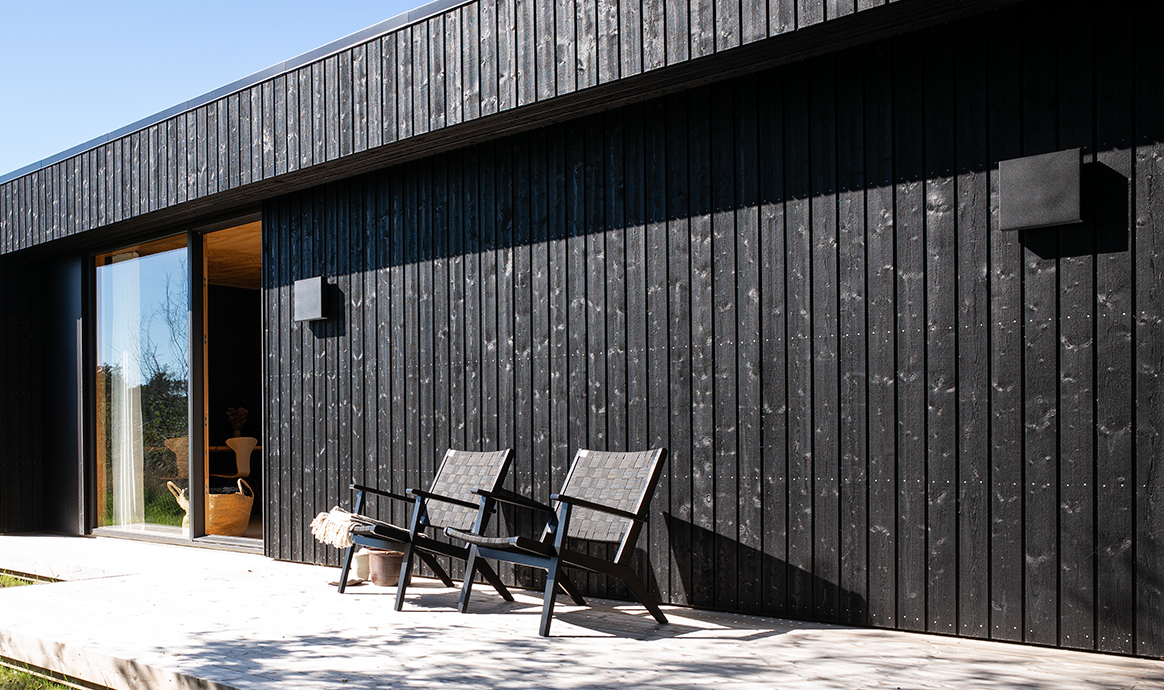

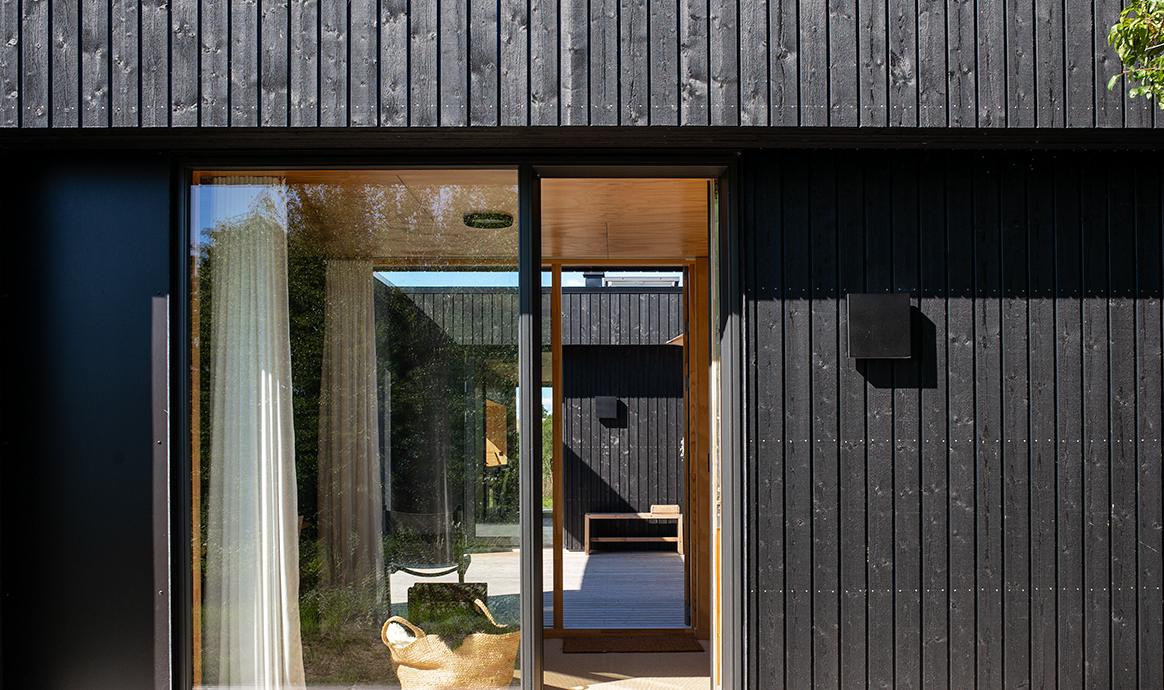

Elegant black versions of Square and Pelée are used in two summer cottages by Cubo Architects.

Umbraco.Cms.Core.Models.Link More photos

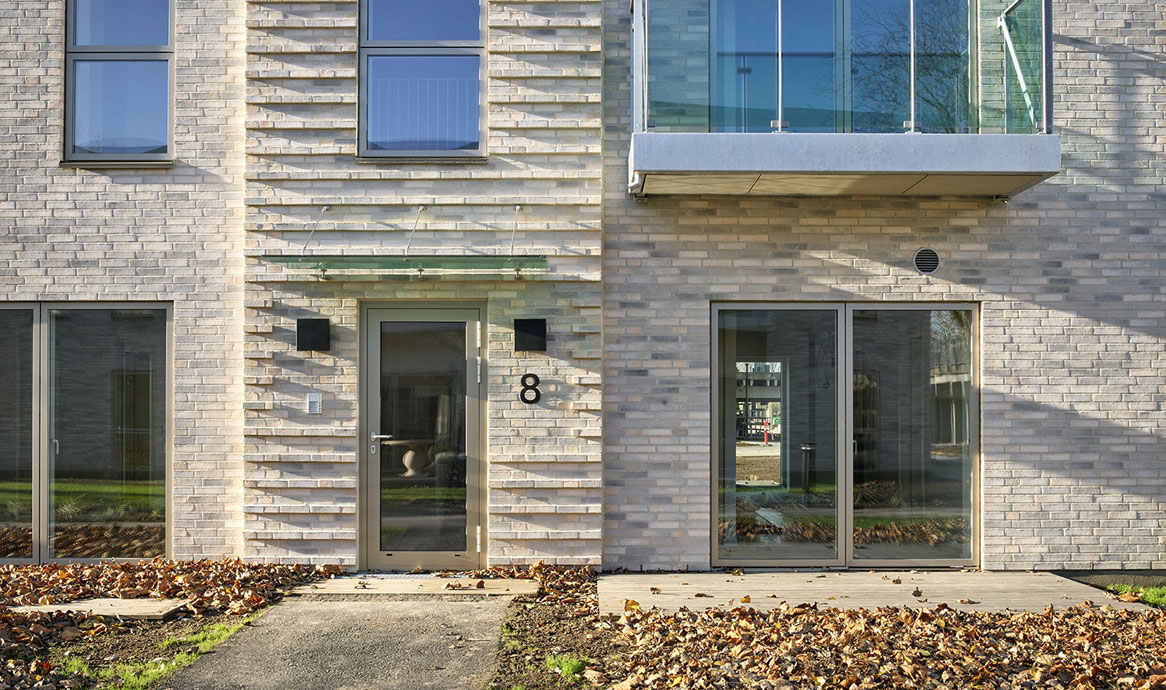

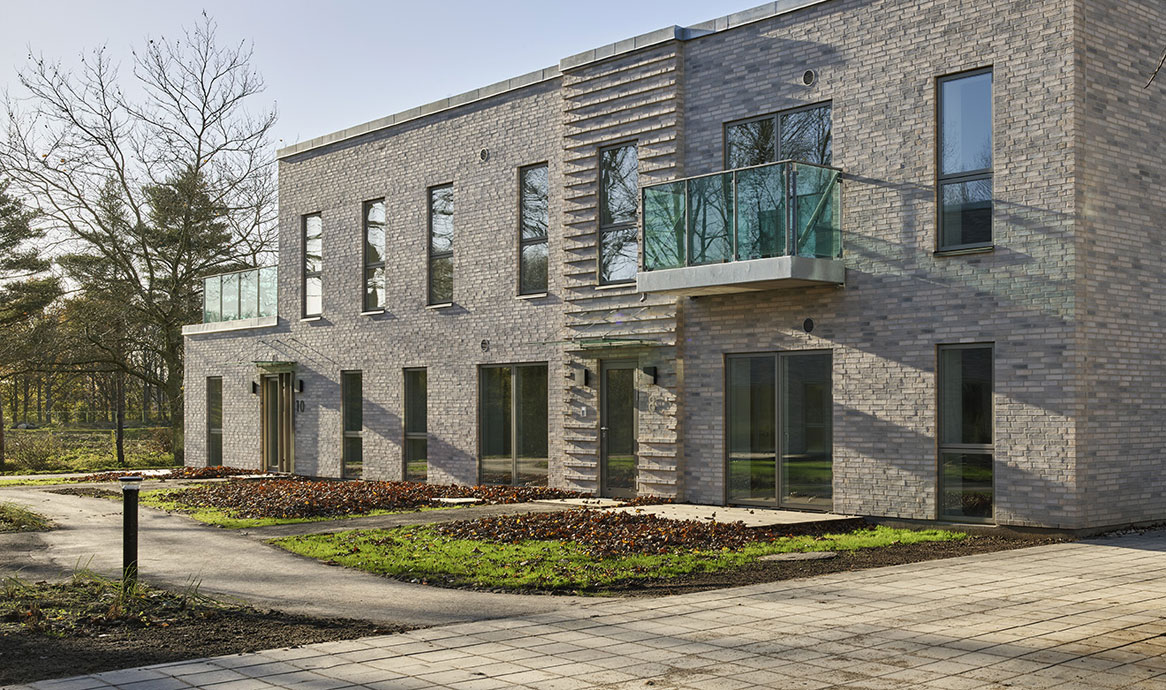

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

Square luminaires underline the architecture at Strandhøjen, Nyborg. Photo: Kirstine Mengel

DesignStudio Hammer

Square - and Sticks - are designed in 1999, and both designs have pathed the way within their fields of application.

The simple, minimalist design enhances the form, and the light is not dominant.
