STICKS

Please choose

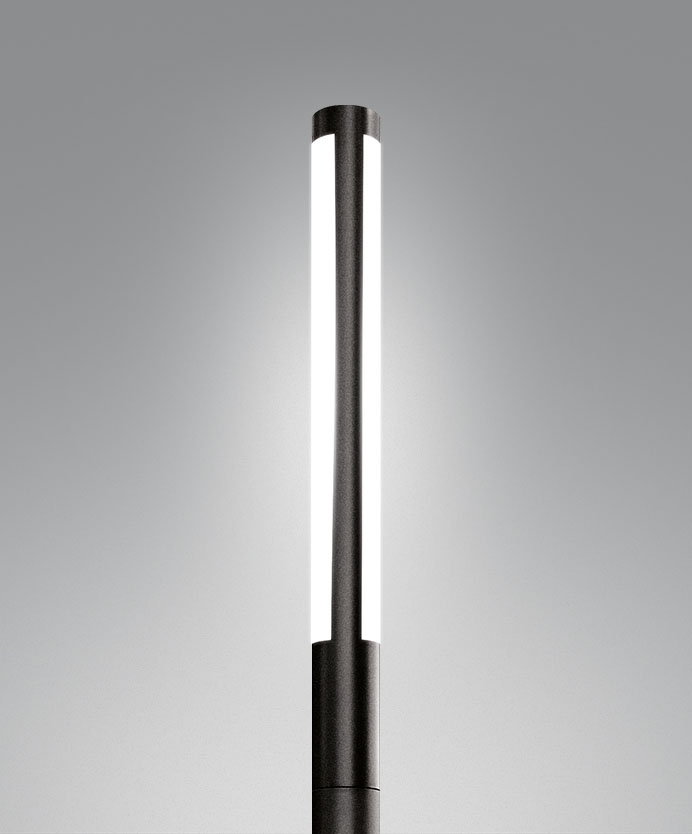

Simplicity by design is the principle behind Sticks created by schmidt hammer lassen. The lines of the black or grey-enamelled aluminium housing are continued in single or double light slots in opalised plastic. At daylight, Sticks is simply part of the environment; at night, light predominates and the surroundings step into character.

Sticks is available with base for embedment or flanged base for mounting on solid ground.

Specifications

STICKS 3000

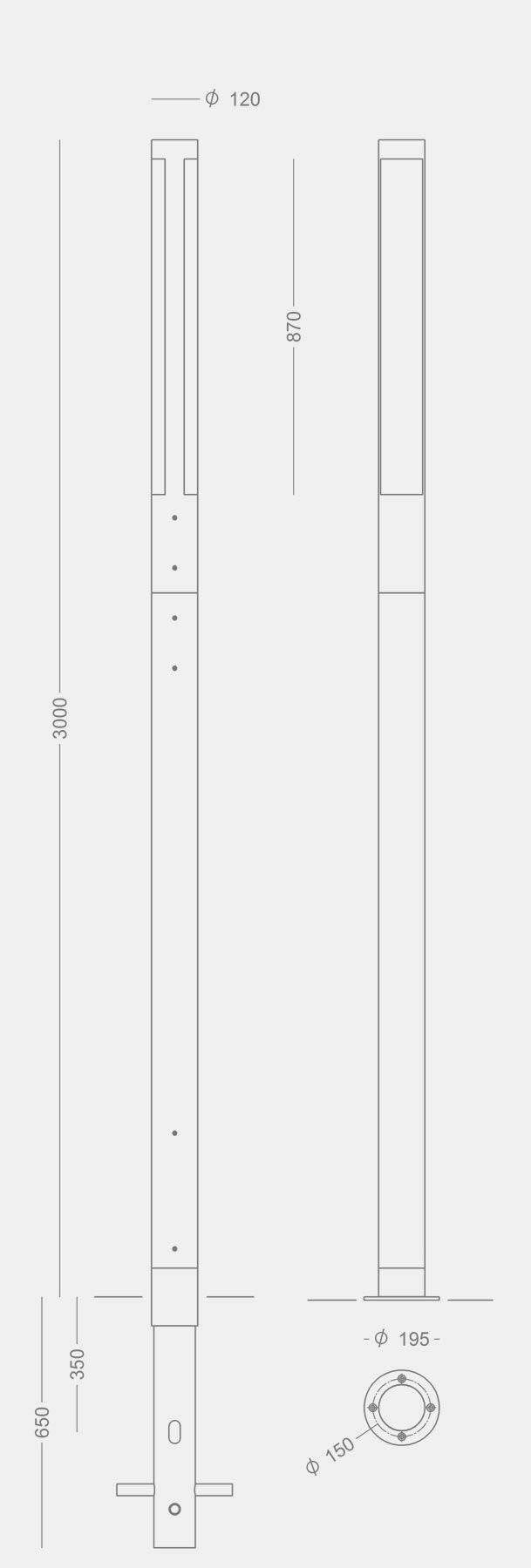

sticks3000_skitse

Luminaire

STICKS 3000
Material Aluminium
Coating Graphite grey
Silver grey
Black: RAL 9005
Black: Noir 900 Sablé
Corten brown
Shade Opal-white, impact-resistant acrylate
With single or double light slit
Mounting Rooted or flanged base
Connection Max two cables, 5 x 6 mm2
Driver and 4A fuse in the bollard
Classification IP55 , class II; use code for class I
Weight 30 kg

LED data

LED 14 W T8-900 mm LED tube (TTC-14WT809-12)
Single light slit 14 W
Double light slit 2 x 14 W
Operational life min 40,000 hours at ta max 25°C
Colour temperature 3000 or 4000 Kelvin
Colour rendering min 70 Ra
Output ratio 53%

Variants

Item No. Sticks 3000 LED, single light slit
8834- 14 W LED, rooted base
8844- 14 W LED, flanged base

Item No. Sticks 3000 LED, double light slit
8835- 2 x 14 W LED, rooted base
8845- 2 x 14 W LED, flanged base

Combine with

Select colour and colour temperature in the table below.

Colour Colour temperature
3 = black 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey
17 = corten brown
66 = noir 900

Protection class
empty = class II
J = class I

Example Item No.: 8834-66730J = Sticks 3000 single light slit, LED, rooted base, noir 900, 3000 K, class I

Media & downloads

sticks3000_lighthous2_1166

Sticks 3000 is used at the refurbished harbour area, Aarhus.

Umbraco.Cms.Core.Models.Link More photos from Aarhus
sticks3000_lighthous3_1166

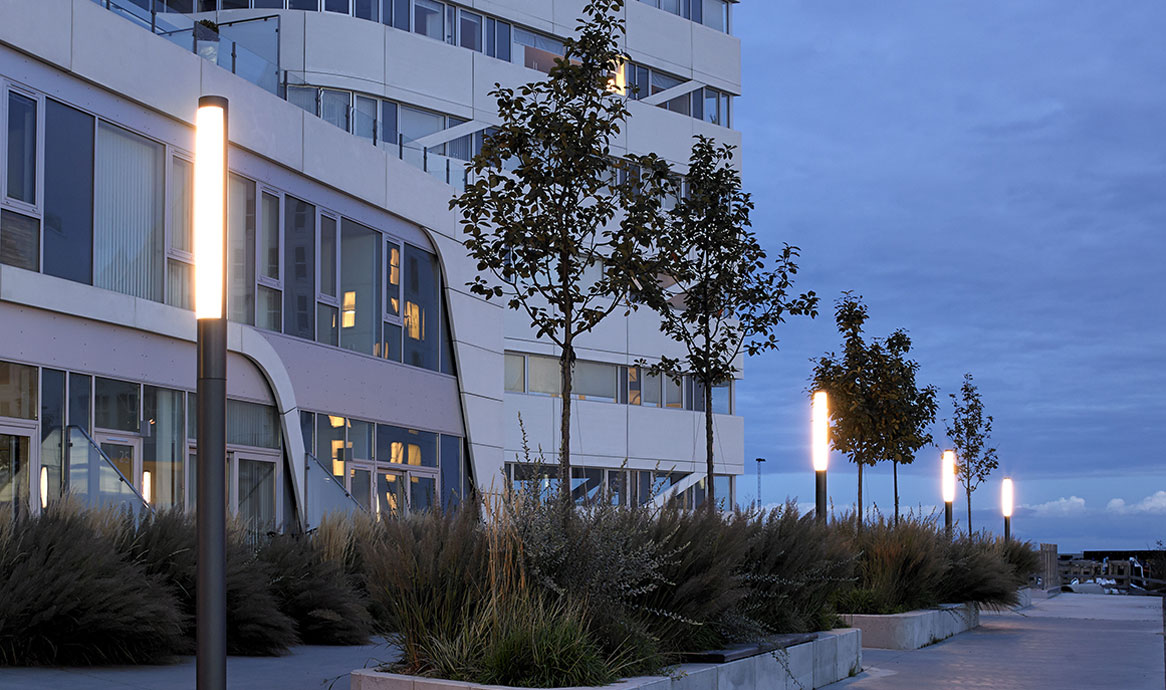

Sticks 3000 at the refurbished harbour area, Aarhus.

musholm_sticks_1166_1

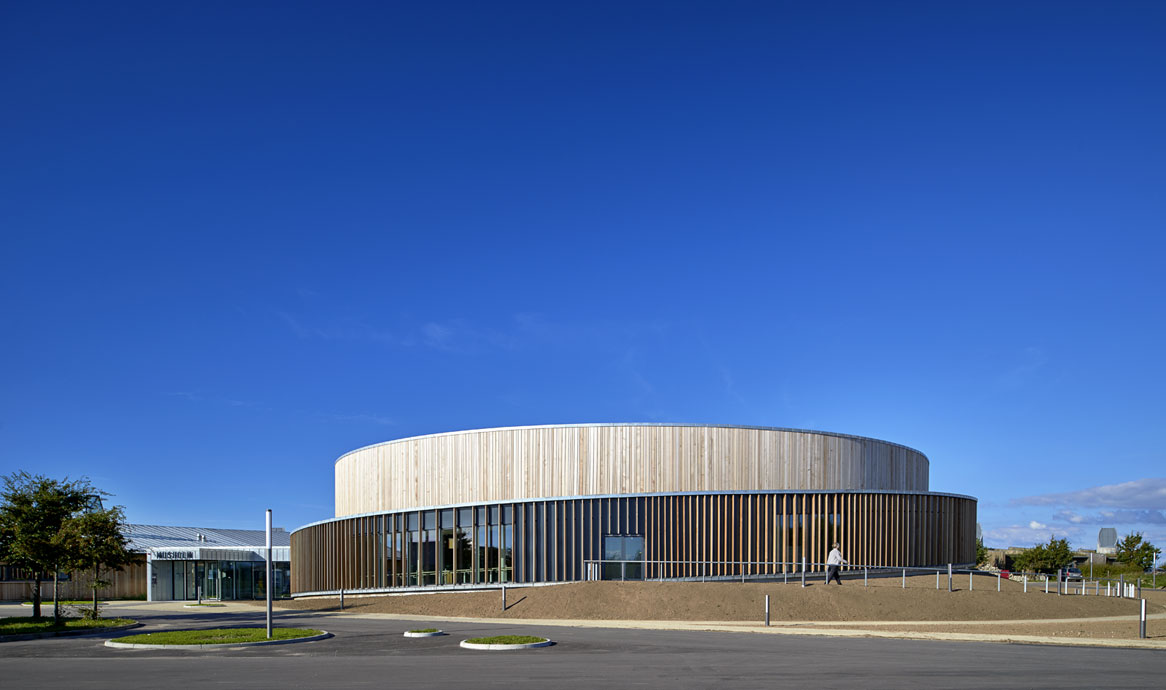

Sticks 900 and Sticks 3000, Musholm Holiday Resort, Korsør.

Umbraco.Cms.Core.Models.Link More photos from Musholm

Designschmidt hammer lassen design

Sticks - and Square - are designed in 1999, and both designs have pathed the way within their fields of application.

The simple, minimalist design enhances the form, and the light is not dominant.

More about schmidt hammer lassen here.
