TEMA BUEN

Tema Buen in galvanised steel is strong and maintenance free. The design is simple, conceived in the strong, vandal-proof material. Use it both interior and exterior.

Tema Buen is available with two different LED types. The downward variant will not light up the upper half of the screen, which is - consequently - often shaded. The variant with up and downward LED will light up the upper and the lower part of the screen uniformly and will often be used with an opal-white screen.

Specifications

Specifikationer

Please choose

temabuen

Luminaire

TEMA BUEN
Material	Hot-dipped galvanised steel, wall box in cast aluminium
Shade	Clear polycarbonate, option for top cover
Connection	Max two cables, 2.5 mm2, into 5 x 6 mm2 terminal block
Classification	IP66, class I or II
Weight	5 kg

LED and driver data

LED type	1 x Bridgelux V8, directed downwards
Operational life	min 100,000 hours at ta max 25° C, L90B10
Total consumption	6, 8 or 11 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	80%

Driver	LED driver 250, 350 or 500 mA
	Dimming optional
Operational life	min 100,000 hours

Variants and options

Item No.	Downward LED
6872-	6 W LED, 250 mA
6870-	8 W LED, 350 mA
6871-	11 W LED, 500 mA

Option
Top cover for clear shade

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
9 = galvanised	927 = 2700 K, 90 Ra
	930 = 3000 K, 90 Ra
	940 = 4000 K, 90 Ra

Dimming	Classification
empty = no dimming	empty = class I
V = 1-10 V	K = class II
D = DALI
E = programmable

Shade
empty = clear shade
H = top cover for shade
O = opal-white shade

Example Item No.: 6870-9930H = Tema Buen, 8 W LED, galvanised, 3000 K, 90 Ra, class I, clear shade with top cover

Media &

downloads

Product information

Product data, Tema Buen PDF LED modules for Tema Buen PDF Mounting instructions, LED PDF Mounting dimensions PDF Maintenance PDF RoHS Declaration PDF

3D files

Tema Buen RFA Tema Buen GSM Tema Buen LCF Tema Buen FBX Tema Buen DWG

Photos

Product image, Tema Buen JPG

Photometric data

LED downward, shade clear

LED 6 W, 2700 K, shade clear LDT LED 6 W, 2700 K, shade clear PDF LED 6 W, 3000 K, shade clear LDT LED 6 W, 3000 K, shade clear PDF LED 6 W, 4000 K, shade clear LDT LED 6 W, 4000 K, shade clear PDF LED 8 W, 2700 K, shade clear LDT LED 8 W, 2700 K, shade clear PDF LED 8 W, 3000 K, shade clear LDT LED 8 W, 3000 K, shade clear PDF LED 8 W, 4000 K, shade clear LDT LED 8 W, 4000 K, shade clear PDF LED 11 W, 2700 K, shade clear LDT LED 11 W, 2700 K, shade clear PDF LED 11 W, 3000 K, shade clear LDT LED 11 W, 3000 K, shade clear PDF LED 11 W, 4000 K, clear shade LDT LED 11 W, 4000 K, shade clear PDF

LED downward, shade top covered

LED 6 W, 2700 K, shade top covered LDT LED 6 W, 2700 K, shade top covered PDF LED 6 W, 3000 K, shade top covered LDT LED 6 W, 3000 K, shade top covered PDF LED 6 W, 4000 K, shade top covered LDT LED 6 W, 4000 K, shade top covered PDF LED 8 W, 2700 K, shade top covered LDT LED 8 W, 2700 K, shade top covered PDF LED 8 W, 3000 K, shade top covered LDT LED 8 W, 3000 K, shade top covered PDF LED 8 W, 4000 K, shade top covered LDT LED 8 W, 4000 K, shade top covered PDF LED 11 W, 2700 K, shade top covered LDT LED 11 W, 2700 K, shade top covered PDF LED 11 W, 3000 K, shade top covered LDT LED 11 W, 3000 K, shade top covered PDF LED 11 W, 4000 K, shade top covered LDT LED 11 W, 4000 K, shade top covered PDF

LED up and downward

LED 10 W, 2700 K, shade opal-white LDT LED 10 W, 2700 K, shade opal-white PDF LED 10 W, 3000 K, shade opal-white LDT LED 10 W, 3000 K, shade opal-white PDF LED 10 W, 4000 K, shade opal-white LDT LED 10 W, 4000 K, shade opal-white PDF LED 14 W, 2700 K, shade opal-white LDT LED 14 W, 2700 K, shade opal-white PDF LED 14 W, 3000 K, shade opal-white LDT LED 14 W, 3000 K, shade opal-white PDF LED 14 W, 4000 K, shade opal-white LDT LED 14 W, 4000 K, shade opal-white PDF LED 20 W, 2700 K, shade opal-white LDT LED 20 W, 2700 K, shade opal-white PDF LED 20 W, 3000 K, shade opal-white LDT LED 20 W, 3000 K, shade opal-white PDF LED 20 W, 4000 K, shade opal-white LDT LED 20 W, 4000 K, shade opal-white PDF

All ldt files

buen_oneseal_1166

Tema Buen - Industrial premises at Kokkedal

bridlington-spa_1166

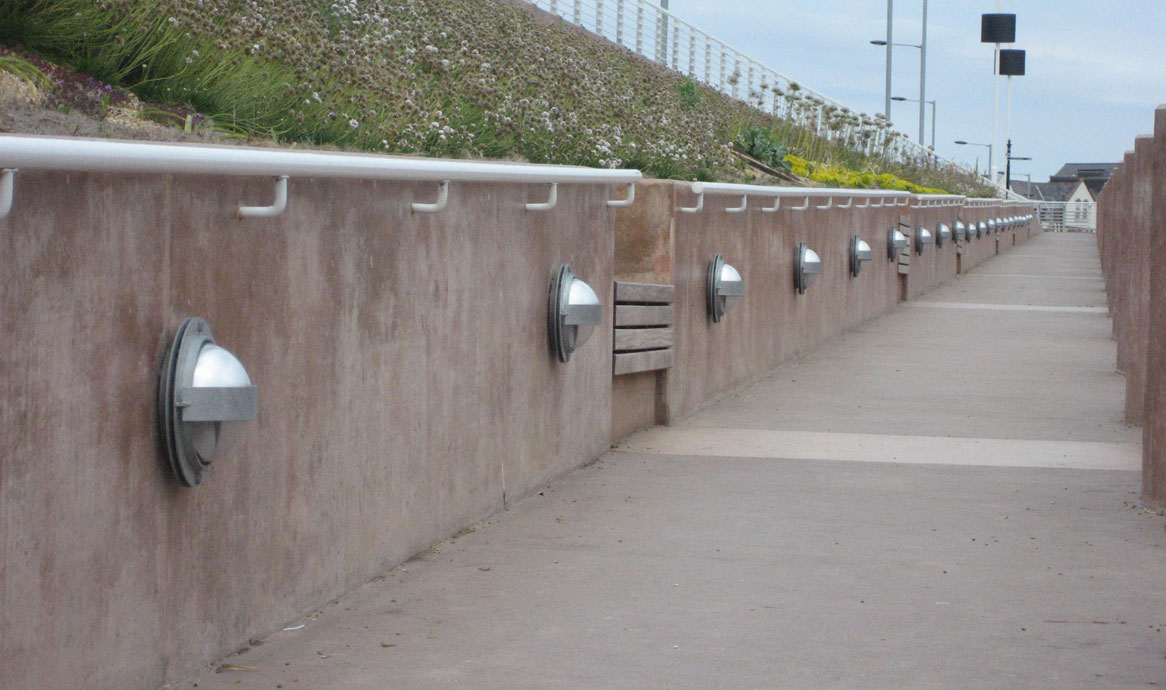

Tema Buen - holiday resort Bridlington, UK

bridlington-spa_2_1166

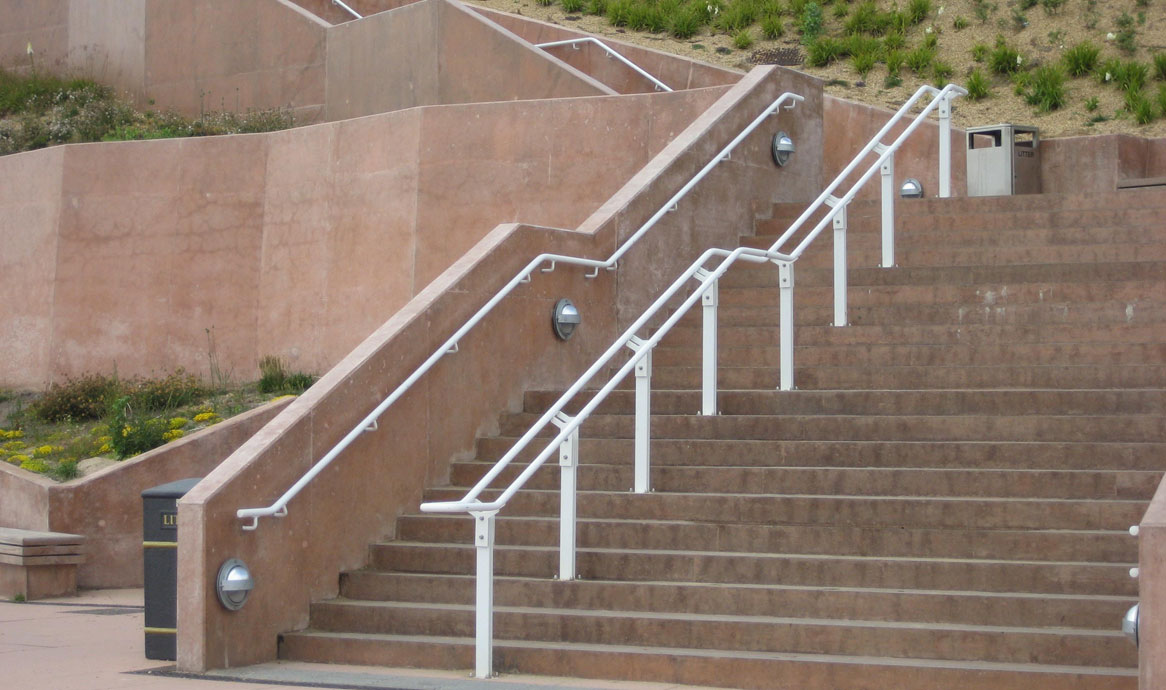

Tema Buen - top half covered

photoco_1166

Tema Buen

Design

Niels Enevold

Tema Buen is designed in 1985 for the former Tema Lamper. It is part of the Tema range, all of which are conceived strong and robust in galvanised steel. They will withstand wear and tear in public areas.

Cooperation between Tema Lamper and Focus began back in 1995, and 2000 the two luminaire manufacturers merged into Focus Lighting.
