TURN SPOT

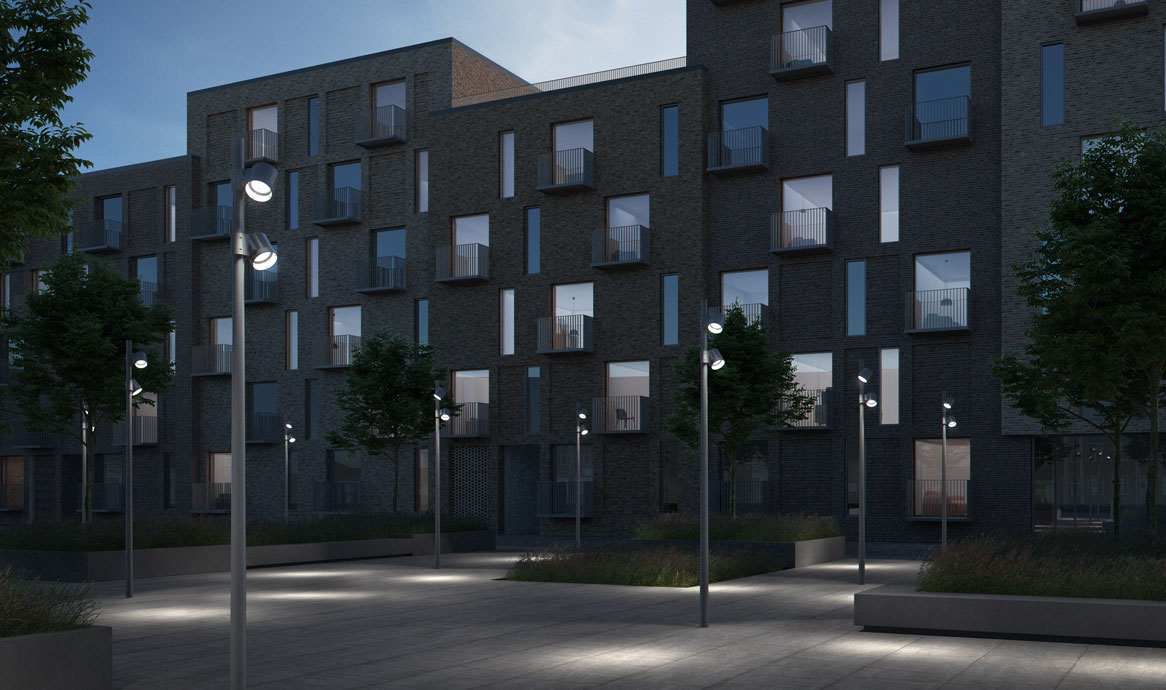

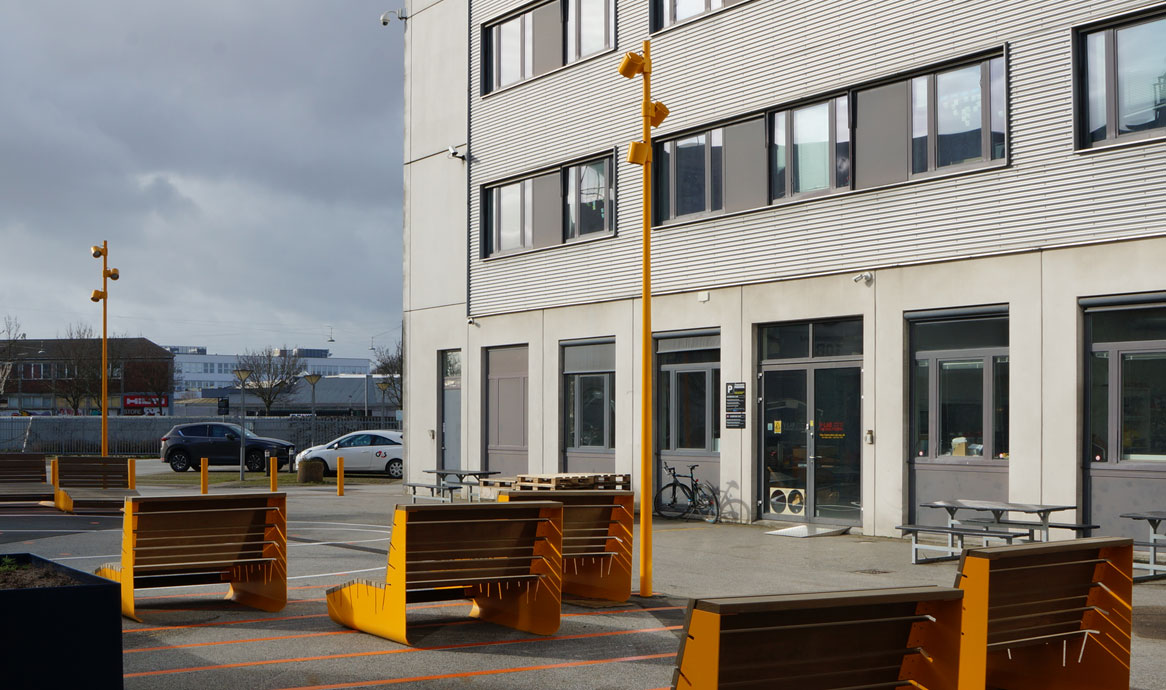

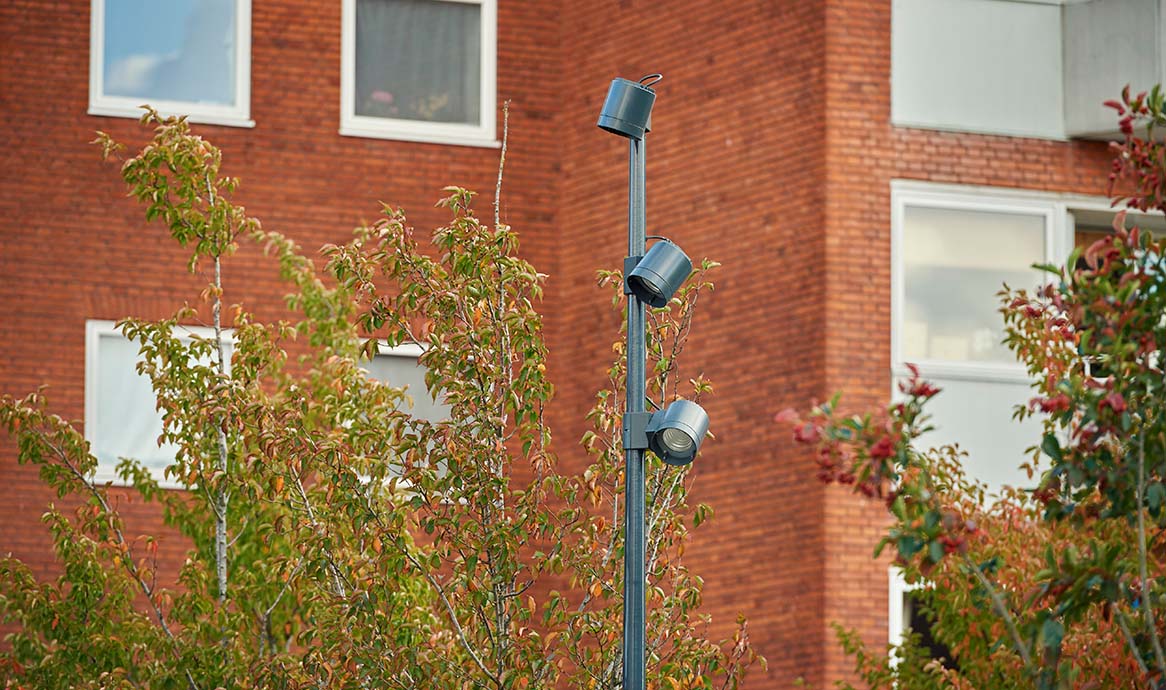

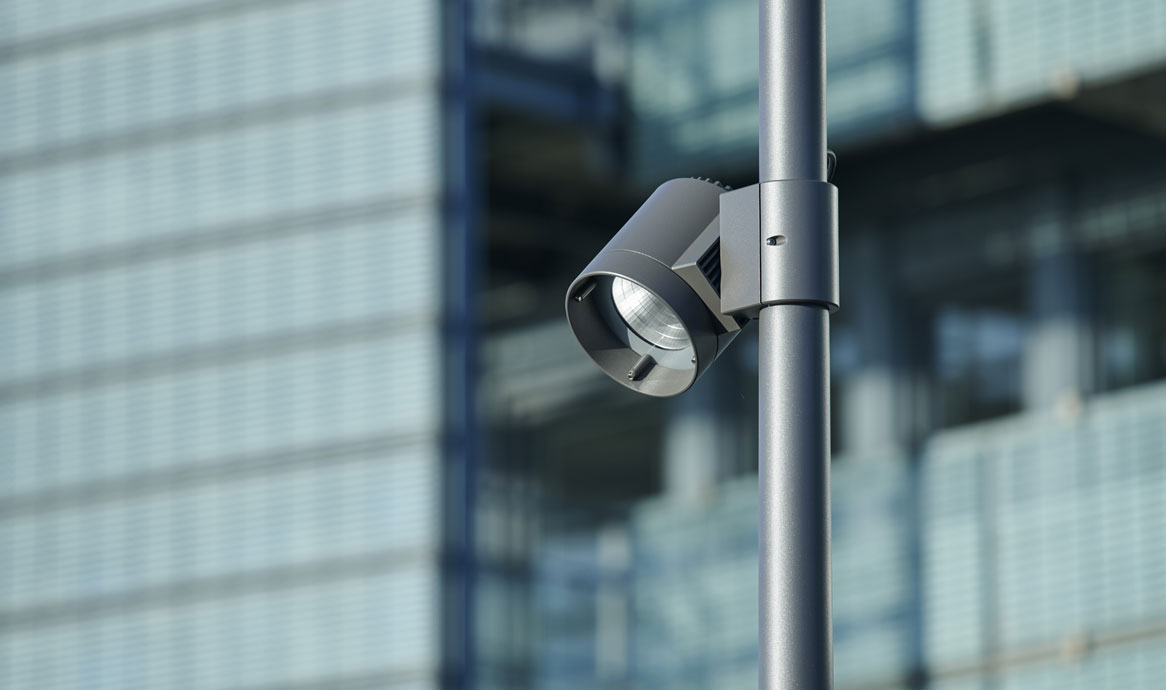

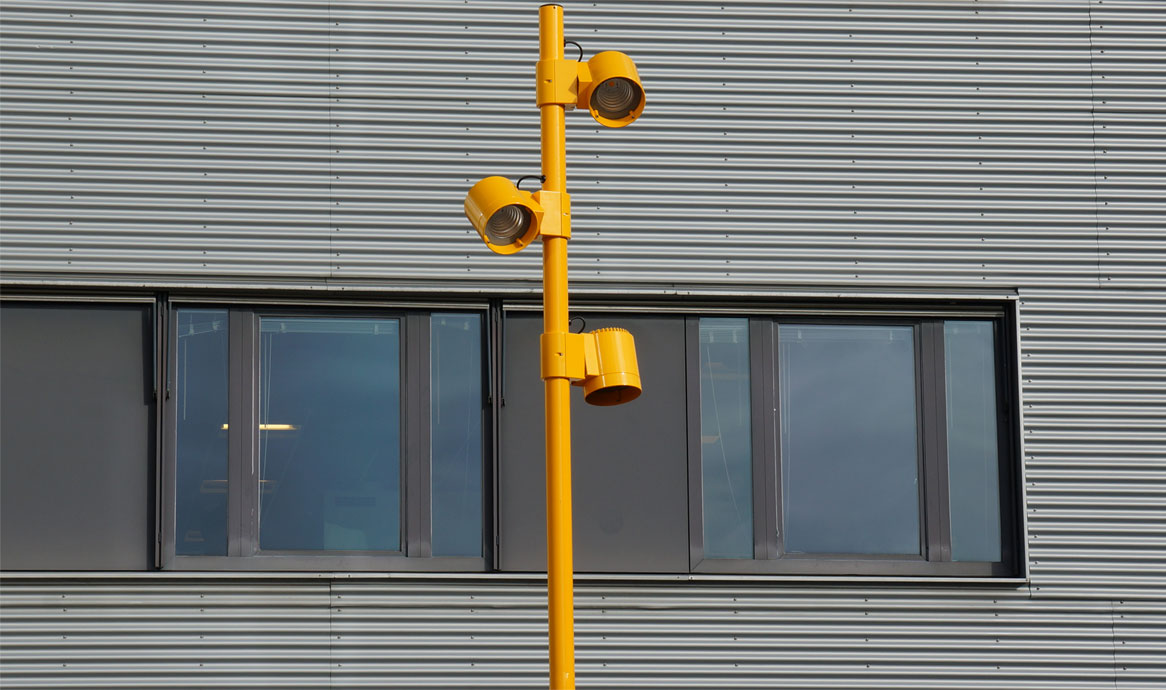

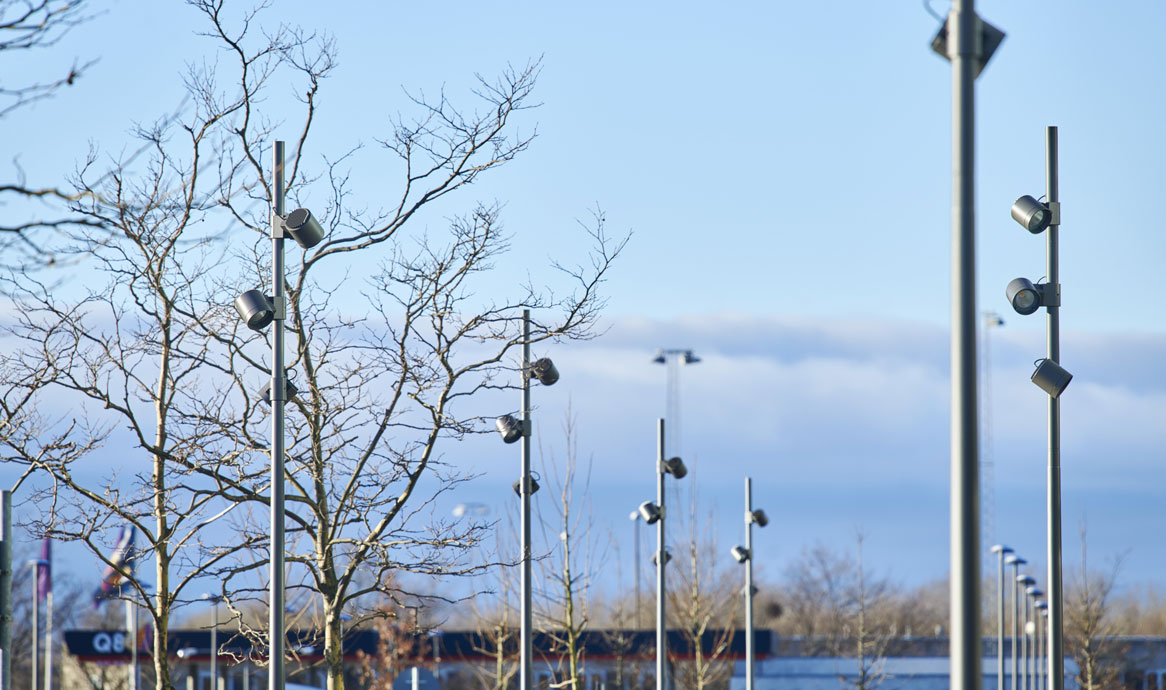

Turn is a new series of luminaires in a minimalist, cylindrical design.

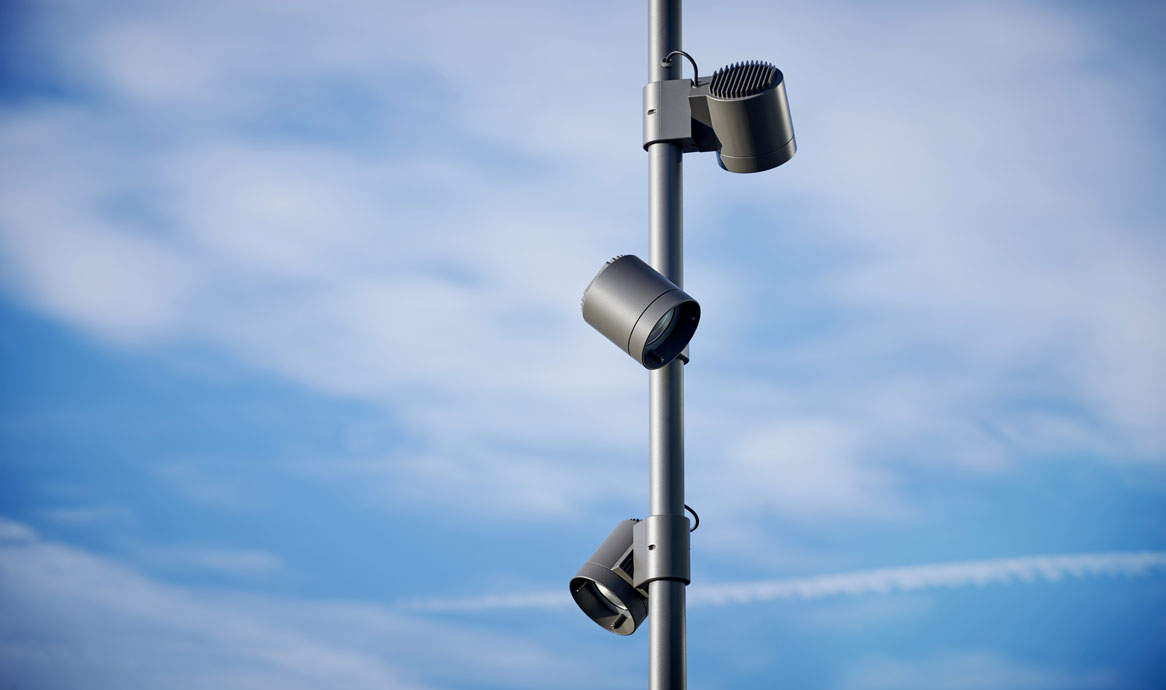

The luminaires are flexible and can be adjusted in any direction. Three beam angles: 38, 19, or 12 degrees.
Watch Ralf Ritter presenting Turn.

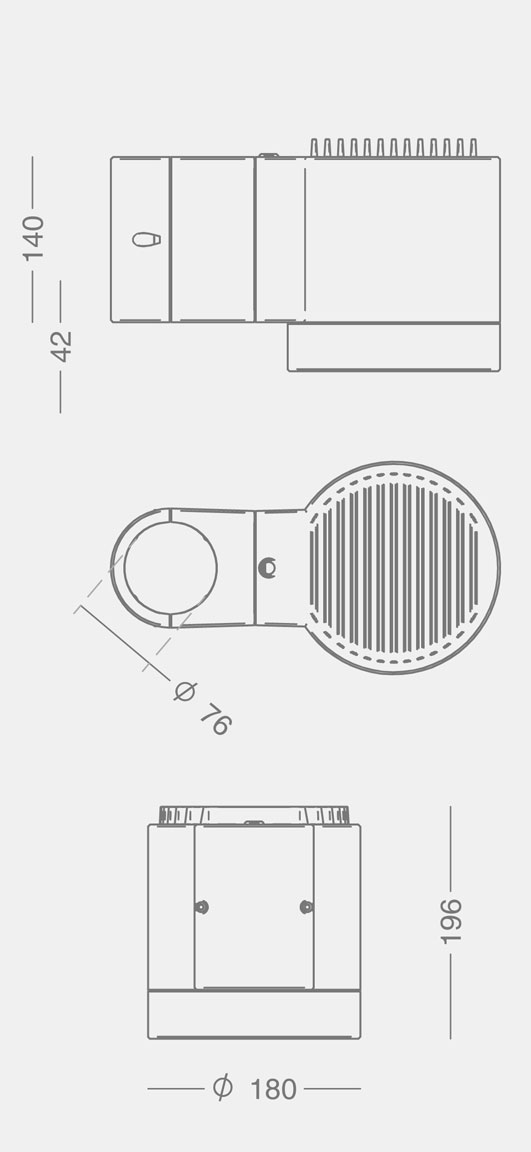

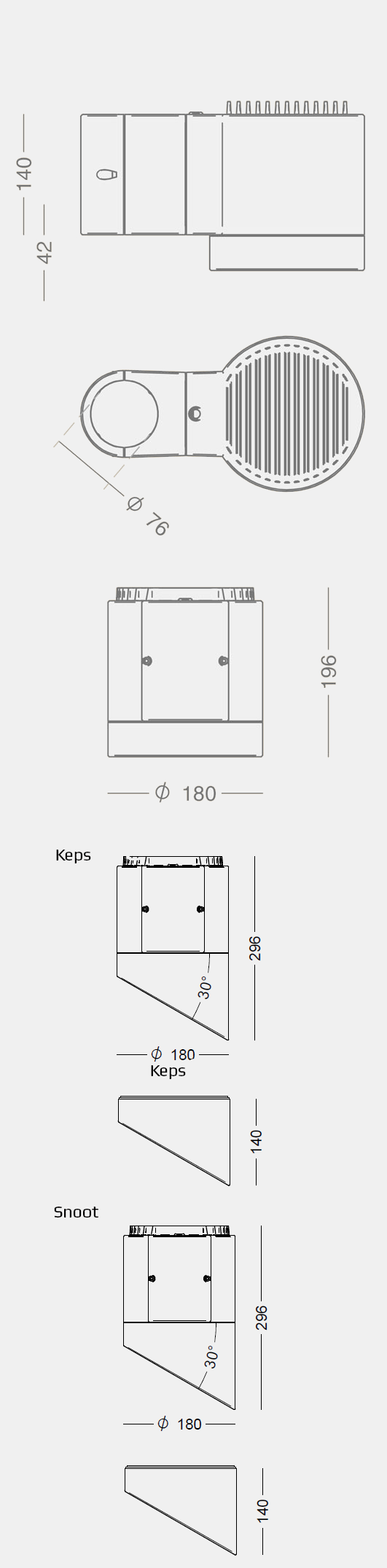

Specifications
Specification
Luminaire
| TURN SPOT | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Shade | Clear glass with silked edge |
| Honeycomb filter optional | |
| Mounting | Standard brackets for Ø76 mm cylindrical pole |
| Adjustable brackets for conical pole and cylindrical > Ø76 mm | |
| Adapter for Ø60 mm pole optional | |
| Delivered with 8.5 m lead, 2 x 1 mm2 | |
| Connection | In the pole |
| Classification | IP66, class II; use code for class I |
| Impact resistance | IK08 |
| Corrosion class | C4, C5 optional |
| Weight | 6 kg |
| Wind sweeping area | 0,053 m2 |
LED
| LED type | Bridgelux V18 |
|---|---|
| Beam angle | wide, medium or narrow (38, 19, or 12 degrees) |
| Operational life | min 100,000 hours at ta max 25° C, L100B10 |
| Constant lumen output | |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 80 Ra, 90 Ra optional |
| Colour accuracy | 3 steps SDCM |
| Luminous flux | The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire. |
| LED-lumen, 80 Ra | 2700K: 425-5475 lm |
| 3000K: 425-5600 lm | |
| 4000K: 425-5650 lm | |
| Output ratio | 76-80% |
Driver
| Driver | Xitanium Full Xi FP 40 W 0.3-1.0 A, programmable |
|---|---|
| Inrush current | max 22 A (50% after 290 µs) |
| Surge protection | L/N-GND: 10 kV, (D4i driver: 8 kV) |
| L-N: 6 kV | |
| Operational life | 100,000 hours |
| Dimming | 5 steps dimming within the lumen intervals |
| Other control options | DALI-2, LineSwitch or |
| via Zhaga book 18 socket, D4i |
Variants and options
Turn Spot is not for use in an upwards pointed direction above mounting axis. Ask for variants for upward lighting.
| Item No. | Turn Spot |
|---|---|
| 8836- | V18, wide 38°, programmable, max 35 W |
| 8837- | V18, medium 19°, programmable, max 35 W |
| 8838- | V18, narrow 12°, programmable, max 35 W |
| Arm for wall mount | |
|---|---|
| 8011- | Arm for 1 fixture |
| 8012- | Arm for 2 fixtures |
| Arm and fixture will be assembled by Focus Lighting |
| Design pole | Conical pole with Ø76 mm cylindrical rod |
|---|---|
| 3170- | 4 meter pole |
| 3172- | 5.5 meter pole |
| 3174- | 7 meter pole |
| 1714-1 | Adapter for Ø60 mm pole |
| 50200 | Rooted base Ø108-140 |
| Fuse box | |
|---|---|
| 98158 | Fuse box for 2 Neozed fuses up to 16 A |
Combine with
Select colour, colour temperature, dimming, etc. in the table.
| Colour | Colour temperature |
|---|---|
| 01 = raw anodized | 827 = 2700 K, 80 Ra |
| 4 = graphite grey | 830 = 3000 K, 80 Ra |
| 9 = silver grey | 840 = 4000 K, 80 Ra |
| 17 = corten brown | |
| 66 = noir 900 |
| Dimming | Protection class |
|---|---|
| empty = programmable | empty = class II |
| D = DALI-2 (4/5-conductor cable) | J = class I |
| F = LineSwitch | |
| R = Zhaga book 18 socket upwards | |
| RC = Zhaga book 18 socket, City Touch / Interact City |
| Filter | Mounting |
|---|---|
| empty = no filter | empty = brackets for cylindrical pole, Ø76 mm |
| Y = honeycomb filter | B90 = brackets for conical pole, Ø 60-90 mm |
| B121 = brackets for conical pole, Ø 91-121 mm |
| Corrosion class | |
|---|---|
| empty = C4 | |
| C5 = C5 coating (add C5 after the colour code) |
Example: 8836-9830J = Turn Spot, wide, max 4600 lm, programmable, silver grey, 3000 K, 80 Ra, class I
