TURN STREET HALO

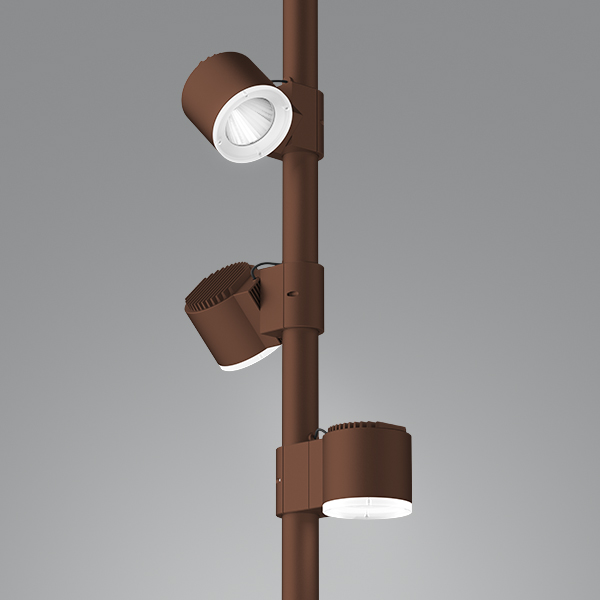

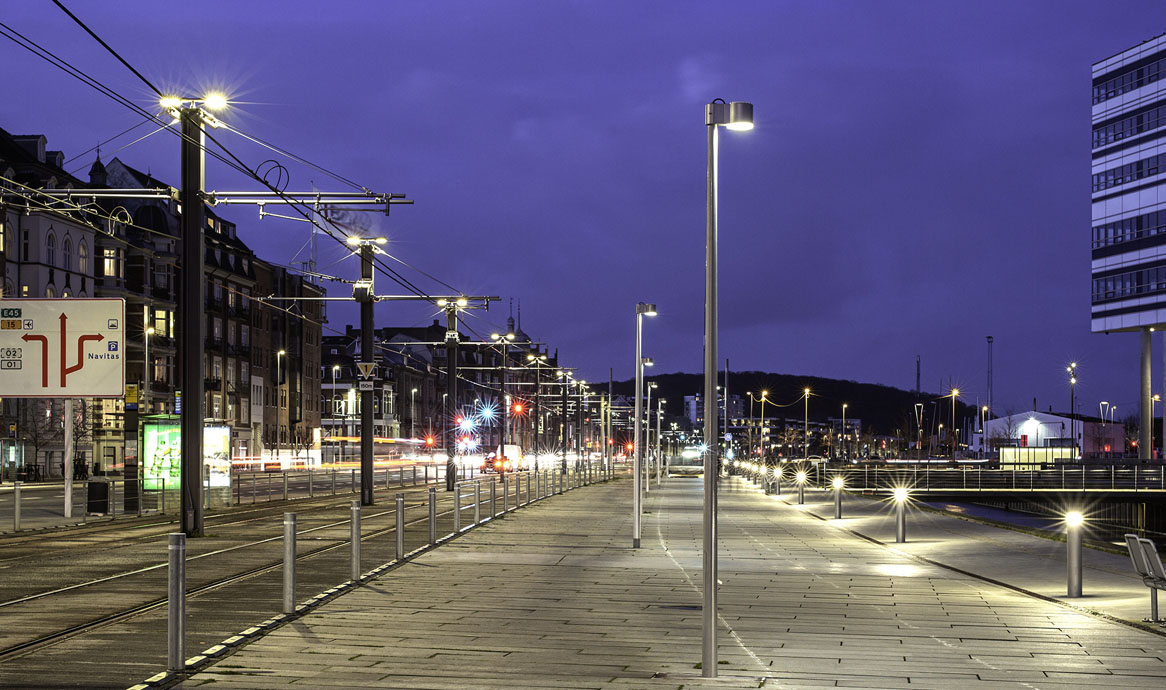

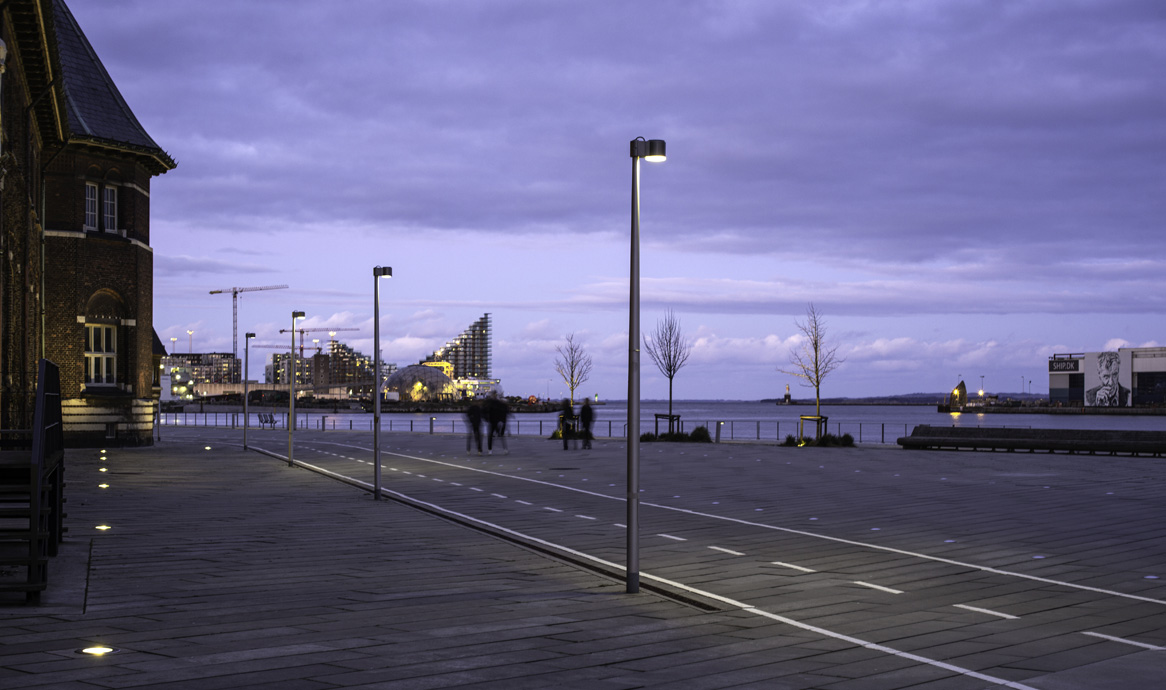

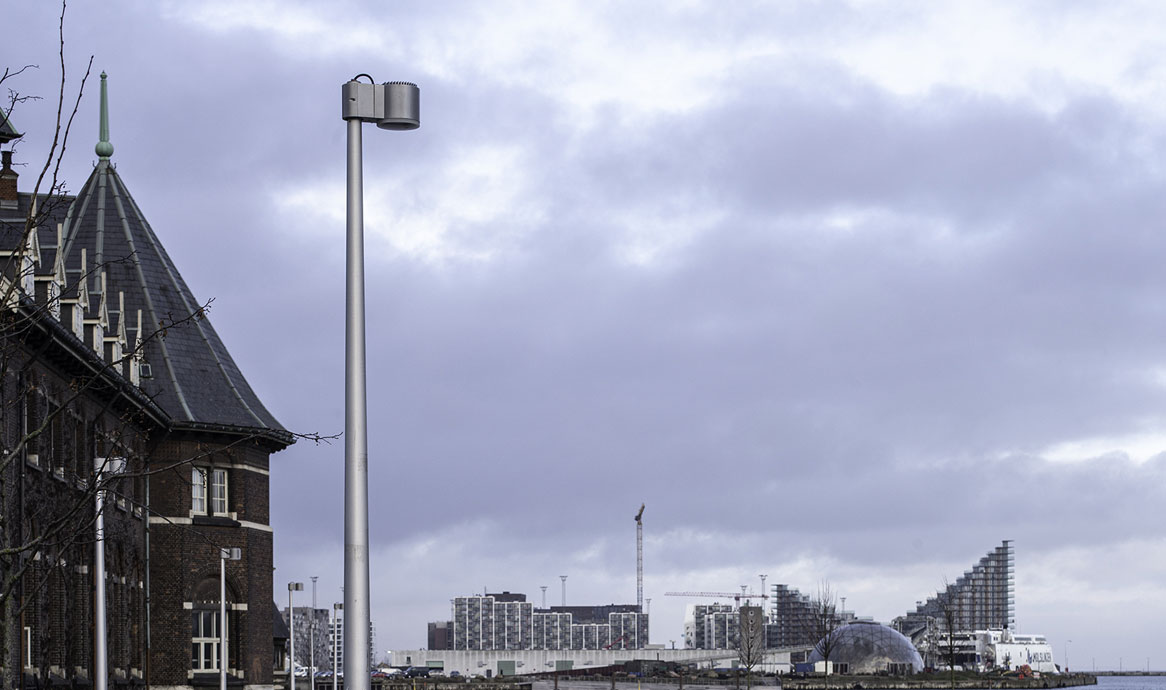

Turn is a new series of luminaires in a minimalist, cylindrical design.

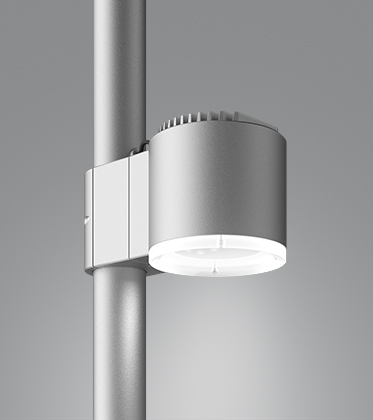

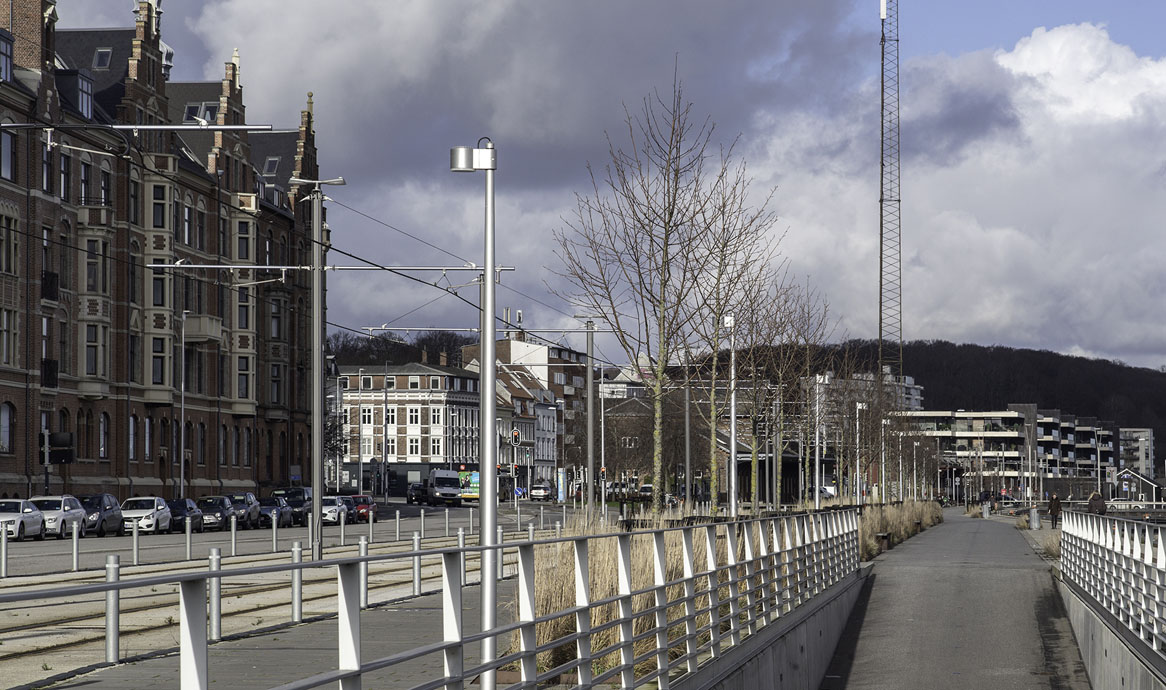

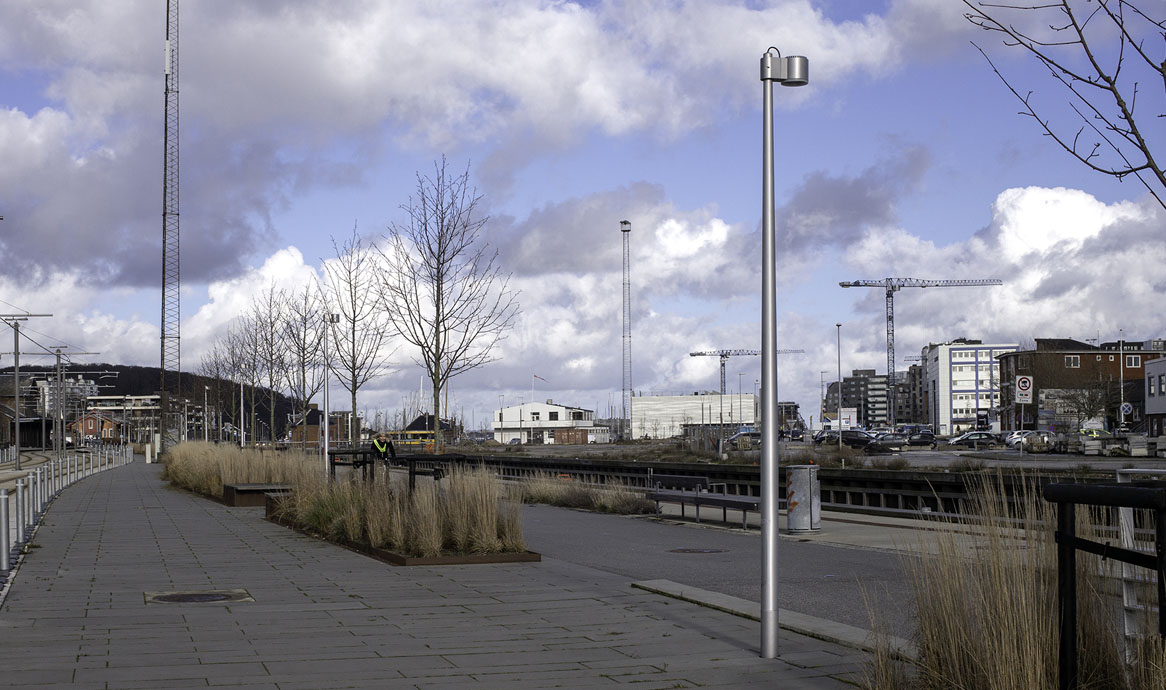

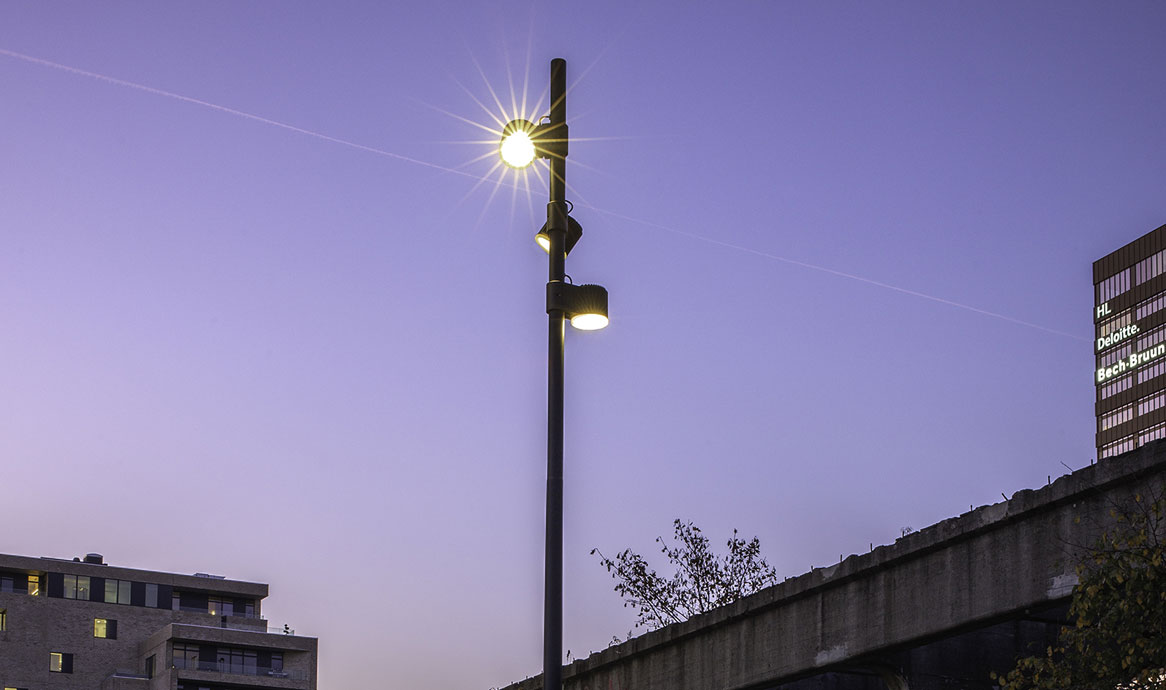

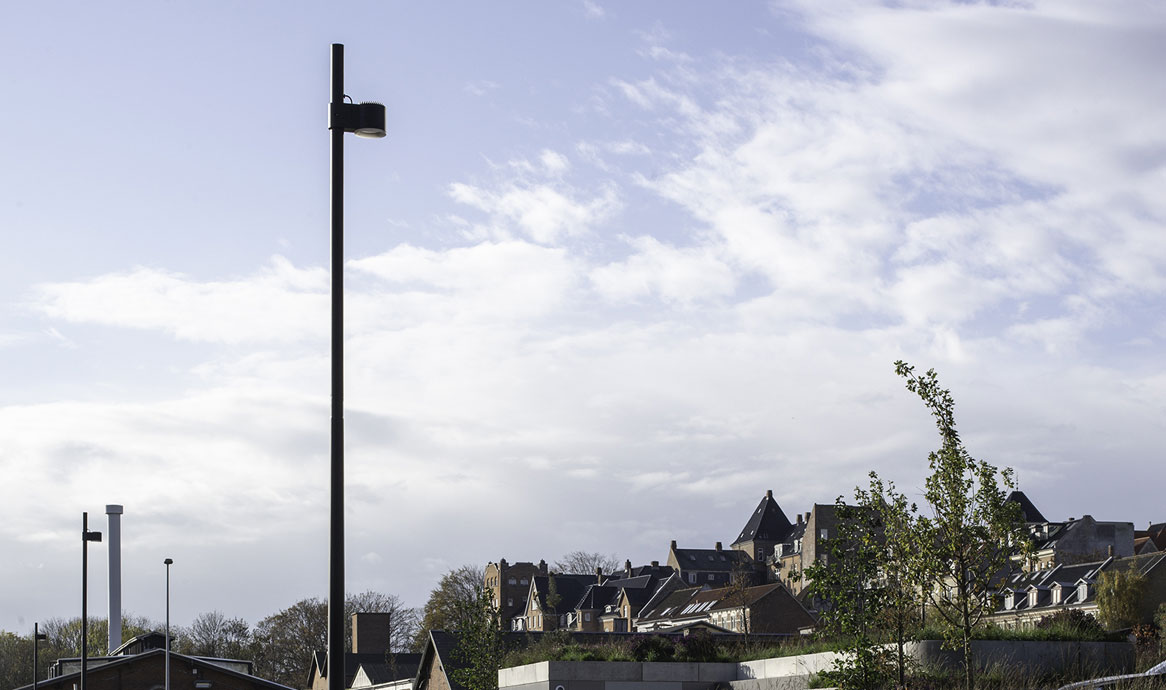

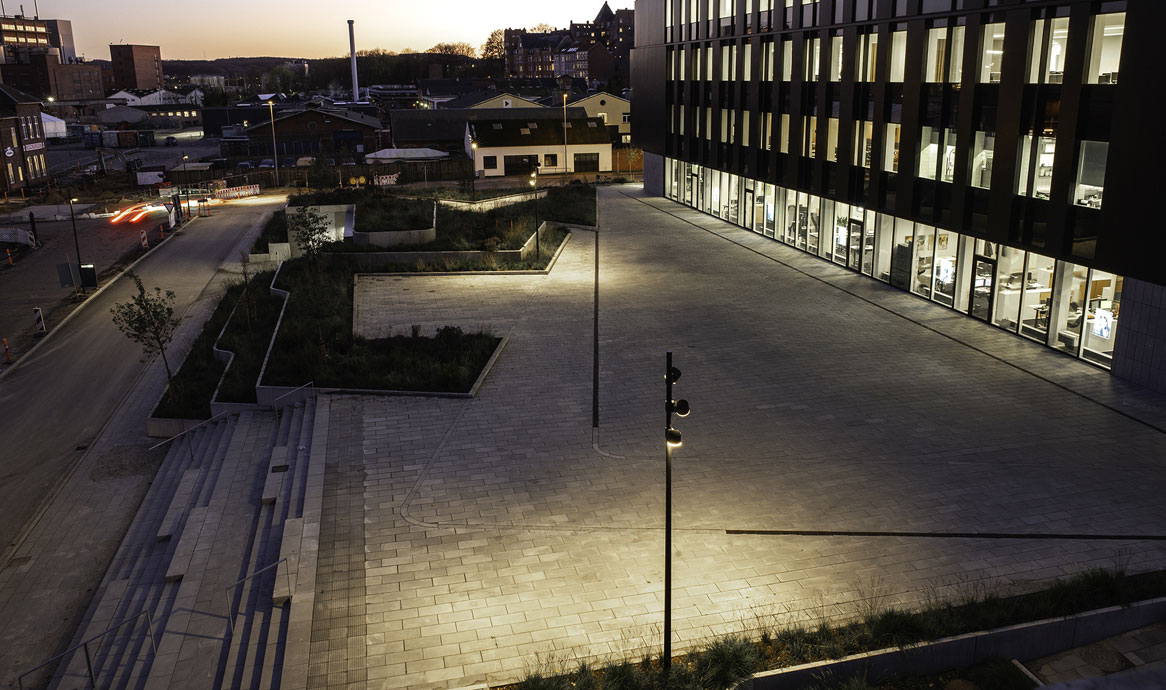

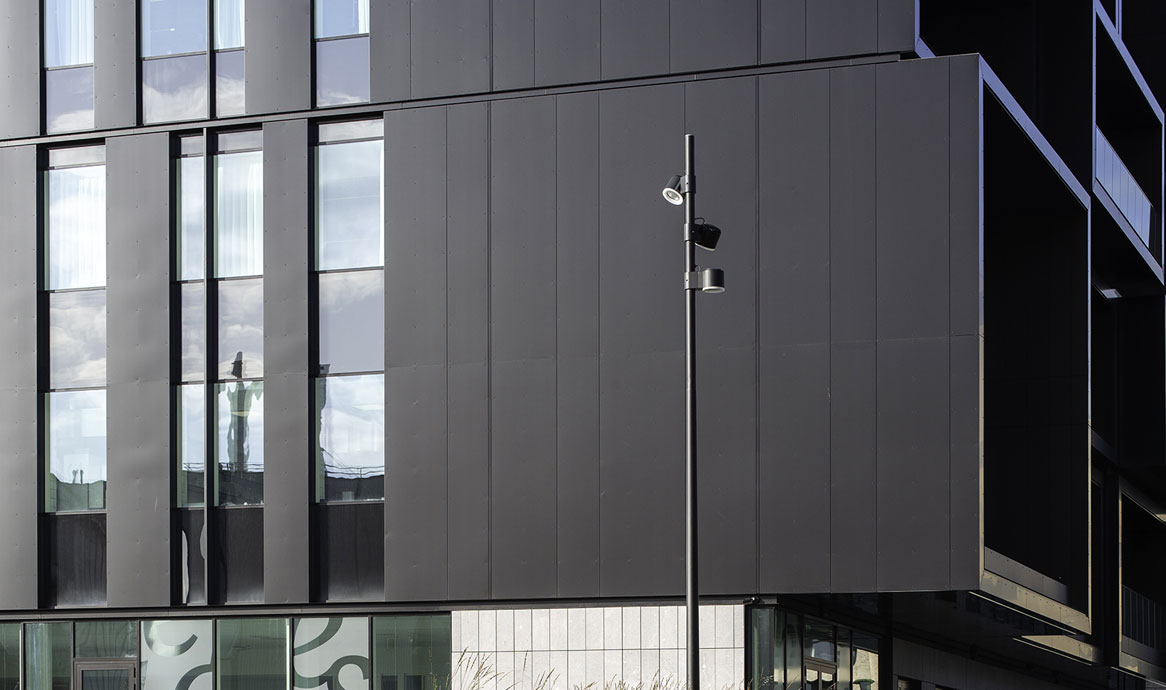

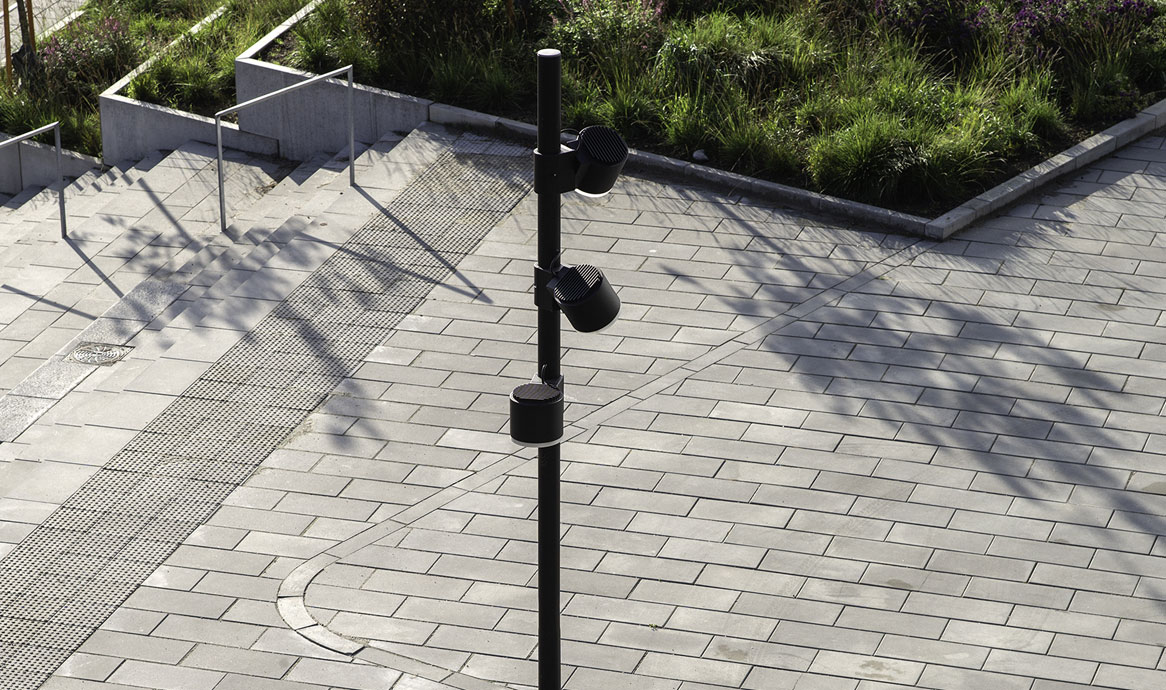

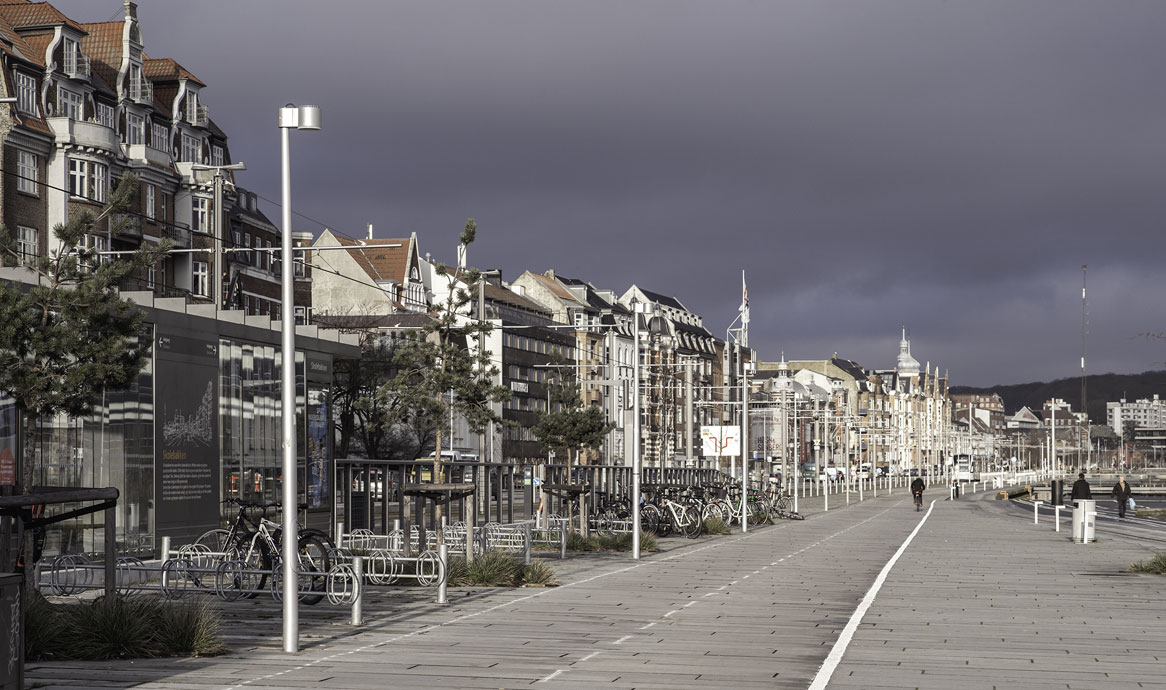

By combining the dramatic spot light from Turn Spot Halo and the asymmetrical light from Turn Street Halo you can enlarge the spaces designed by light without using more columns.
Specifications

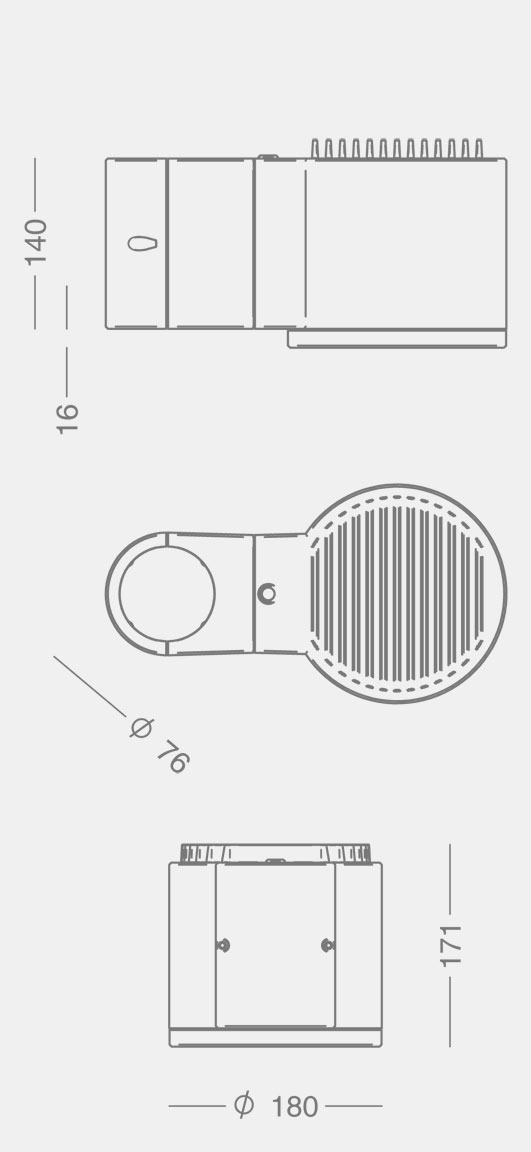

TURN STREET HALO
Luminaire
| TURN STREET HALO | |
|---|---|
| Material | Cast aluminium and opal-white acrylate |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Shade | Clear glass with silked edge |
| Mounting | Standard brackets for Ø76 mm cylindrical pole |
| Adjustable brackets for conical pole and cylindrical > Ø76 mm | |
| Adapter for Ø60 mm pole optional | |
| Delivered with 8.5 m lead, 2 x 1 mm2 | |
| Connection | In the pole |
| Classification | IP66, class II; use code for class I |
| Impact resistance | IK08 |
| Corrosion class | C4, C5 optional |
| Weight | 5.8 kg |
| Wind sweeping area | 0,053 m2 |
LED
| LED with lenses | 1 x DA 2x4, T3 lenses |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Constant lumen output | |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 80 Ra |
| Colour accuracy | 5 steps SDCM |
| Luminous flux | The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire. |
| LED-lumen, 80 Ra | 2700K: 320-2500 lm |
| 3000K: 350-2700 lm | |
| 4000K: 375-2800 lm | |
| Output ratio | 86% |
Driver
| Driver | Xitanium Full Xi FP 22 W 0.3-1.0 A, programmable |
|---|---|
| Inrush current | max 22 A (50% after 290 µs) |
| Surge protection | L/N-GND: 10 kV, (D4i driver: 8 kV) |
| L-N: 6 kV | |
| Operational life | 100,000 hours |
| Dimming | 5 steps dimming within the lumen intervals |
| Other control options | DALI-2, LineSwitch or |
| via Zhaga book 18 socket, D4i |
Variants and options
| Item No. | Turn Street Halo |
|---|---|
| 8920- | 1 x DA 2x4, T3 lenses |
| Design pole | Conical pole with Ø76 mm cylindrical rod |
|---|---|
| 3170- | 4 meter pole |
| 3172- | 5.5 meter pole |
| 3174- | 7 meter pole |
| 1714-1 | Adapter for Ø60 mm pole |
| 50200 | Rooted base Ø108-140 |
| Fuse box | |
|---|---|
| 98158 | Fuse box for 2 Neozed fuses up to 16 A |
Combine with
Select colour, colour temperature, dimming, etc. in the table.
| Colour | Colour temperature |
|---|---|
| 01 = raw anodized | 827 = 2700 K, 80 Ra |
| 4 = graphite grey | 830 = 3000 K, 80 Ra |
| 9 = silver grey | 840 = 4000 K, 80 Ra |
| 17 = corten brown | |
| 66 = noir 900 |
| Dimming | Protection class |
|---|---|
| empty = programmable | empty = class II |
| D = DALI-2 (4/5-conductor cable) | J = class I |
| F = LineSwitch | |
| R = Zhaga book 18 socket upwards | |
| RC = Zhaga book 18 socket, City Touch / Interact City |
| Mounting | Corrosion class |
|---|---|
| empty = brackets for cylindrical pole, Ø76 mm | empty = C4 |
| B90 = brackets for conical pole, Ø 60-90 mm | C5 = C5 coating (add C5 after the colour code) |
| B121 = brackets for conical pole, Ø 91-121 mm |
Example: 8920-4830J = Turn Street Halo, max 2300 lm, programmable, graphite grey, 3000 K, 80 Ra, class I
