NYX BOLLARD

Please choose

Nyx is a range of exterior fittings for wall, bollard, or pole mounting. NYX is the answer to today’s demands for pleasant and well-defined light directed to the place where light is required.

The Nyx bollard - to be equipped with the Nyx 190 fitting - is available in two heights: H 1000 and 1200; the taller version is equipped with fuse box. The Nyx bollards come in black, two grey colours, and corten brown.

Specifications

NYX BOLLARD 1200

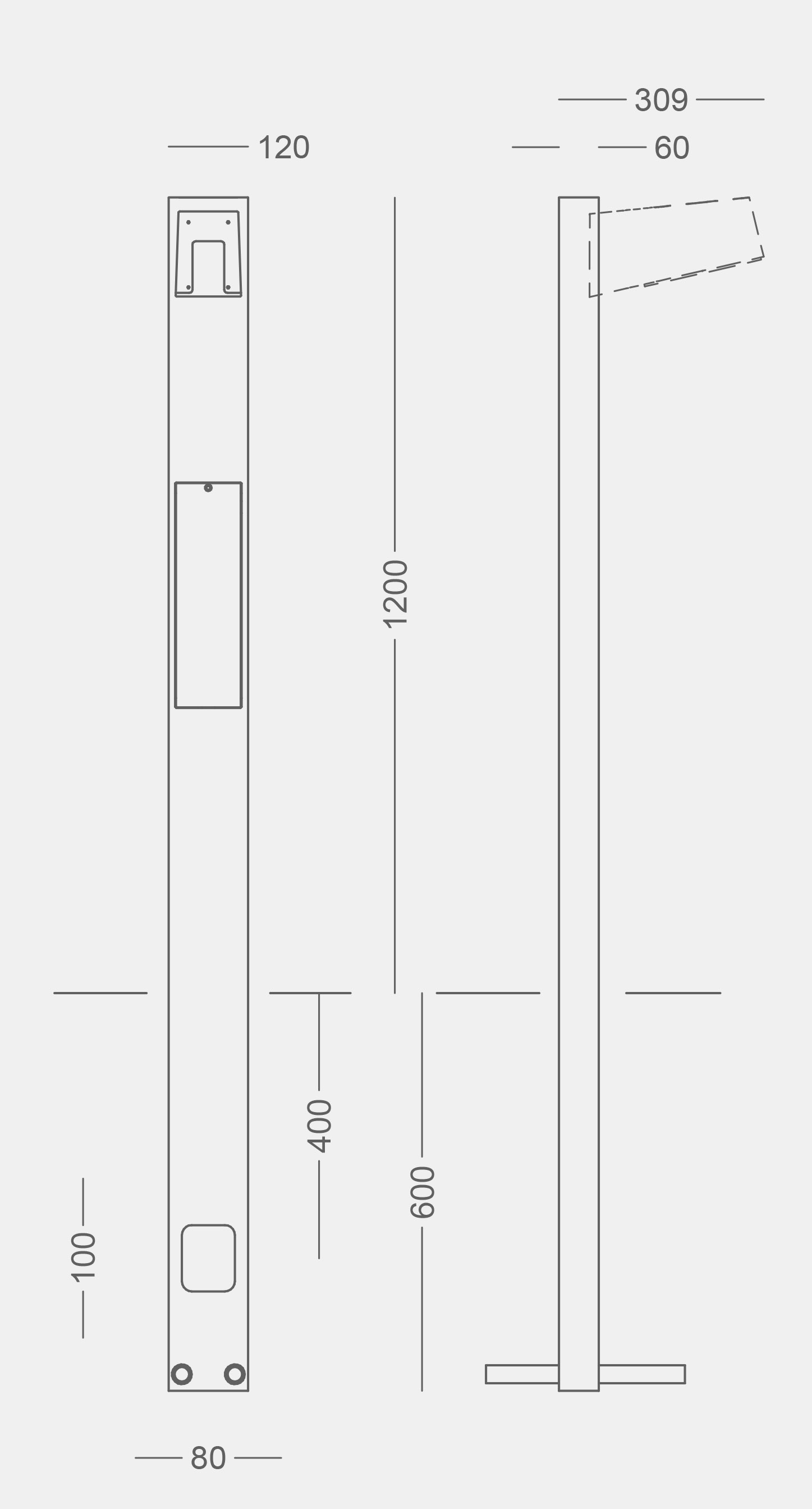

nyxstander1200nedgravning

Specification

NYX BOLLARD 1200
Material Aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: RAL 9005, SN805G, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Connection In bollard with 6A fuse box,
Class I Two cables 5x10 mm2, or 3 cables 5x6 mm2
Class II Two cables 4x10 mm2, or 3 cables 4x6 mm2
Corrosion class C4, C5 optional
Weight 6 kg
Fitting to be ordered separately

Variants

Item No. H 1200
7023- rooted base

Combine with

Select colour in the table below.

Colour Classification
01 = raw anodized empty = class I
3 = black RAL 9005 K = class II
4 = graphite grey
9 = silver grey
17 = corten brown
66 = black noir 900

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example Item No.: 7023-9 = Nyx Bollard 1200, rooted base, silver grey, class I

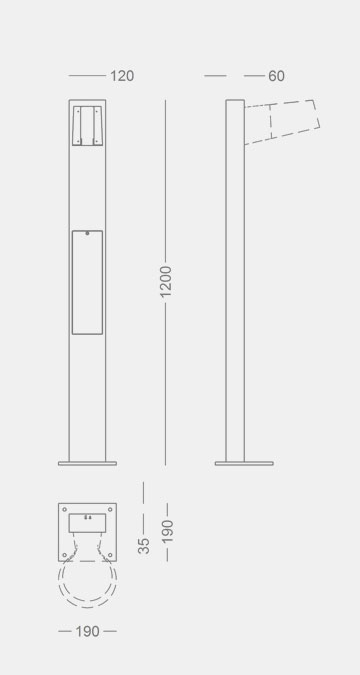

nyx-pullert-1200-flange

Specification

NYX BOLLARD 1200
Material Aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: RAL 9005, SN805G, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Connection In the bollard with 6A fuse box,
Class I Two cables 5x10 mm2, or 3 cables 5x6 mm2
Class II Two cables 4x10 mm2, or 3 cables 4x6 mm2
Corrosion class C4, C5 optional
Weight 4.5 kg
Fitting to be ordered separately

Variants

Item No. H 1200
7024- flanged base

Combine with

Select colour in the table below.

Colour Classification
01 = raw anodized empty = class I
3 = black RAL 9005 K = class II
4 = graphite grey
9 = silver grey
17 = corten brown
66 = black noir 900

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example Item No.: 7024-9 = Nyx Bollard 1200, flanged base, silver grey, class I

Media & downloads

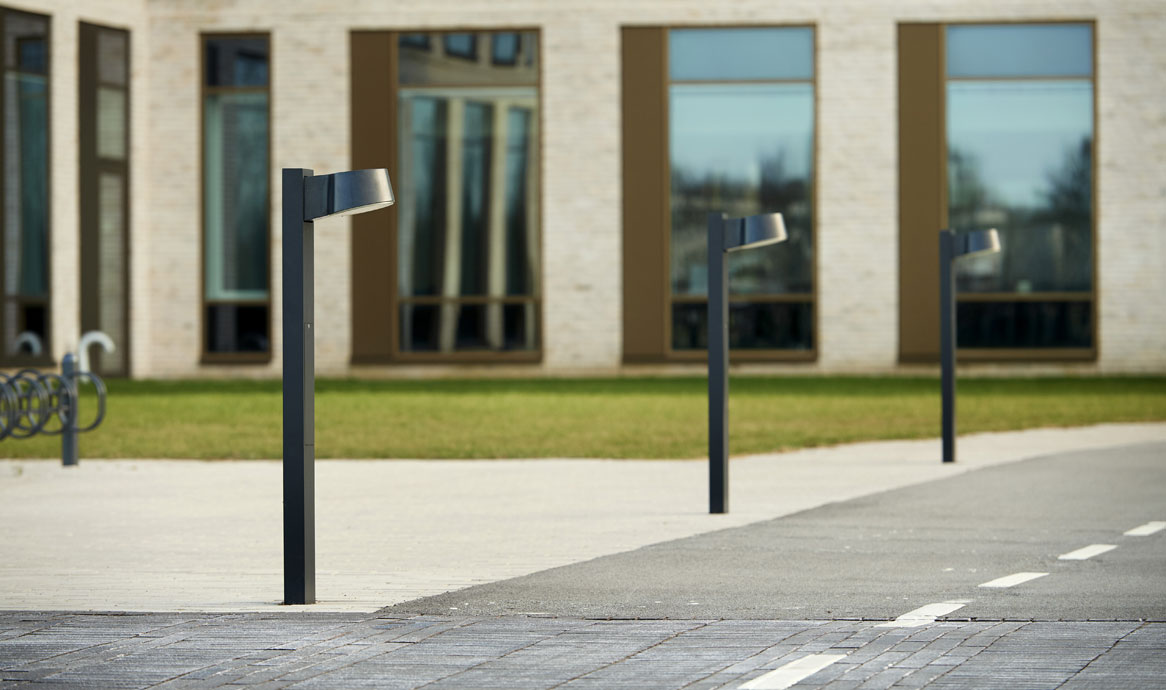

nyxpullert_5978_1166

Nyx Bollards and other Nyx variants contribute to a diverse lighting landscape at the Novozymes Innovation Campus north of Copenhagen.

Umbraco.Cms.Core.Models.Link More photos from Lundtofte

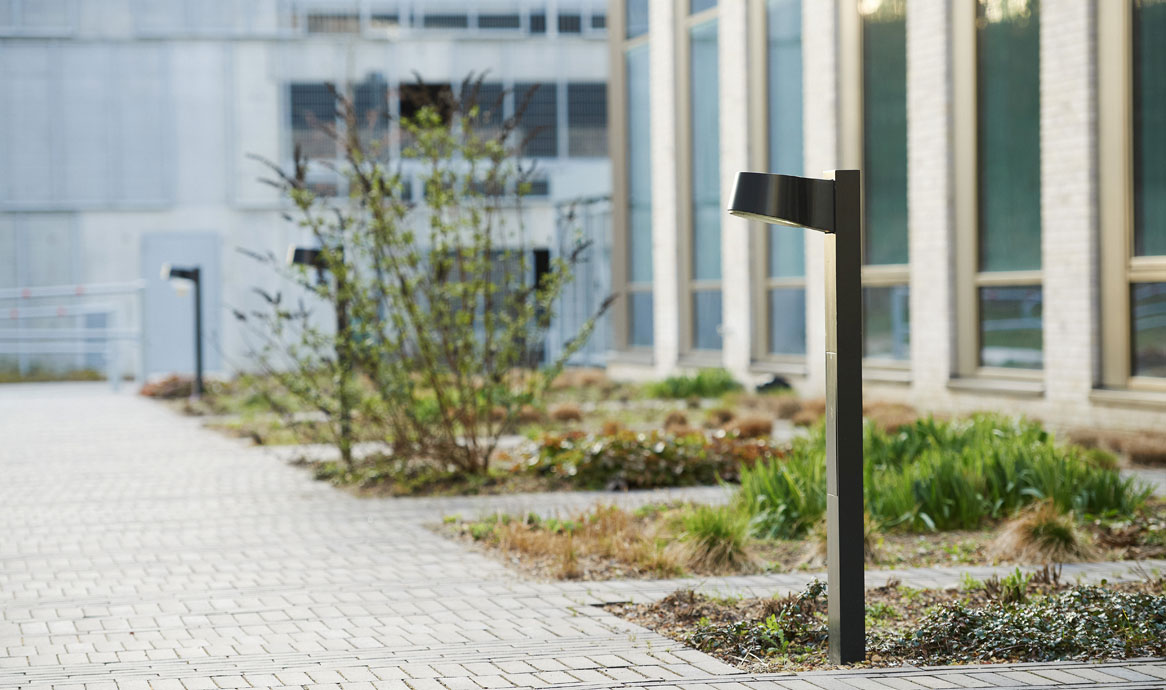

nyxpullert_6024_1166

Nyx Bollard 1200

Umbraco.Cms.Core.Models.Link More photos from Lundtofte
nyxpullert_6074_1166

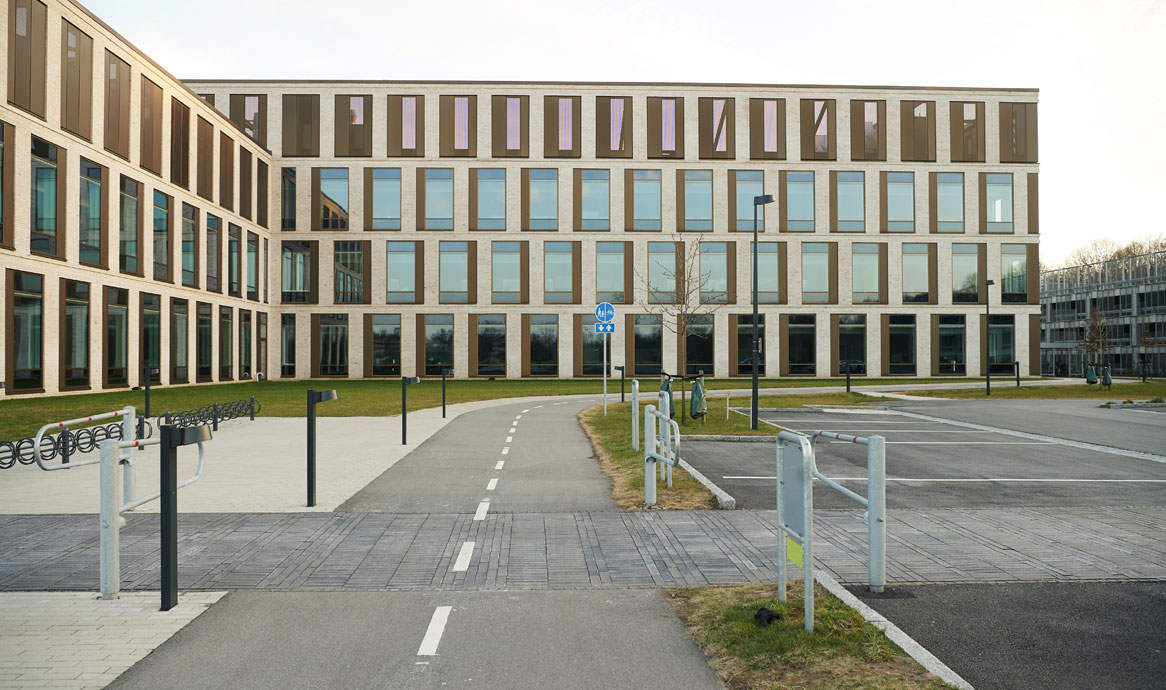

Nyx Bollards along the cycling lanes.

Umbraco.Cms.Core.Models.Link More photos from Lundtofte

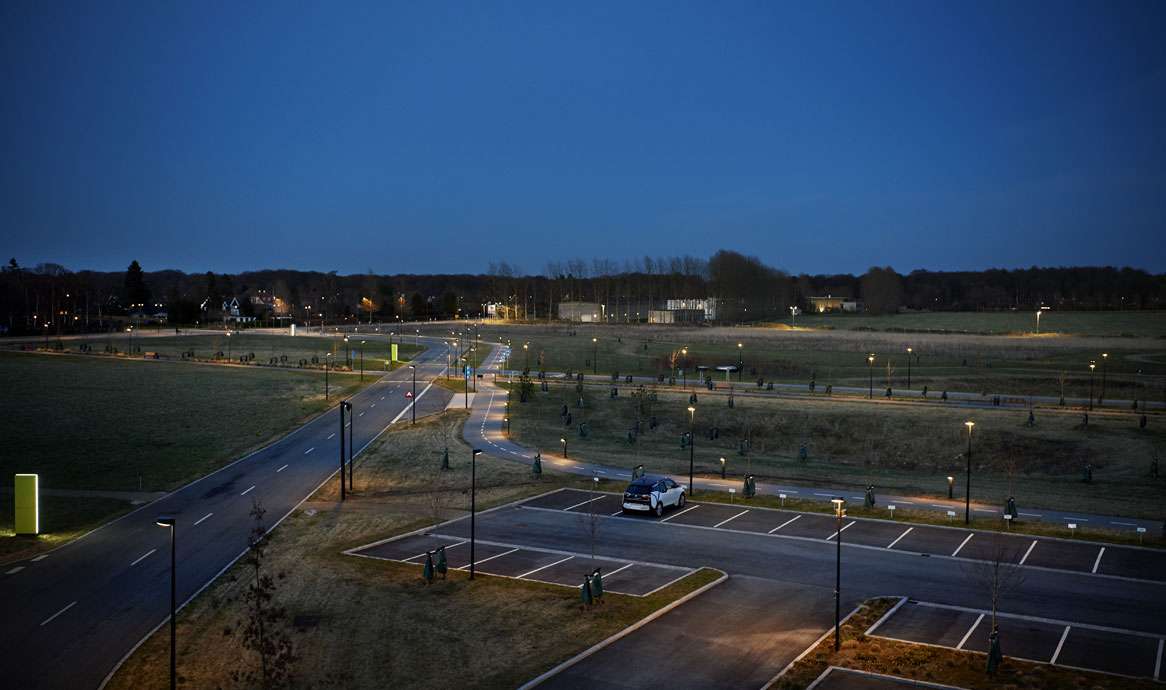

nyx_alle_aften_6332_1166

The cycling lanes around the Innovation Campus are illuminated by Nyx bollards; along roads and squares the Nyx 330 lantern is in charge.

Umbraco.Cms.Core.Models.Link More photos from Lundtofte
nyxpullert_trollesm_1166

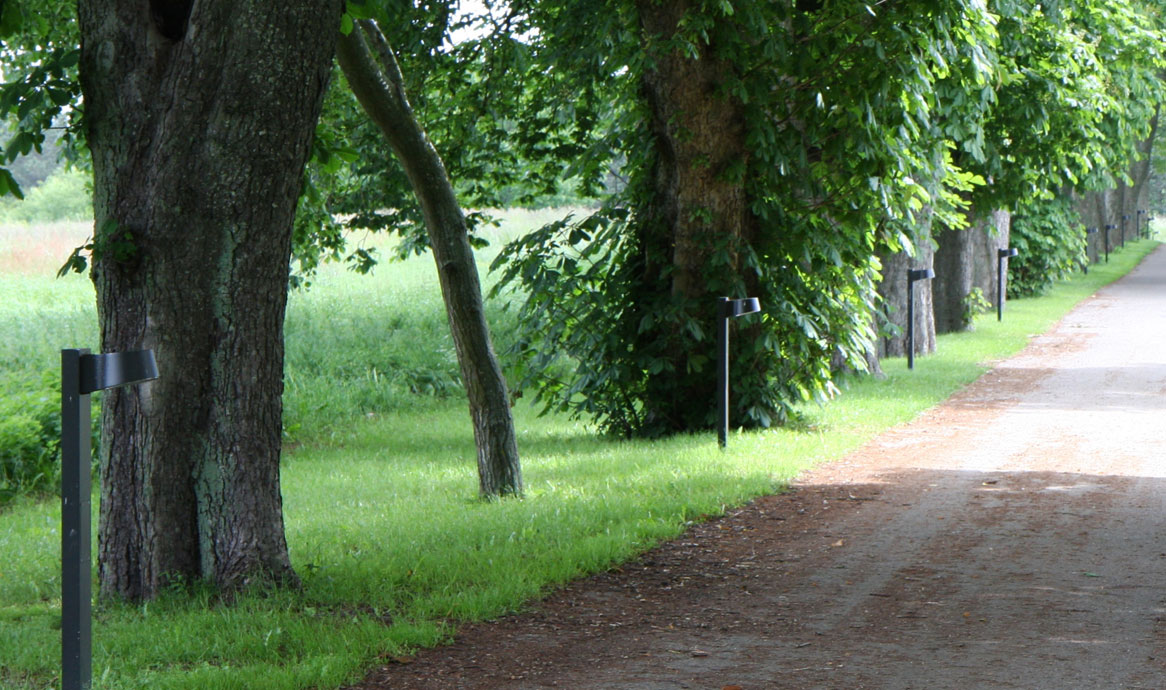

Nyx Bollard 1200 - Trollesminde Allé, Hillerød

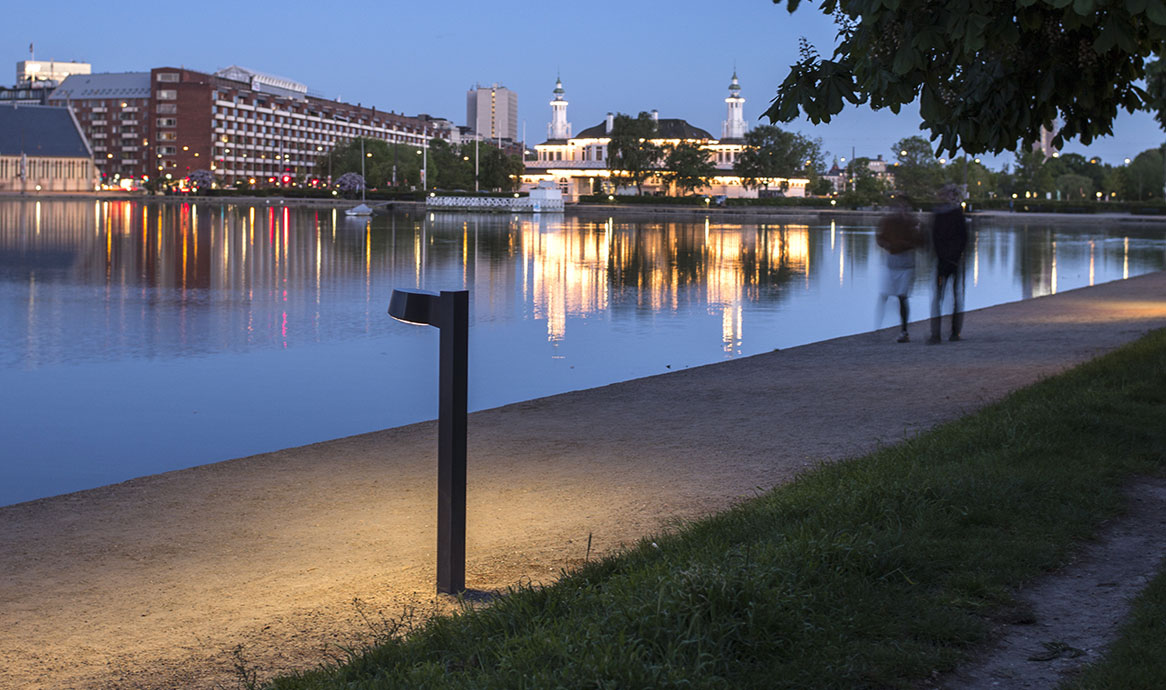

nyxpullert_kbh_4054_1166

The Nyx Bollard makes it safe to walk along the lakes in Copenhagen.

Umbraco.Cms.Core.Models.Link More photos from Copenhagen

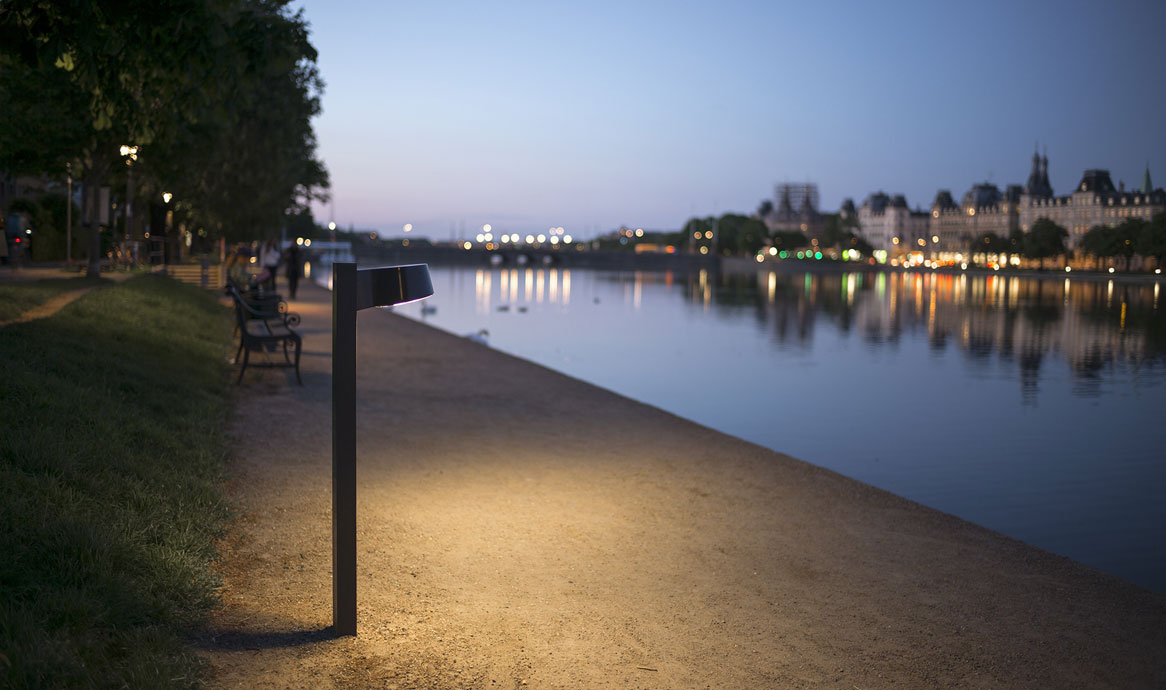

nyxpullert_kbh_2_1166

Nyx Bollards in Copenhagen grey illuminate the walking areas around the Copenhagen lakes without unwanted glare into the surrounding houses.

Umbraco.Cms.Core.Models.Link More Nyx in Copenhagen
nyx190_hennestr_1166

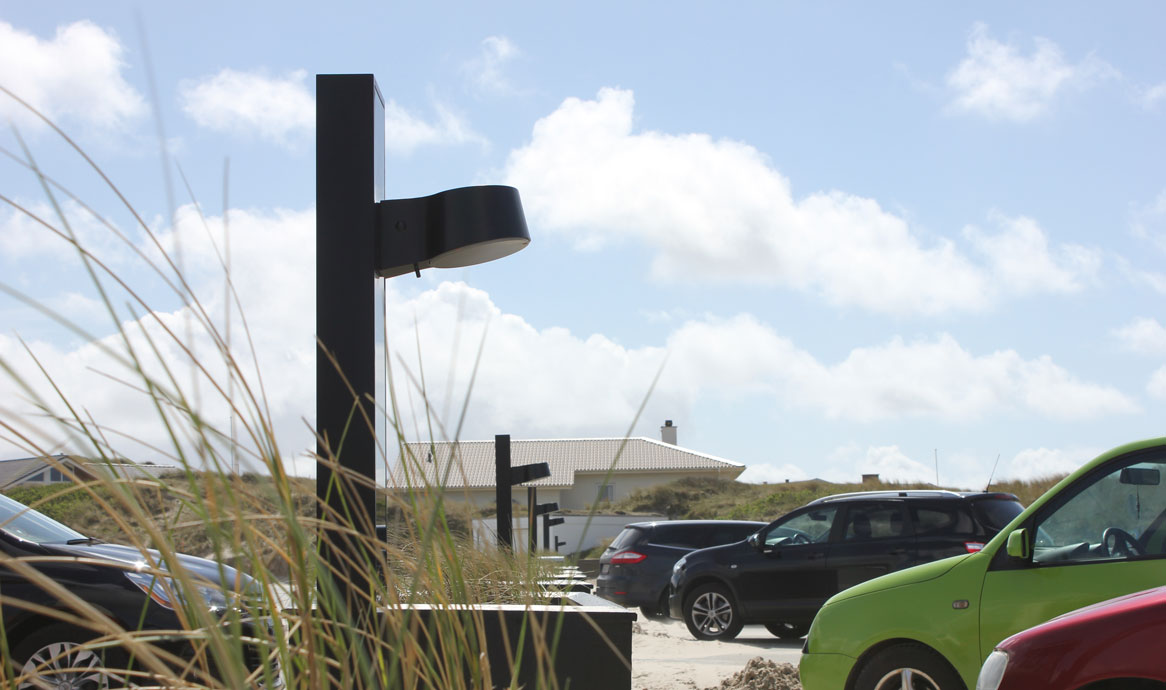

Nyx 190 at solar cell bollard - Henne Strand

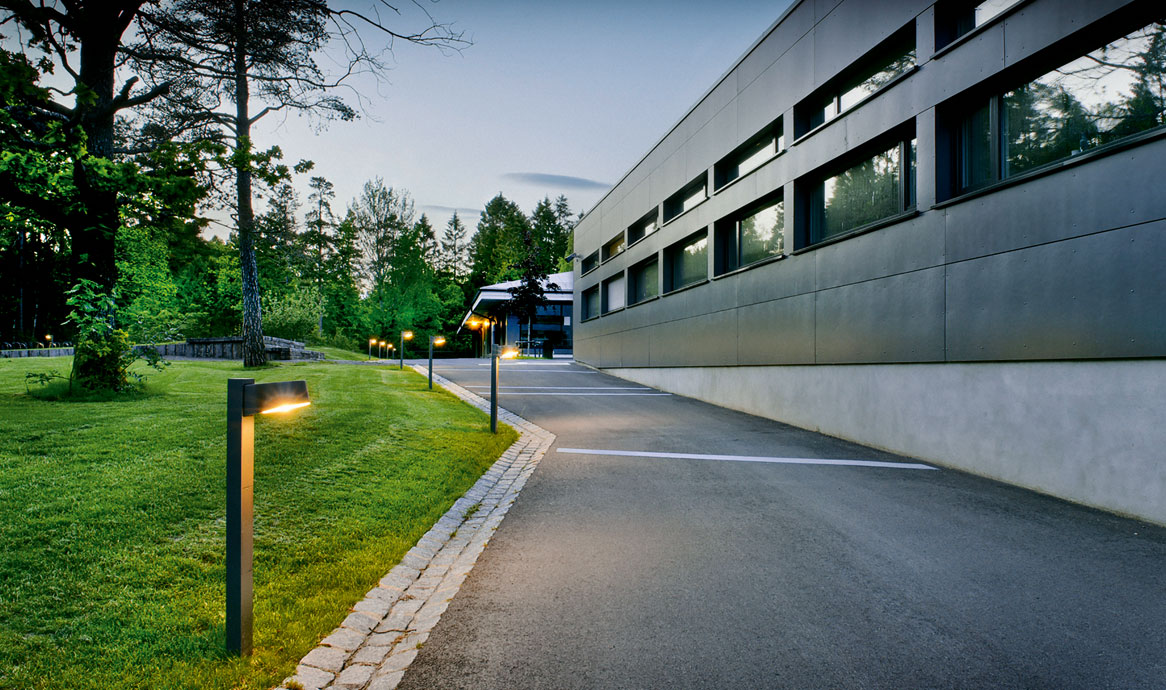

nyx190_norge_1166

Nyx Bollard at college in Norway.

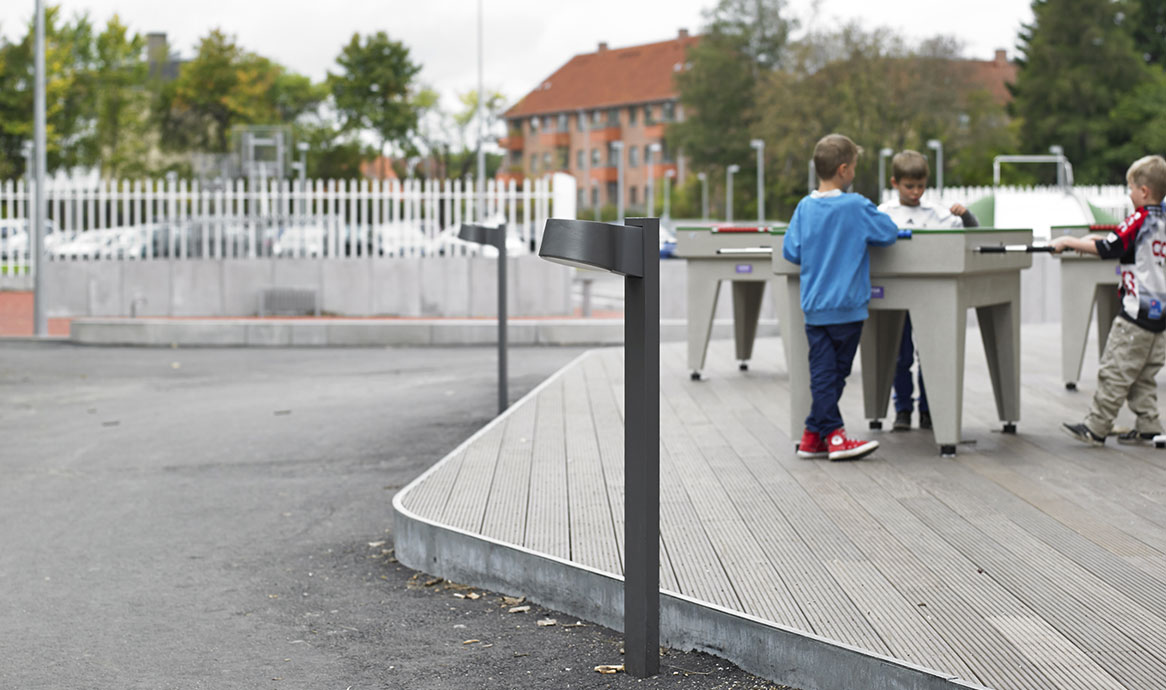

nyxpullert_bagsvd_1166

Nyx Bollard 1000 - Bagsværd New School

Umbraco.Cms.Core.Models.Link More photos
nyxpullert_7403_1166

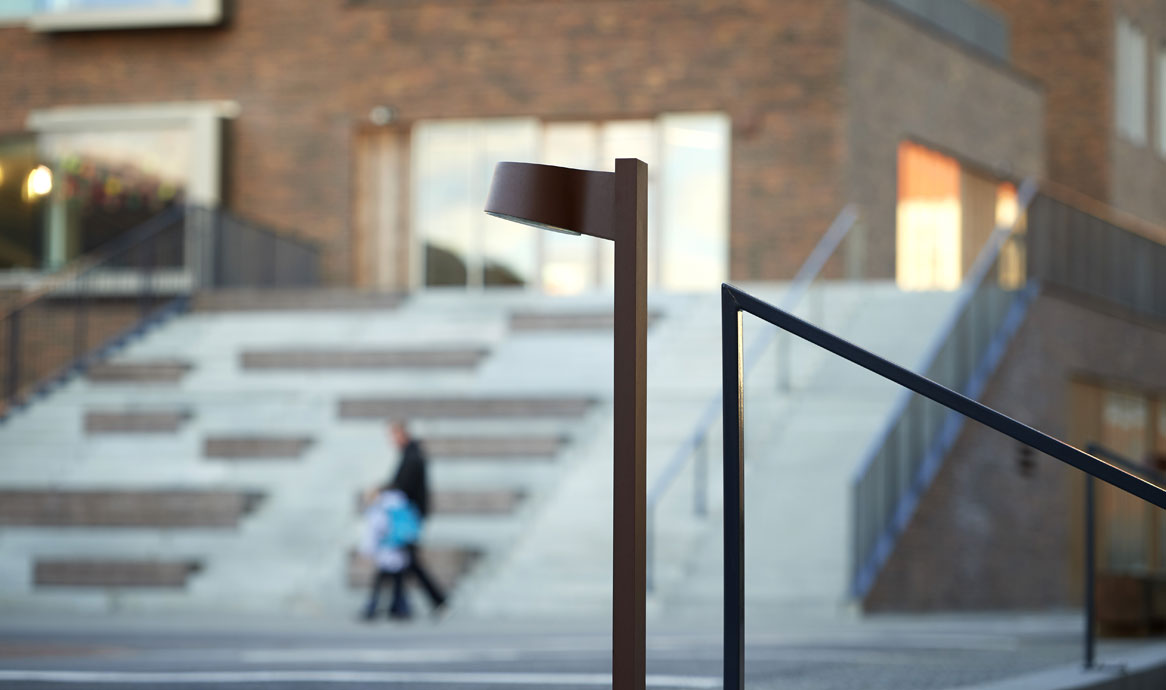

Nyx Bollard, corten brown, Sundbyøster Public School

Umbraco.Cms.Core.Models.Link More photos

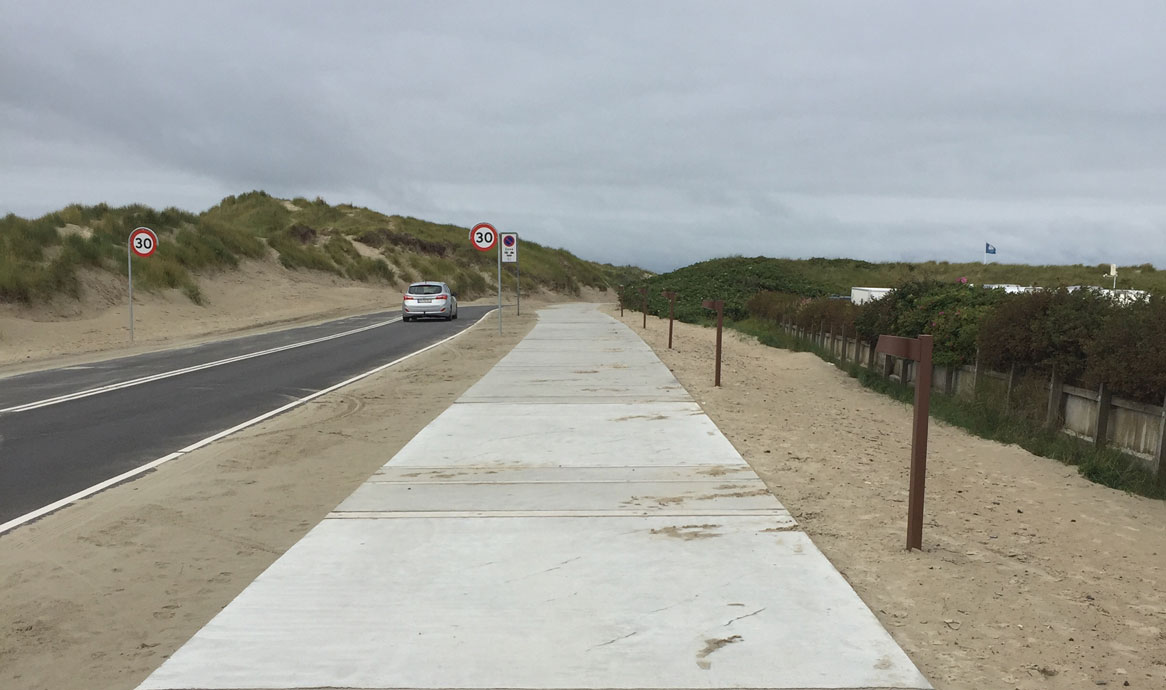

nyxpullert_lakolk_raekke_1166

For the refurbishment of Lakolk Beach at the island of Rømø MOVE Architecture found inspiration in nature. The Nyx Bollard in corten brown matches the environment.

nyxpullert_lakolk_close_1166

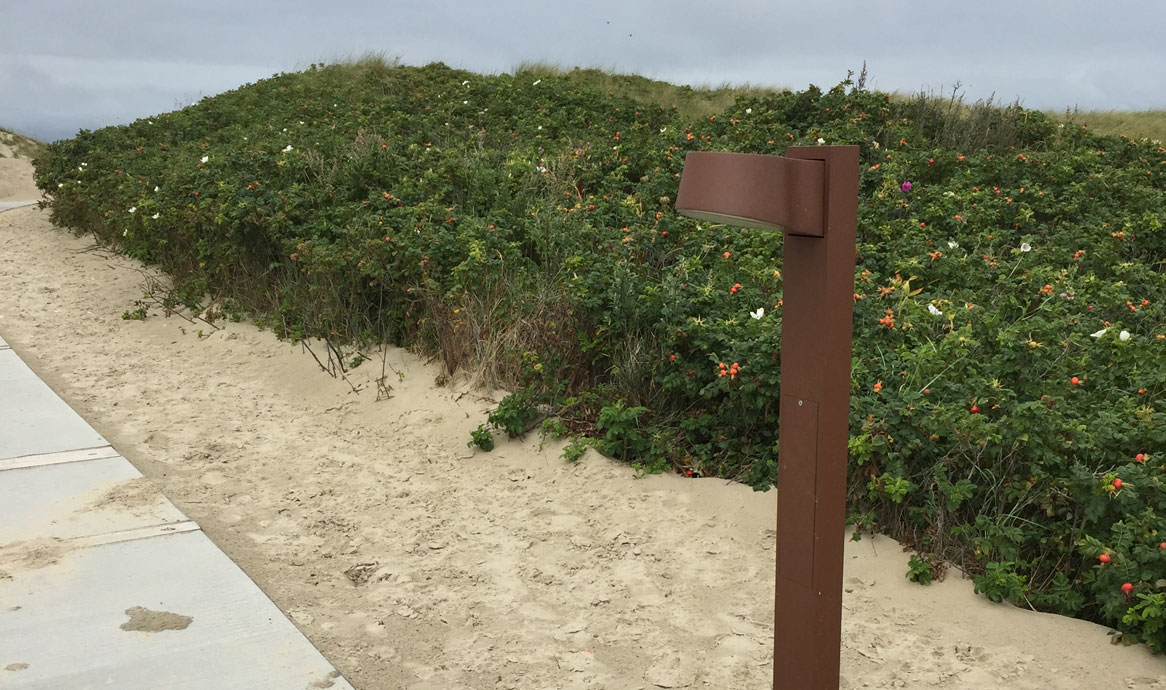

For the refurbishment of Lakolk Beach at the island of Rømø MOVE Architecture has used the Nyx Bollard in corten brown.

nyx190_theresidence-03_1166

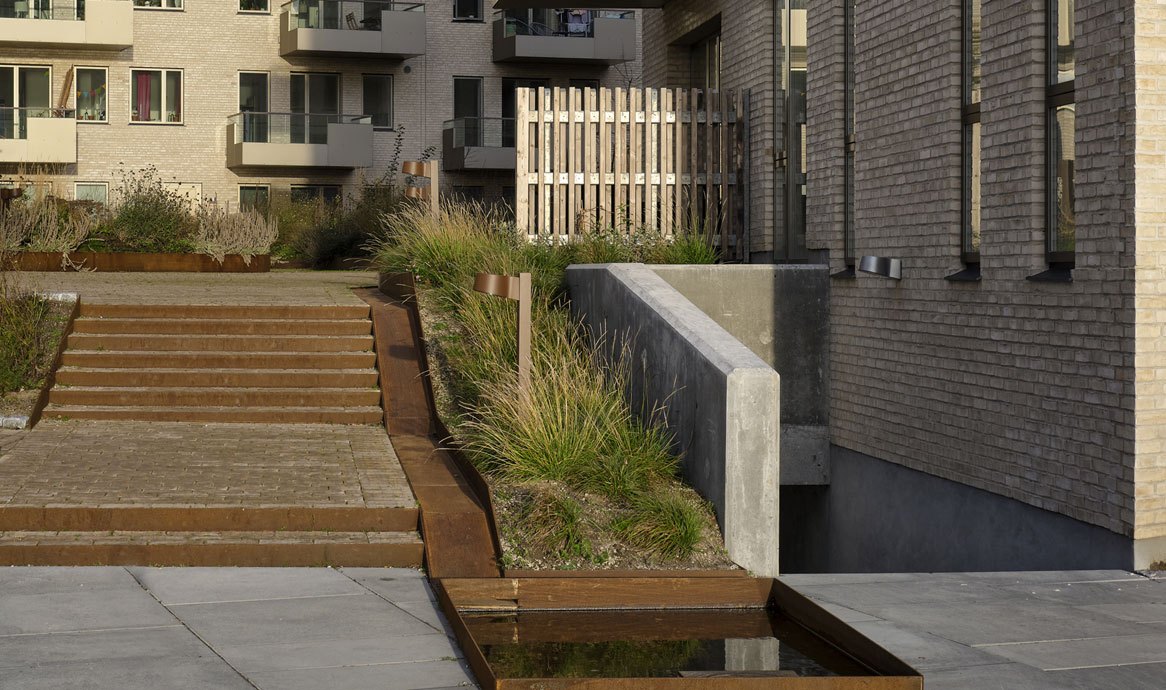

Nyx in corten brown, Enghave Waterfront, The Residence CPH, Architects: Mangor & Nagel A/S, Landscape architects: PLAN+LANDSKAB, Photo: Tom Jersø

nyx_theresidence-10_1166

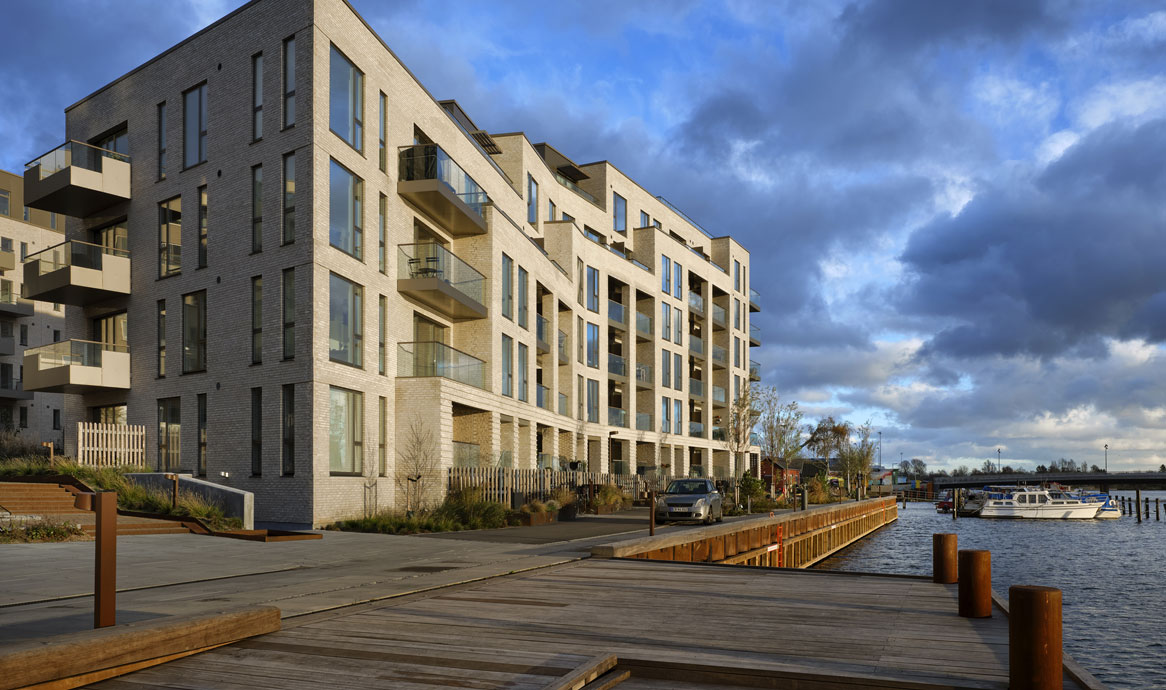

Nyx in corten brown, Enghave Waterfront, The Residence CPH, Architects: Mangor & Nagel A/S, Landscape architects: PLAN+LANDSKAB, Photo: Tom Jersø

aften_pullert_8608_1166

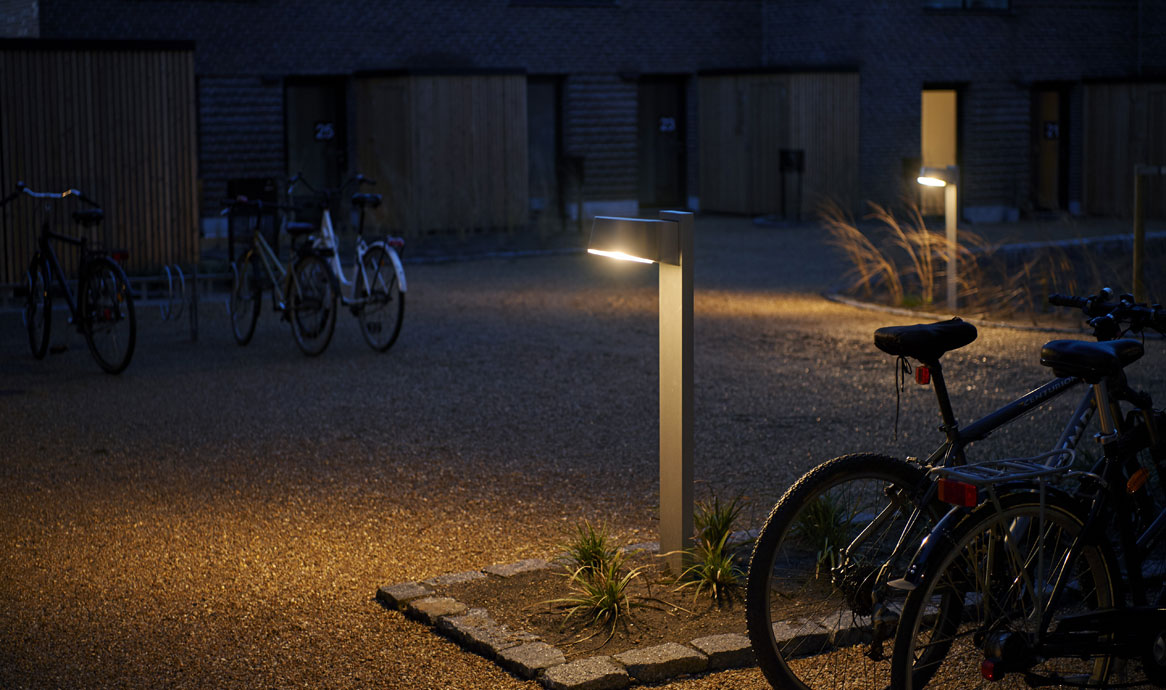

Masu Planning, landscape architects, have used the Nyx luminaires in the residence "Bjerglandsbyen" in the Copenhagen suburb Brønshøj; here the Nyx Bollard.

DesignVilhelm Lauritzen Arkitekter

The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
