TURN SPOT HALO

Turn is a new series of luminaires in a minimalist, cylindrical design. Three beam angles: 38, 19, or 12 degrees.

The luminaires are flexible and can be adjusted in any direction.

By using several spots you can create new spaces by means of light. By combining the dramatic spot light from Turn Spot Halo and the asymmetrical light from Turn Street Halo you can enlarge the spaces designed by light without using more poles.

Specifications

TURN SPOT HALO

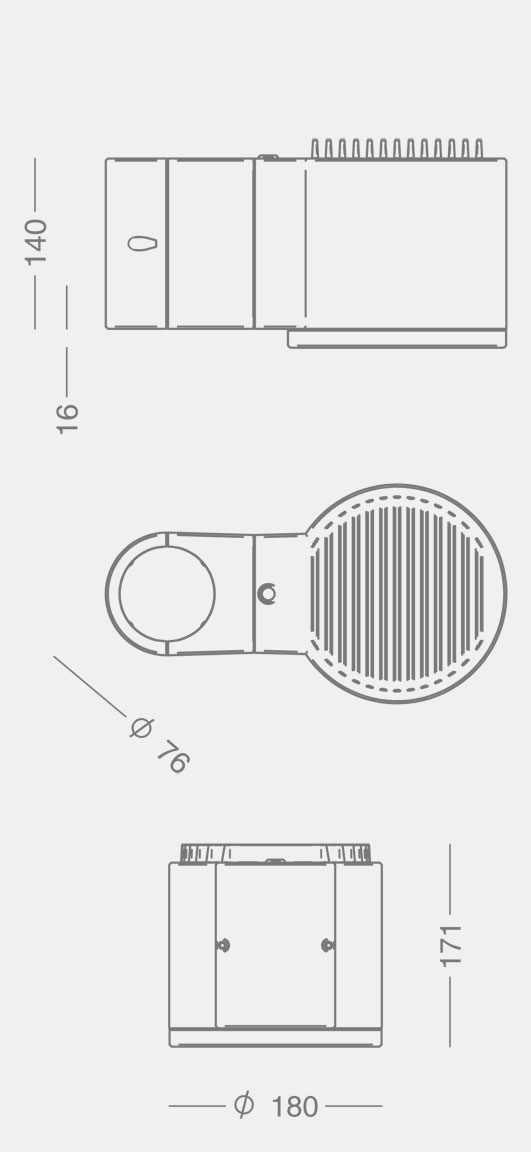

turnspothalo_2_f0

Luminaire

TURN SPOT HALO
Material Cast aluminium and opal-white acrylate
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade Clear glass with silked edge
Honeycomb filter optional
Mounting Standard brackets for Ø76 mm cylindrical pole
Adjustable brackets for conical pole and cylindrical > Ø76 mm
Adapter for Ø60 mm pole optional
Delivered with 8.5 m lead, 2 x 1 mm2
Connection In the pole
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight 5.8 kg
Wind sweeping area 0,053 m2

LED

LED type Bridgelux V18
Beam angle wide, medium or narrow (38, 19, or 12 degrees)
Operational life min 100,000 hours at ta max 25° C, L80B10
Constant lumen output
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 80 Ra, 90 Ra optional
Colour accuracy 3 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra 2700K: 400-4700 lm
3000K: 410-5000 lm
4000K: 425-5100 lm
Output ratio 78-86%

Driver

Driver Xitanium Full Xi FP 40 W 0.3-1.0 A, programmable
Inrush current max 22 A (50% after 290 µs)
Surge protection L/N-GND: 10 kV, (D4i driver: 8 kV)
L-N: 6 kV
Operational life 100,000 hours
Dimming 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Turn Spot Halo is not recommended for lighting over horizontal surfaces. Ask for variants for upward lighting use.

Item No. Turn Spot Halo
8840- V18, wide 38°, programmable, max 35 W
8841- V18, medium 19°, programmable, max 35 W
8842- V18, narrow 12°, programmable, max 35 W

Arm for wall mount
8011- Arm for 1 fixture
8012- Arm for 2 fixtures
Arm and fixture will be assembled by Focus Lighting

Design pole Conical pole with Ø76 mm cylindrical rod
3170- 4 meter pole
3172- 5.5 meter pole
3174- 7 meter pole
1714-1 Adapter for Ø60 mm pole
50200 Rooted base Ø108-140

Fuse box
98158 Fuse box for 2 Neozed fuses up to 16 A

Combine with

Select colour, colour temperature, dimming, etc. in the table.

Colour Colour temperature
01 = raw anodized 827 = 2700 K, 80 Ra
4 = graphite grey 830 = 3000 K, 80 Ra
9 = silver grey 840 = 4000 K, 80 Ra
17 = corten brown
66 = noir 900

Dimming Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket upwards
RC = Zhaga book 18 socket, City Touch / Interact City

Filter Mounting
empty = no filter empty = brackets for cylindrical pole, Ø76 mm
Y = honeycomb filter B90 = brackets for conical pole, Ø 60-90 mm
B121 = brackets for conical pole, Ø 91-121 mm

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example: 8840-66830J = Turn Spot Halo, wide, max 4600 lm, programmable, black noir 900, 3000 K, 80 Ra, class I

Media & downloads

turnspothalo_dmjx_1166

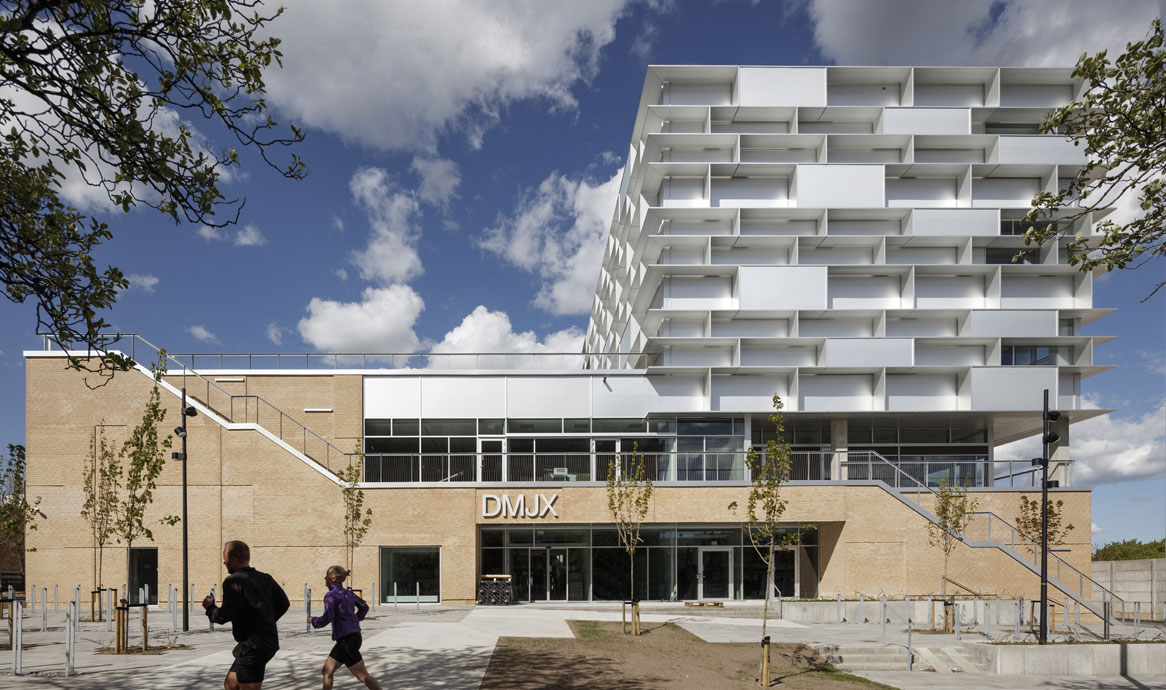

Turn Spot Halo at the new Media & Journalist Education Centre in Aarhus. Architects: Arkitema Architects - Photo: Niels Nygaard

turnspot_8681_1166

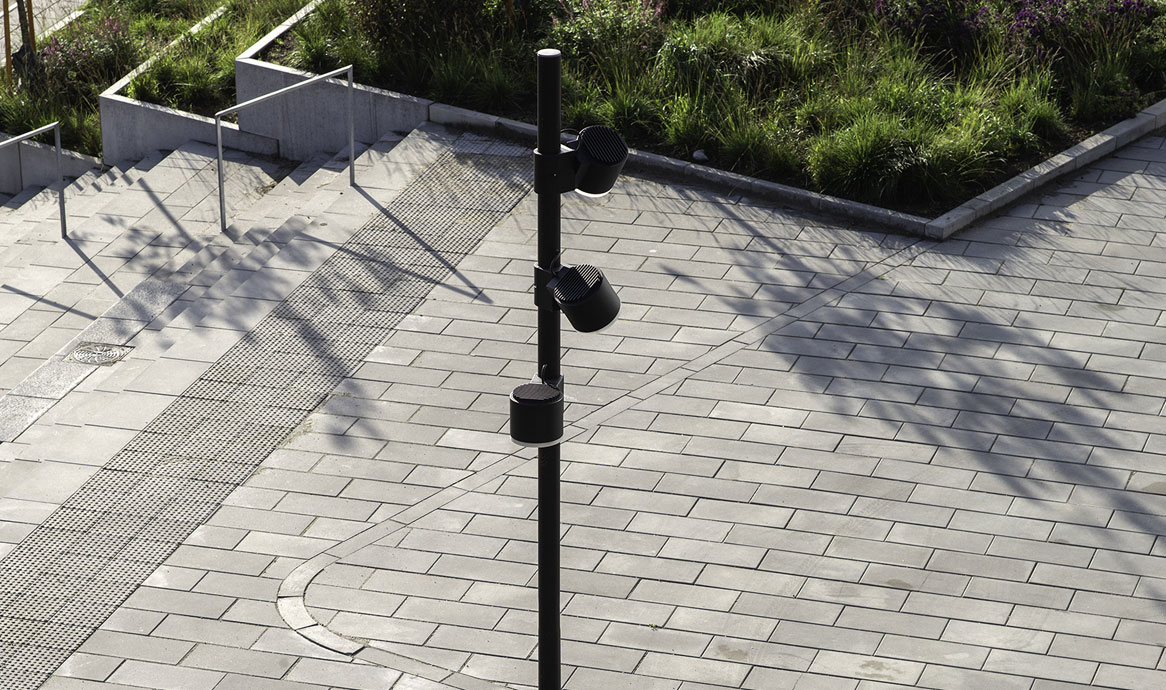

Turn Spot Halo and Turn Street Halo, black noir 900. The Turn Spot has an angle of 45 degrees to the column; Turn Street with lense optics is pointing downwards.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnspot_8698_1166

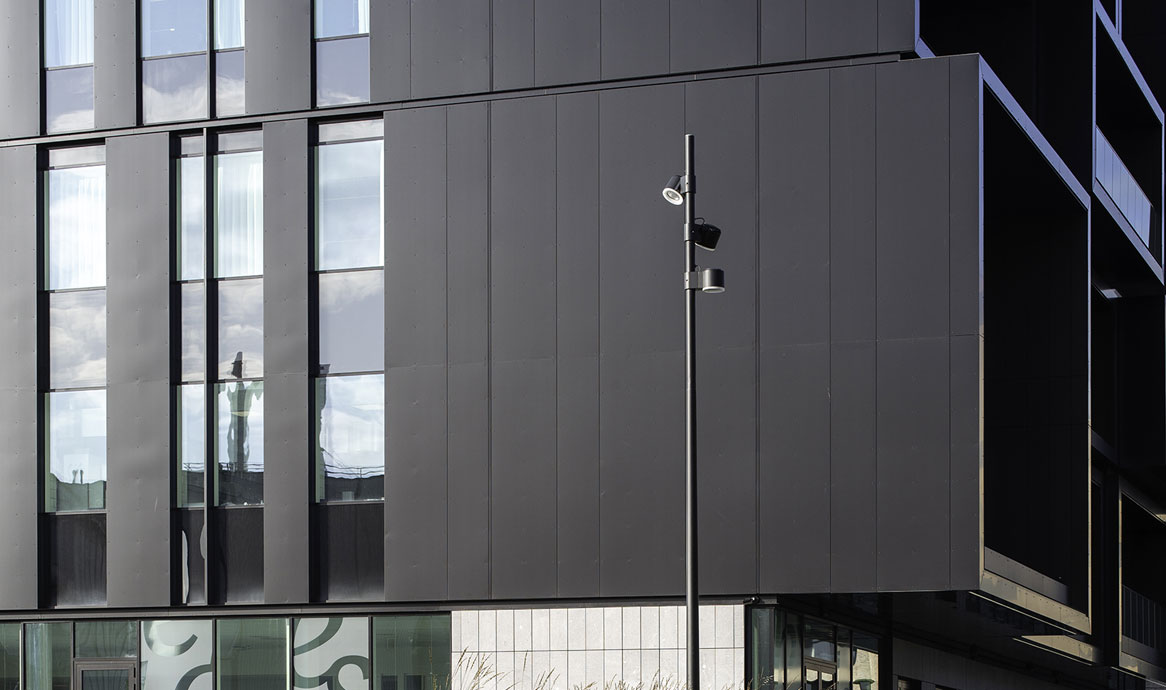

Turn Spot Halo and Turn Street Halo, black noir 900. The Turn Spot is turned about 45 degrees to the column; Turn Street is pointing downwards. Column height 5.5 m.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnspot_8707_1166

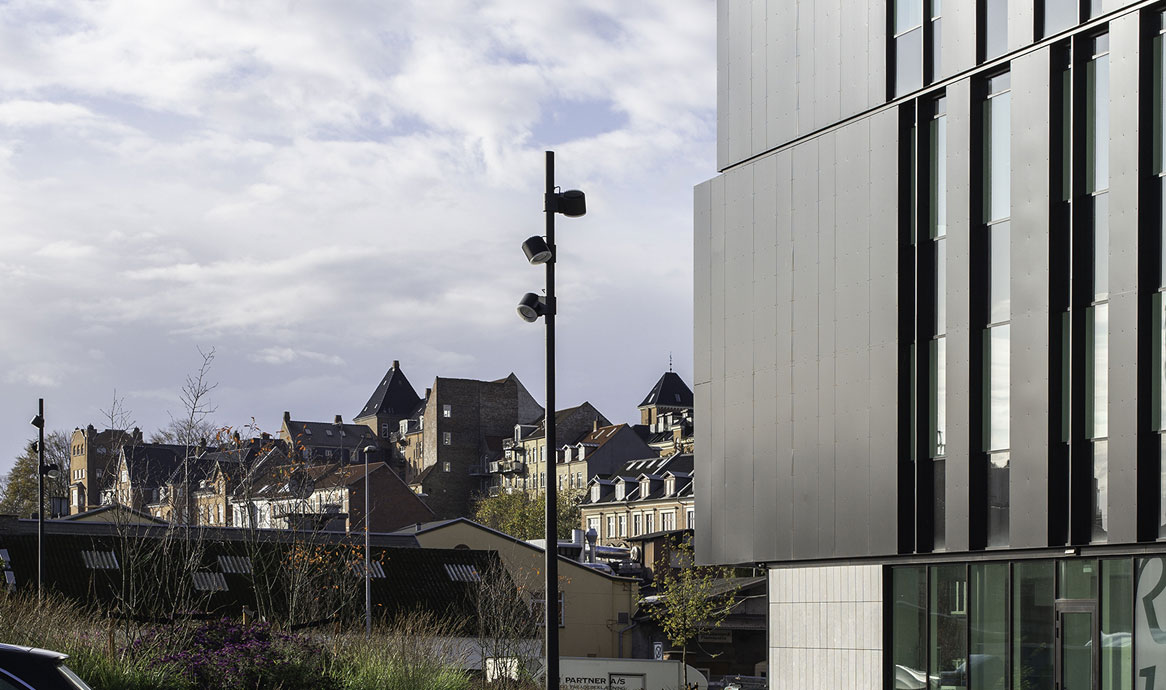

Turn Spot Halo black noir 900, column height 5.5 m. Turn Spot Halo is closed by a short, opalised ring, matching the Street luminaire and offering optical guidance.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnstreet_8703_1166

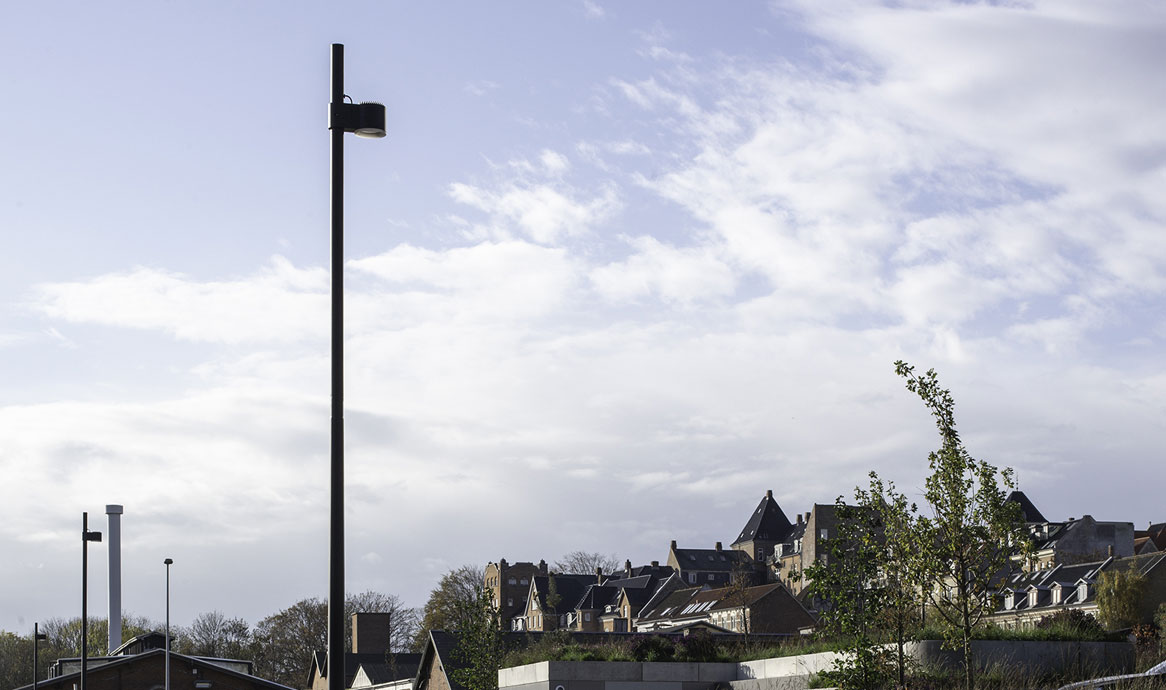

Turn Street Halo black noir 900, column height 5.5 m. Turn Street Halo has DA board and lenses for asymmetrical light.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnspot_9628_1166

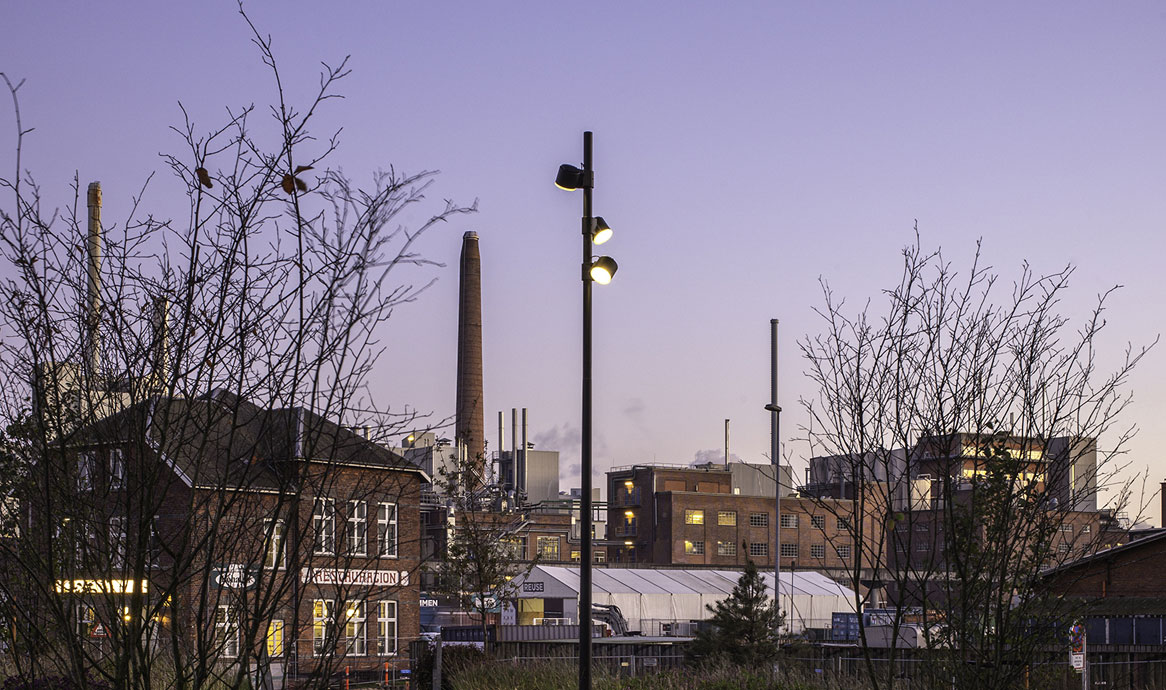

Turn Spot Halo black noir 900, column height 5.5 m. Jægergaardsgade, Aarhus.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnspot_9642_1166

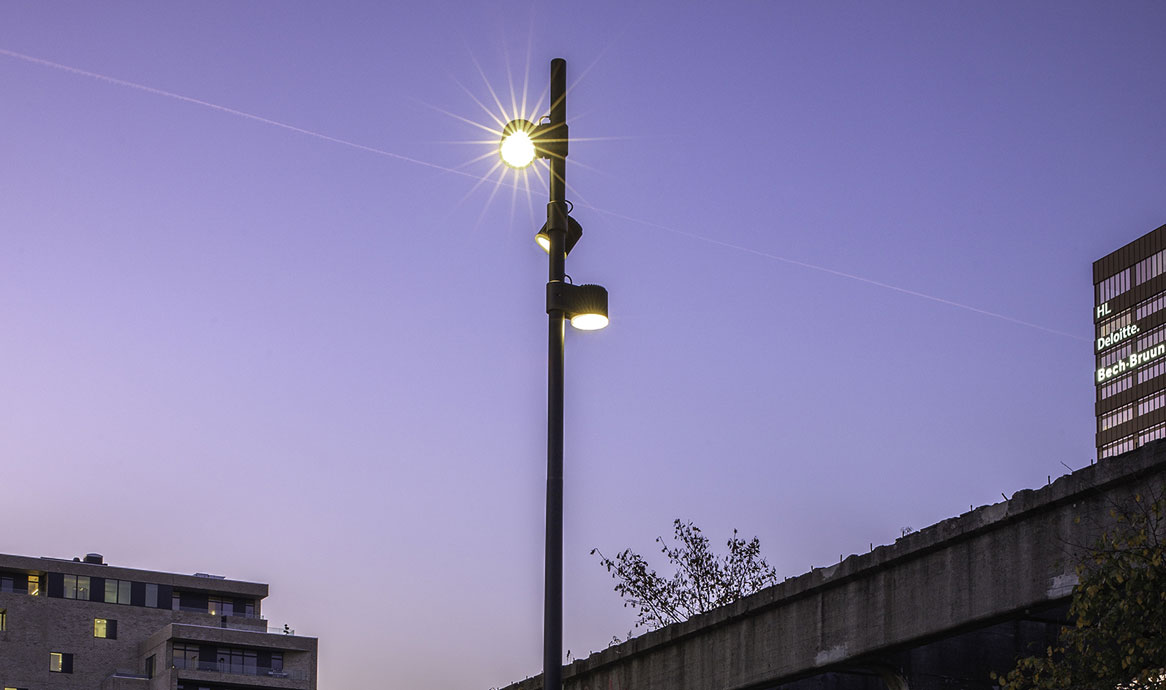

Turn Spot Halo and Turn Street Halo, black noir 900, column height 5.5 m. Turn Spot is angled about 45 degrees; Turn Street with lens optics is pointing downwards.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnstreet_9652_1166

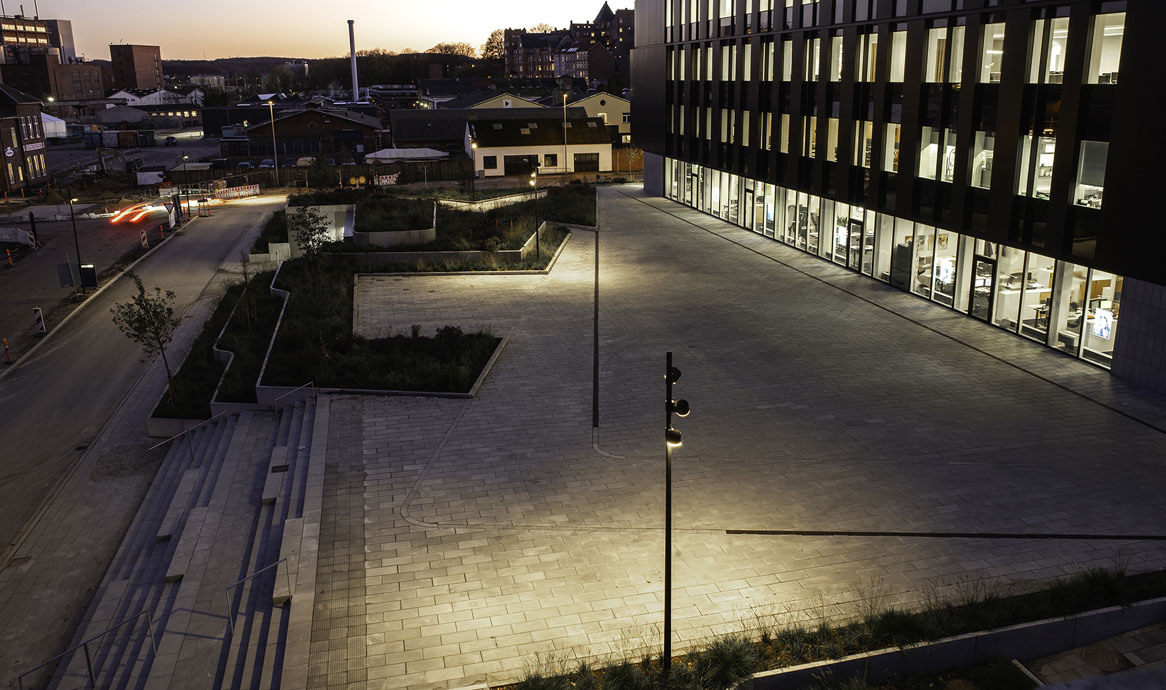

Turn Spot Halo and Turn Street Halo, black noir 900. Column height 5.5 m. Dansk Bank, Jægergaardsgade, Aarhus, Arkitema Architects.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnstreet_9656_1166

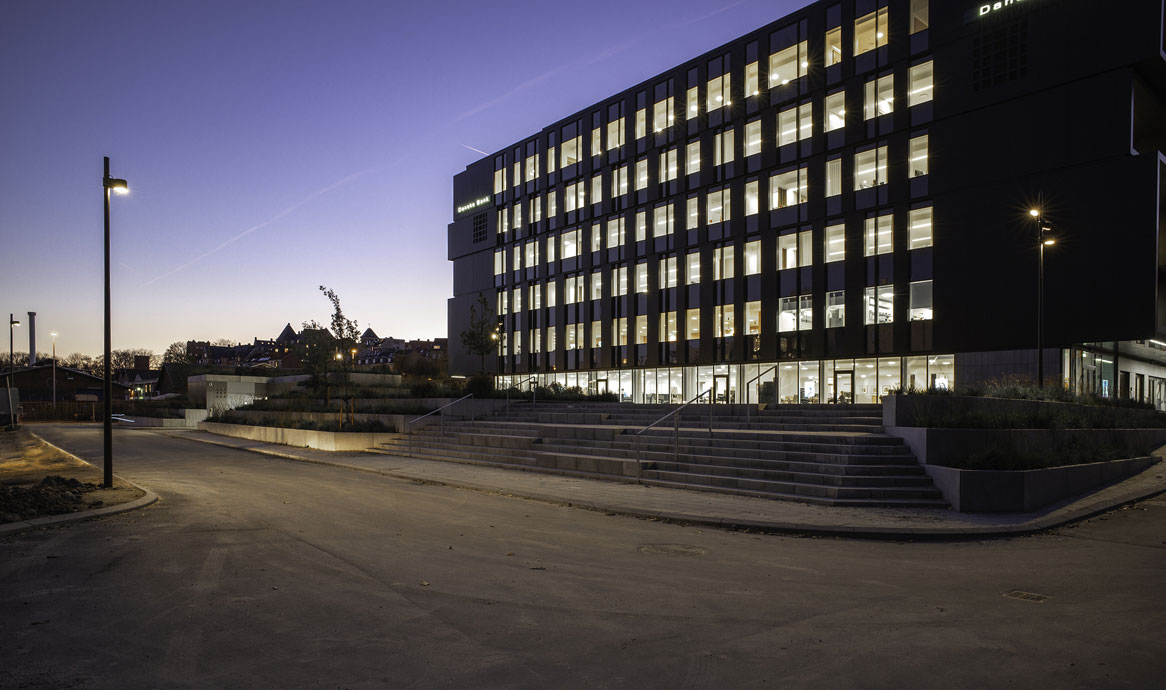

Turn Street Halo and Turn Spot Halo. Column height 5.5 m. Dansk Bank, Jægergaardsgade, Aarhus, Arkitema Architects.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
herstedlund-skole-2_1166

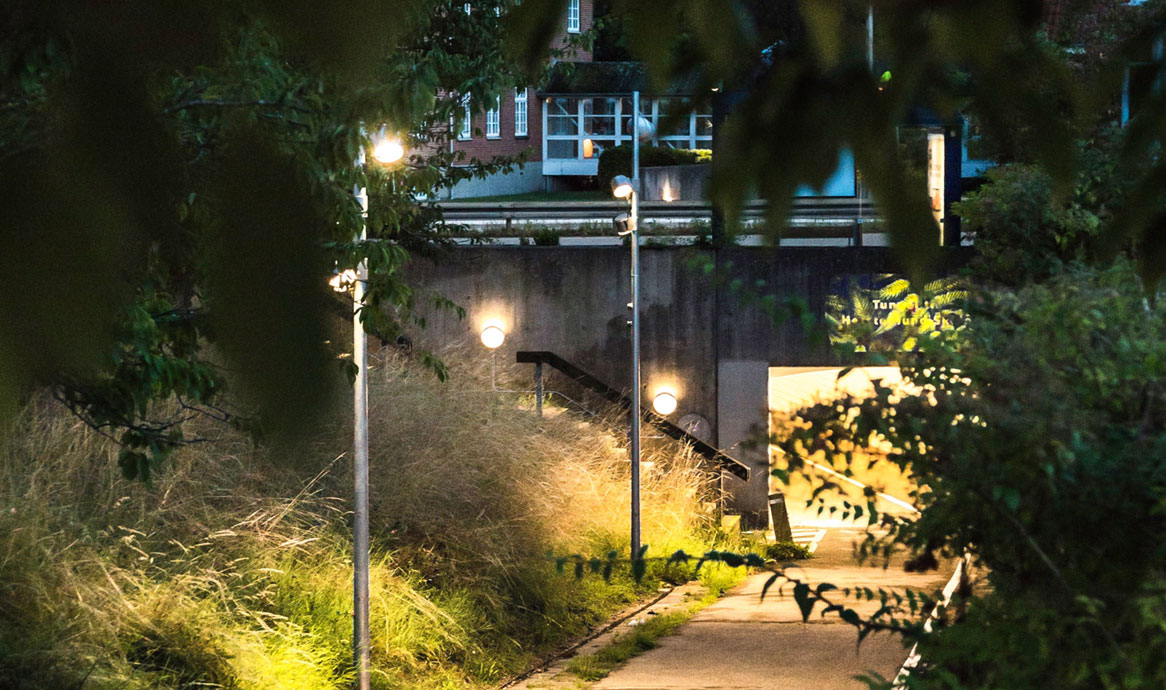

Light outside the tunnel is just as important for feeling safe as is light inside the tunnel. Herstedlund Public School. Photo: Exlumi Consulting, Victor Suenson

herstedlund-skole-5_1166

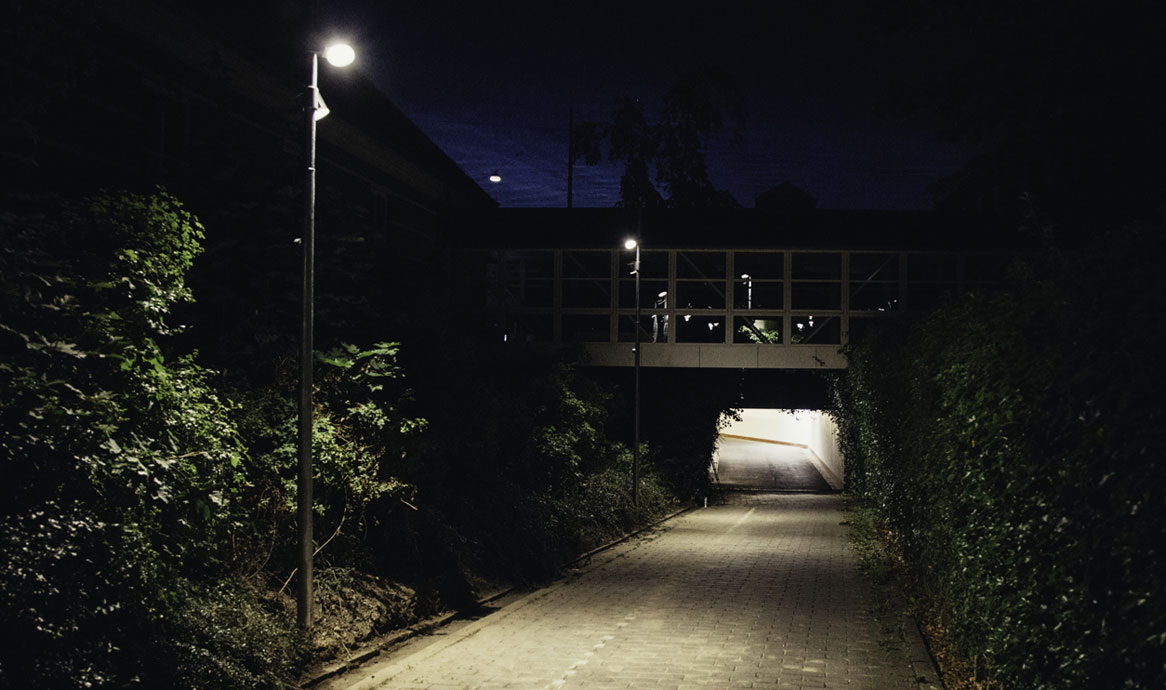

Light outside the tunnel at Herstedlund Public School is important for feeling safe when passing. Photo: Exlumi Consulting, Victor Suenson
