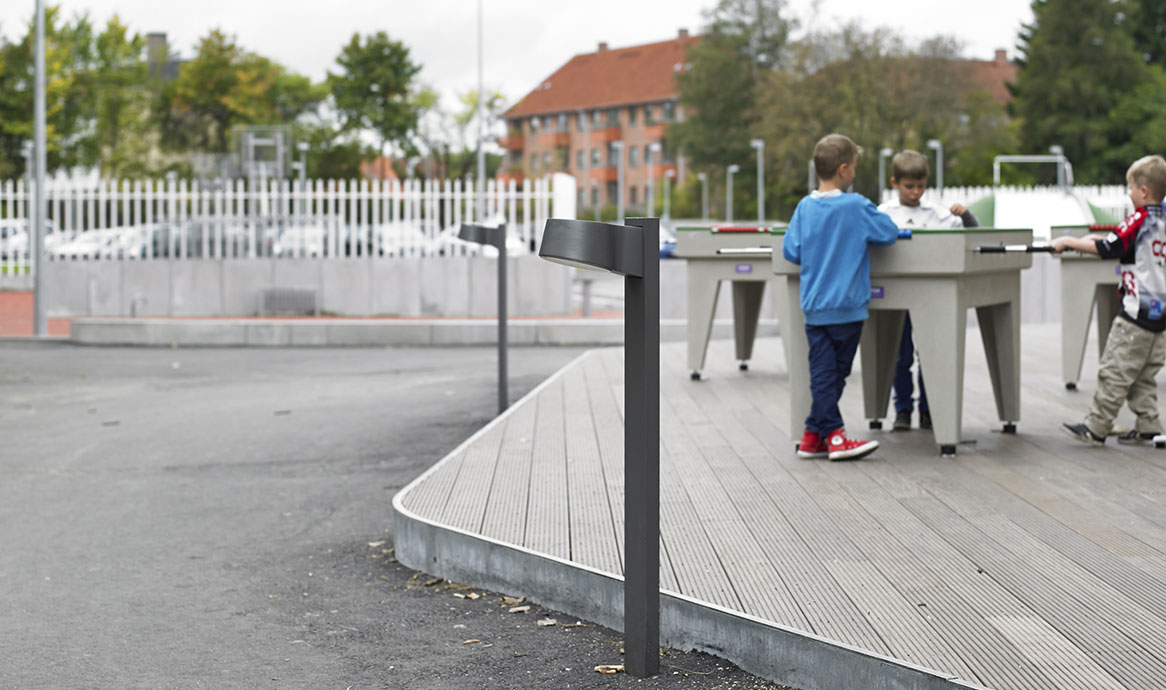

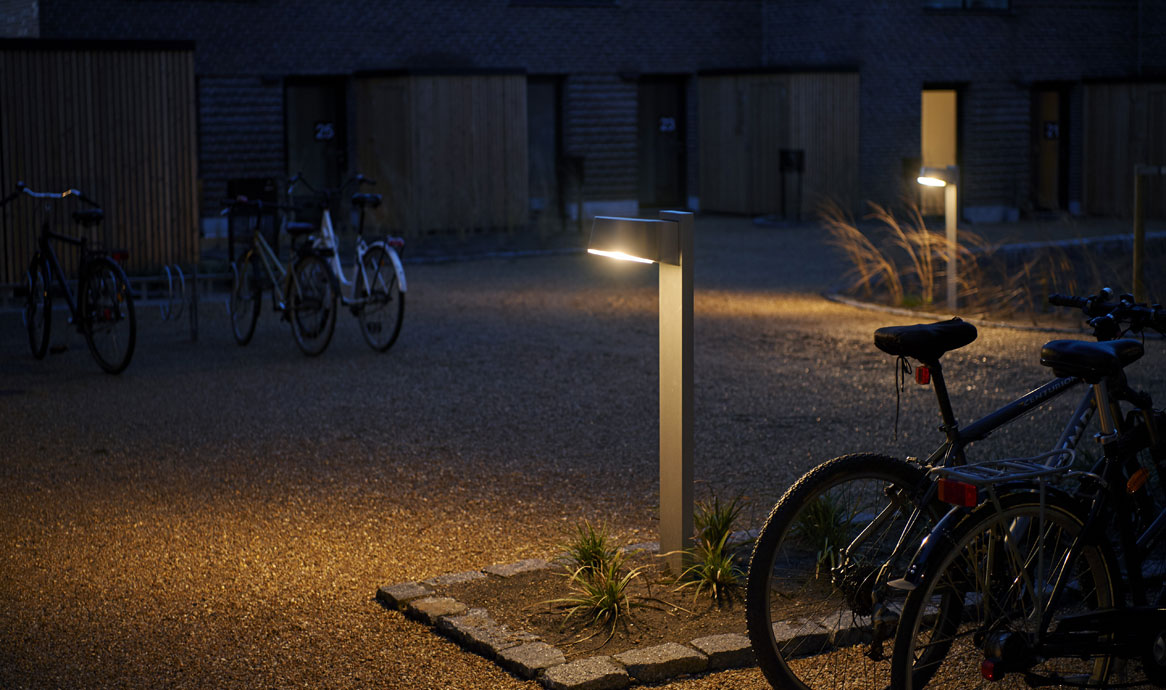

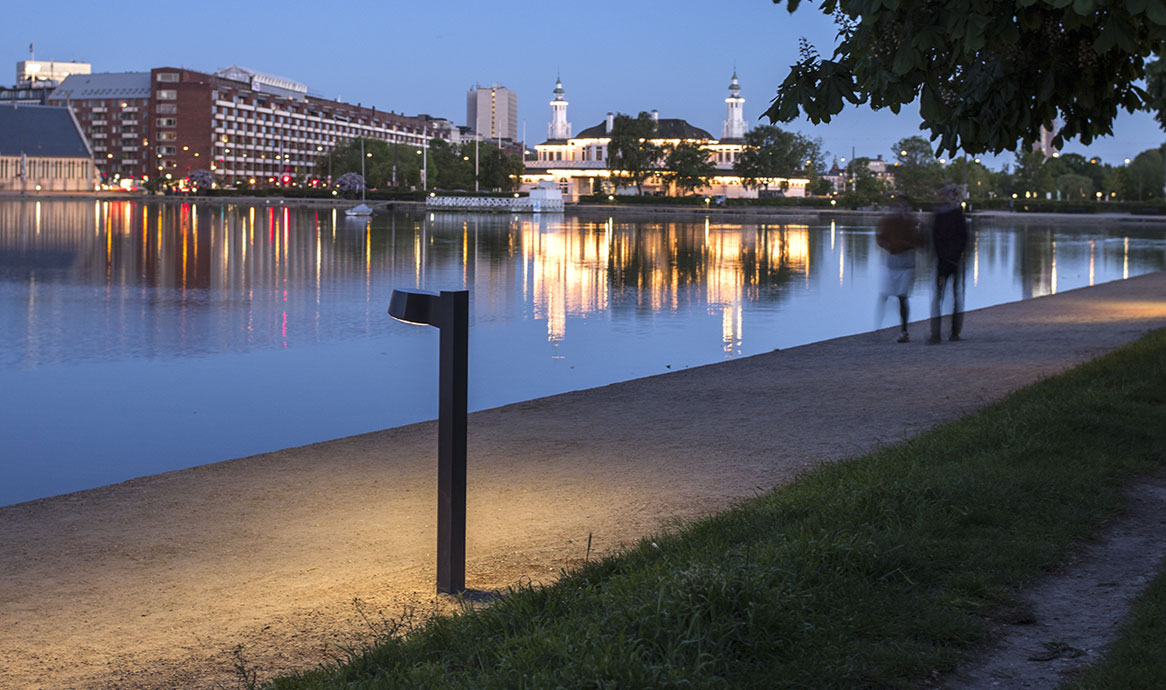

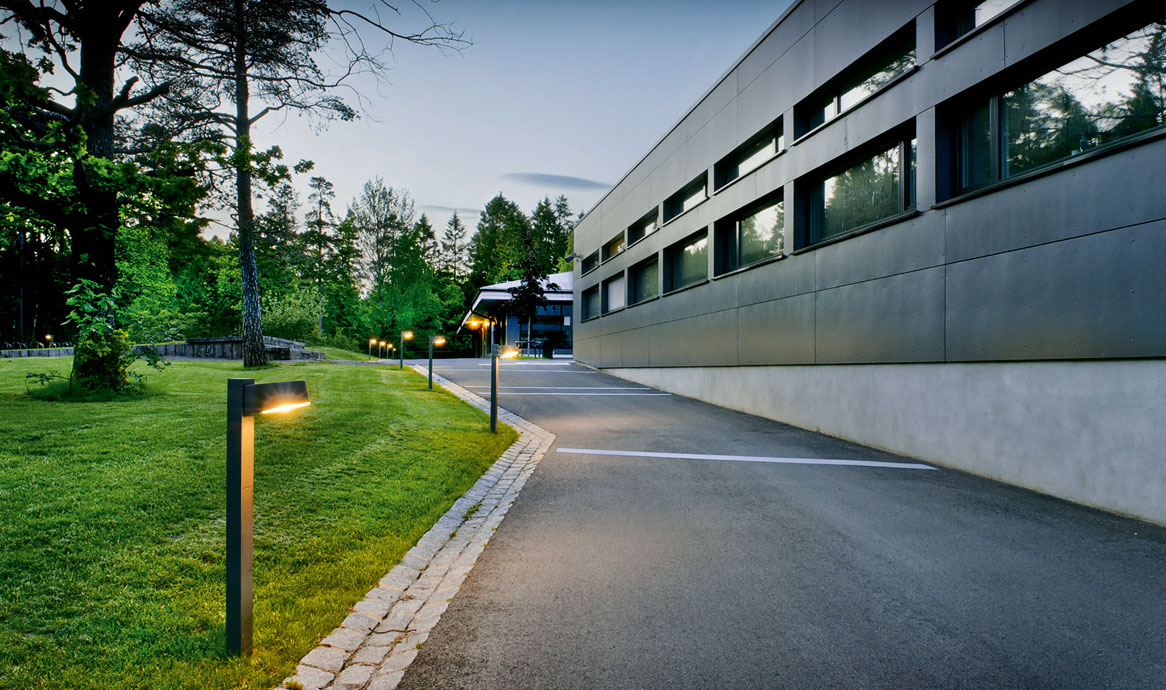

Nyx is a range of exterior fittings for wall, bollard, or pole mounting. NYX is the answer to today’s demands for pleasant and well-defined light directed to the place where light is required.

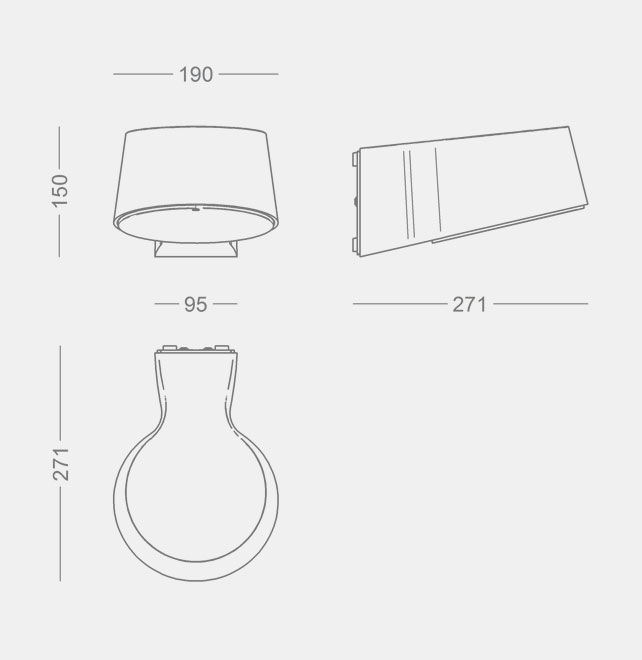

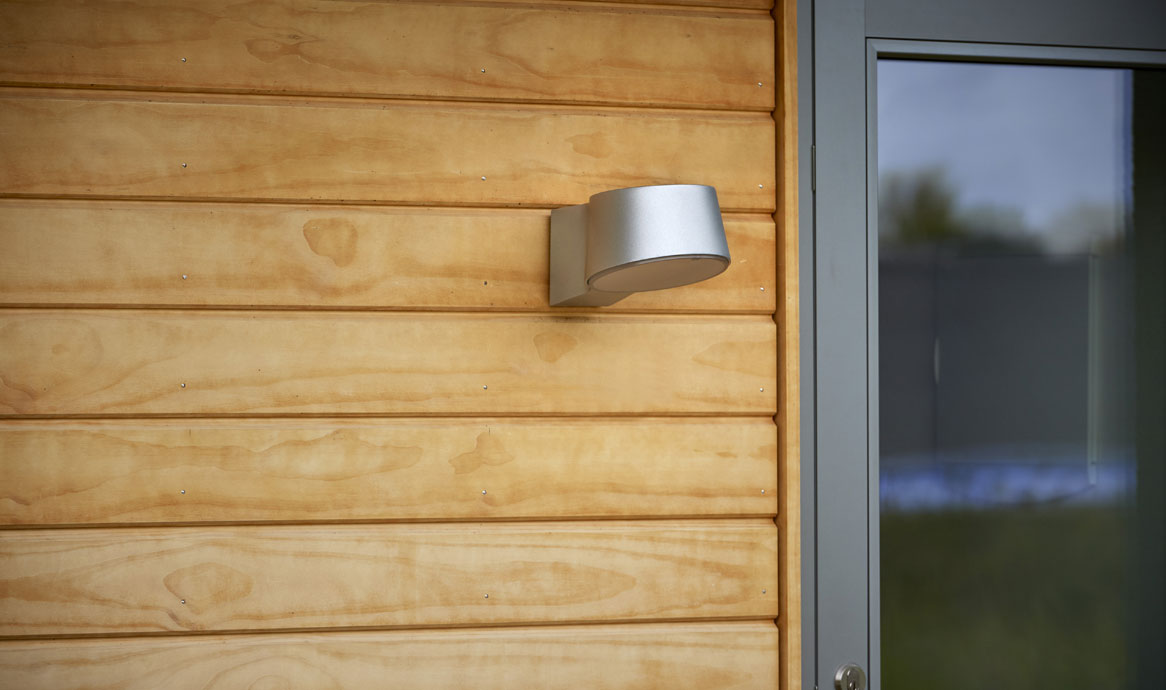

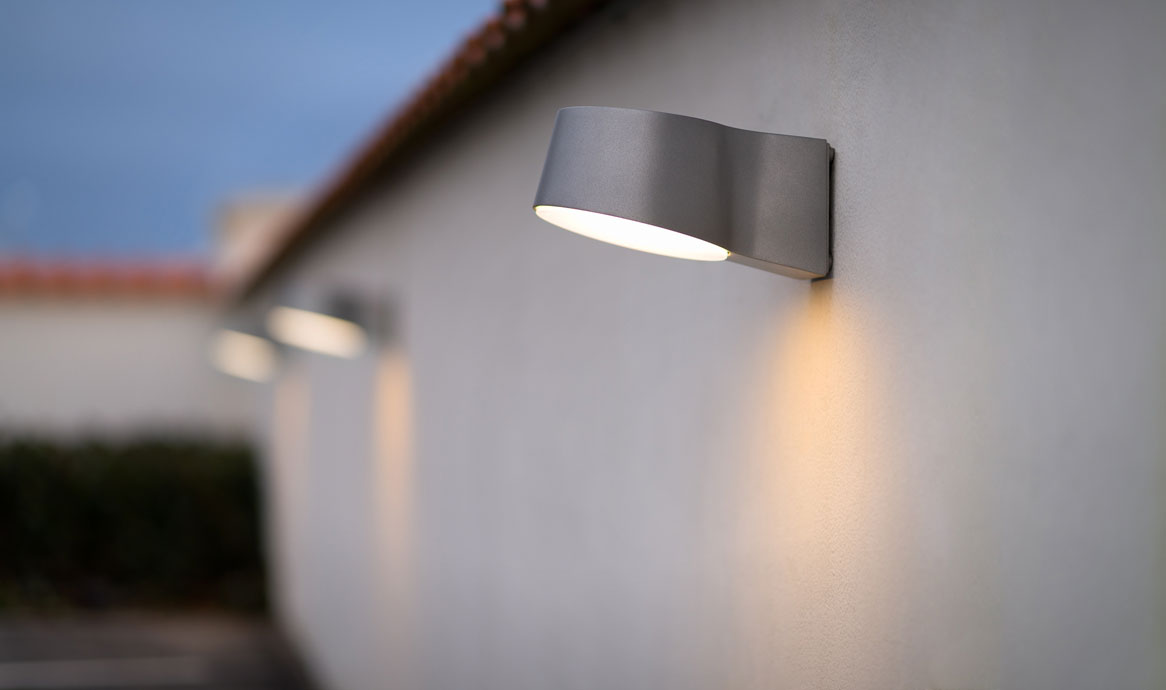

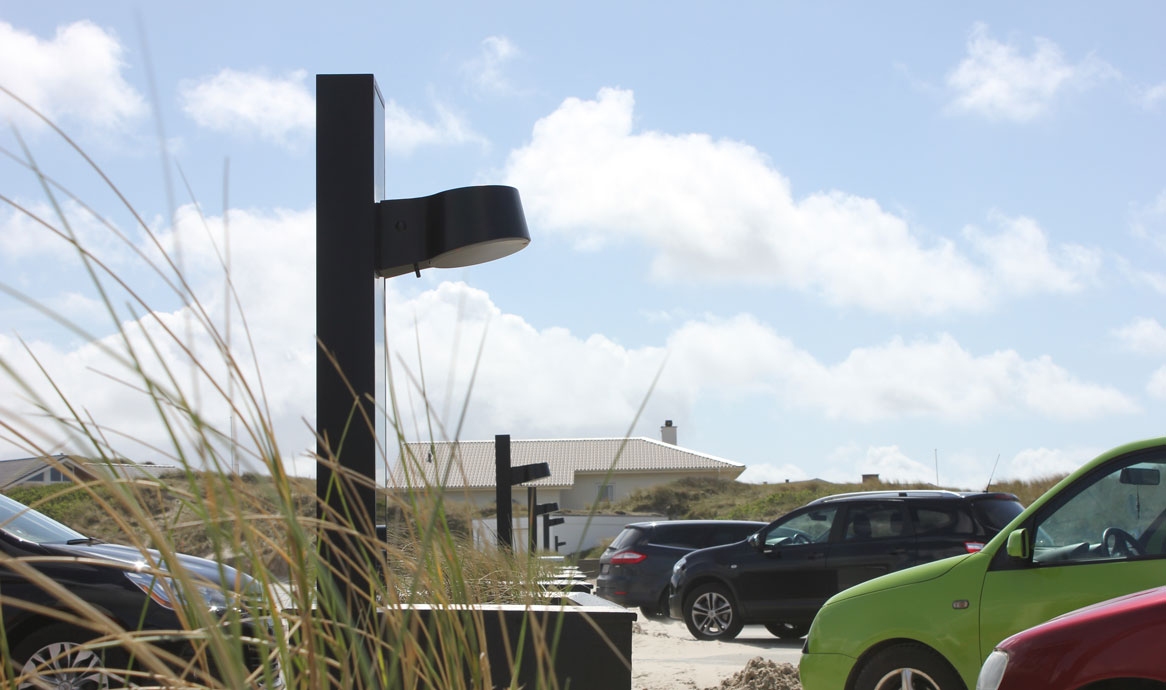

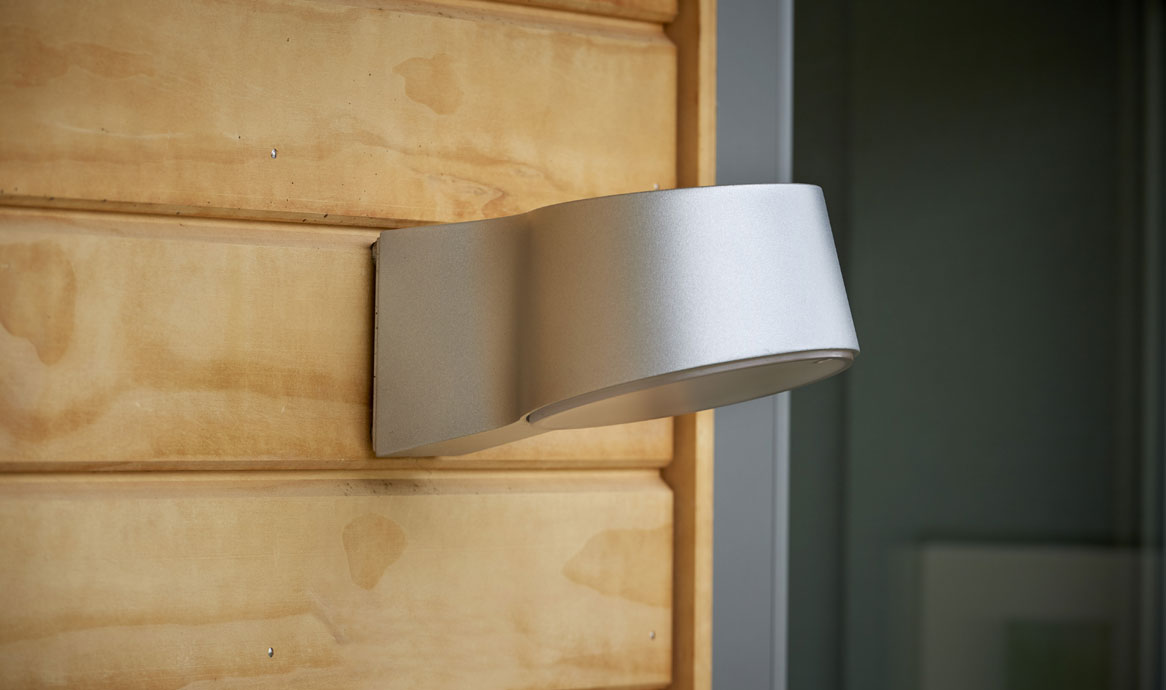

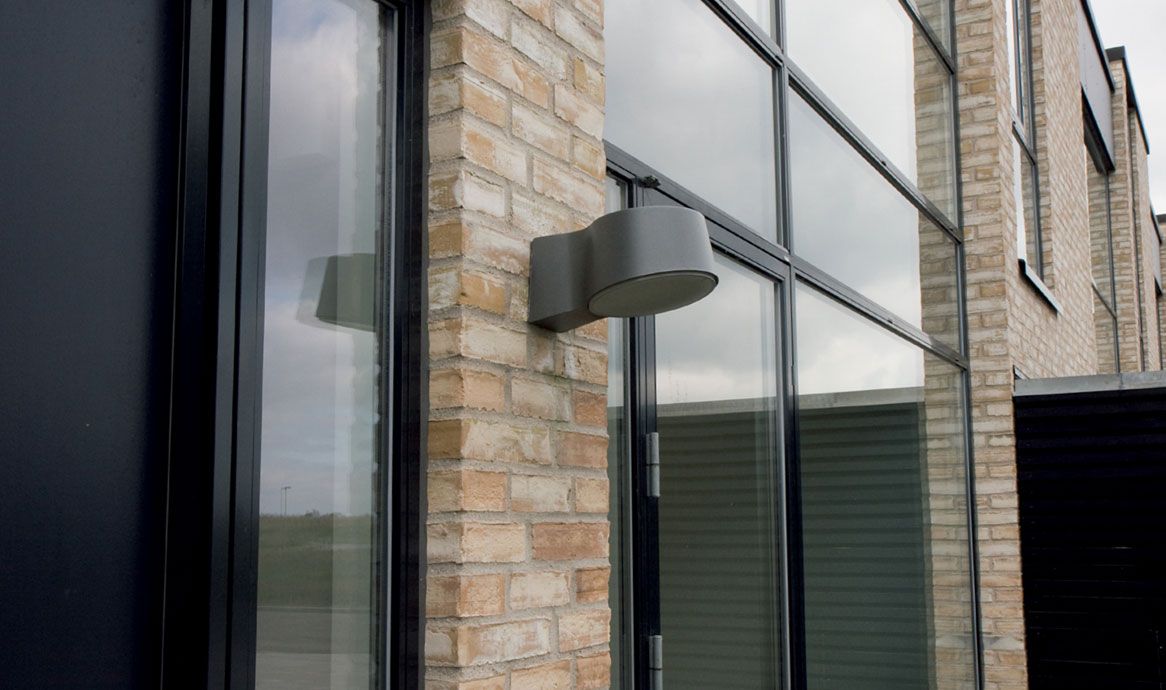

The Nyx 190 fitting can be mounted on wall or bollard.
| NYX 190 | |
|---|---|
| Material | Cast aluminium |
| Finish | Raw anodized |
| Graphite grey: YW355F, Akzo Nobel | |
| Silver grey: Y2370I, Akzo Nobel | |
| Black: RAL 9005, SN805G, Akzo Nobel | |
| Black: Noir 900 Sablé, SN351F, Akzo Nobel | |
| Corten brown: YX355F, Akzo Nobel | |
| Shade | Frosted polycarbonate |
| Mounting | On wall or special pole, double cable entry |
| Option for base for visible installation | |
| Connection | Max two cables into 5 x 2.5 mm2 terminal block |
| Classification | IP66, class I or II |
| Corrosion class | C5 |
| Impact resistance | IK10 |
| Corrosion class | C4, C5 optional |
| Weight | 2.6 kg |
| LED type | Bridgelux Vero 8 |
|---|---|
| Operational life | min 100,000 hours at ta max 25° C, L90B10 |
| Total consumption | 6, 8 or 11 W |
| Colour temperature | 2700, 3000, or 4000 Kelvin |
| Colour rendering | min 90 Ra |
| Colour accuracy | 3 steps SDCM |
| Output ratio | 57% |
| Driver | LED driver, 20 W |
|---|---|
| Dimming optional | |
| Inrush current | max 5 A (50% after 50 µs) |
| Operational life | min 100,000 hours |
| Item No. | Nyx 190 |
|---|---|
| 6877- | 8 W Bridgelux Vero 10, 250 mA |
| 6843- | 12 W Bridgelux Vero 10, 350 mA |
| 6844- | 16 W Bridgelux Vero 10, 500 mA |
| Option | |
|---|---|
| 1711- | Base for visible installation, combine with colour code |
Select colour, colour temperature, etc. in the table below.
| Colour | Colour temperature |
|---|---|
| 01 = raw anodized | 927 = 2700 K, 90 Ra |
| 3 = black RAL 9005 | 930 = 3000 K, 90 Ra |
| 4 = graphite grey | 940 = 4000 K, 90 Ra |
| 9 = silver grey | |
| 17 = corten brown | |
| 66 = black noir 900 |
| Dimming | Classification |
|---|---|
| empty = no dimming | empty = class I |
| V = 1-10 V | K = class II |
| D = DALI |
| Corrosion protection | |
|---|---|
| empty = C4 | |
| C5 = C5 coating (add C5 after the colour code) |
Example Item No.: 6843-9930 = Nyx 190 12 W LED for wall mounting, silver grey, 3000 K, 90 Ra, class I
The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
More about Vilhelm Lauritzen Architects here.
