Turn is a new series of luminaires in a minimalist, cylindrical design.

By combining the dramatic spot light from Turn Spot Halo and the asymmetrical light from Turn Street Halo you can enlarge the spaces designed by light without using more columns.

Specifications

TURN STREET HALO

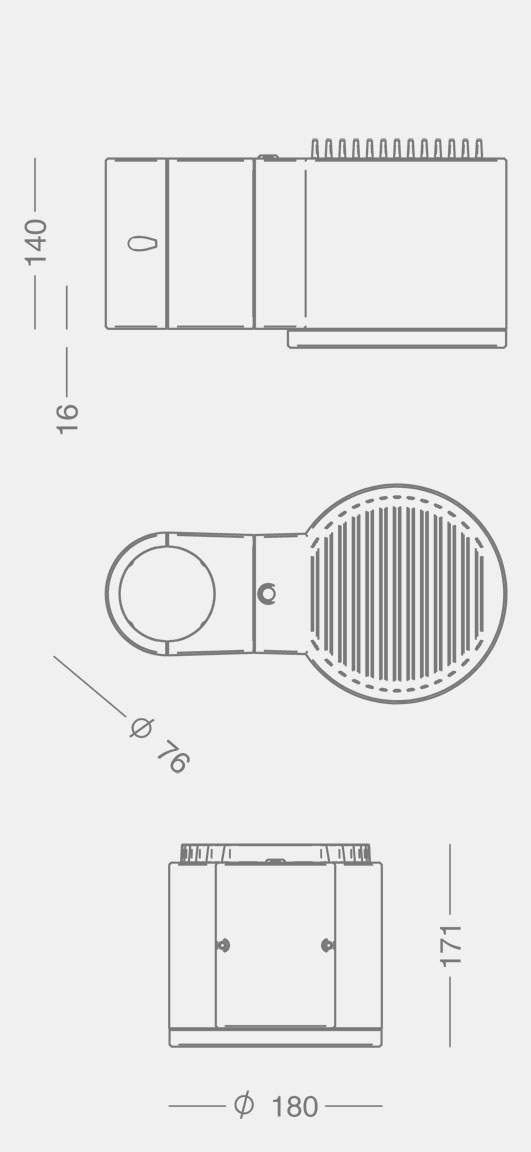

turnspothalo_2_f0

Luminaire

TURN STREET HALO
Material Cast aluminium and opal-white acrylate
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Shade Clear glass with silked edge
Mounting Standard brackets Ø76 mm cylindrical pole
Adjustable brackets for conical pole and cylindrical > Ø76 mm
Adapter for Ø60 mm pole optional
Delivered with 8.5 m lead, 2 x 1 mm2
Connection In the pole
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight 5.8 kg
Wind sweeping area 0,053 m2

LED

LED with lenses 1 x DA 2x4, T3 lenses
Operational life min 100,000 hours at ta max 25° C, L90B10
Constant lumen output
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra 2700K: 320-2500 lm
3000K: 350-2700 lm
4000K: 375-2800 lm
Output ratio 86%

Driver

Driver Xitanium Full Xi FP 22 W 0.3-1.0 A, programmable
Inrush current max 22 A (50% after 290 µs)
Surge protection L/N-GND: 10 kV, (D4i driver: 8 kV)
L-N: 6 kV
Operational life 100,000 hours
Dimming 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Turn Street Halo
8920- 1 x DA 2x4, T3 lenses

Design pole Conical pole with Ø76 mm cylindrical rod
3170- 4 meter pole
3172- 5.5 meter pole
3174- 7 meter pole
1714-1 Adapter for Ø60 mm pole
50200 Rooted base Ø108-140

Fuse box
98158 Fuse box for 2 Neozed fuses up to 16 A

Combine with

Select colour, colour temperature, dimming, etc. in the table.

Colour Colour temperature
01 = raw anodized 827 = 2700 K, 80 Ra
4 = graphite grey 830 = 3000 K, 80 Ra
9 = silver grey 840 = 4000 K, 80 Ra
17 = corten brown
66 = noir 900

Dimming Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket upwards
RC = Zhaga book 18 socket, City Touch / Interact City

Mounting Corrosion class
empty = brackets for cylindrical pole, Ø76 mm empty = C4
B90 = brackets for conical pole, Ø 60-90 mm C5 = C5 coating (add C5 after the colour code)
B121 = brackets for conical pole, Ø 91-121 mm

Example: 8920-4830J = Turn Street Halo, max 2300 lm, programmable, graphite grey, 3000 K, 80 Ra, class I

Media & downloads

turnstreet_5632_1166

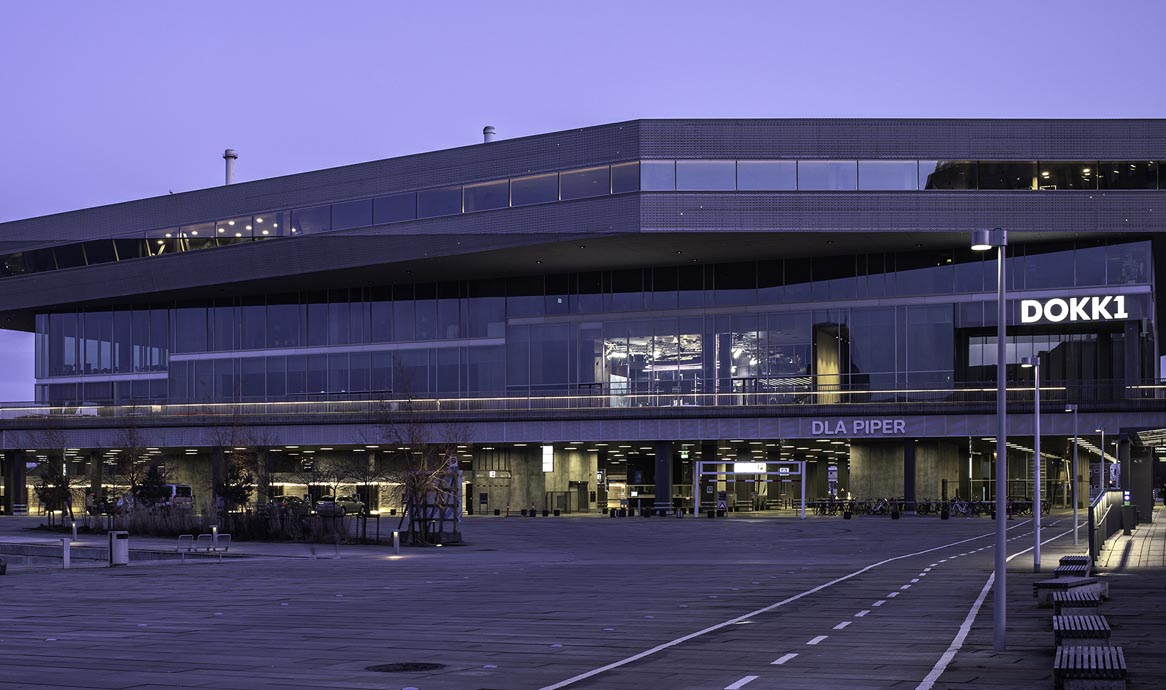

Turn Street Halo, silver grey, conical post, Waterfront, City of Aarhus.

Umbraco.Cms.Core.Models.Link More images from Aarhus
turnstreet_6633_1166

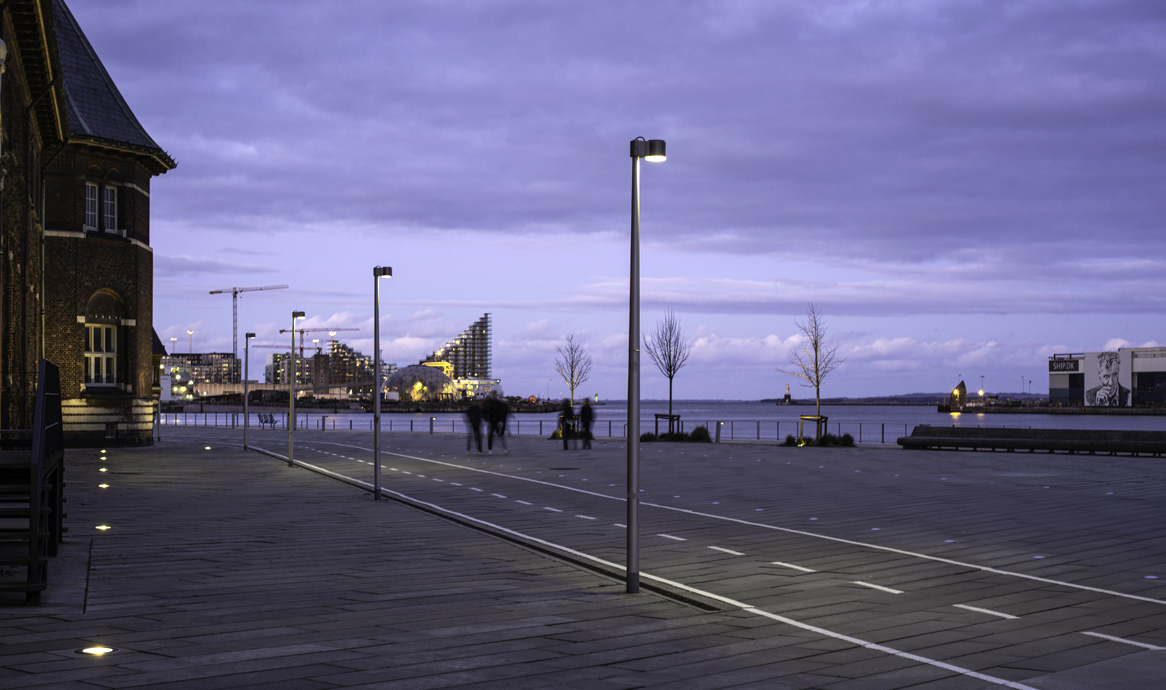

Turn Street Halo, cycling lane along the Waterfront, City of Aarhus.

Umbraco.Cms.Core.Models.Link More photos from Aarhus
turnstreet_5647_1166

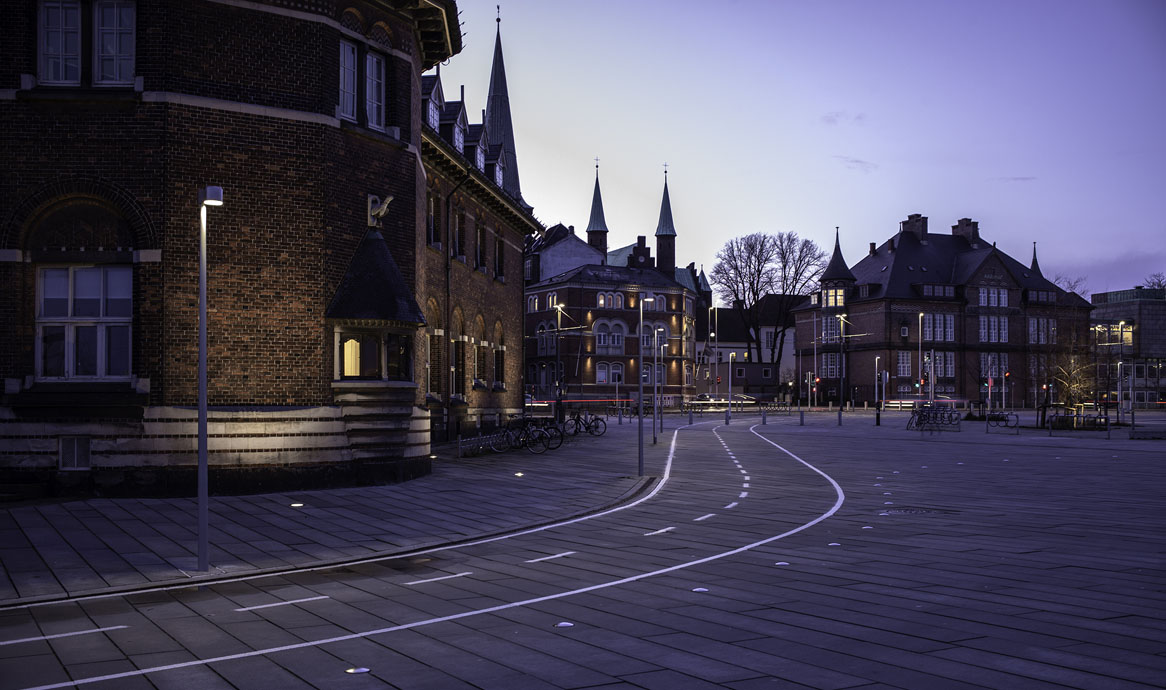

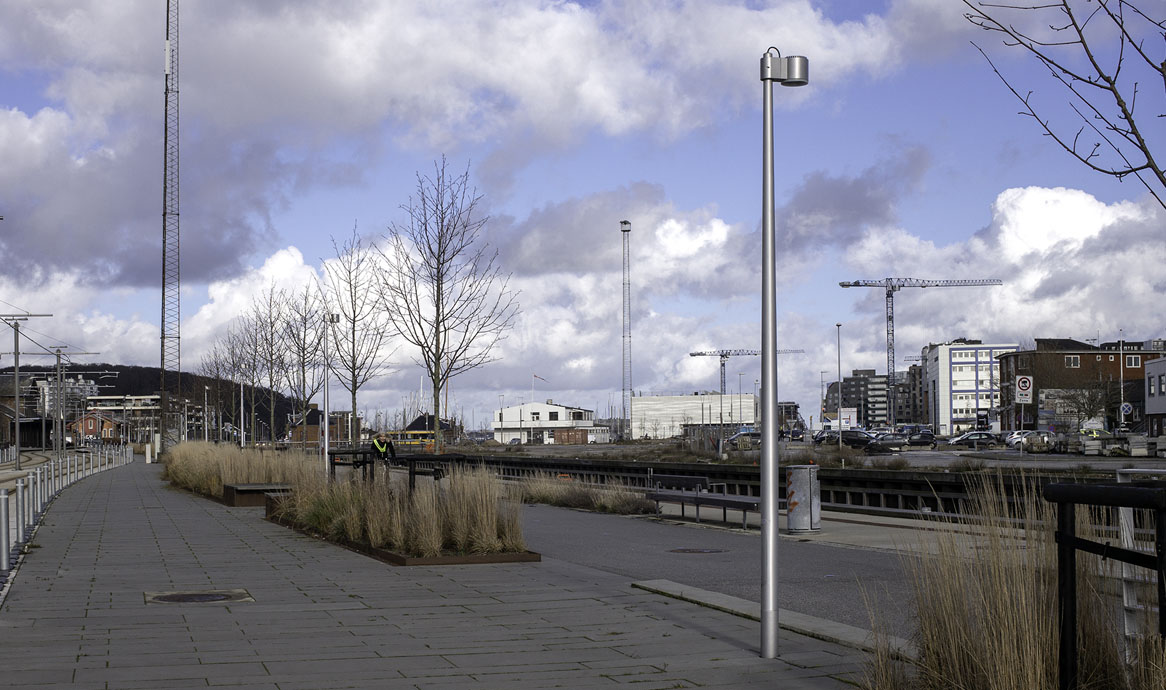

Turn Street Halo, silver grey, conical post, cycling lane along the Waterfront, City of Aarhus.

Umbraco.Cms.Core.Models.Link More images from Aarhus
turnstreet_5654_1166

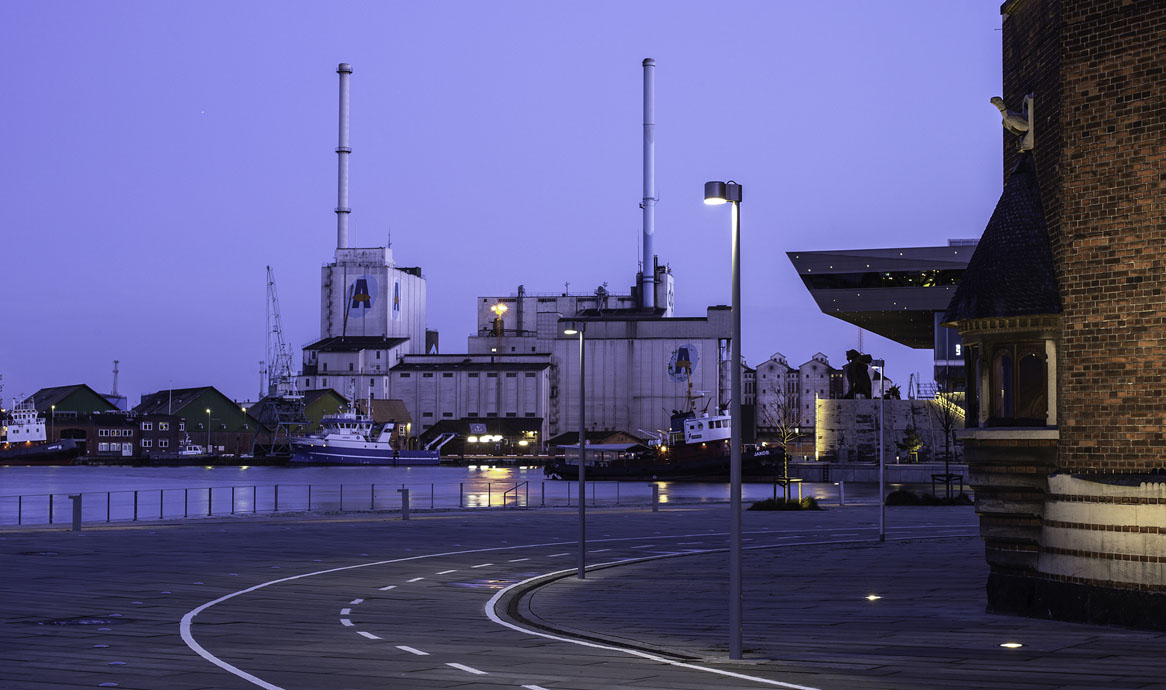

Turn Street Halo, silver grey, conical post, Waterfront, City of Aarhus.

Umbraco.Cms.Core.Models.Link More images from Aarhus
turnstreet_5659_1166

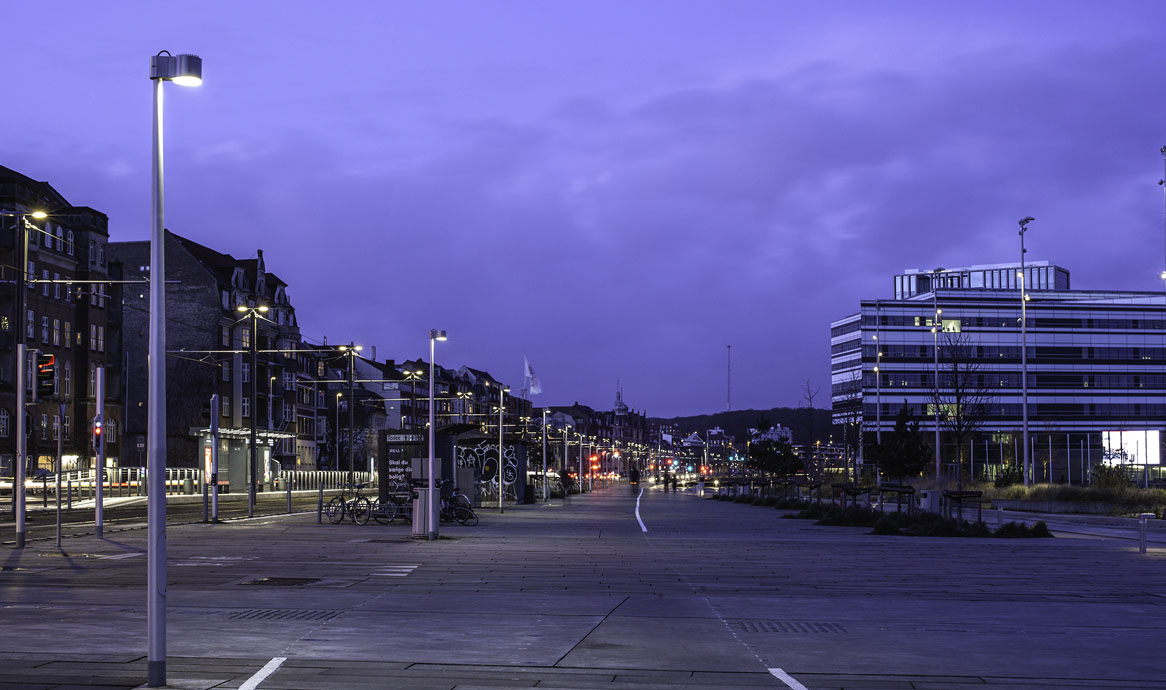

Turn Street Halo, silver grey, conical post, Waterfront and light rail, City of Aarhus.

turnstreet_5672_1166

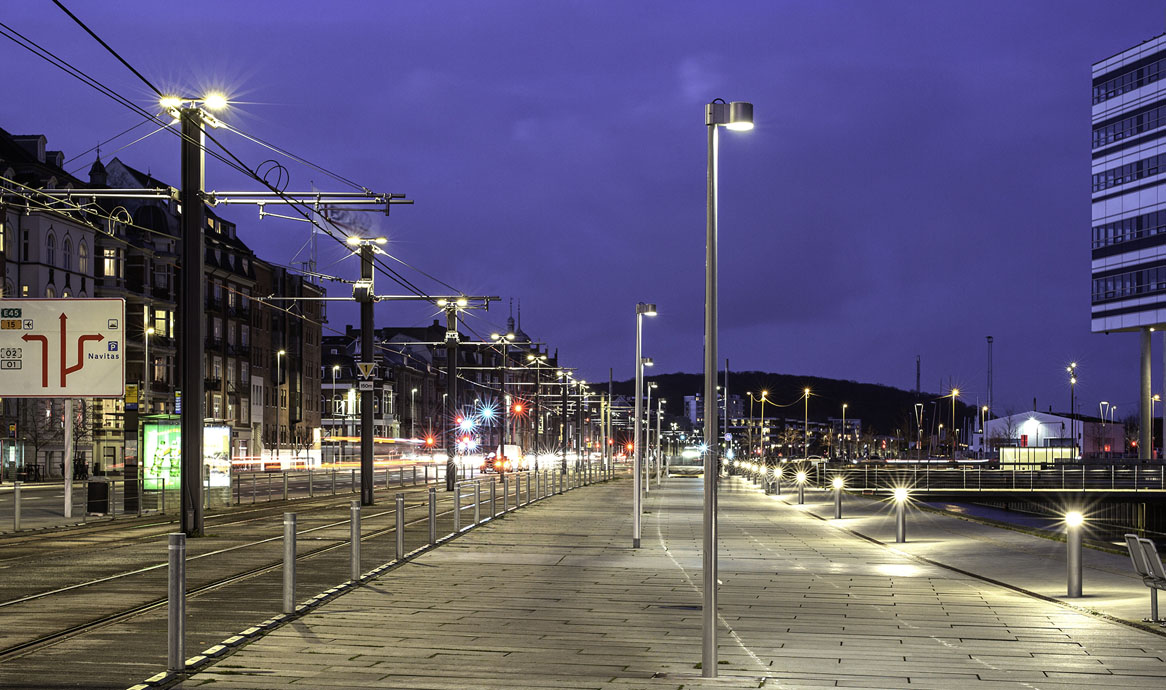

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

turnstreethalo_1003509_1166

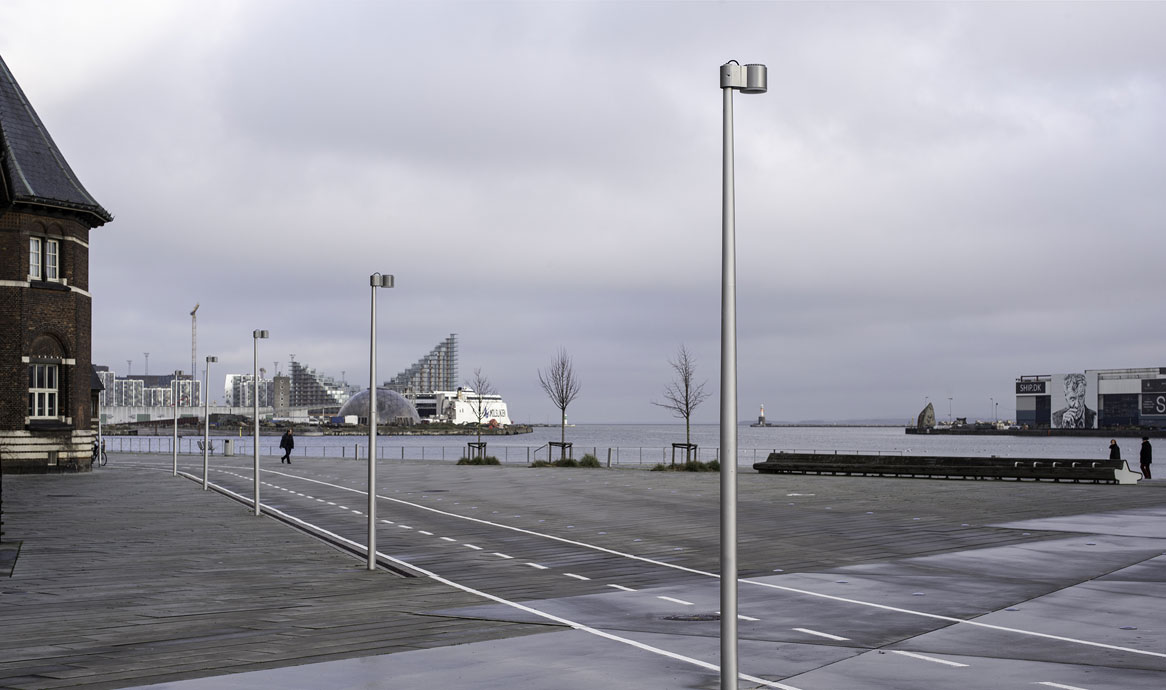

Turn Street Halo, silver grey, conical post, waterfront, City of Aarhus.

Umbraco.Cms.Core.Models.Link More images from Aarhus
turnstreethalo_1003750_1166

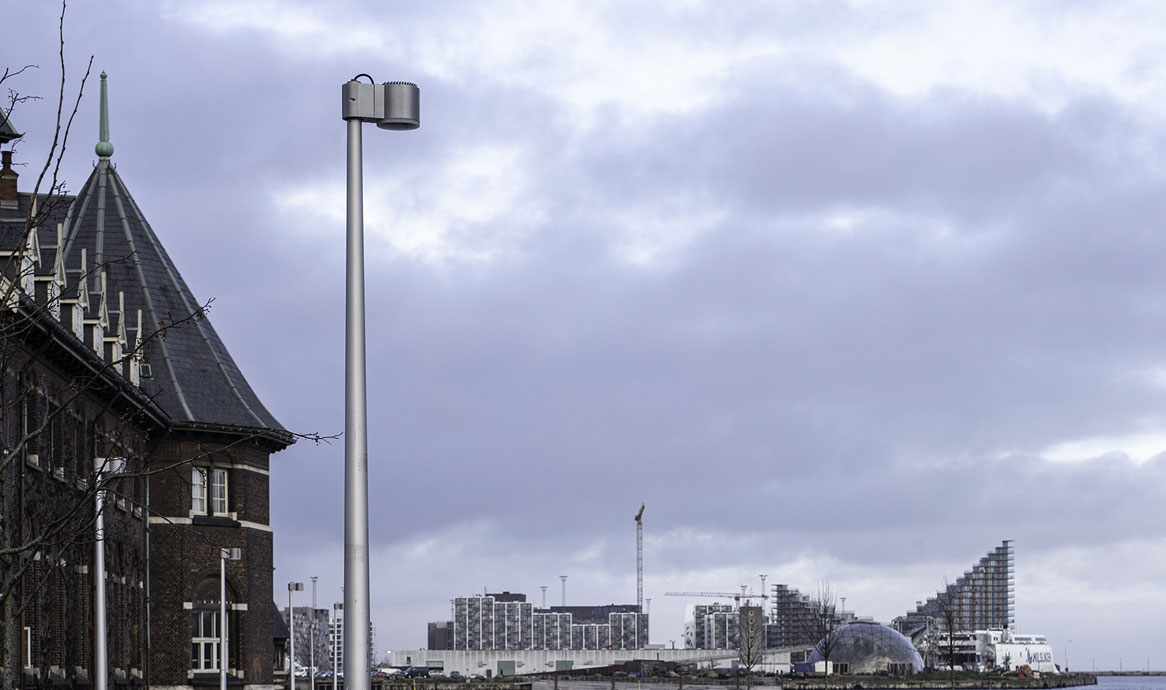

Turn Street Halo, silver grey, conical post, waterfront, City of Aarhus.

turnstreethalo_1003610_1166

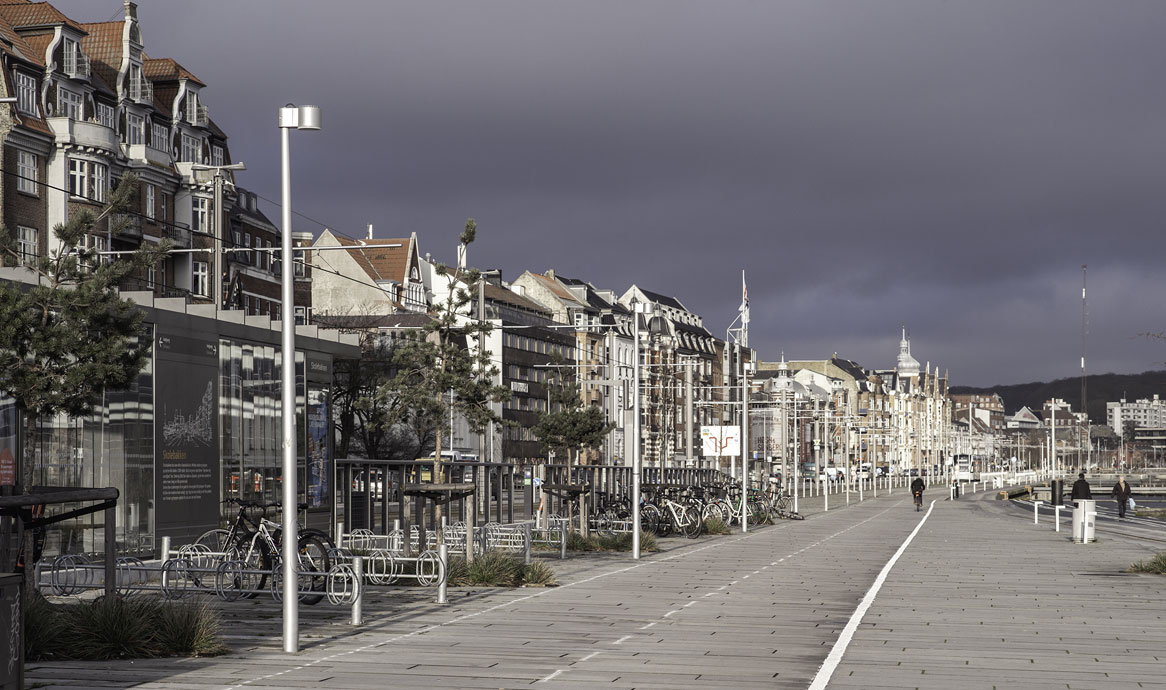

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

turnstreethalo_1003762_1166

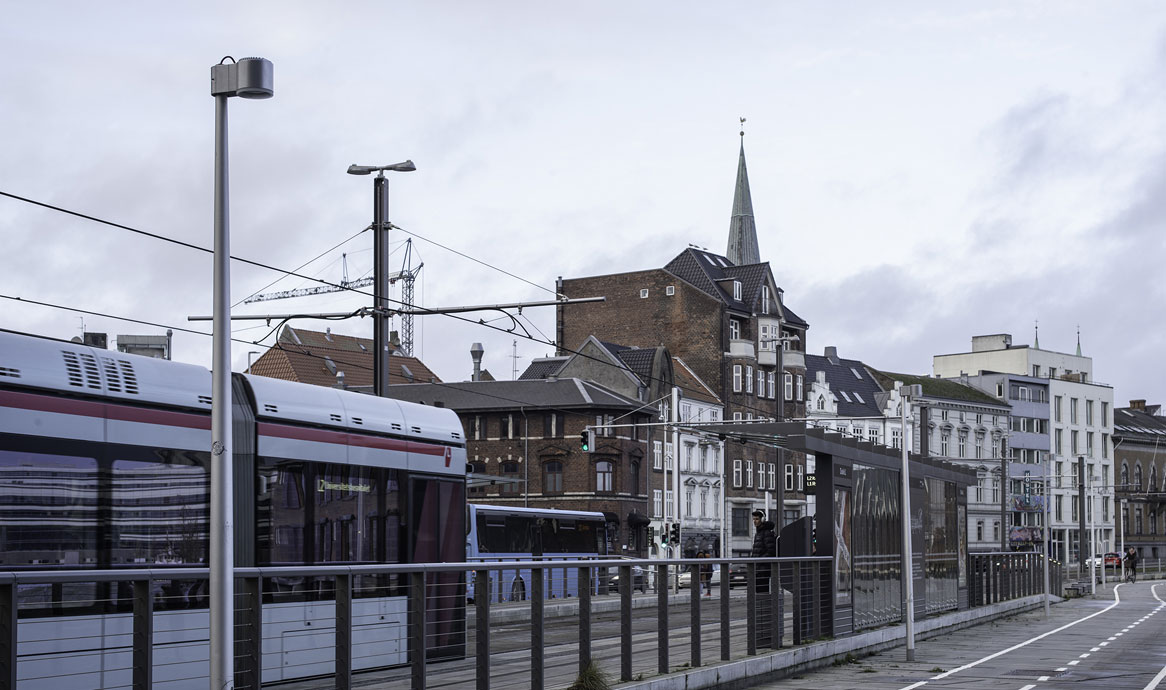

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

turnstreet_5188_1166

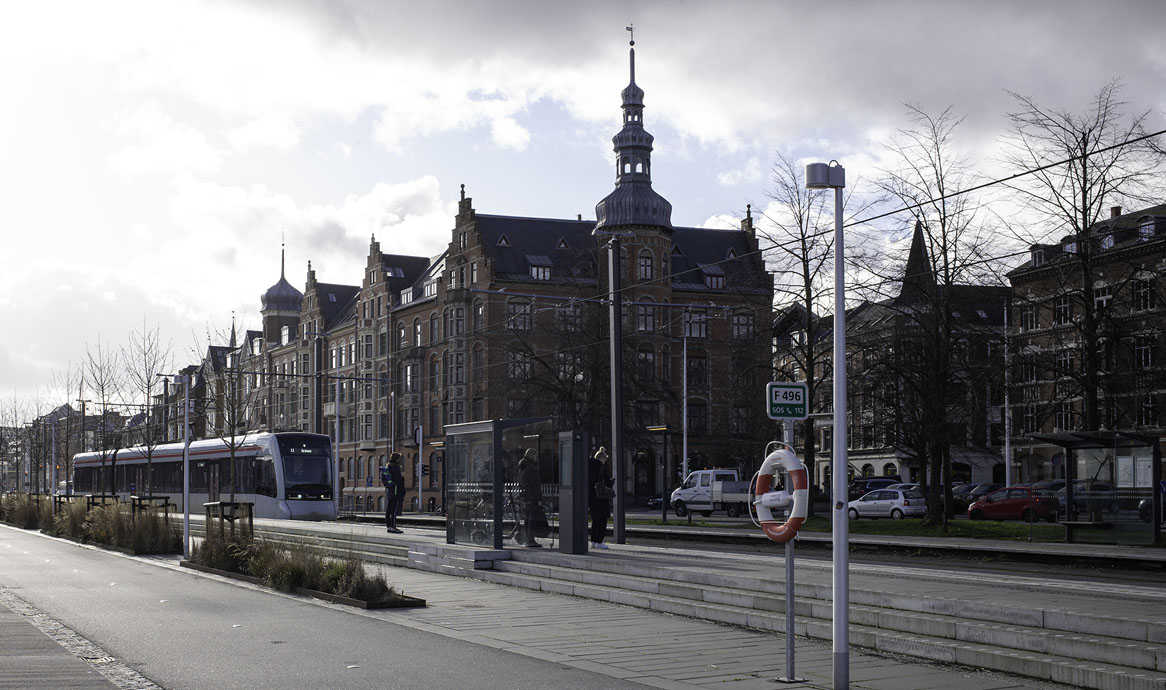

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

turnstreet_5293_1166

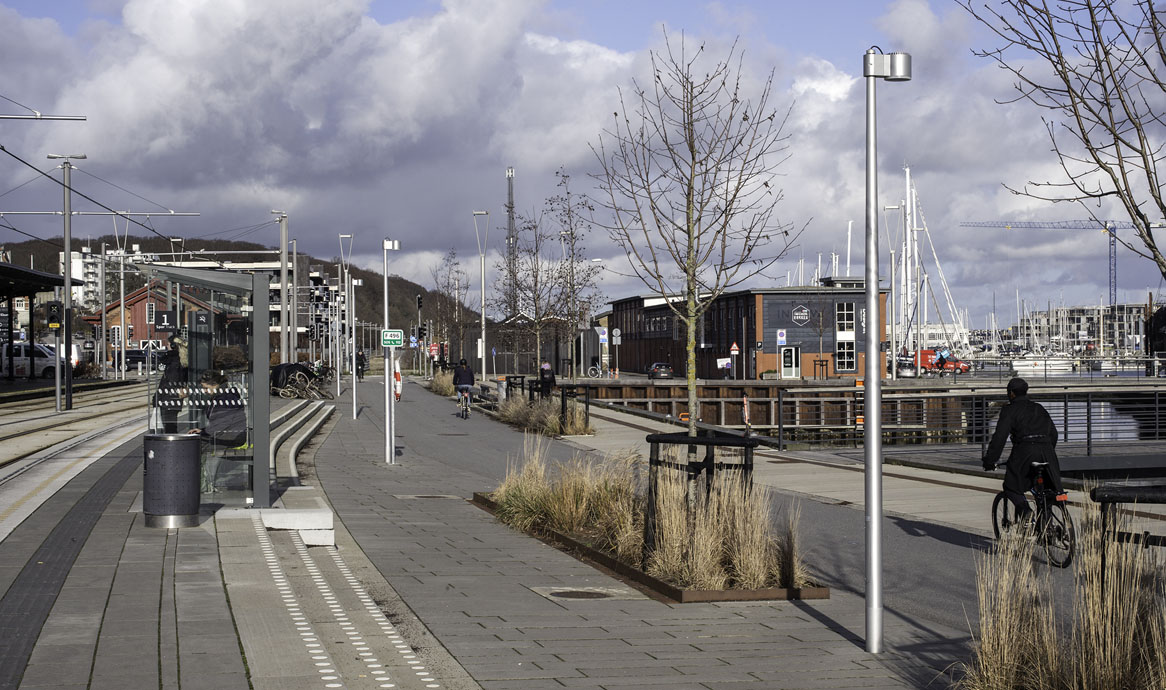

Turn Street Halo, silver grey, conical post, waterfront, City of Aarhus.

turnstreet_5209_1166

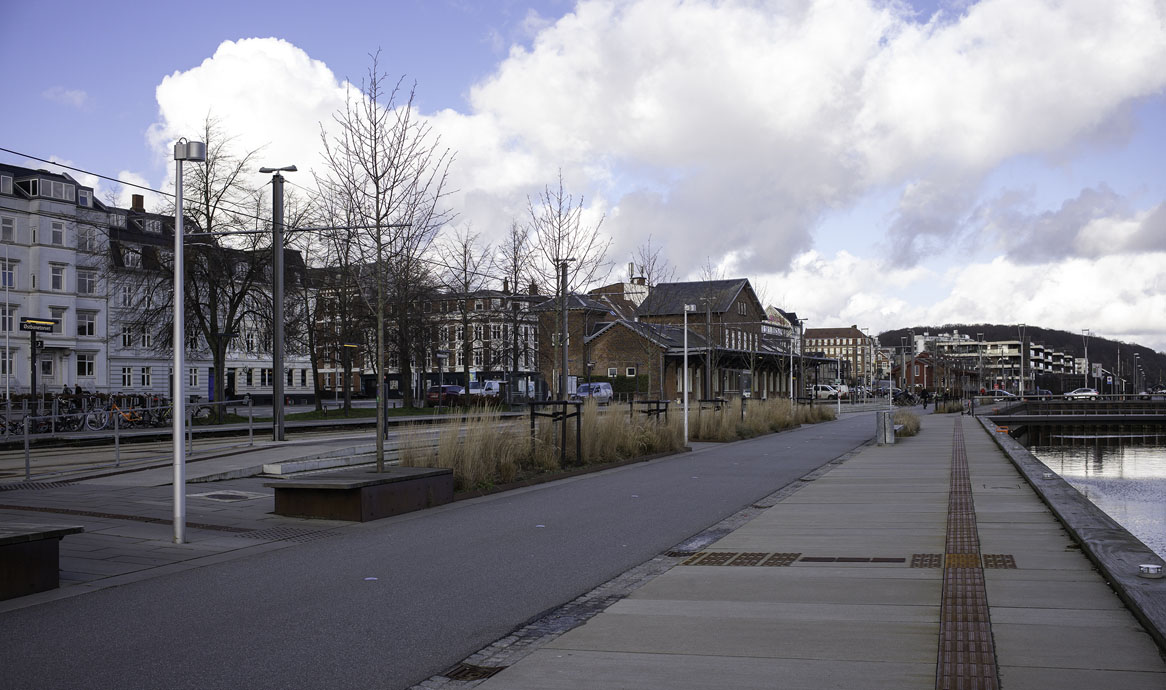

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

turnstreet_5224_1166

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

turnstreet_5236_1166

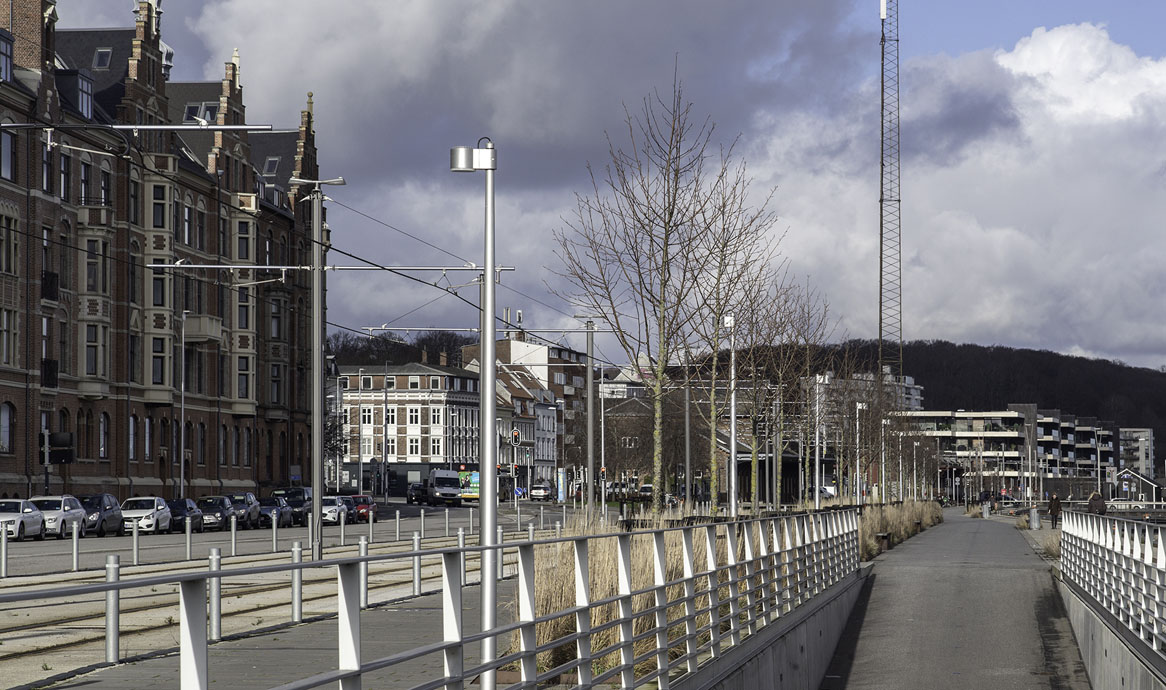

Turn Street Halo, silver grey, conical post, waterfront and light rail, City of Aarhus.

Umbraco.Cms.Core.Models.Link More images from Aarhus
turnspot_8681_1166

Turn Spot Halo and Turn Street Halo, black noir 900. The Turn Spot has an angle of 45 degrees to the column; Turn Street with lense optics is pointing downwards.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnspot_8698_1166

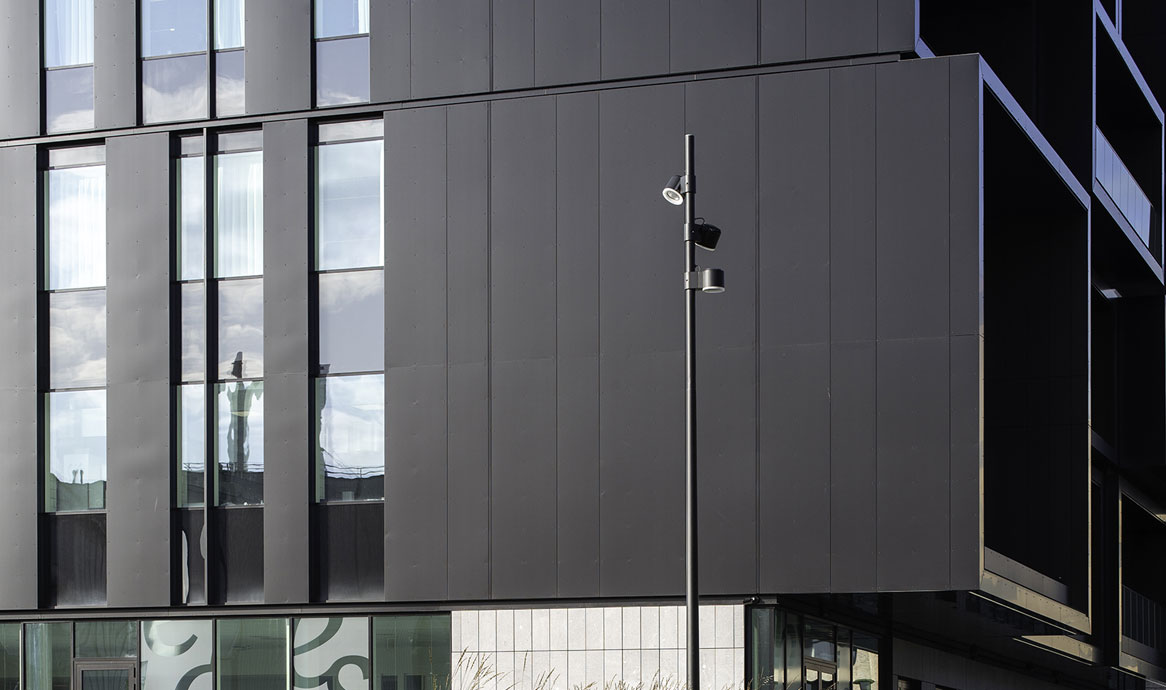

Turn Spot Halo and Turn Street Halo, black noir 900. The Turn Spot is turned about 45 degrees to the column; Turn Street is pointing downwards. Column height 5.5 m.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnstreet_8703_1166

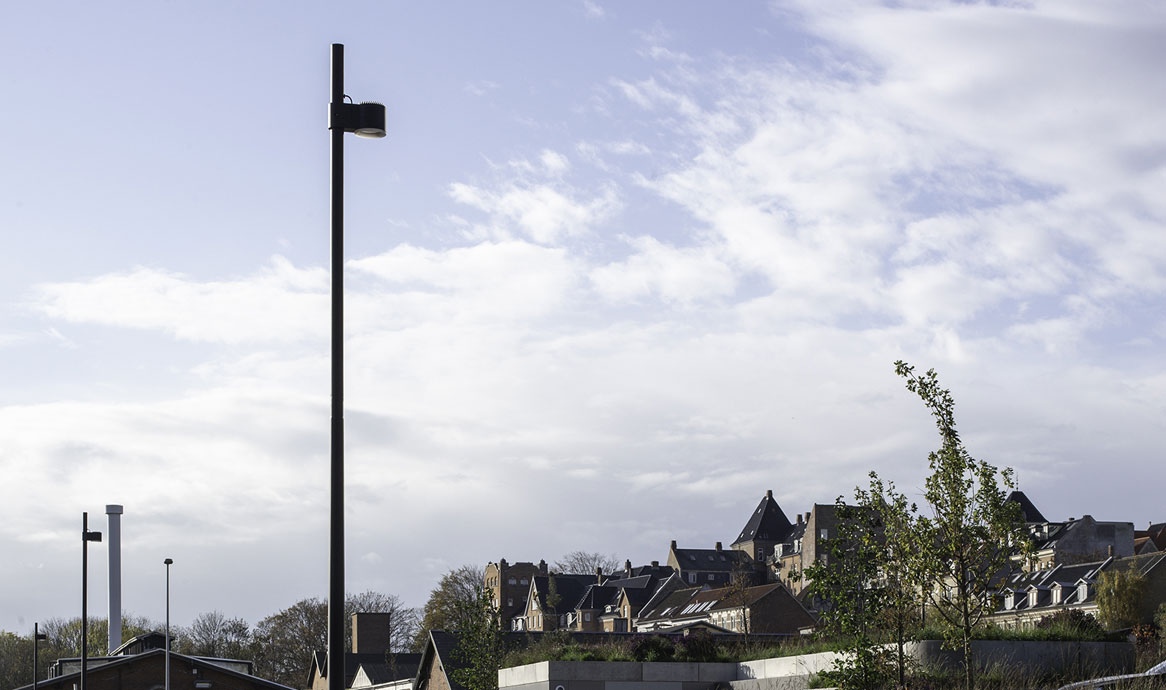

Turn Street Halo black noir 900, column height 5.5 m. Turn Street Halo has DA board and lenses for asymmetrical light.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnspot_9642_1166

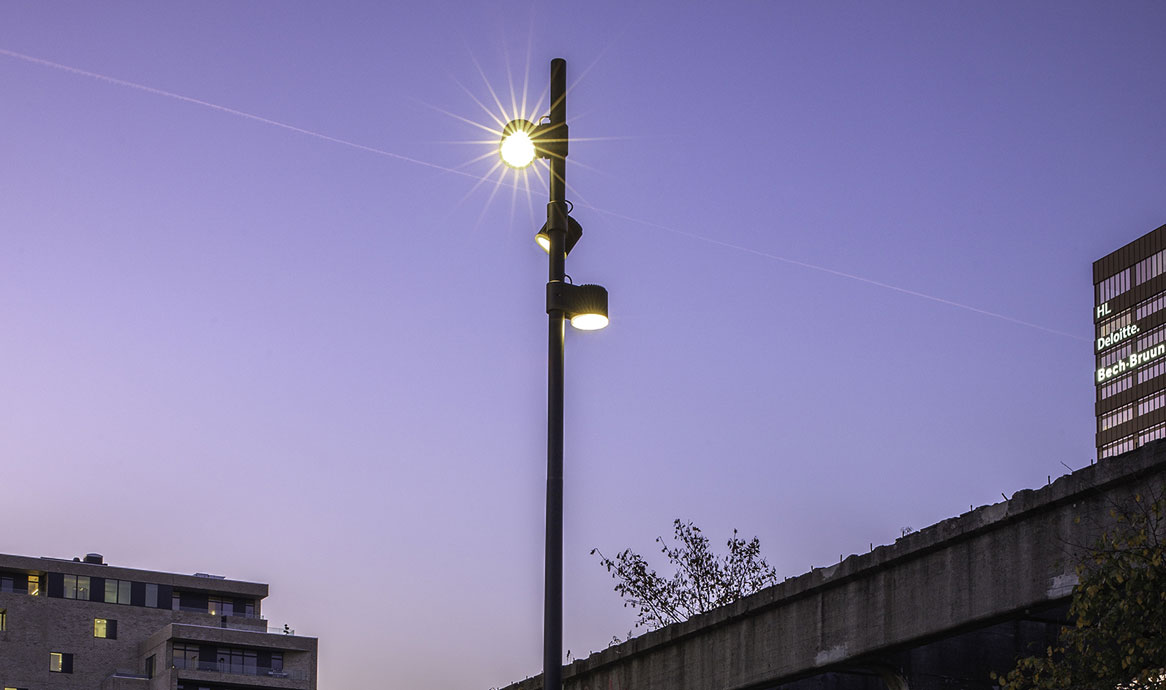

Turn Spot Halo and Turn Street Halo, black noir 900, column height 5.5 m. Turn Spot is angled about 45 degrees; Turn Street with lens optics is pointing downwards.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnstreet_9652_1166

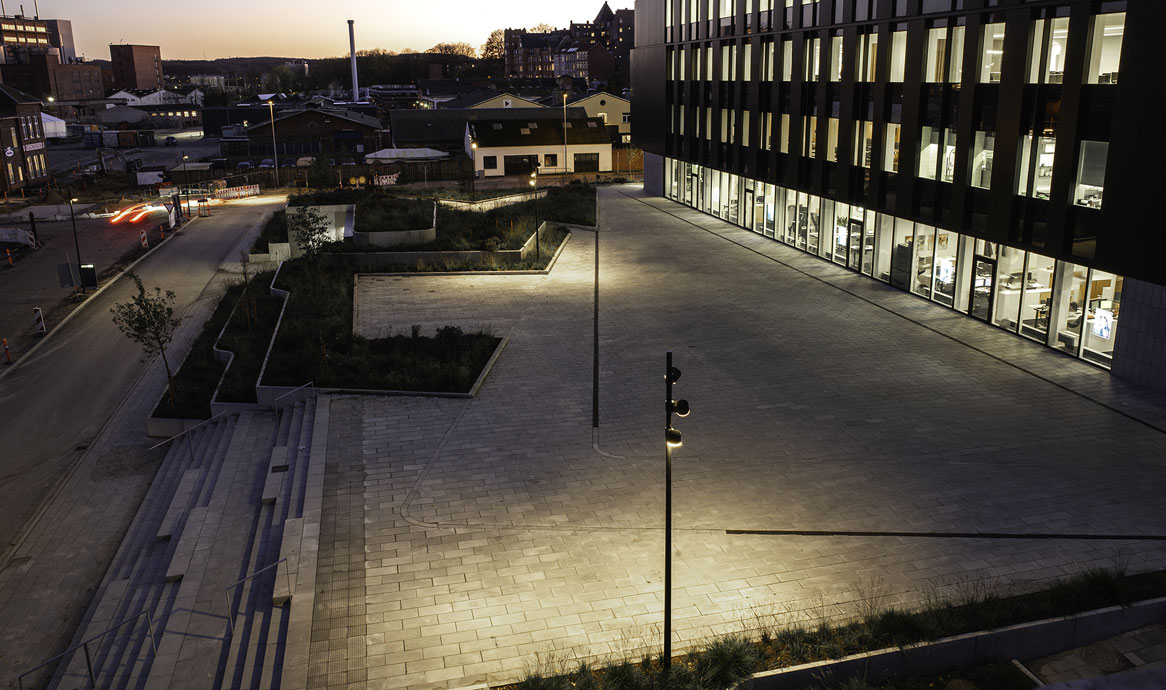

Turn Spot Halo and Turn Street Halo, black noir 900. Column height 5.5 m. Dansk Bank, Jægergaardsgade, Aarhus, Arkitema Architects.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
turnstreet_9656_1166

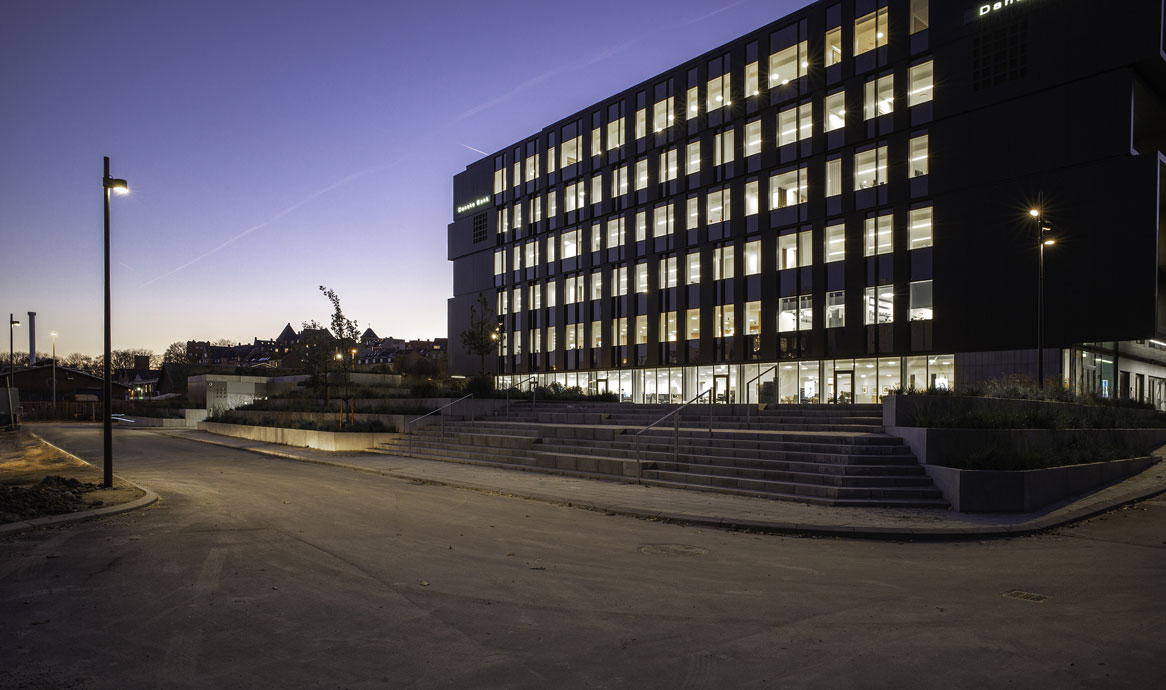

Turn Street Halo and Turn Spot Halo. Column height 5.5 m. Dansk Bank, Jægergaardsgade, Aarhus, Arkitema Architects.

Umbraco.Cms.Core.Models.Link More images from Jægergaardsgade
