NYX BOLLARD

Please choose

Nyx is a range of exterior fittings for wall, bollard, or pole mounting. NYX is the answer to today’s demands for pleasant and well-defined light directed to the place where light is required.

The Nyx 190 fitting can be mounted on wall or bollard.

Specifications

NYX 190

Luminaire

NYX 190
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Black: RAL 9005, SN805G, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Shade	Frosted polycarbonate
Mounting	On wall or special pole, double cable entry
	Option for base for visible installation
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP66, class I or II
Impact resistance	IK10
Corrosion class	C4, C5 optional
Weight	2.6 kg

LED and driver data

LED type	2 x Bridgelux V6
Total consumption	6, 8, 11, or 15 W
Operational life	min 100,000 hours at ta max 25°C, L90B10
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	59%

Standard driver	LED driver, 20 W
	Dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 100,000 hours

Programmable driver	Xitanium Full Xi FP 22 W, 0.3-1.0 A
Inrush current	max 14 A (50% after 400 µs)
Dimming	5 steps dimming within the lumen intervals
Surge protection	L/N-GND: 8 kV, L-N. 6 kV
Operational life	min 100,000 hours

Variants and options

Item No.	Nyx 190
6889-	6 W Bridgelux V6, 250 mA
6841-	8 W Bridgelux V6, 350 mA
6842-	11 W Bridgelux V6, 500 mA
6888-	15 W Bridgelux V6, 700 mA

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
01 = raw anodized	927 = 2700 K, 90 Ra
3 = black RAL 9005	930 = 3000 K, 90 Ra
4 = graphite grey	940 = 4000 K, 90 Ra
9 = silver grey
17 = corten brown
66 = black noir 900

Dimming	Classification
empty = no dimming	empty = class I
V = 1-10 V	K = class II
D = Dali
E = programmable

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example Item No.: 6842-66930K = Nyx 190, 11 W LED for bollard mounting, noir 900, 3000 K, 90 Ra, without dimming, class II

Luminaire

NYX 190
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Black: RAL 9005, SN805G, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Shade	Frosted polycarbonate
Mounting	On wall or special pole, double cable entry
	Option for base for visible installation
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP66, class I or II
Impact resistance	IK10
Corrosion class	C4, C5 optional
Weight	2.6 kg

LED and driver data

LED type	Bridgelux Vero 8
Operational life	min 100,000 hours at ta max 25° C, L100B10
Total consumption	6, 8, 11 W
Colour temperature	2700, 3000, or 4000 Kelvin
Colour rendering	min 90 Ra
Colour accuracy	3 steps SDCM
Output ratio	57%

Driver	LED driver, 20 W
	Dimming optional
Inrush current	max 5 A (50% after 50 µs)
Operational life	min 100,000 hours

Variants and options

Item No.	Nyx 190
6877-	6 W Bridgelux Vero 8, 250 mA
6843-	8 W Bridgelux Vero 8, 350 mA
6844-	11 W Bridgelux Vero 8, 500 mA

Option
60228	Base for visible installation

Combine with

Select colour, colour temperature, etc. in the table below.

Colour	Colour temperature
01 = raw anodized	927 = 2700 K, 90 Ra
3 = black RAL 9005	930 = 3000 K, 90 Ra
4 = graphite grey	940 = 4000 K, 90 Ra
9 = silver grey
17 = corten brown
66 = black noir 900

Dimming	Classification
empty = no dimming	empty = class I
V = 1-10 V	K = class II
D = Dali

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example Item No.: 6843-9930 = Nyx 190 12 W LED for wall mounting, silver grey, 3000 K, 90 Ra, class I

Luminaire

NYX 190
Material	Cast aluminium
Finish	Raw anodized
	Graphite grey: YW355F, Akzo Nobel
	Silver grey: Y2370I, Akzo Nobel
	Black: RAL 9005, SN805G, Akzo Nobel
	Black: Noir 900 Sablé, SN351F, Akzo Nobel
	Corten brown: YX355F, Akzo Nobel
Shade	Frosted polycarbonate
Mounting	On wall or special pole, double cable entry
	Option for base for visible installation
Connection	Max two cables into 5 x 2.5 mm2 terminal block
Classification	IP66, class I or II
Impact resistance	IK10
Corrosion class	C4, C5 optional
Weight	2.6 kg

Lamp type

E27	max 57 W, max length 130 mm, max diameter 58 mm
	We recommend Deco Aurora LED dimmable, 7.5 W, 2700 K, 20,000 hours operation
Output ratio	39%

Variants and options

Item No.	Nyx 190
6022-	E27, max 57 W, max length 130 mm, max diameter 58 mm

Option
1100-6	A60 Deco Aurora LED dimmable, 7.5 W, 2700 K, 80 Ra, 20,000 hours operation
60228	Base for visible installation

Combine with

Select colour in the table below.

Colour	Classification
01 = raw anodized	empty = class I
3 = black RAL 9005	K = class II
4 = graphite grey
9 = silver grey
17 = corten brown
66 = black noir 900

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example Item No.: 6022-4 = Nyx 190 E27, graphite grey, class I

Media & downloads

Product information

Product data, Nyx BollardPDF Product data, Nyx 190 WallPDF Product data, Nyx 190 + bollardsPDF How many per fuse - recommendedPDF LED module for Nyx 190 bollardPDF LED module for Nyx 190 wall fixturePDF Mounting instructions Nyx 190 for bollardPDF Mounting instructions Nyx 190PDF RoHS DeclarationPDF Base for visible cablesPDF Mounting dimensionsPDF

3D files

Nyx bollardRFA Nyx bollard3DS Nyx bollardDWG Nyx 190 wallRFA Nyx 190 wallLCF Nyx 190 wall3DS Nyx 190 wallDWG

Photos

Product image, Nyx 190, graphite greyJPG Product image, Nyx 190, corten brownJPG Product image, Nyx 190, black noir 900JPG Product image, Nyx 190, silver greyJPG Nyx Bollard, CopenhagenPDF Nyx Bollard 1000, FavrholmPDF Nyx designs at KastanieparkenPDF

Photometric data

LED, bollard luminaire

LED 6 W, 2700 K, bollardLDT LED 6 W, 2700 K, bollardPDF LED 6 W, 3000 K, bollardLDT LED 6 W, 3000 K, bollardPDF LED 6 W, 4000 K, bollardLDT LED 6 W, 4000 K, bollardPDF LED 8 W, 2700 K, bollardLDT LED 8 W, 2700 K, bollardPDF LED 8 W, 3000 K, bollardLDT LED 8 W, 3000 K, bollardPDF LED 8 W, 4000 K, bollardLDT LED 8 W, 4000 K, bollardPDF LED 11 W, 2700 K, bollardLDT LED 11 W, 2700 K, bollardPDF LED 11 W, 3000 K, bollardLDT LED 11 W, 3000 K, bollardPDF LED 11 W, 4000 K, bollardLDT LED 11 W, 4000 K, bollardPDF LED 15 W, 2700 K, bollardLDT LED 15 W, 2700 K, bollardPDF LED 15 W, 3000 K, bollardLDT LED 15 W, 3000 K, bollardPDF LED 15 W, 4000 K, bollardLDT LED 15 W, 4000 K, bollardPDF

LED, wall luminaire

LED 6 W, 2700 K, for wallLDT LED 6 W, 2700 K, for wallPDF LED 6 W, 3000 K, for wallLDT LED 6 W, 3000 K, for wallPDF LED 6 W, 4000 K, for wallLDT LED 6 W, 4000 K, for wallPDF LED 8 W, 2700 K, for wallLDT LED 8 W, 2700 K, for wallPDF LED 8 W, 3000 K, for wallLDT LED 8 W, 3000 K, for wallPDF LED 8 W, 4000 K, for wallLDT LED 8 W, 4000 K, for wallPDF LED 11 W, 2700 K, for wallLDT LED 11 W, 2700 K, for wallPDF LED 11 W, 3000 K, for wallLDT LED 11 W, 3000 K, for wallPDF LED 11 W, 4000 K, for wallLDT LED 11 W, 4000 K, for wallPDF

All ldt files

LDT.zipZIP

Nyx 190 on wall - Favrholm, Hillerød

Umbraco.Cms.Core.Models.Link More photos from Favrholm

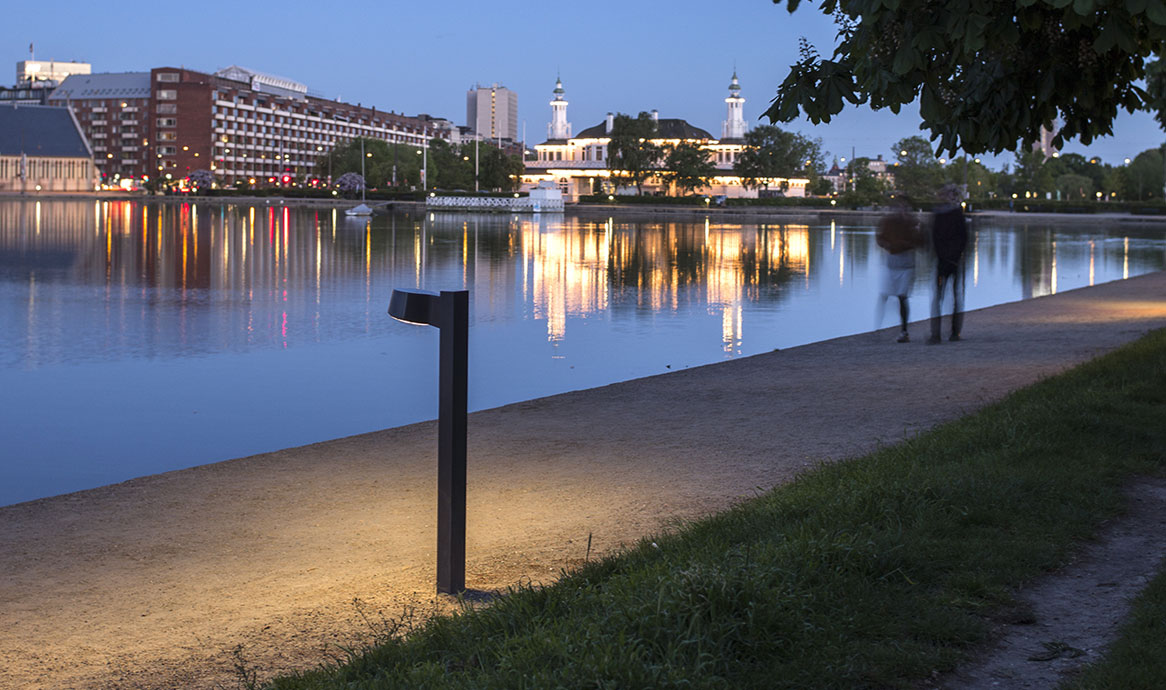

The Nyx Bollard makes it safe to walk along the lakes in Copenhagen.

Umbraco.Cms.Core.Models.Link More photos from Copenhagen

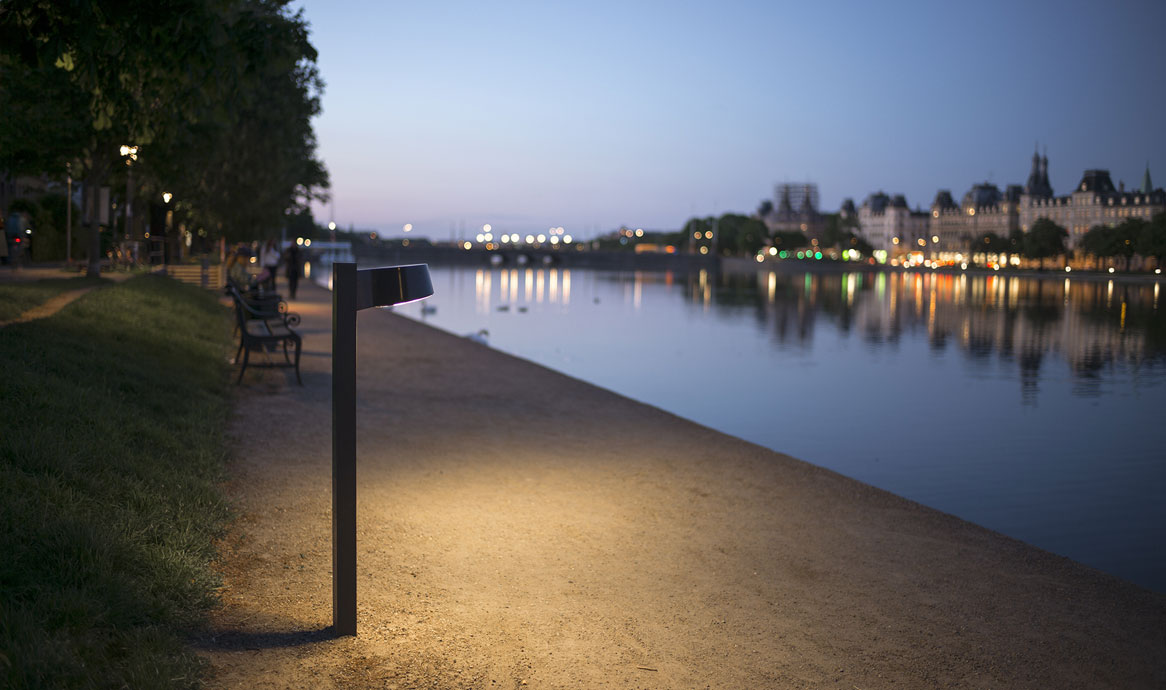

Nyx Bollards in Copenhagen grey illuminate the walking areas around the Copenhagen lakes without unwanted glare into the surrounding houses.

Umbraco.Cms.Core.Models.Link More Nyx in Copenhagen

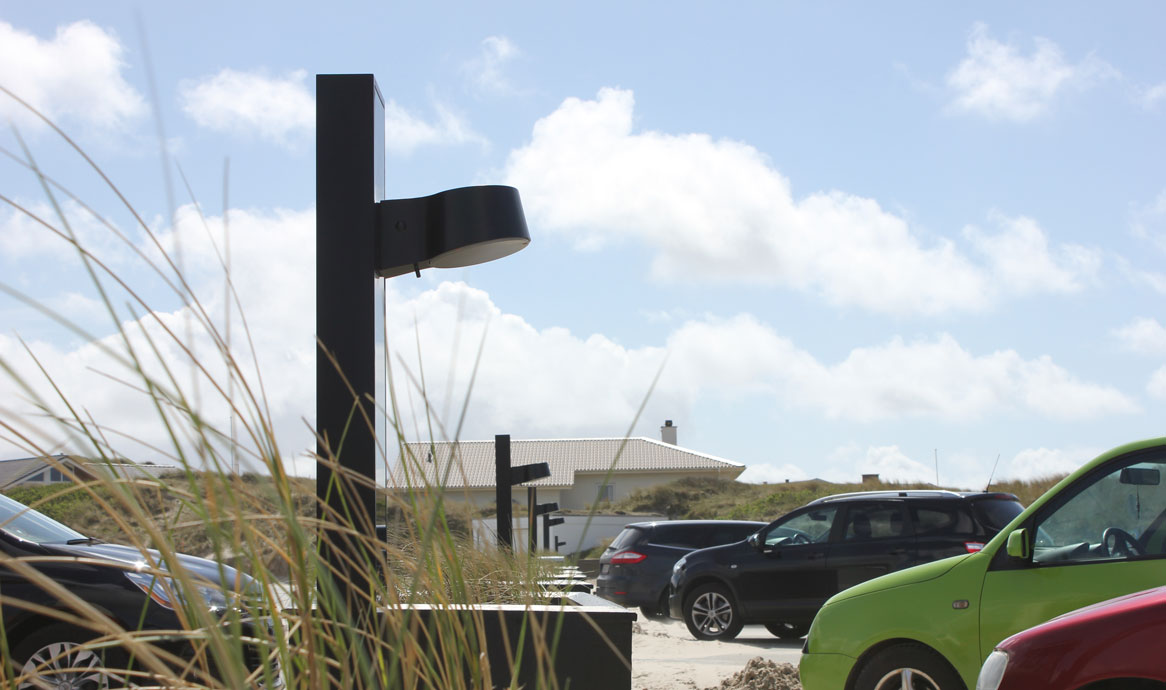

Nyx 190 at solar cell bollard - Henne Strand

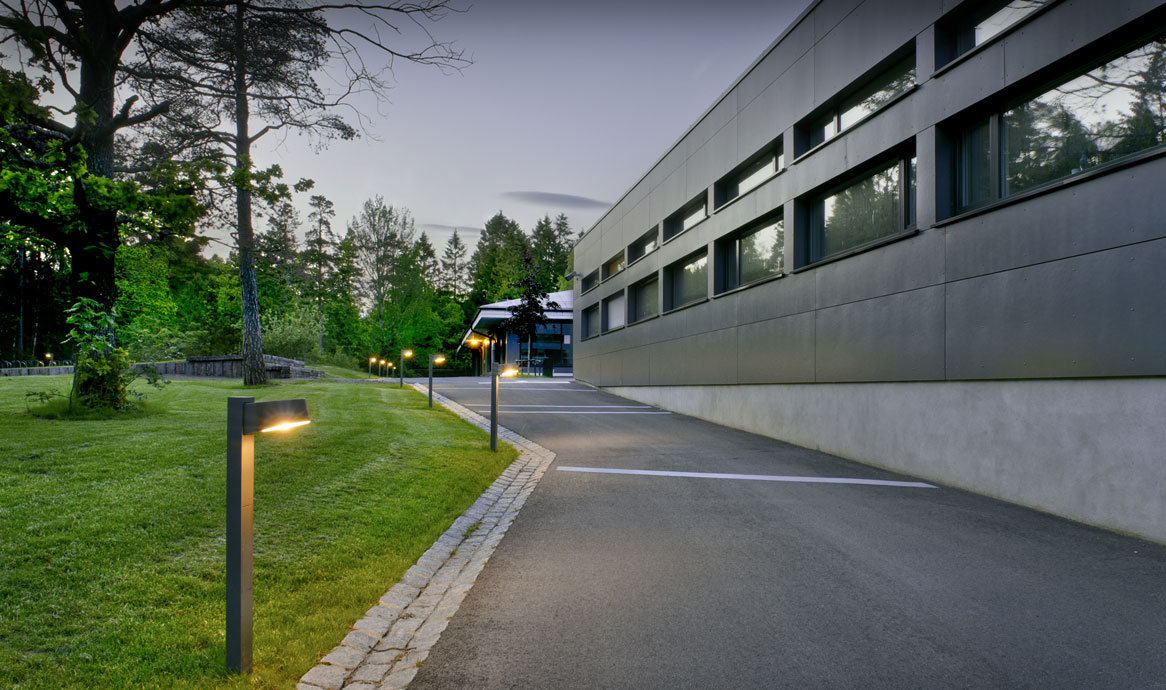

Nyx Bollard at college in Norway.

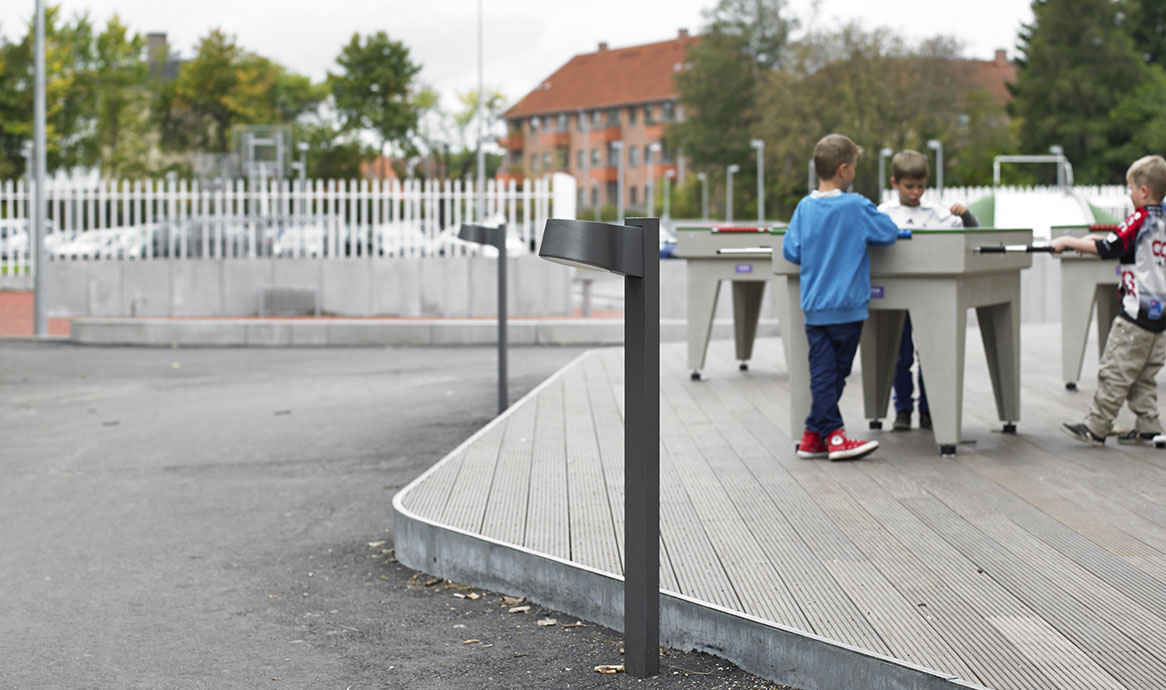

Nyx bollard 1000 - Bagsværd New School

Umbraco.Cms.Core.Models.Link More photos

Nyx 190 silver grey - Residences Kastanieparken Hillerød

Umbraco.Cms.Core.Models.Link More photos from Kastanieparken

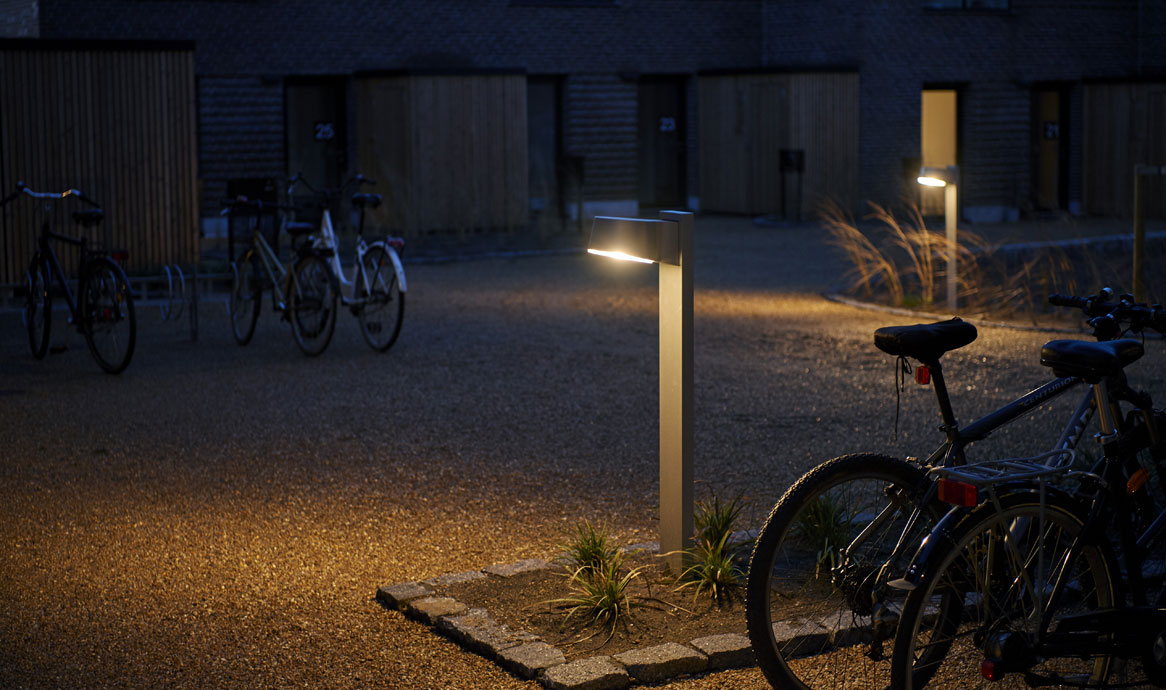

Masu Planning, landscape architects, have used the Nyx luminaires in the residence "Bjerglandsbyen" in the Copenhagen suburb Brønshøj; here the Nyx Bollard.

DesignVilhelm Lauritzen Architects

The story of Nyx begins in 2004 when Vilhelm Lauritzen Architects present the first draft for a wall fitting in two sizes. The design was simple, but characteristic and easily recognisable. Furthermore, Nyx differed from other luminaires of the time by the fact that it is cast in aluminium. Soon the series grew by lanterns and bollards, and especially the lanterns have shown great potential in street lighting.
