PEAK 380 post top

Please choose

Peak 380 is available in two different versions for vertical pole and horizontal arm, respectively. The same strong and characteristic design with optimized and simplified adaptions for pole/arm.

The Peak luminaires come with LED with different types of lenses.



Specifications

Peak 380 side entry

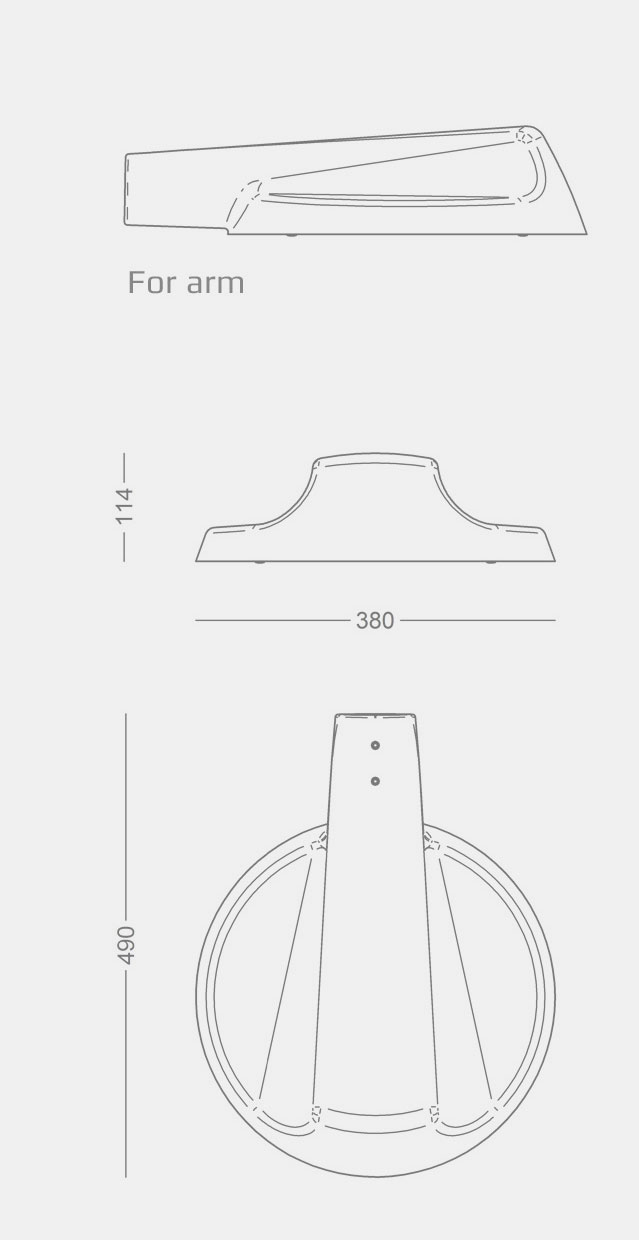

peak_arm_tekst

Luminaire

PEAK 380
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen 3 mm hardened glass
Mounting On Ø 60, 48, or 42 mm arm, entry depth 92 mm
Connection In the pole
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK09
Corrosion class C4, C5 optional
Weight 6-7 kg
Wind-sweeping area 0.05 m2 (laterally)

LED

LED with lenses FF-DA T3 for local roads, P, HS, and C classes, 1, 2, or 3 modules
Service life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, 80 Ra optional*
* Longer lead times with 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 1xFF, 70 Ra 3000K: 450-4500 lm
4000K: 475-4850 lm
LED-lumen, 1xFF, 80 Ra 2700K: 375-3800 lm
3000K: 400-4000 lm
4000K: 420-4250 lm
LED-lumen, 2xFF, 70 Ra 3000K: 875-9000 lm
4000K: 950-9700 lm
LED-lumen, 2xFF, 80 Ra 2700K: 725-7600 lm
3000K: 775-8000 lm
4000K: 825-8500 lm
LED-lumen, 3xFF, 70 Ra 3000K: 1310-13500 lm
4000K: 1420-14600 lm
LED-lumen, 3xFF, 80 Ra 2700K: 1100-11400 lm
3000K: 1175-12000 lm
4000K: 1250-12700 lm
Output ratio 93%
Luminous intensity class, 13201-2-2015 G*3
Glare index class D6

Driver

Driver 1xFF Xitanium Full Xi FP 40 W 0.2-0.7 A, programmable
Inrush current max 22 A (50% after 290 µs)

Driver 2xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)

Driver 3xFF Xitanium Full Xi FP 110 W 0.2-0.7 A, programmable
Inrush current max 47 A (50% after 250 µs)
Nominal voltage, AC 220-240 Vac
Operational input voltage, AC 80-264 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal input frequency 50-60 Hz
Operational input frequency 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV, (D4i 40 W driver: 8 kV)
L-N: 6 kV
Service life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Peak 380
8950- 1 x FF-DA T3, programmable, max 40 W
8951- 2 x FF-DA T3, programmable, max 75 W
8952- 3 x FF-DA T3, programmable, max 114 W

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Longer lead times

Mounting Dimming
T = post top empty = programmable
U = side entry D = DALI-2 (4/5-conductor cable)
G = mid-column Ø60 F = LineSwitch
G76 = mid-column Ø76 R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example Product Code: 8951-9730UJ = Peak 380 2xFF-DA T3, silver grey, 3000 K, 70 Ra, side entry, class I

peak_arm_tekst

Luminaire

PEAK 380
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen 3 mm hardened glass
Mounting On Ø 60, 48, or 42 mm arm, entry depth 92 mm
Connection In the pole
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK09
Corrosion class C4, C5 optional
Weight 6-7 kg
Wind-sweeping area 0.05 m2 (laterally)

LED

LED with lenses FF-DA MEW for traffic roads, M classes, 1, 2, or 3 modules
Service life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, 80 Ra optional*
* Longer lead times with 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 1xFF, 70 Ra 3000K: 450-4500 lm
4000K: 475-4850 lm
LED-lumen, 1xFF, 80 Ra 2700K: 375-3800 lm
3000K: 400-4000 lm
4000K: 420-4250 lm
LED-lumen, 2xFF, 70 Ra 3000K: 875-9000 lm
4000K: 950-9700 lm
LED-lumen, 2xFF, 80 Ra 2700K: 725-7600 lm
3000K: 775-8000 lm
4000K: 825-8500 lm
LED-lumen, 3xFF, 70 Ra 3000K: 1310-13500 lm
4000K: 1420-14600 lm
LED-lumen, 3xFF, 80 Ra 2700K: 1100-11400 lm
3000K: 1175-12000 lm
4000K: 1250-12700 lm
Output ratio 93%
Luminous intensity class, 13201-2-2015 G*6
Glare index class D6

Driver

Driver 1xFF Xitanium Full Xi FP 40 W 0.2-0.7 A, programmable
Inrush current max 22 A (50% after 290 µs)

Driver 2xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)

Driver 3xFF Xitanium Full Xi FP 110 W 0.2-0.7 A, programmable
Inrush current max 47 A (50% after 250 µs)
Nominal voltage, AC 220-240 Vac
Operational input voltage, AC 80-264 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal input frequency 50-60 Hz
Operational input frequency 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV, (D4i 40 W driver: 8 kV)
L-N: 6 kV
Service life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Peak 380
8970- 1 x FF-DA MEW, programmable, max 40 W
8971- 2 x FF-DA MEW, programmable, max 75 W
8973- 3 x FF-DA MEW, programmable, max 114 W

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Longer lead times

Mounting Dimming
T = post top empty = programmable
U = side entry D = DALI-2 (4/5-conductor cable)
G = mid-column Ø60 F = LineSwitch
G76 = mid-column Ø76 R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example Product Code: 8973-9740U = Peak 380 3xFF-DA MEW, silver grey, 4000 K, 70 Ra, side entry, class II

peak_arm_tekst

Luminaire

PEAK 380
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen 3 mm hardened glass
Mounting On Ø 60, 48, or 42 mm arm, entry depth 92 mm
Connection In the pole
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK09
Corrosion class C4, C5 optional
Weight 6-7 kg
Wind-sweeping area 0.05 m2 (laterally)

LED

LED with lenses FF-DA T4 for roundabouts, 1, 2, or 3 modules
Service life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, 80 Ra optional*
* Longer lead times with 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 1xFF, 70 Ra 3000K: 450-4500 lm
4000K: 475-4850 lm
LED-lumen, 1xFF, 80 Ra 2700K: 375-3800 lm
3000K: 400-4000 lm
4000K: 420-4250 lm
LED-lumen, 2xFF, 70 Ra 3000K: 875-9000 lm
4000K: 950-9700 lm
LED-lumen, 2xFF, 80 Ra 2700K: 725-7600 lm
3000K: 775-8000 lm
4000K: 825-8500 lm
LED-lumen, 3xFF, 70 Ra 3000K: 1310-13500 lm
4000K: 1420-14600 lm
LED-lumen, 3xFF, 80 Ra 2700K: 1100-11400 lm
3000K: 1175-12000 lm
4000K: 1250-12700 lm
Output ratio 92%
Luminous intensity class, 13201-2-2015 G*2
Glare index class D6

Driver

Driver 1xFF Xitanium Full Xi FP 40 W 0.2-0.7 A, programmable
Inrush current max 22 A (50% after 290 µs)

Driver 2xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)

Driver 3xFF Xitanium Full Xi FP 110 W 0.2-0.7 A, programmable
Inrush current max 47 A (50% after 250 µs)
Nominal voltage, AC 220-240 Vac
Operational input voltage, AC 80-264 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal input frequency 50-60 Hz
Operational input frequency 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV, (D4i 40 W driver: 8 kV)
L-N: 6 kV
Service life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Peak 380
8955- 1 x FF-DA T4, programmable, max 40 W
8956- 2 x FF-DA T4, programmable, max 75 W
8957- 3 x FF-DA T4, programmable, max 114 W

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Longer lead times

Mounting Dimming
T = post top empty = programmable
U = side entry D = DALI-2 (4/5-conductor cable)
G = mid-column Ø60 F = LineSwitch
G76 = mid-column Ø76 R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example Product Code: 8956-9730U = Peak 380 2xFF-DA T4, silver grey, 3000 K, 70 Ra, side entry, class II

peak_arm_tekst

Luminaire

PEAK 380
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Black: Noir 900 Sablé, SN351F, Akzo Nobel
Screen 3 mm hardened glass
Mounting On Ø 60, 48, or 42 mm arm, entry depth 92 mm
Connection In the pole
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK09
Corrosion class C4, C5 optional
Weight 6-7 kg
Wind-sweeping area 0.05 m2 (laterally)

LED

LED with lenses FF-DA PX for pedestrian crossings, 1, 2, or 3 modules
Service life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, 80 Ra optional*
* Longer lead times with 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 1xFF, 70 Ra 3000K: 450-4500 lm
4000K: 475-4850 lm
LED-lumen, 1xFF, 80 Ra 2700K: 375-3800 lm
3000K: 400-4000 lm
4000K: 420-4250 lm
LED-lumen, 2xFF, 70 Ra 3000K: 875-9000 lm
4000K: 950-9700 lm
LED-lumen, 2xFF, 80 Ra 2700K: 725-7600 lm
3000K: 775-8000 lm
4000K: 825-8500 lm
LED-lumen, 3xFF, 70 Ra 3000K: 1310-13500 lm
4000K: 1420-14600 lm
LED-lumen, 3xFF, 80 Ra 2700K: 1100-11400 lm
3000K: 1175-12000 lm
4000K: 1250-12700 lm
Output ratio 94%
Luminous intensity class, 13201-2-2015 G*6
Glare index class D6

Driver

Driver 1xFF Xitanium Full Xi FP 40 W 0.2-0.7 A, programmable
Inrush current max 22 A (50% after 290 µs)

Driver 2xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)

Driver 3xFF Xitanium Full Xi FP 110 W 0.2-0.7 A, programmable
Inrush current max 47 A (50% after 250 µs)
Nominal voltage, AC 220-240 Vac
Operational input voltage, AC 80-264 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal input frequency 50-60 Hz
Operational input frequency 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV, (D4i 40 W driver: 8 kV)
L-N: 6 kV
Service life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants and options

Item No. Peak 380
8980- 1 x FF-DA PX, programmable, max 40 W
8981- 2 x FF-DA PX, programmable, max 75 W
8982- 3 x FF-DA PX, programmable, max 114 W

Combine with

Select colour, colour temperature, etc. in the table below.

Colour Colour temperature
01 = raw anodized 730 = 3000 K, 70 Ra
4 = graphite grey 740 = 4000 K, 70 Ra
9 = silver grey 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Longer lead times

Mounting Dimming
T = post top empty = programmable
U = side entry D = DALI-2 (4/5-conductor cable)
G = mid-column Ø60 F = LineSwitch
G76 = mid-column Ø76 R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Protection class Corrosion class
empty = class II empty = C4
J = class I C5 = C5 coating (add C5 after the colour code)

Example Product Code: 8980-9730UJ = Peak 380 1xFF-DA PX, silver grey, 3000 K, 70 Ra, side entry, class I

Media & downloads

Photometric data

All ldt files

peak_kokkedal_2642_1166

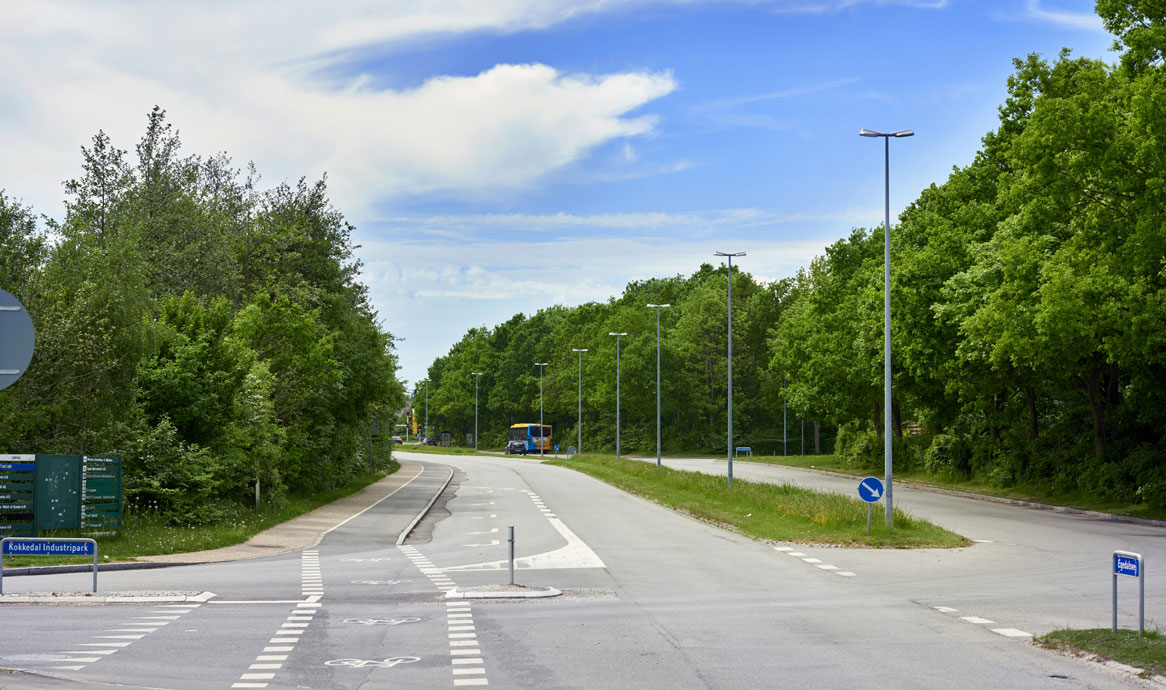

Peak 380 in the middle of the road, Egedalsvej, Fredensborg Kommune

peak_grafisk_2849_1166_

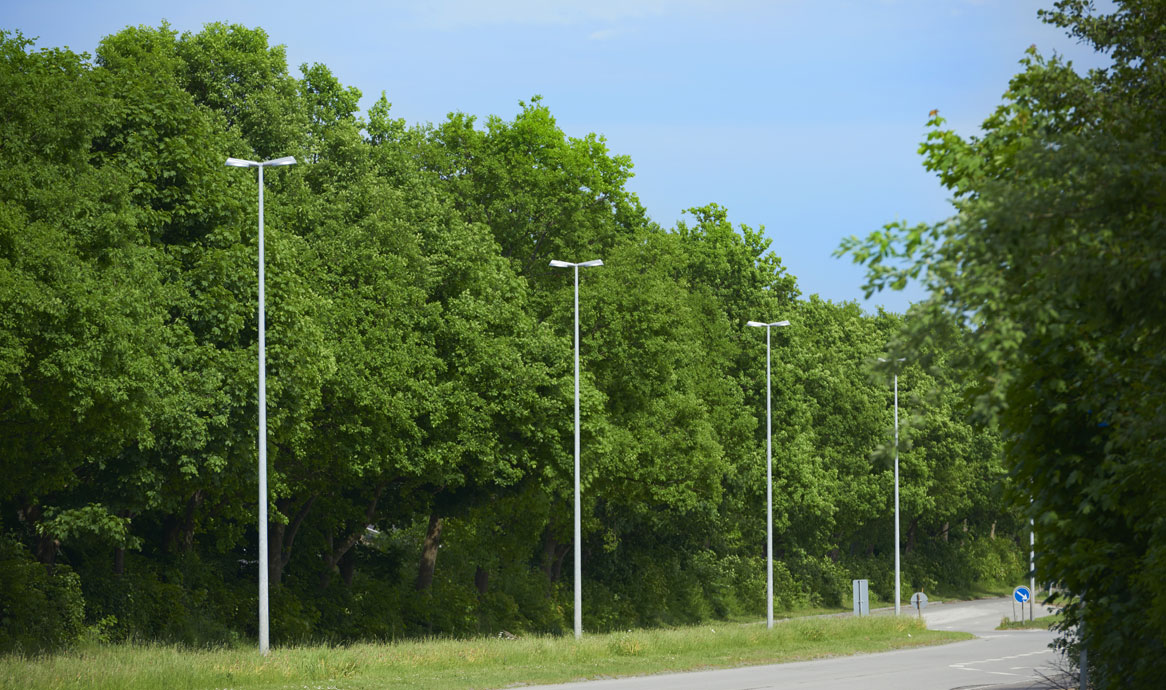

Peak 380 at Egedalsvej, Fredensborg Kommune

Umbraco.Cms.Core.Models.Link More photos from Kokkedal
peak_kokkedal_2616_1166

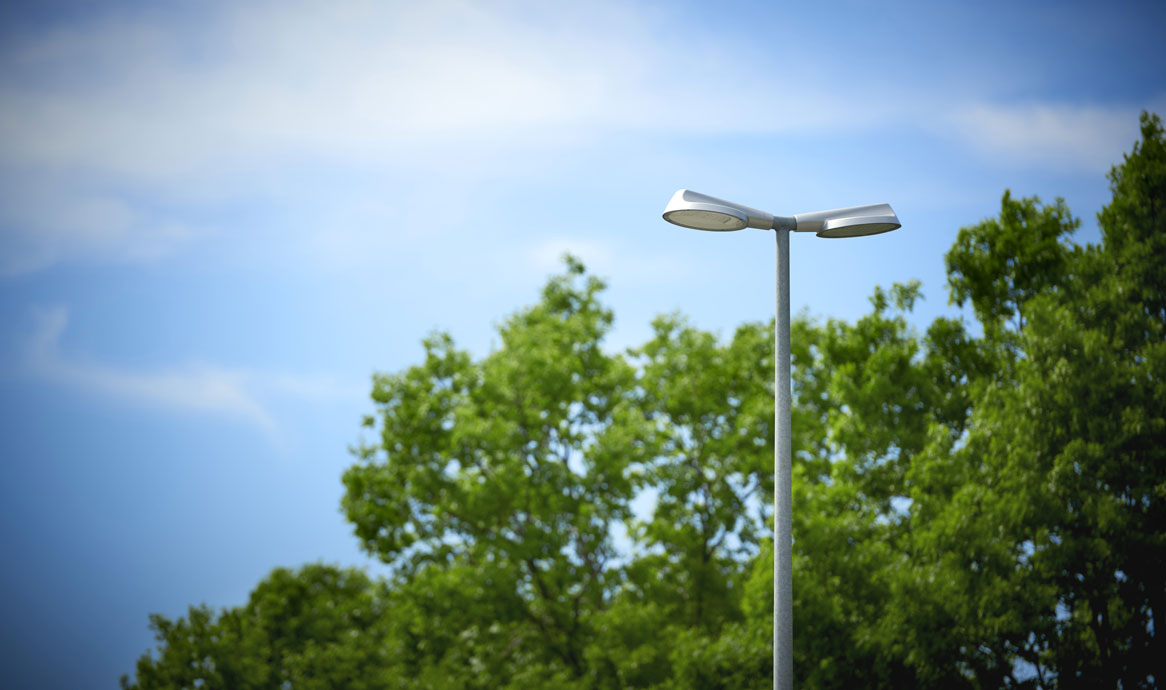

Peak 380 silver grey on standard galvanised pole.

Umbraco.Cms.Core.Models.Link More photos from Kokkedal
peak_arm_frederikssund_1_11

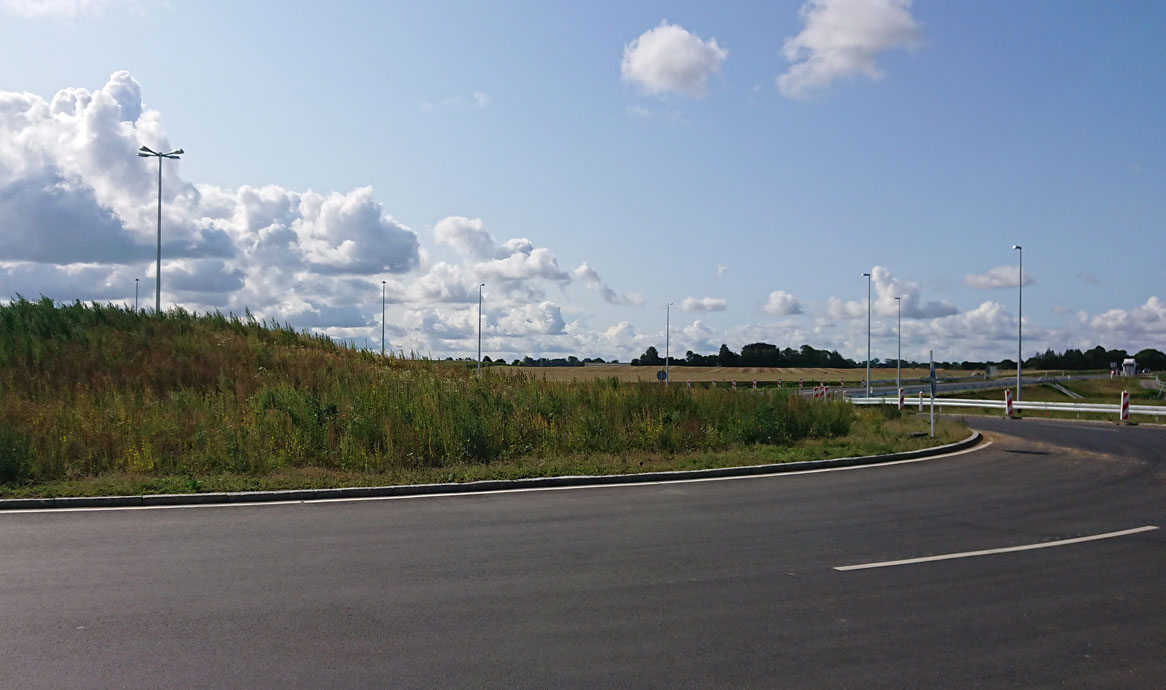

Peak for post top and for arm in roundabout leading to the new Kronprinsesse Mary's Bridge, Frederikssund

peak_frederikssund_2_1166

Peak for post top and for arm in roundabout leading to the new Kronprinsesse Mary's Bridge, Frederikssund

peak_arm_herlev_jz_1166

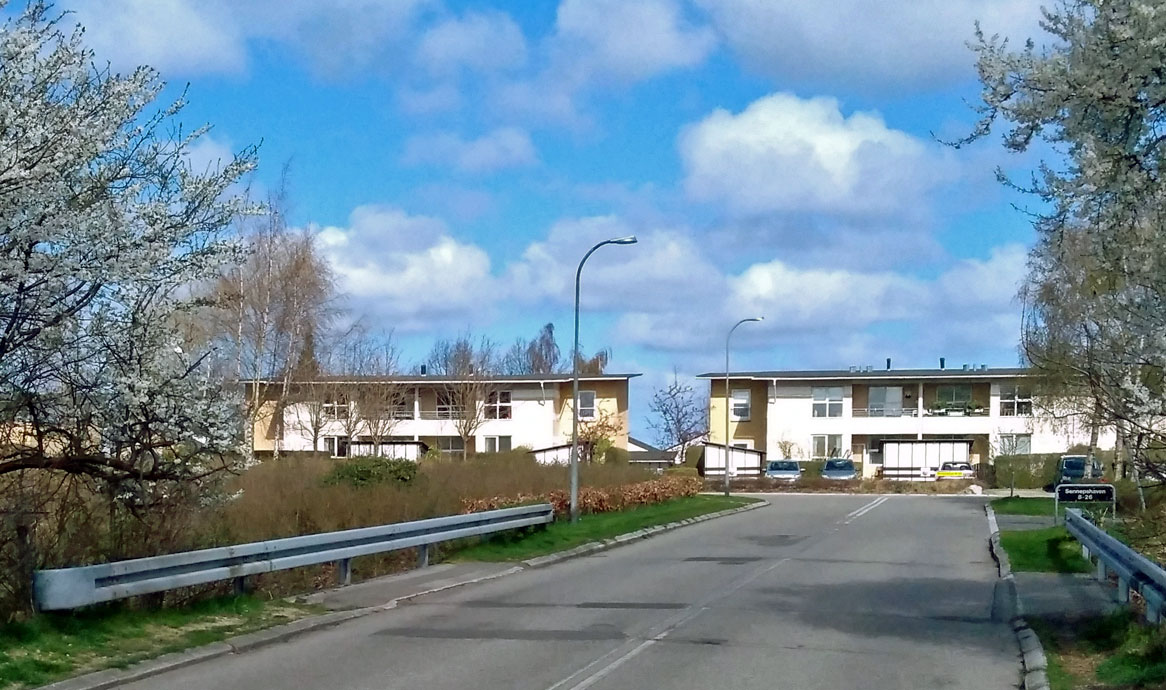

Peak 380 for side entry, Ø60 mm, height 5.5 metres

Umbraco.Cms.Core.Models.Link More projects
peak_arm_naestved_jz_1166

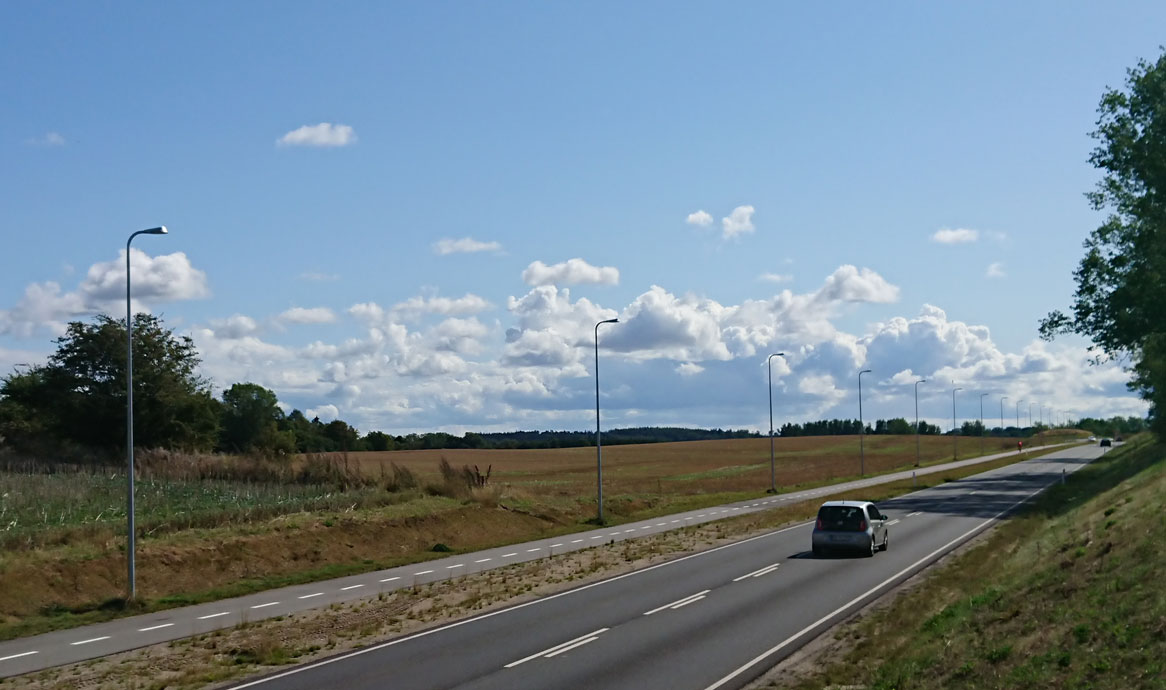

Peak 380, silver grey, side entry, Næstved Kommune

peak_karlslunde_nat_1166

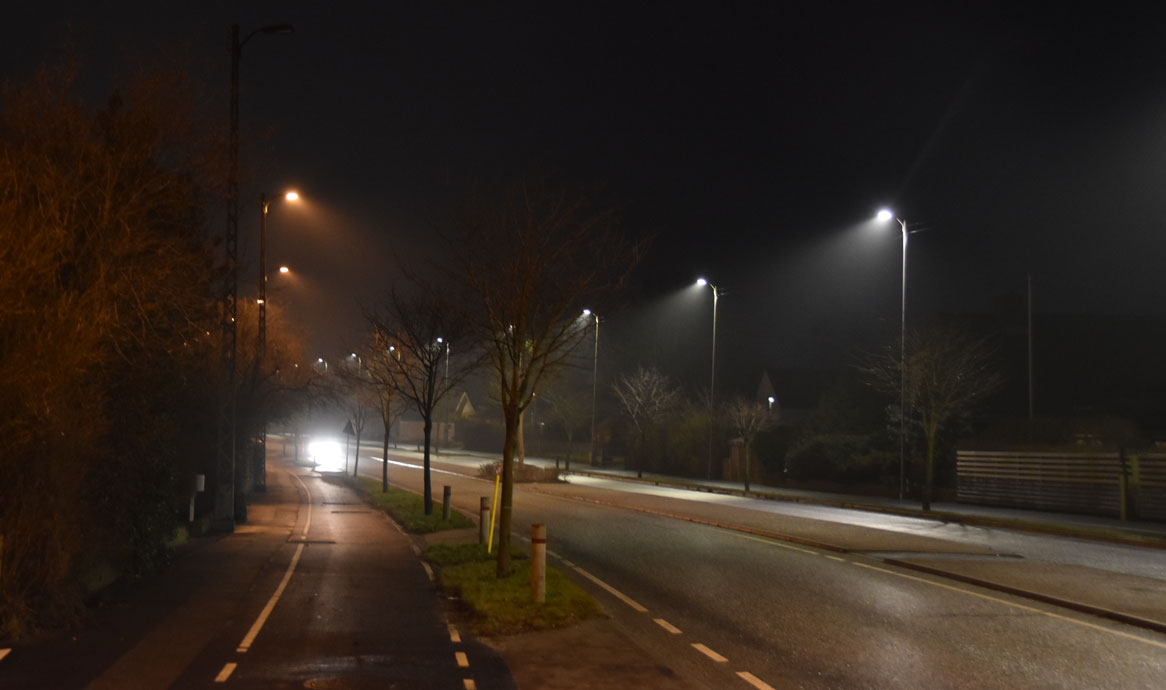

Peak 380, side entry

DesignAART Designers

Peak consists of two main shapes: a circular disc and a rectangular upper part. This structure results in a sturdy functionality and density as well as the best LED cooling. To facilitate the interaction between form and function, the main shapes join into elegant lines. By means of the circular, illuminated disc, Peak reveals a discrete and classic expression, and the curved transition from disc to upper part is new and adds a modern touch.

The minimalist expression and construction continues into the future handling, mounting and service of the luminaire. AART Designers have designed two variants for mounting on vertical pole and horizontal arm, respectively. The same strong and characteristic design with optimized and simplified adaptions for pole/arm adjusted to market standards and demands.

More on AART Designers here.
