WAY is a versatile street luminaire to be mounted on arm or wire.

Like the other AART designs, WAY is modern lines in a classic form - a Nordic design that will suit streets and urban space in any city in the world.

The unique shade offers optical guidance and reduces discomfort glare to a minimum.

Specifications

WAY side entry

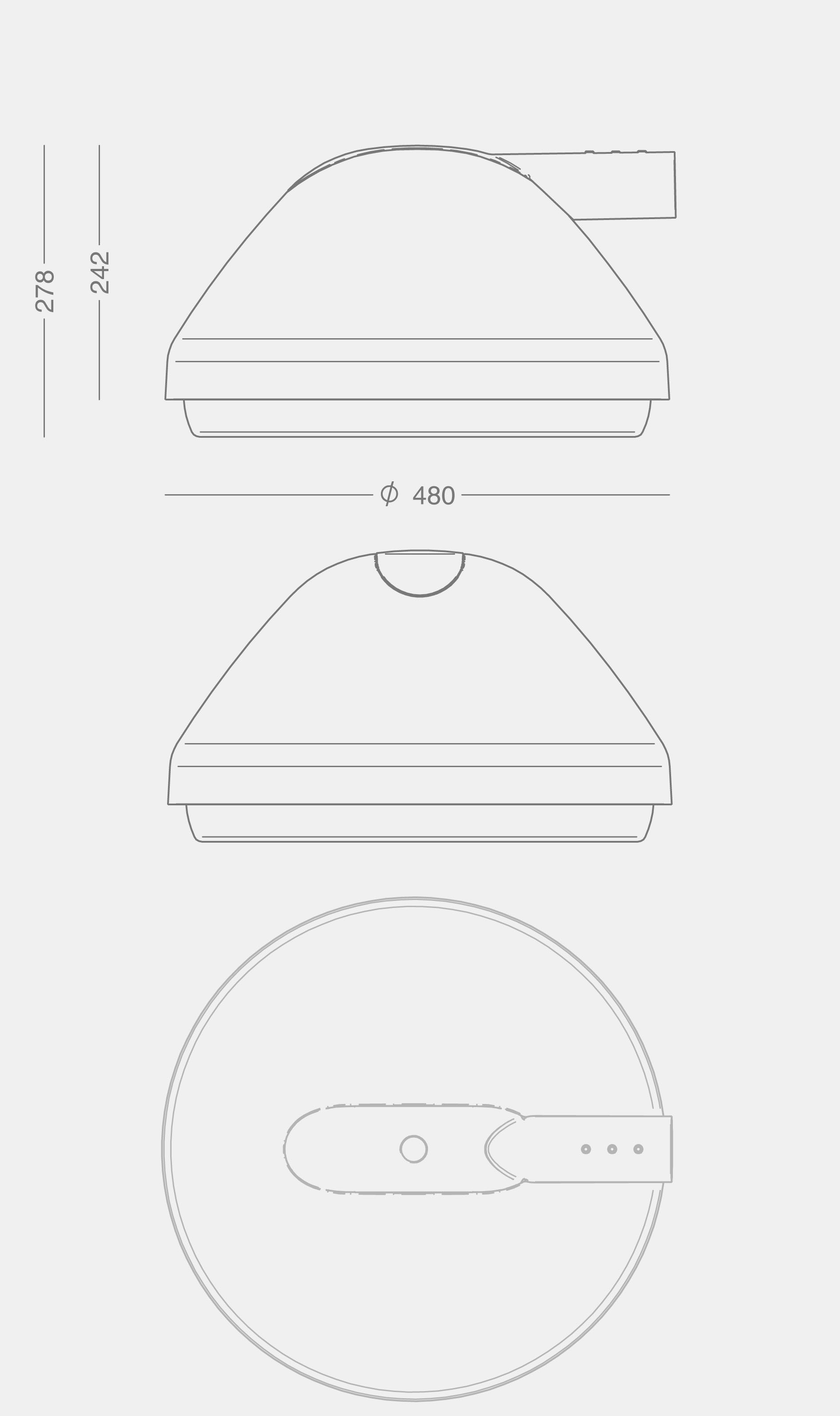

way_sideentry16_f0

Luminaire

WAY side entry
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting Side entry, Ø 48 or Ø 60 mm
Connection In the post
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with T3 lenses for local roads, P, HS, and C classes
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 1750-18000 lm
4000K: 1900-19450 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1500-15200 lm
3000K: 1550-16000 lm
4000K: 1650-16950 lm
Output ratio 84%
Luminous intensity class,13201-2 2015 G*4

Driver

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac
Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants

Item No. Way side entry, Ø 48 mm
9810- 3 x FF-DA T3, programmable, max 84 W
9812- 4 x FF-DA T3, programmable, max 150 W

Item No. Way side entry, Ø 60 mm
9870- 3 x FF-DA T3, programmable, max 84 W
9872- 4 x FF-DA T3, programmable, max 150 W

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
4 = graphite grey 730 = 3000 K, 70 Ra
9 = silver grey 740 = 4000 K, 70 Ra
17 = corten brown 830* = 3000 K, 80 Ra
66 = noir 900 827* = 2700 K, 80 Ra
840* = 4000 K, 80 Ra
* Note: Longer lead times

Dimming/control Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example product code: 9810-9730 = Way side entry, 3xFF-DA T3 lenses, silver grey, 3000 K, 70 Ra, class II

way_sideentry16_f0

Luminaire

WAY side entry
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting Side entry, Ø 48 or Ø 60 mm
Connection In the post
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with MEW lenses for traffic roads
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 1750-18000 lm
4000K: 1900-19450 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1500-15200 lm
3000K: 1550-16000 lm
4000K: 1650-16950 lm
Output ratio 84%
Luminous intensity class,13201-2 2015 G*6

Driver

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac
Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants

Item No. Way side entry, Ø 48 mm
9815- 3 x FF-DA MEW, programmable, max 84 W
9816- 4 x FF-DA MEW, programmable, max 150 W

Item No. Way side entry, Ø 60 mm
9875- 3 x FF-DA MEW, programmable, max 84 W
9876- 4 x FF-DA MEW, programmable, max 150 W

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
4 = graphite grey 730 = 3000 K, 70 Ra
9 = silver grey 740 = 4000 K, 70 Ra
17 = corten brown 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Note: Longer lead times

Dimming/control Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example product code: 9816-9740 = Way side entry, 4xFF-DA MEW lenses, silver grey, 4000 K, 70 Ra, class II

way_sideentry16_f0

Luminaire

WAY side entry
Material Cast aluminium
Finsih Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting Side entry, Ø 48 or Ø 60 mm
Connection In the post
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with T4 lenses for roundabouts
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 1750-18000 lm
4000K: 1900-19450 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1500-15200 lm
3000K: 1550-16000 lm
4000K: 1650-16950 lm
Output ratio 81%
Luminous intensity class,13201-2 2015 G*4

Driver

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac
Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants

Item No. Way side entry, Ø 48 mm
9813- 3 x FF-DA T4, programmable, max 84 W
9814- 4 x FF-DA T4, programmable, max 150 W

Item. No. Way side entry, Ø 60 mm
9873- 3 x FF-DA T4, programmable, max 84 W
9874- 4 x FF-DA T4, programmable, max 150 W

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
4 = graphite grey 730 = 3000 K, 70 Ra
9 = silver grey 740 = 4000 K, 70 Ra
17 = corten brown 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Note: Longer lead times

Dimming/control Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example product code: 9813-9730J = Way side entry, 3xFF-DA T4 lenses, silver grey, 3000 K, 70 Ra, class I

way_sideentry16_f0

Luminaire

WAY side entry
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge
Mounting Side entry, Ø 48 or Ø 60 mm
Connection In the post
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED with lenses 3xFF-DA 2x6 or 4xFF-DA 2x8 with PX lenses for crossings
Operational life min 100,000 hours at ta max 25° C, L100B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 2700, 3000, or 4000 Kelvin
Colour rendering min 70, typically 75 Ra, option for 80 Ra*
* Note: Longer lead times for 80 Ra
Colour accuracy 5 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 3xFF, 70 Ra 3000K: 980-10100 lm
4000K: 1060-10900 lm
LED-lumen, 3xFF, 80 Ra 2700K: 830-8550 lm
3000K: 875-9000 lm
4000K: 925-9550 lm
LED-lumen, 4xFF, 70 Ra 3000K: 1750-18000 lm
4000K: 1900-19450 lm
LED-lumen, 4xFF, 80 Ra 2700K: 1500-15200 lm
3000K: 1550-16000 lm
4000K: 1650-16950 lm
Output ratio 83%
Luminous intensity class,13201-2 2015 G*6

Driver

Driver 3xFF Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)
Operational input voltage, AC 80-264 Vac

Driver 4xFF Xitanium Full Xi FP 165 W 0.3-1.0 A, programmable
Inrush current max 41 A (50% after 440 µs)
Operational input voltage, AC 160-264 Vac
Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants

Item No. Way side entry, Ø 48 mm
9817- 3 x FF-DA PX, programmable, max 84 W
9818- 4 x FF-DA PX, programmable, max 150 W

Item No. Way side entry, Ø 60 mm
9877- 3 x FF-DA PX, programmable, max 84 W
9878- 4 x FF-DA PX, programmable, max 150 W

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
4 = graphite grey 730 = 3000 K, 70 Ra
9 = silver grey 740 = 4000 K, 70 Ra
17 = corten brown 827* = 2700 K, 80 Ra
66 = noir 900 830* = 3000 K, 80 Ra
840* = 4000 K, 80 Ra
* Note: Longer lead times

Dimming/control Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example product code: 9817-9730J = Way side entry, 3xFF-DA PX lenses, silver grey, 3000 K, 70 Ra, class I

way_sideentry16_f0

Luminaire

WAY Park
Material Cast aluminium
Finish Raw anodized
Graphite grey: YW355F, Akzo Nobel
Silver grey: Y2370I, Akzo Nobel
Corten brown: YX355F, Akzo Nobel
Black: Noir 900 Sablé, SN315F, Akzo Nobel
Shade Clear, impact resistant PMMA with frosted edge and an inlay diffuser screen
Mounting Side entry, Ø 48 or Ø 60 mm
Connection In the post
Delivered with 10.5 m lead, 2 x 1 mm2
Classification IP66, class II; use code for class I
Impact resistance IK08
Corrosion class C4, C5 optional
Weight max 11 kg
Wind-sweeping area 0.11 m2 (laterally)

LED

LED circular Ø240, 64 diodes
Operational life min 100,000 hours at ta max 25° C, L80B10
Constant lumen output
Temperature range -30 to +35° C
Colour temperature 3000 or 4000 Kelvin
Colour rendering min 80 Ra
Colour accuracy 4 steps SDCM
Luminous flux The luminous flux range quoted below is from the LED light source. Apply output ratio to calculate luminous flux out of the luminaire.
LED-lumen, 80 Ra 3000K: 850-6700 lm
4000K: 900-7150 lm
Output ratio 78%
Luminous intensity class,13201-2 2015 G*6

Driver

Driver Xitanium Full Xi FP 75 W 0.2-0.7 A, programmable
Inrush current max 46 A (50% after 250 µs)

Operational input voltage, AC 80-264 Vac
Nominal voltage, AC 220-240 Vac
Nominal voltage, DC 186-250 Vdc
Operational input voltage, DC 168-275 Vdc
Nominal frequency range 50-60 Hz
Operational frequency range 45-66 Hz
Max pre-protection 16 A
Surge protection L/N-GND: 10 kV
L-N: 6 kV
Operational life min 100,000 hours
Dimming/control 5 steps dimming within the lumen intervals
Other control options DALI-2, LineSwitch or
via Zhaga book 18 socket, D4i

Variants

Item No. Way Park, side entry, Ø 48 mm
9808- Ø240, Low lumen, programmable

Item No. Way Park, side entry, Ø 60 mm
9908- Ø240, Low lumen, programmable

Combine with

Select colour, colour temperature etc. in the table.

Colour Colour temperature
4 = graphite grey 830 = 3000 K, 80 Ra
9 = silver grey 840 = 4000 K, 80 Ra
17 = corten brown
66 = noir 900

Dimming/control Protection class
empty = programmable empty = class II
D = DALI-2 (4/5-conductor cable) J = class I
F = LineSwitch
R = Zhaga book 18 socket, upwards
RC = Zhaga book 18 socket, City Touch / Interact City
S = Zhaga book 18 socket, downwards

Corrosion class
empty = C4
C5 = C5 coating (add C5 after the colour code)

Example product code: 9808-66830J = Way Park Ø48 entry, circular LED, black noir 900, 3000 K, 80 Ra, class I

Media & downloads

Photometric data

All ldt files

way_odense_2_1166

Way silver grey, 7.5 m pole, Holluf in Odense Kommune

way_odense_1166

Way silver grey, 7.5 m pole, Holluf in Odense Kommune

way_varde_1_1166

Way side entry, 5.3 m height, graphite grey, Storegade, Varde Kommune

way_varde_2_1166

Way side entry, 5.3 m height, graphite grey, Storegade, Varde Kommune

way_varde_4_1166

Way side entry, 5.3 m height, graphite grey, Storegade, Varde Kommune

wayside_close_day_1166

Both side and top entry versions are used in Helmond, Netherlands. They are equipped with Zhaga socket for Smart City communication.

Umbraco.Cms.Core.Models.Link More photos from Helmond
wayside_x3_close_5635_1166

Way in Helmond, Netherlands. Both side and top entry versions are used; all with Zhaga socket for Smart City communication.

Umbraco.Cms.Core.Models.Link More photos from Helmond
way_side_547a2747_1166

Way along cycling lane, Groningen, Netherlands. City Touch sensor on top.

Umbraco.Cms.Core.Models.Link More images from Groningen
way_side_547a2758_1166

Way with City Touch control, Groningen, Netherlands

Umbraco.Cms.Core.Models.Link More images from Groningen
way_side_547a2754_1166

Way along cycling lane, Groningen, Netherlands

Umbraco.Cms.Core.Models.Link More images from Groningen
way_side_547a2666_1166

Way along cycling lane, Groningen, Netherlands

Umbraco.Cms.Core.Models.Link More images from Groningen
wayside_oss_5424_1166

Way, graphite grey, 3000 K, 6 meter pole, Oss, Netherlands

wayside_oss_5428_1166

Way, graphite grey, 3000 K, 6 meter pole, Oss, Netherlands

wayside_viby_1166

Way silver grey, double, Parkvej, Viby Sj.

way_sideentry_jyllinge_1166

Way side entry, Jyllinge Parkvej

way_sideentry_roskilde_1166

Way side entry, 6 m pole, silver grey, Roskilde Kommune

skive_way-side-entry_1166

Way side entry, 9 m high, Rosenbakken, Skive

way_frederikssund_1166

Way side entry, Kronprins Frederiksbro, Frederikssund

way_frederiksd_dueld_1166

Way at the Frederikssund bridge "Kronprins Frederik". Photo: Jacques Duelund Mortensen, Mangor & Nagel, Plan+Landskab

way_hoorn_7376_1166

Way at Hoorn, Netherlands

Umbraco.Cms.Core.Models.Link More images from Hoorn
way_hoorn_7397_1166

Way at Hoorn, Netherlands

way_hoorn_7413_1166

Way at Hoorn, Netherlands

way_hoorn7_1166

Way at Hoorn, Netherlands

DesignAART Designers

WAY is a flexible luminaire for side or top entry. It is designed the Nordic way to avoid light pollution and glaring.

WAY is made of only two components - the housing and the shade, and by very few, simple add-ons it can be mounted on arm or wire.

The shade is parallel to the ground but has a protuberant, frosted edge, which will enhance optical guidance. A visually glowing element with anti-glare function offers the friendly optical guidance on our way – driving or walking – literally “Showing the WAY”.

More on AART Designers here.
